USB digital microscope with LCD display. Magnification: 20x, 200x, 500x. Digital camera: 5Mpx

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
20 — 500
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability

Product ID 76773
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 2400000044956
Package size (LxWxH) 7.9x5.5x13 in
Shipping Weight 3.1 lb
Description

Special price! Further discounts or special offers cannot be applied in this case.

Exhibition copy.

This product looks lightly used.
Otherwise, the product is fully functional.

Exhibition copies cannot be exchanged or returned for a refund.

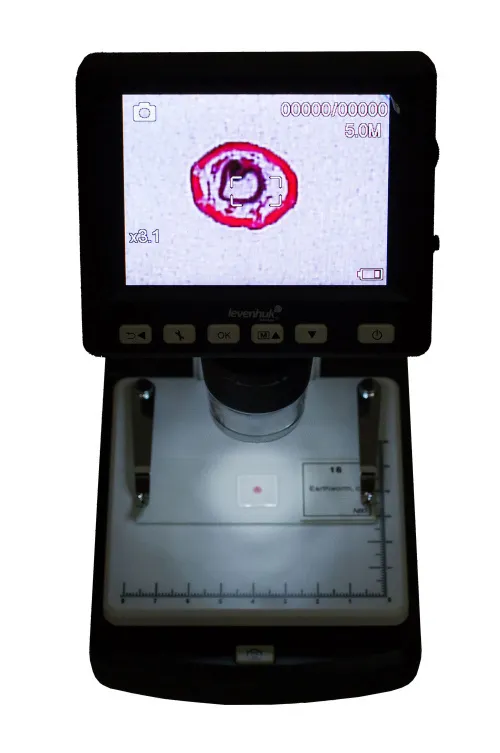

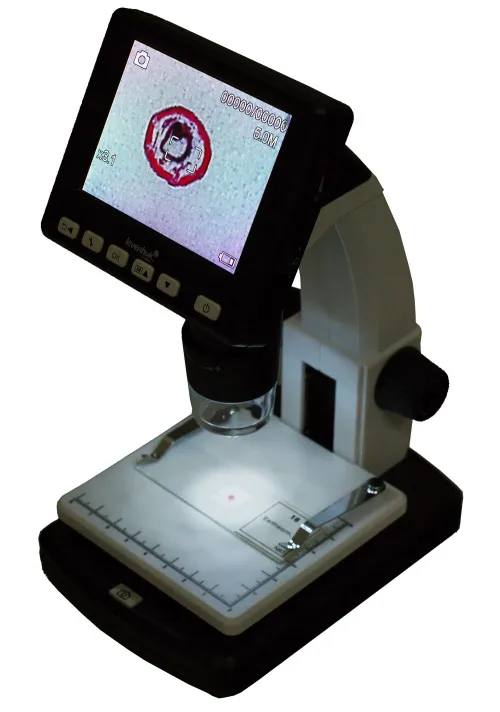

Levenhuk DTX 500 LCD Digital Microscope with built-in 3.5-inch LCD display allows you to study samples under magnification of 20x to 500x and save results of your work in image or video format to a microSD card. 8 built-in LED lights evenly light the working surface and ensure minimal energy consumption. The illumination system also features a brightness adjustment.

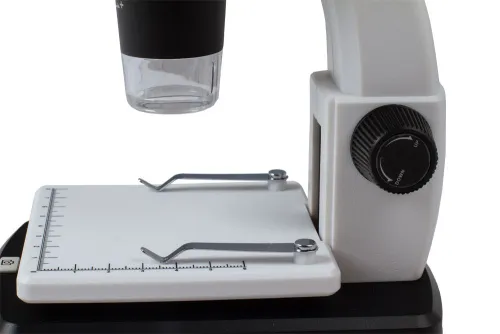

The stage of this microscope is equipped with a measuring scale (8 cm along the x-axis, 6 cm along the y-axis) and two clips to secure the sample under the camera.

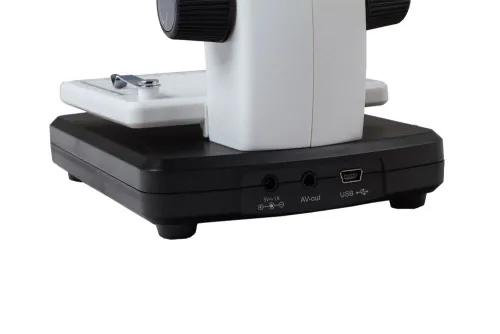

The high-quality LCD panel provides crystal-clear images and has buttons that allow you to quickly change brightness, exposure and color balance. You can easily connect the Levenhuk DTX 500 LCD to your PC using the USB cable included in the kit and copy all the files created during your observations to your hard drive. This amazing model also features an AV output to transfer observed images to a TV screen or projector in real time.

Levenhuk DTX 500 LCD Digital Microscope is powered by the Li-ion battery included in the kit, which provides for up to 2 hours of standalone work. The microscope may also be powered via the USB port of your PC.

Features:

  • 3.5" color LCD display
  • Support of microSD cards with capacity up to 32 Gb
  • PC connection via USB 2.0 interface
  • AV output for connecting to TV or projector
  • Able to take photos/videos
  • Automatic exposure and white balance
  • 8 white LEDs with adjustable brightness
  • 4x digital zoom
  • Li-ion rechargeable battery
  • Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
  • Сompatible with Windows and Mac OS

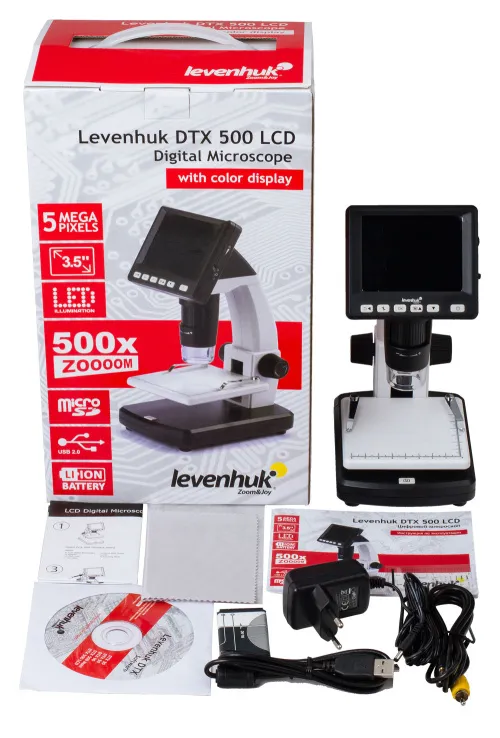

The kit includes:

  • Levenhuk DTX 500 LCD Microscope
  • Adapter*
  • Li-ion rechargeable battery
  • USB cable
  • AV cable
  • Cleaning wipe
  • Calibrating scale
  • Software CD
  • User manual and lifetime warranty

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Levenhuk DTX 500 LCD Digital Microscope is not compatible with external digital cameras.

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

specifications
Product ID 76773
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 2400000044956
Package size (LxWxH) 7.9x5.5x13 in
Shipping Weight 3.1 lb
Type portable, digital
Head digital screen/PC monitor
Optics material optical glass
Nozzle 3.5" color LCD screen (fixed)
Magnification, x 20 — 500
Focus manual, 0–150mm
Illumination LED
Brightness adjustment
Power supply 100–240V, 50/60Hz (US type plug adapter is not included); 5V, 1A outlet

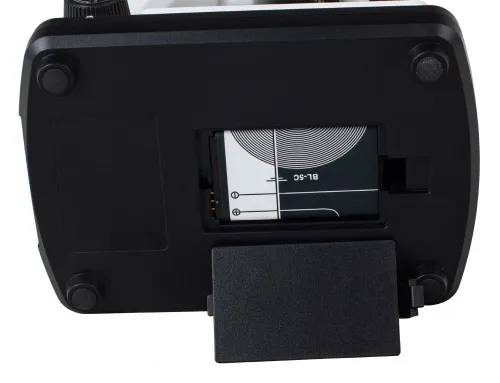

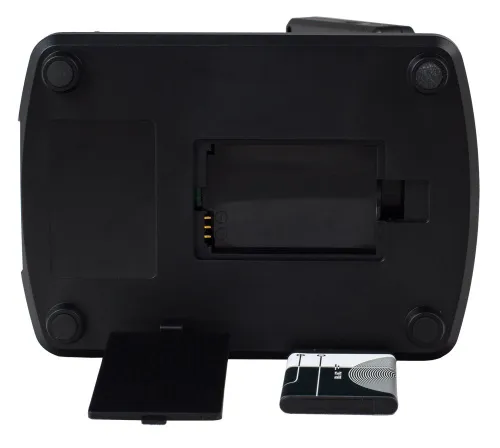

Power supply: batteries/built-in battery Li-ion battery 3.7V/1050mAh; operating time: 2 hours, charging time: 2 hours
Ability to connect additional equipment supports microSD memory cards up to 32GB (not included)
Image *.jpeg
Application for applied research
Illumination location upper
Research method bright field
Maximum resolution 12MP, 8MP, 5MP, 3MP, 1.3MP, VGA
Megapixels 5
Megapixels 5 (with interpolation up to 12)
Video recording yes
Video format *.avi
Frame rate 30 frames per second
Software, drivers photo and video capture and processing software with measurement function
Output USB 2.0
System requirements OS Windows 7/8/10, Mac 10.6 ~ 10.10; 1.8GHz Intel P4 and above, 512MB RAM, 64MB video card, USB 2.0, CD-ROM
