UA Levenhuk ERGO 30 Digital Magnifier
Magnification: 5/6/8/10x Screen size: 2.8" LED illumination: white (top and side) and ultraviolet
| Product ID | 86555 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555028118 |
| Package size (LxWxH) | 20x11x7 in |
| Shipping Weight | 0.42 lb |

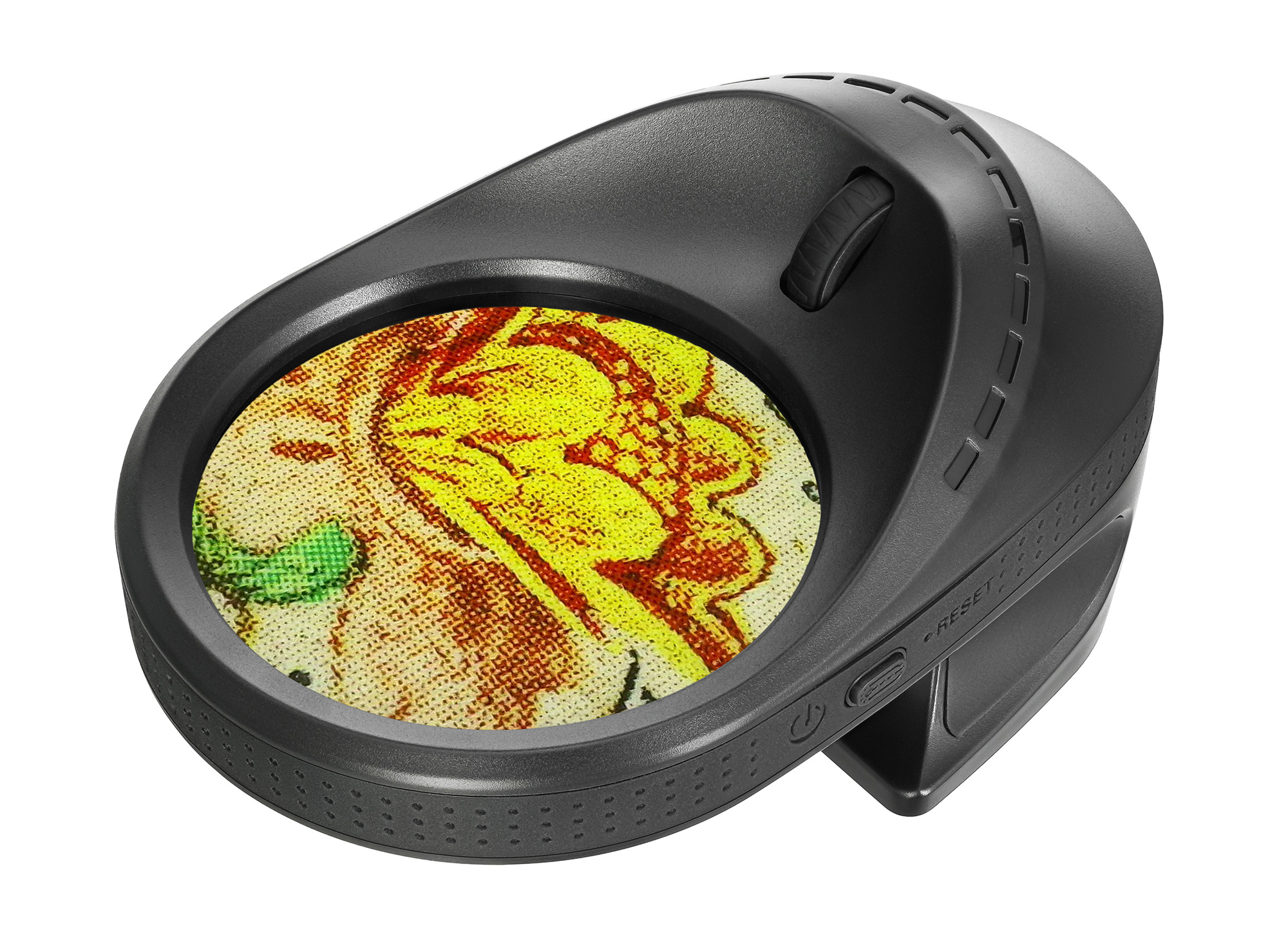

The Levenhuk ERGO 30 is a desktop digital magnifier featuring an ergonomic design that resembles a computer mouse. The device is designed for extended comfortable use and is suitable for detailed image analysis, photo and video capture, and displaying images on a large screen.
2.8" color display, advanced illumination, photo and video capture

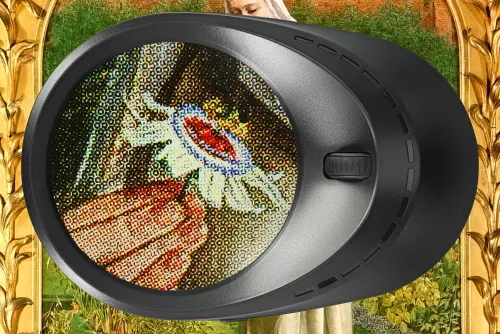

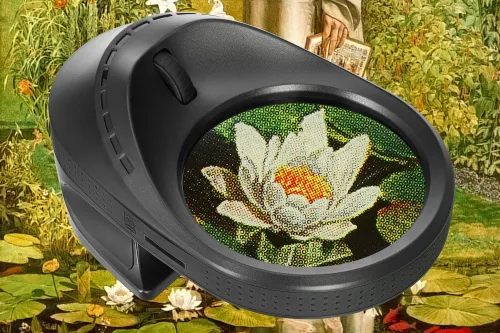

The magnifier combines optical and digital zoom and provides four magnification levels: one optical (5x) and three digital (6x, 8x, and 10x). The large 2.8" color display provides a clear, bright image with excellent color reproduction.

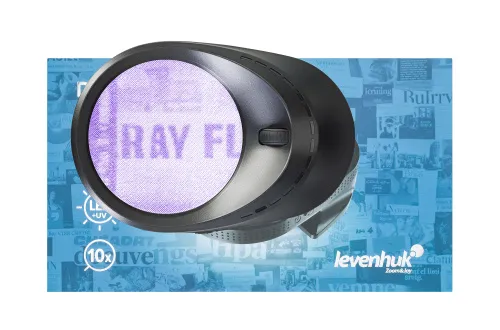

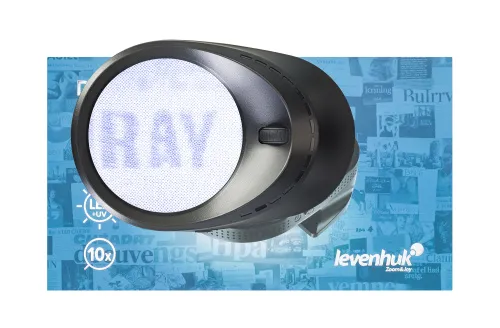

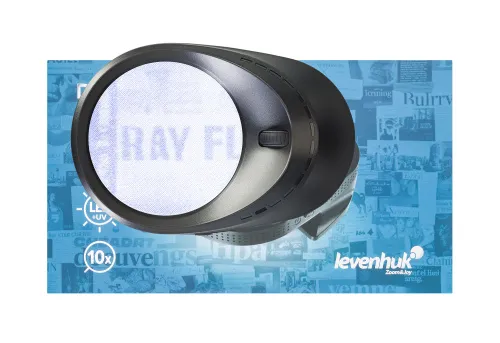

The advanced illumination system includes 3 white and 4 UV top LEDs to illuminate the observed object as well as 3 side LEDs to create perfect contrast. The brightness of all the LEDs is adjustable from 20% to 100%.
The magnifier allows you to take photos and record videos, making it ideal for capturing dynamic processes or creating instructions. Data is saved to a microSD card (sold separately) and can be easily transferred to a computer using a card reader (not included).
Connection to an external monitor, long battery life
The ERGO 30 magnifier can be used to display images on a computer screen: Using a USB cable, the device connects to a PC and transforms into a stationary system for group work. The device is powered by a built-in lithium-ion battery, which provides up to 2.5 hours of battery life. If the device is idle for more than 10 minutes, the auto-off function activates. The high-strength plastic housing is resistant to damage from drops and other mechanical impacts.
Key features:
- Fixed-focus desktop digital magnifier
- Four magnifications: 5x, 6x, 8x, and 10x
- Large 2.8" color display for a crisp and clear image

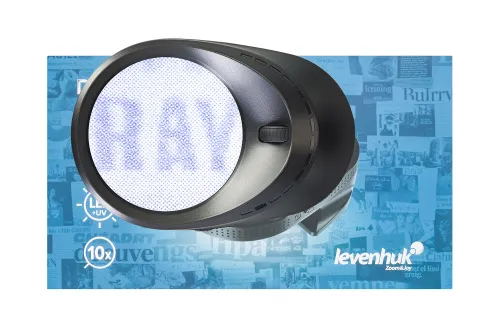

- Upper illumination with two operating modes: white or UV light
- Additional side illumination for optimal lighting and contrast
- Photo and video capture, saving data to a memory card, displaying images on an external screen
- Up to 2.5 hours of operation from the built-in battery
- Auto-off function to save battery power when idle

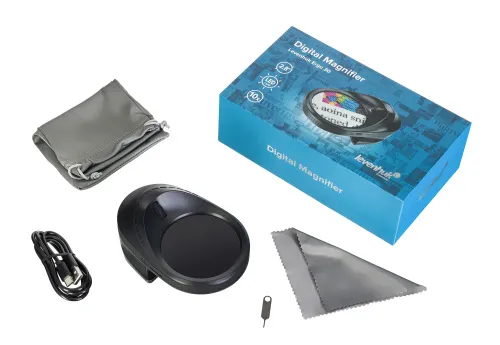

The kit includes:
- Digital magnifier
- USB Type-C cable
- Cleaning cloth
- Pouch
- Reset pin
- User manual and warranty card
| Product ID | 86555 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555028118 |
| Package size (LxWxH) | 20x11x7 in |
| Shipping Weight | 0.42 lb |
| Digital | ✓ |
| Magnification, x | 5/6/8/10 |
| Display | LCD, color |
| Display diagonal, inch | 2.8 |
| Display resolution, px | 480x480 |
| Focal length, in | 1.1 |
| Field of view, ° | 45 |
| Body | high-strength ABS plastic |
| Lighting is available | ✓ |
| Illumination | LED, UV |
| Number of LEDs | 7 white LEDs, 4 UV LEDs |
| Brightness adjustment | ✓ |
| ✓ | |
| Image format | *.jpg |
| Video recording | ✓ |
| Video format | *.avi |
| Memory | microSD card up to 64 GB (not included) |
| Ability to connect additional equipment | to a computer via a USB cable (for transferring files and displaying images on a monitor) |
| Power supply | built-in 3.7V, 1100mAh lithium-ion battery, charging via a 5V 1A AC adapter (not included) and a USB Type-C cable (included) |
| Auto power off | 10 min |
| Battery life, h | 2.5 |
| Charging time | 1.5 hours |
| Charge indicator | ✓ |
| Application | reading/viewing, watch repair/jewelry |
| Design | tabletop/on a tripod |
| Pouch/case/bag in set | pouch |
| Additional | 3 illumination modes, brightness adjustment from 20% to 100%, date setting, photo and video capture |
| Operating temperature range, °F | +32…+104 |
| Storage temperature range,°F | -4 — 104 |
