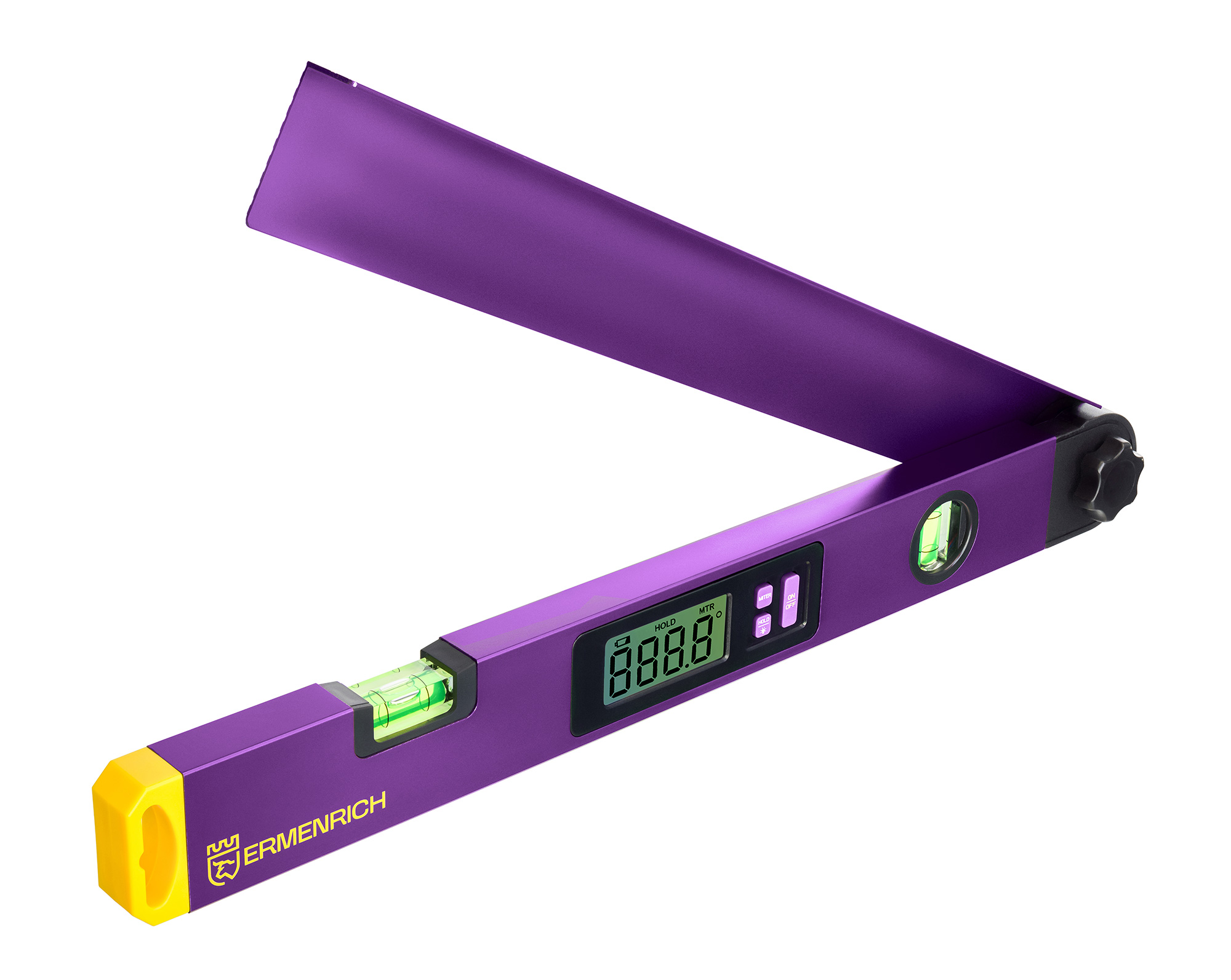

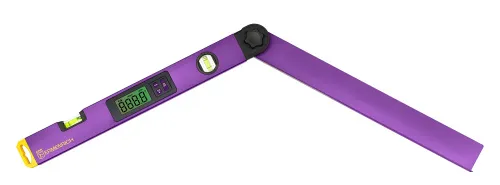

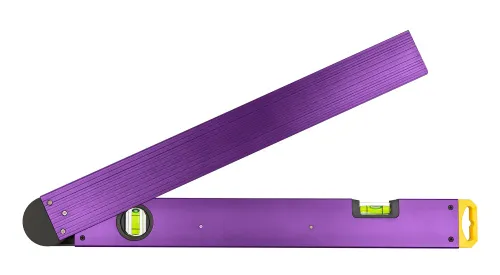

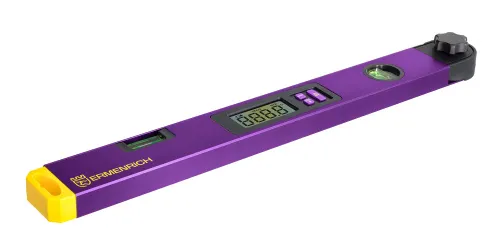

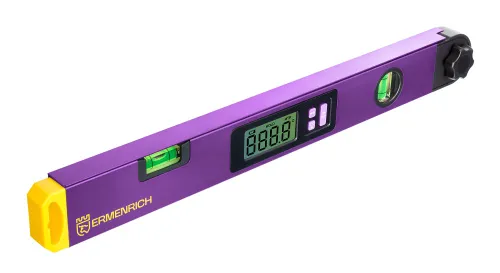

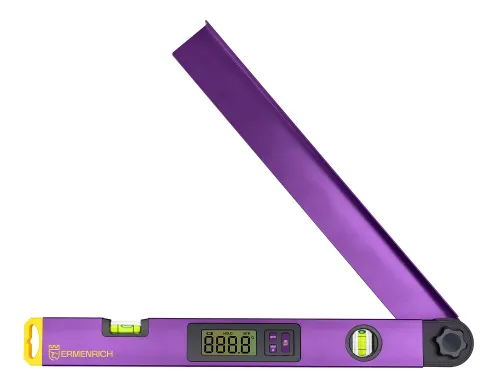

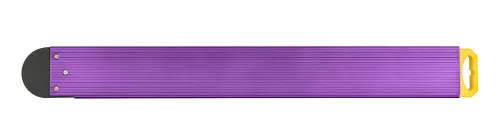

Ermenrich Verk DA40 Digital Angle Finder

±0.5°
Accuracy: maximum error size
0–230°
The angle range – the distance over which the device can accurately measure angles
450
The length of the angle finder affects its application and measuring range
Availability

Product ID 83830
Brand Ermenrich
Warranty 5 years
EAN 5905555021430
Package size (LxWxH) 18.5x2.8x1.6 in
Shipping Weight 1.1 lb
Description

The Ermenrich Verk DA40 Digital Angle Finder is a practical tool that can serve for a variety of construction and repair tasks. It comes in handy whenever you need to measure angles between surfaces accurately. In addition, there is a miter mode for making the right cut, which can be activated by pressing a button. In this mode, the measured angle is converted into the miter angle, which will later on be used for working with the miter saws. Therefore, the angle finder is an essential tool for cutting long pieces of wood and composite materials.

The working range of the device is 0–230°, and the measurements are displayed on the built-in LCD screen. Ermenrich Verk DA40, complete with two bubble levels, is made of aluminum and high-strength ABS-plastic. The device is shockproof and will last a long time. The calibration is automatic, there are functions to "freeze" the measurements and to set them to zero. The angle finder is powered by a standard 9-volt battery. The auto-off function helps to save the charge.

Key features:

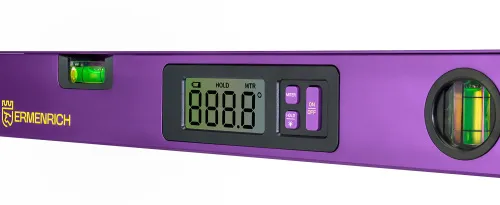

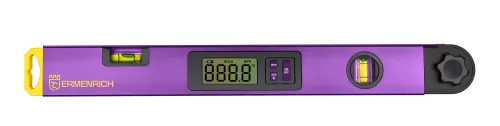

  • Digital angle finder with LCD screen and two bubble levels
  • Hold function, miter angle calculation, set zero function
  • Rugged body made of high-strength plastic and aluminum
  • Powered by batteries, auto-off after 5 minutes of inactivity
specifications
Product ID 83830
Brand Ermenrich
Warranty 5 years
EAN 5905555021430
Package size (LxWxH) 18.5x2.8x1.6 in
Shipping Weight 1.1 lb
Type of angle finder digital
Accuracy ±0.5°
Units of measurement degrees
Working range 0–230°
Miter cut calculation
LCD screen yes
Measurement resolution 0.01°
Calibration automatic
Hold function
Zero set function

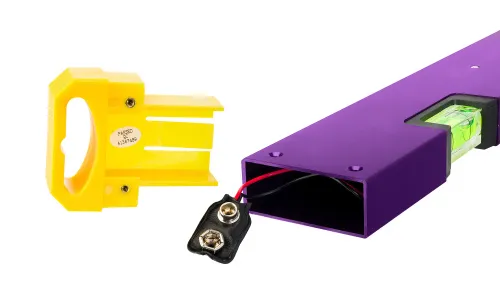

Power supply 9V battery (not included)
Auto power off 5 min
Body aluminum, high-strength ABS plastic
Operating temperature range, °F 32...+122
Length, mm 450
Additional built-in bubble level – 2 pcs.
