Magnetic base. For measuring angles of slope. Units of measurement: degrees, percent, mm/m, in/ft

Digital, bubble
Level type by application and design
±0.1° at 0° and 90°, the rest – ±0.2°
Accuracy: the errors in measuring long distances are extremely critical
0.05°
Resolution is the smallest change in value that can be detected and displayed by the device
Availability

Product ID 81740
Brand Ermenrich
Warranty 5 years
EAN 5905555021393
Package size (LxWxH) 2x41.3x3.1 cm
Shipping Weight 3 kg
Description

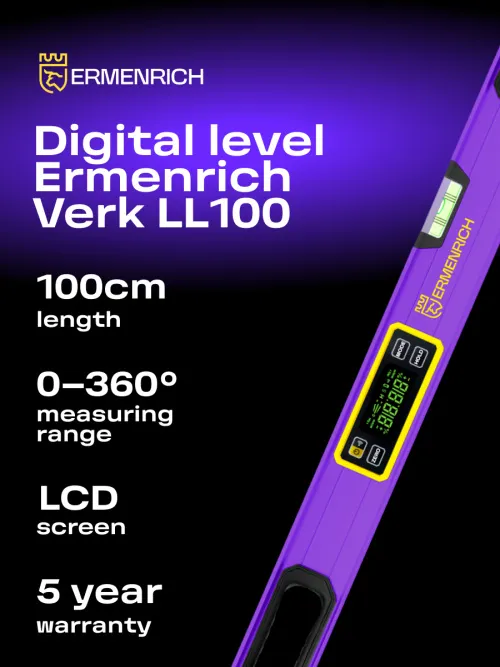

The Ermenrich Verk LL100 is a digital level that combines the functionality of an angle meter, a bubble level, and a plumb. This tool is suitable for a wide range of construction and repair work, machine and equipment assembly work, placing workpieces on machine tables and machining center modules, and leveling work surfaces. It can measure angles and convert into various units of measurement. The device has many useful features (a hold function, a zero set function, etc.), but at the same time, it is simple to use and suitable for household applications.

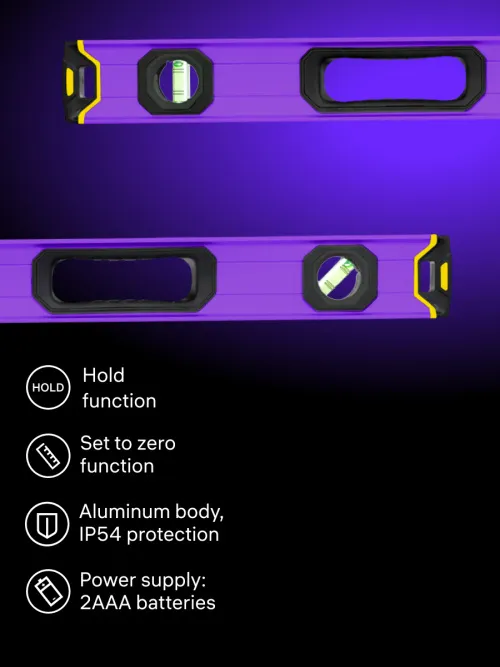

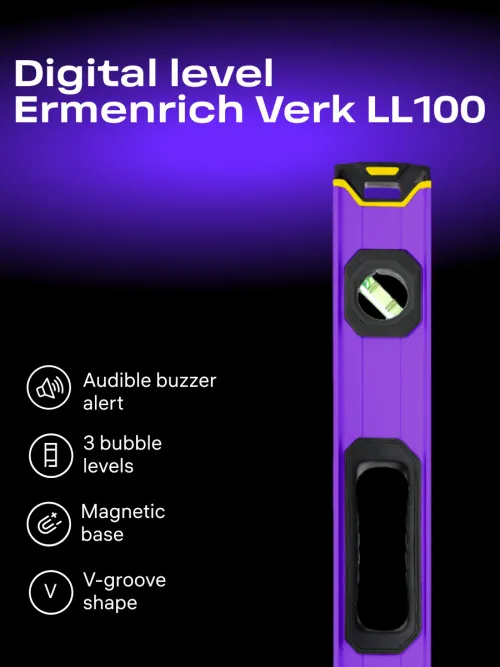

The readings are displayed on the LCD screen, and there are 3 bubble vials. The measurement accuracy is ±0.1° at the horizontal or vertical position and ±0.2° for the rest. The IP54 water and dust protection rating is suitable for construction site conditions or a production facility. There is a magnetic base and a V-Groove for the easy positioning of the device, and there are two cutout carrying handles. The device is powered by two AAA batteries.

Key features:

  • Angle measurements in the range of 0–360° (4x90°), the length – 1 meter (3.3ft)
  • Aluminum body is dust-and moisture-proof, there is a magnetic base
  • Powered by batteries, auto-off activates when inactive
  • Has 3 bubble vials and can serve as a bubble level
specifications
Product ID 81740
Brand Ermenrich
Warranty 5 years
EAN 5905555021393
Package size (LxWxH) 2x41.3x3.1 cm
Shipping Weight 3 kg
Level type digital, bubble
Accuracy ±0.1° at 0° and 90°, the rest – ±0.2°
Units of measurement mm, m, ft, in, degrees, percent
Measuring range, ft 0 — 1181.2
LCD screen yes
Maximum resolution 0.05°
Calibration manual
Hold function
Zero set function
Magnetic base
V-Groove
Power supply 2 AAA batteries, 1.5V (not included)
Visual fault locator (VFL)
Auto power off 3 min
IP water and dustproof rating IP54, partially dustproof, splashproof
Body aluminum, thermoplastic rubber
Operating temperature range, °F 32...+104
Length, mm 1000
Additional audible buzzer alert , built-in bubble level – 3 pcs.
