Magnetic base. For measuring angles of slope. Units of measurement: degrees

Digital
Level type by application and design
±0.1° at 0° and 90°, the rest – ±0.2°
Accuracy: the errors in measuring long distances are extremely critical
0.01°
Resolution is the smallest change in value that can be detected and displayed by the device
Availability

Product ID 81736
Brand Ermenrich
Warranty 5 years
EAN 5905555003153
Package size (LxWxH) 2x3.5x3.1 in
Shipping Weight 0.2 lb
Description

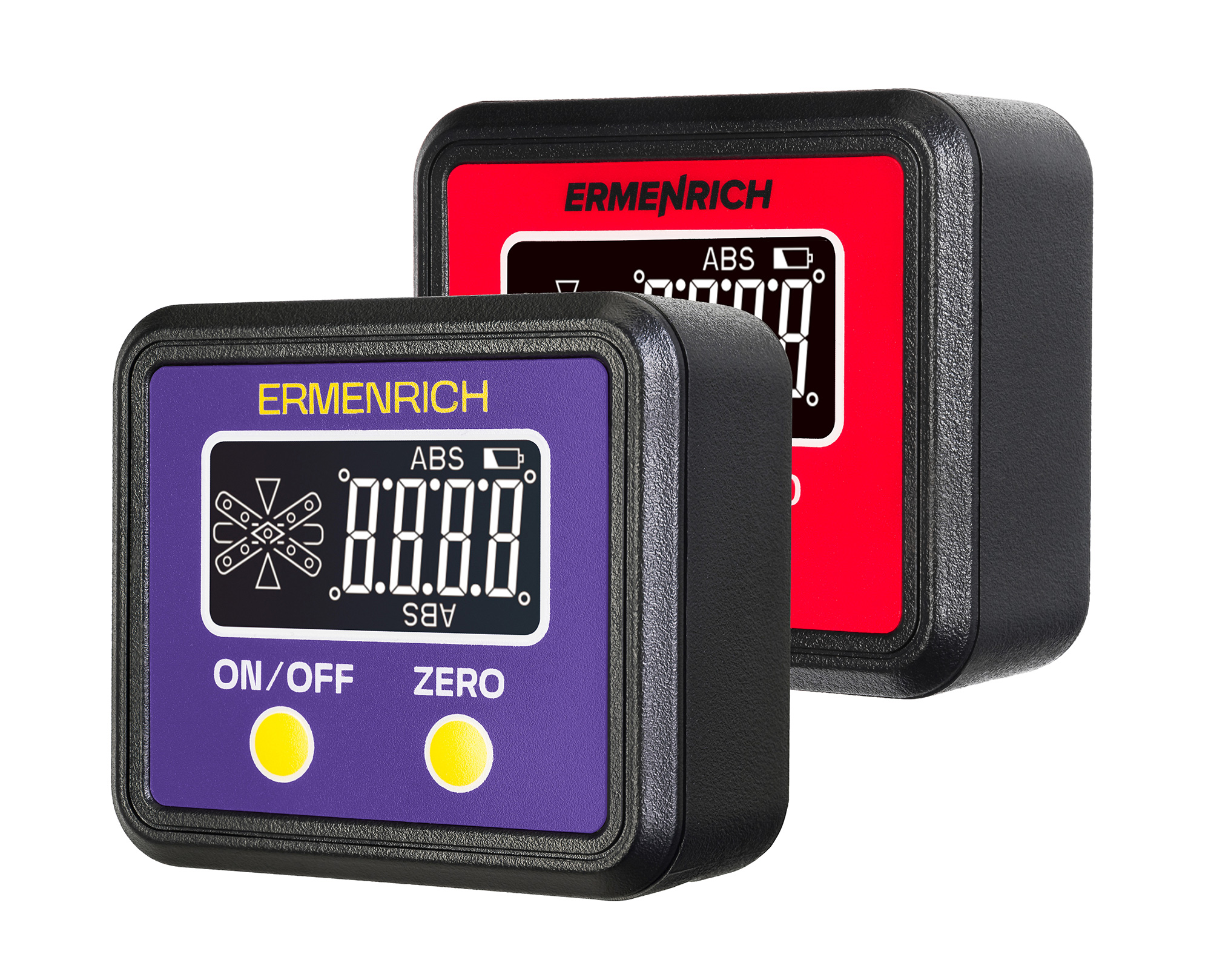

Digital level Ermenrich Verk LQ20 – a universal device designed for leveling work during construction, repair and finishing, installation, and manufacturing. The level can measure slope in degrees in four directions. High accuracy is one of the main advantages of the device – the sensitivity is 0.1/0.2 degrees (depending on the angle sharpness). The accurate measurements are displayed on the built-in LCD screen.

The Ermenrich Verk LQ20 Digital Level is designed to operate over a wide temperature range and is splashproof. The device is made of a polycarbonate alloy and high-strength ABS plastic, which makes it shockproof and drop-proof. The magnetic V-groove base will help to place the level on any surface, including metal. The calibration can be performed manually. There is a zero set function. It is powered by a pair of batteries and has the auto-off function that helps save battery power.

Key features:

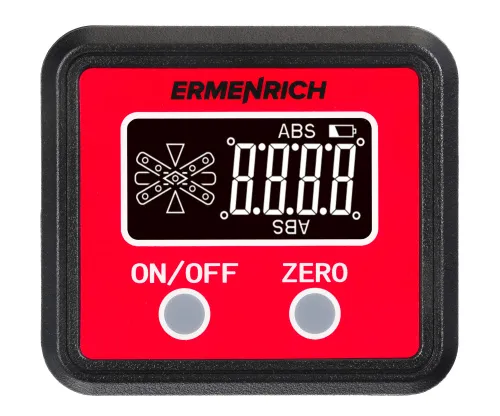

  • Digital level and angle meter with an LCD screen and simple controls
  • Magnetic V-Groove base, a zero set function
  • Durable composite body material (polycarbonate and ABS plastic)
  • Powered by batteries, an auto-off function, and a low battery status indicator
specifications
Product ID 81736
Brand Ermenrich
Warranty 5 years
EAN 5905555003153
Package size (LxWxH) 2x3.5x3.1 in
Shipping Weight 0.2 lb
Level type digital
Accuracy ±0.1° at 0° and 90°, the rest – ±0.2°
Units of measurement degrees
Measuring range, ft 0 — 1181.2
LCD screen yes
Maximum resolution 0.01°
Calibration manual
Zero set function
Magnetic base
V-Groove

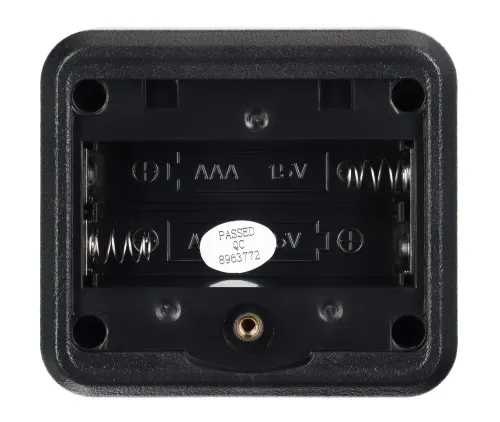

Power supply 2 AAA batteries, 1.5V (not included)
Low battery status indicator
Auto power off 5 min
IP water and dustproof rating IP42, protected against vertically falling water drops (when tilted up to 15°)
Body polycarbonate, high-strength ABS plastic
Operating temperature range, °F 32...+104
