Ermenrich Verk LQ40 Digital Level

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Magnetic base. For measuring angles of slope. Units of measurement: degrees, percent, mm/m, in/ft

Digital

Level type by application and design

±0.1° at 0° and 90°, the rest – ±0.2°

Accuracy: the errors in measuring long distances are extremely critical

0.05°

Resolution is the smallest change in value that can be detected and displayed by the device

Availability

Product ID	81738
Brand	Ermenrich
Warranty	5 years
EAN	5905555003184
Package size (LxWxH)	2x3.5x3.1 in
Shipping Weight	0.3 lb

Description

Meet the Ermenrich Verk LQ40, a magnetic digital level that is suitable for a wide variety of applications. It can be used to level metal structures in construction and repair work as well as in manufacturing in order to measure the slope of some elements or sharpen knives. The slope is measured in a range of 0–360° (4x90°), and the buzzer helps you to precisely align the object horizontally or vertically. The measurements are given in degrees, percent, or other units of measurement – can be selected by the user.

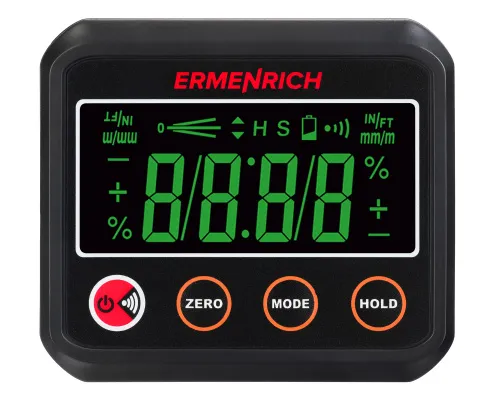

The readings are displayed on the built-in LCD screen, the control buttons located underneath. The Ermenrich Verk LQ40 Digital Level is easy to work with thanks to some extra functions – there is a possibility to “freeze” the readings and set the device to zero if you want to measure relative angles. The magnetic V-Groove base helps to secure the placement of the device on a metal surface. The high-strength ABS-plastic and polycarbonate body is impact-resistant and protected against falling drops of water. The device is powered by two standard AAA batteries and has an auto-off function that turns on after 3 minutes of inactivity.

Key features:

High-precision measurement with an option to choose the units of measurement
Audible buzzer alert, magnetic base with V-Groove
Impact-resistant body with LCD screen
Powered by batteries, a low battery indicator

specifications

Product ID	81738
Brand	Ermenrich
Warranty	5 years
EAN	5905555003184
Package size (LxWxH)	2x3.5x3.1 in
Shipping Weight	0.3 lb
Level type	digital
Accuracy	±0.1° at 0° and 90°, the rest – ±0.2°
Units of measurement	mm, m, ft, in, degrees, percent
Measuring range, ft	0 — 1181.2
LCD screen	yes
Maximum resolution	0.05°
Calibration	manual
Hold function	✓
Zero set function	✓
Magnetic base	✓
V-Groove	✓

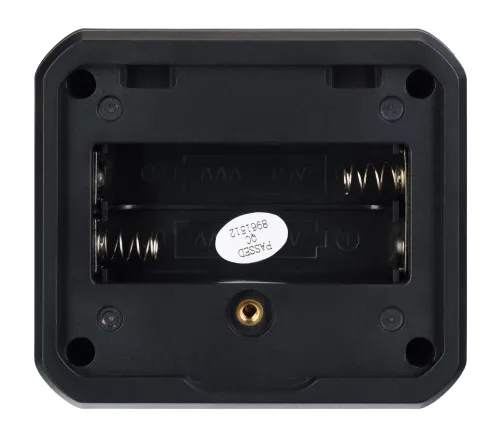

Power supply	2 AAA batteries, 1.5V (not included)
Low battery status indicator	✓
Auto power off	3 min
IP water and dustproof rating	IP42, protected against vertically falling water drops (when tilted up to 15°)
Body	polycarbonate, high-strength ABS plastic
Operating temperature range, °F	32...+104
Additional	audible buzzer alert
