Magnetic base. For measuring angles of slope. Units of measurement: degrees, percent, mm/m, in/ft

Digital, bubble
Level type by application and design
±0.1° at 0° and 90°, the rest – ±0.2°
Accuracy: the errors in measuring long distances are extremely critical
0.05°
Resolution is the smallest change in value that can be detected and displayed by the device
Availability

Product ID 81743
Brand Ermenrich
Warranty 5 years
EAN 5905555003238
Package size (LxWxH) 2x32.3x3.1 in
Shipping Weight 2 lb
Description

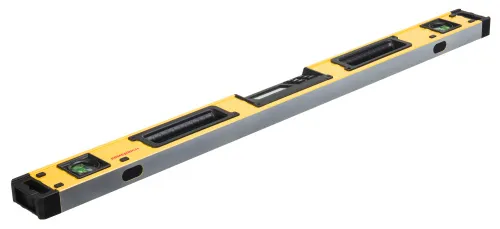

The Ermenrich Verk LY80 is a digital level for accurate measurement of angles and positioning. It is suitable for a wide range of applications, i.e., construction, repair, metal and woodworking, installation of machines and mechanisms, etc. Suitable for household use too (furniture installation, placing shelves, hinged cabinets, curtain rails, etc.). The angle meter provides accurate measurements in a range of 0–360° (4x90°). The device has a zero set function and a hold function.

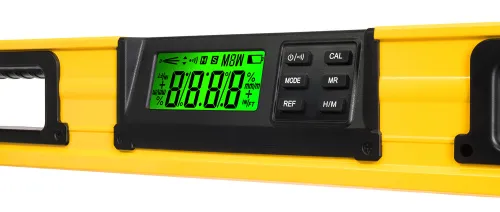

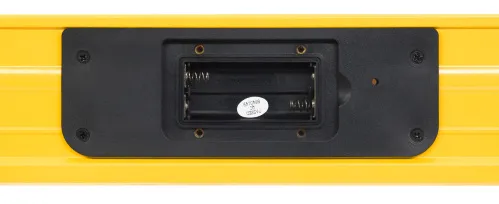

The LCD screen displays all readings, and there are several units of measurement that you can choose from. The dustproof body of the Ermenrich Verk LY80 has a magnetic base and comes in a bright color, which minimizes the risk of losing the tool at the construction site. To save battery power (type AAA, 2 pcs.), there is an auto-off function that activates after 3 minutes of inactivity. There is a low battery status indicator. The 2 bubble vials make prepping work easy and enable you to use the device even when the batteries are low.

Key features:

  • High accuracy (±0.1° vertically and horizontally, the rest: ±0.2°)
  • Selection of measurement units, a zero set function, a hold function
  • A body made of ABS plastic and metal, 2 cutout carrying handles
  • Powered by batteries, an auto-off function
specifications
Product ID 81743
Brand Ermenrich
Warranty 5 years
EAN 5905555003238
Package size (LxWxH) 2x32.3x3.1 in
Shipping Weight 2 lb
Level type digital, bubble
Accuracy ±0.1° at 0° and 90°, the rest – ±0.2°
Units of measurement mm, m, ft, in, degrees, percent
Measuring range, ft 0 — 1181.2
LCD screen yes
Maximum resolution 0.05°
Calibration manual
Hold function
Zero set function
Magnetic base
Power supply 2 AAA batteries, 1.5V (not included)
Low battery status indicator
Auto power off 3 min
IP water and dustproof rating IP54, partially dustproof, splashproof
Body aluminum, high-strength ABS plastic, thermoplastic rubber
Operating temperature range, °F 32...+104
Length, mm 800
Additional audible buzzer alert , built-in bubble level – 2 pcs.
