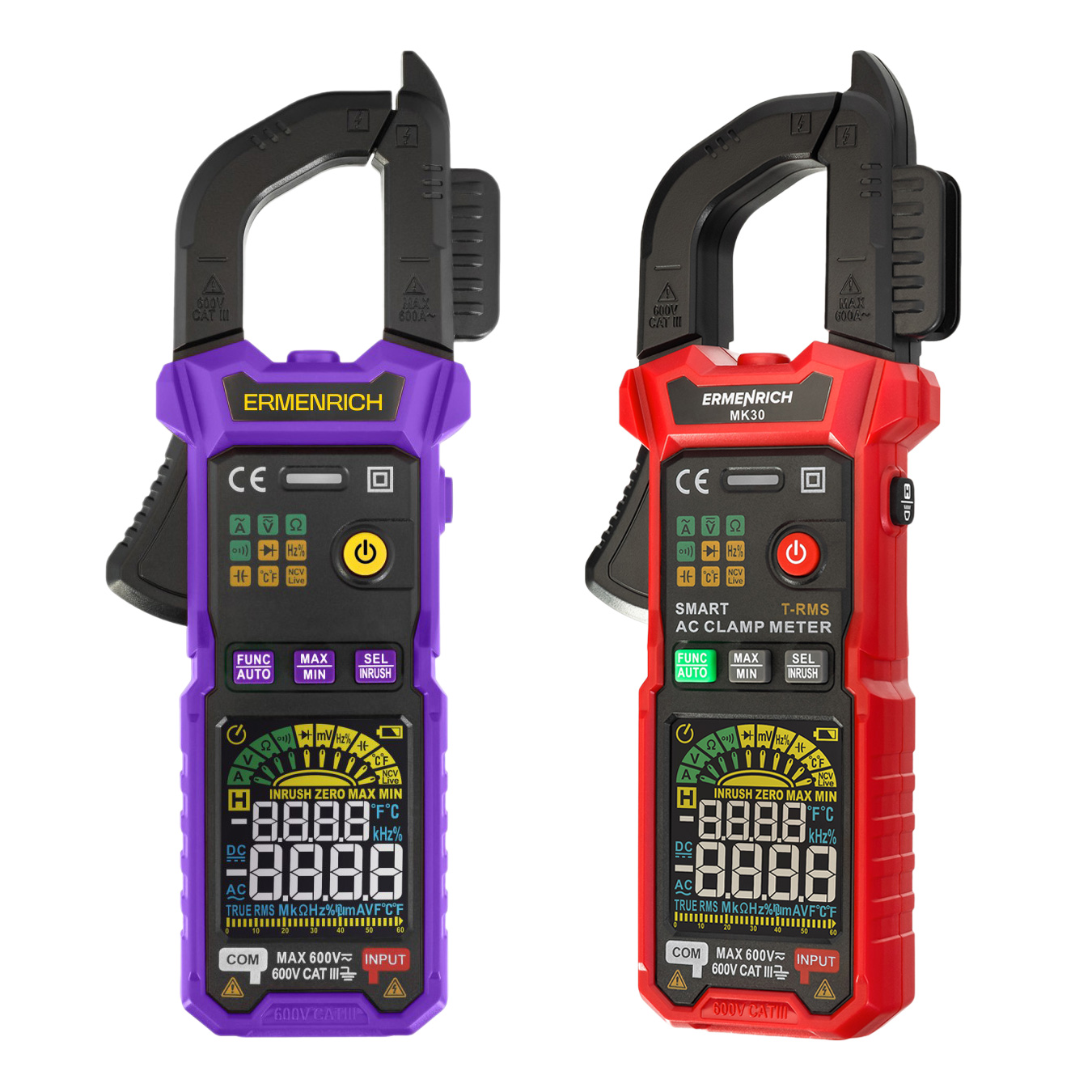

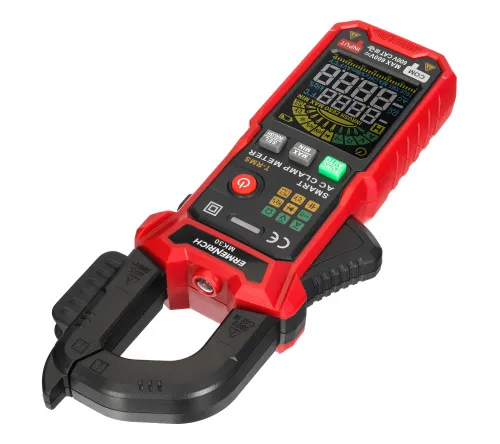

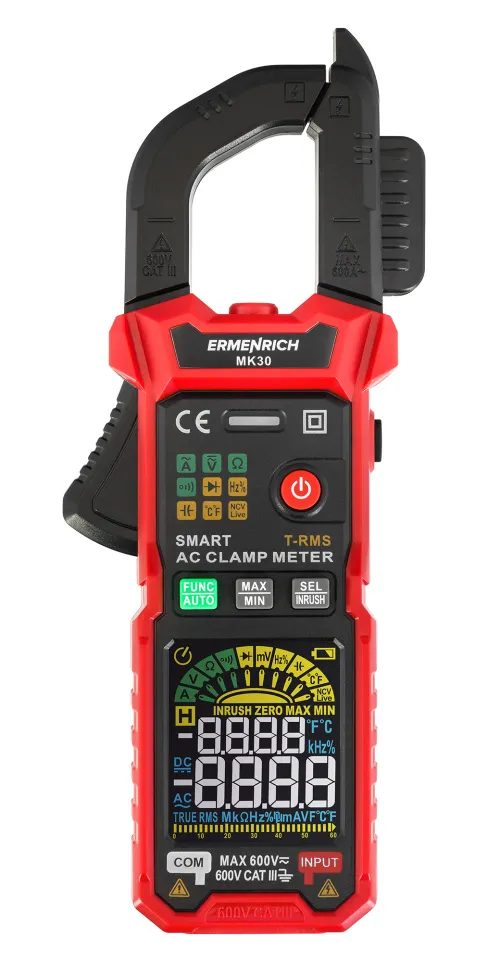

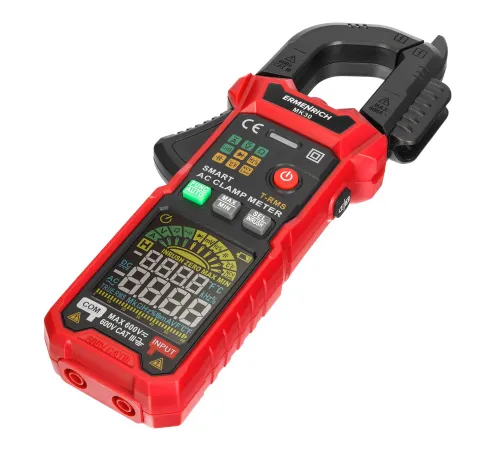

Ermenrich Ping MK30 Digital Clamp Meter
Functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple, continuity test, diode test, NCV, phase detector
Product ID | 82967 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017464 |
Package size (LxWxH) | 8.7x4.3x1.6 in |
Shipping Weight | 1 lb |
The Ermenrich Ping MK30 digital clamp meter combines 7 measuring functions and allows for the comprehensive diagnostics of electrical networks and electrical equipment. The device independently selects the measurement limit for each operating mode, and it displays readings on the built-in screen in the form of numbers and values on a graphic scale. The presence of the Smart function greatly simplifies the use of the device: The device measures voltage, resistance, and circuit continuity in a fully automatic mode.
Its small size enables you to use the device in hard-to-access places, the contrast backlit screen is clearly visible in the dark, and the Data Hold function makes it possible to “freeze” readings on the screen until they are convenient to read. The device uses the True RMS method, in which calculations of variable quantities are carried out using the true root mean square value, and so the measured value will be as accurate as possible.

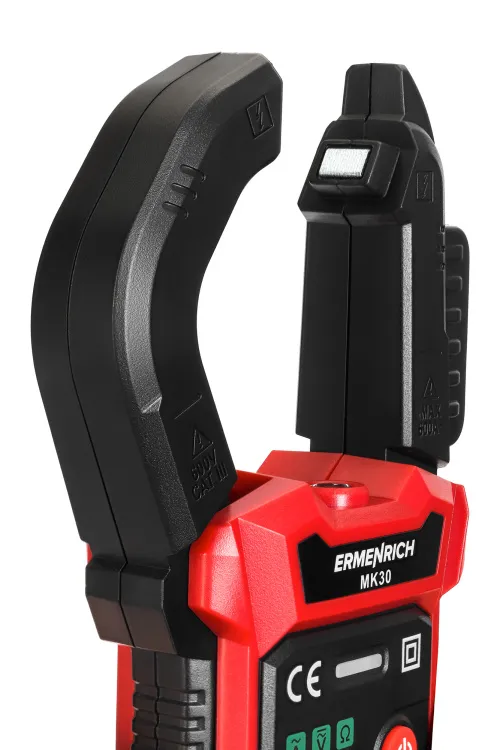

Clamps measure alternating current without breaking the circuit, other measured parameters are resistance, direct and alternating voltage, capacitance, frequency, duty cycle, and temperature. The device also operates in diode testing and continuity mode, and it can work as a phase detector and hazardous voltage detector (NCV).
The Ermenrich Ping MK30 digital clamp meter is battery-powered, equipped with an auto-off function, and notifies you of the need to replace the batteries if they are running low.
Key features:
- 7 measuring functions in one instrument: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple sensor
- Highly accurate True RMS measurements
- Continuity Test – short circuits and open circuits detection
- Diode test, phase detector, live cable detection, and hidden wiring detection (NCV)
- “Smart” measurements in the modes of continuity and determination of voltage and resistance – the device does everything automatically
- Data Hold function, saves the minimums and maximums
- Operates on standard batteries

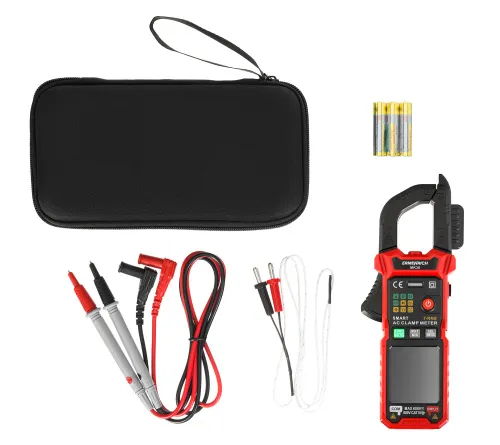

The kit includes:
- Clamp meter
- Probes

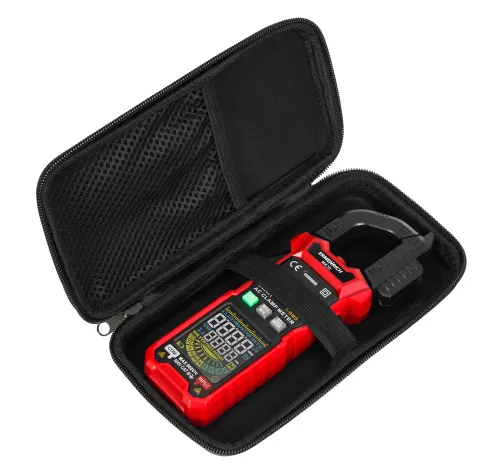

- Pouch
- User manual and warranty card
Product ID | 82967 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555017464 |
Package size (LxWxH) | 8.7x4.3x1.6 in |
Shipping Weight | 1 lb |
Selection of the measuring limit | automatic |
DC voltage measuring limit | 600mV/6V/60V/600V: error ±(0.5%+5) |
AC voltage measuring limit | 600mV/6V/60V/600V: error ±(0.8%+5) |
AC current measuring limit | 60/600A: error ± (2.5%+5) |
Capacity measuring limit | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF: error ±(4.0%+5) |
Frequency measurement limits | 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz: error ±(1.0%+3) |
Duty cycle measurement range | 1–99%: error ±(3.0%+3) |
Wire mapping | ✓ |
Diodes test | ✓ |
Non-contact voltage detection (NCV) | ✓ |
True RMS | ✓ |
Hold function | ✓ |
Limit value function (Min/Max) | ✓ |
Automatic recognition function (Smart) | + (only for DC and AC voltage, resistance and continuity) |
Phase detector (Live) | ✓ |
Overvoltage category | CAT III 600V |
Display counts | 6000 |
Display backlight | ✓ |
Graphic scale | ✓ |

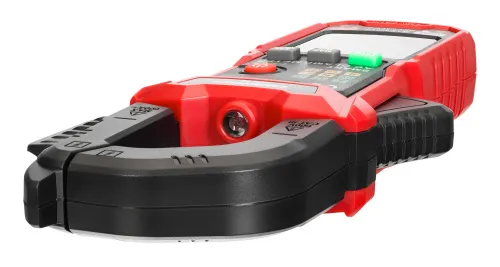

Flash light | ✓ |
Safety standards | EN61010-1,-2-030; EN61010-2-033; EN61326-1 |
Operating temperature range, °F | -40...+1832 |
Continuity test | +, combined with resistance measurement mode (600Ω) |

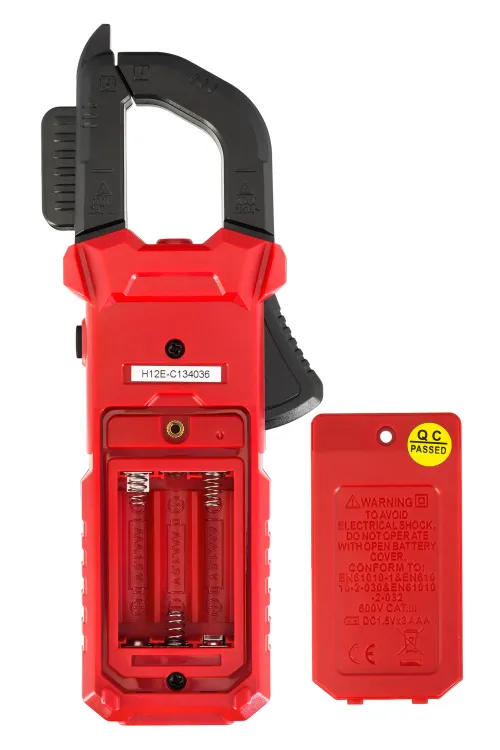

Power supply | 3 AAA batteries (not included) |
Low battery status indicator | ✓ |
Auto power off | ✓ |
