Ermenrich Zing AL30 Battery Tester

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Car battery tester

6 — 18

Current voltage measurement range: the range of voltage values that allows certain errors of the device

32...+122

Operating temperature range: limit temperature values at which no additional errors occur in electrical measuring devices

High-strength ABS plastic

The material protects the device from dust and moisture as well as provides safety and isolation

Availability

Product ID	81734
Brand	Ermenrich
Warranty	5 years
EAN	5905555003139
Package size (LxWxH)	2x7.1x5.9 in
Shipping Weight	0.6 lb

Description

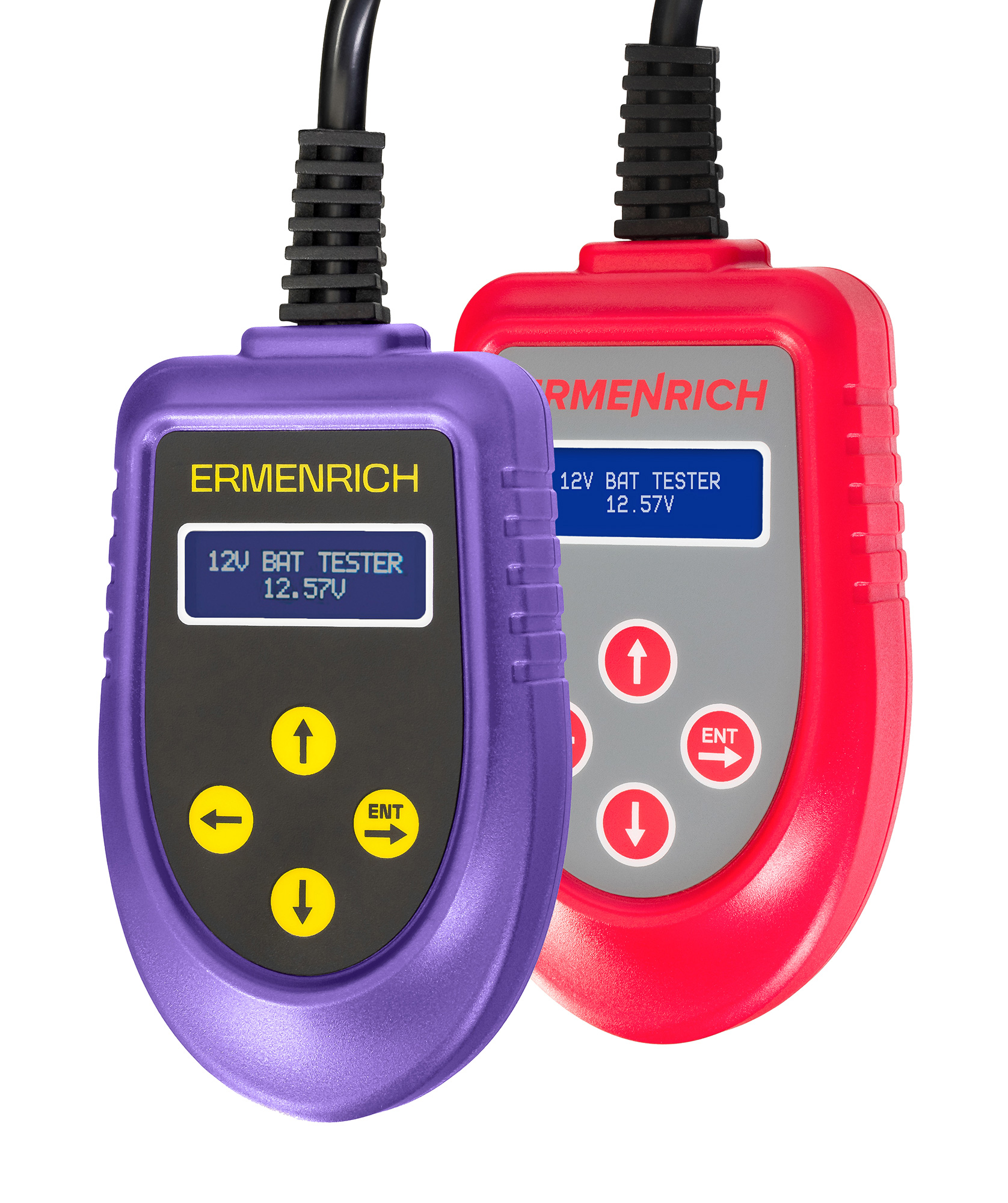

The Ermenrich Zing AL30 is a battery tester, i.e. a portable battery diagnostic tool. The basic battery test includes testing for voltage, internal resistance, and cold cranking amps (CCA). The device also has two additional modes of operation: car starting system testing and charging system testing. The tool also provides a final assessment of battery health and recommends battery replacement if the values are low.

The device connects to the battery with two crocodile clips. The built-in screen displays all of the measurements and is operated by the controls located below. It is charged via the battery under test, and so no extra power supply is required.

Key features:

Three testing modes: basic battery test, car starting system testing, charging system testing
Checking key battery performance indicators: voltage, internal resistance, cold cranking amps (CCA)
Overall battery health status analysis
Charged via the battery that is under test (requires no other power supply)

specifications

Product ID	81734
Brand	Ermenrich
Warranty	5 years
EAN	5905555003139
Package size (LxWxH)	2x7.1x5.9 in
Shipping Weight	0.6 lb
Operating voltage range (DC), V	6 — 18
Measuring standards	CCA: 100-1700, CA: 100-1700, BCI: 100-1700, MCA:100-1700, SAE: 100-1700, GB: 30-200Ah, JIS: 26A17-245H52, IEC 100-1000, EN: 100-1700, DIN: 100-1001
Safety standards	EN 61326-1:2013
Operating humidity range, %	0 — 80
Operating temperature range, °F	32...+122
Operating storage range, °C (°F)	–10…+50 (+14…+122)
Body	high-strength ABS plastic

References
and downloads

Ermenrich Measuring Tools (pdf)

(PDF, 1.07 Mb)

User manual: Ermenrich Zing AL30 battery tester (pdf)

(PDF, 902.64 Kb)

High-resolution images (zip)

(ZIP, 34.36 Mb)
