Ermenrich Zing ST30 Socket Tester

Ermenrich Zing ST30 Socket Tester

image Ermenrich Zing ST30 Socket Tester
image Ermenrich Zing ST30 Socket Tester
image Ermenrich Zing ST30 Socket Tester
image Ermenrich Zing ST30 Socket Tester
see all
image Ermenrich Zing ST30 Socket Tester
The price is valid only for the online store and may differ from the prices in retail stores.

A tool for testing sockets

230
Current voltage measurement range: the range of voltage values that allows certain errors of the device
III (300V)
Equipment overvoltage protection classification
32...+104
Operating temperature range: limit temperature values at which no additional errors occur in electrical measuring devices
Availability
Product ID 81725
Brand Ermenrich
Warranty 5 years
EAN 5905555021317
Package size (LxWxH) 3.5x3.5x3.1 in
Shipping Weight 0.3 lb
description
specifications
downloads
video
questions/feedback
Description

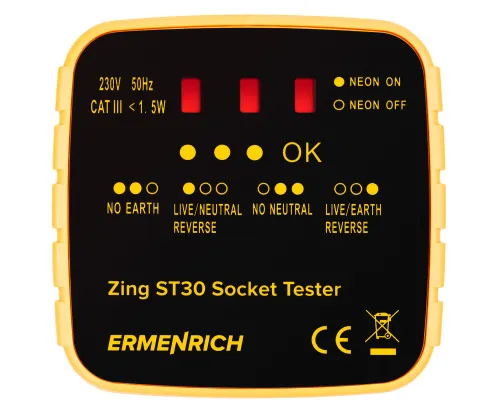

The Ermenrich Zing ST30 Socket Tester is designed to test whether all of the sockets are properly wired and to check the voltage. The tester must be plugged directly into a socket, and the LED’s flashing will indicate various electrical faults: no ground/no neutral, live/neutral reverse, or live/ground reverse. In addition, the specific color code that appears on the tester screen signals the correct wiring condition. The function of each code is written on the device.

Key features:

  • 230V AC
  • Detects no ground/no neutral
  • Flashes when live/neutral reverse or live/ground reverse
  • A special light code to indicate correct wiring
specifications
Product ID 81725
Brand Ermenrich
Warranty 5 years
EAN 5905555021317
Package size (LxWxH) 3.5x3.5x3.1 in
Shipping Weight 0.3 lb
Socket wiring CEE 7/3, 7/5 (European sockets)
Frequency range, Hz 50
Operating voltage range (AC), V 230
Maximum voltage, V 250
Overvoltage category III (300V)
Flash light ✓
Safety standards EN55014-1:2006+ A1:2009+A2:2011; EN61000-3-2:2014; EN61000-3-3:2013; EN55014-2:1997+A1:2001+A2:2008
Operating humidity range, % 0 — 75
Operating temperature range, °F 32...+104
Operating storage range, °C (°F) –10…+50 (+14…+122)
Body high-strength ABS plastic
