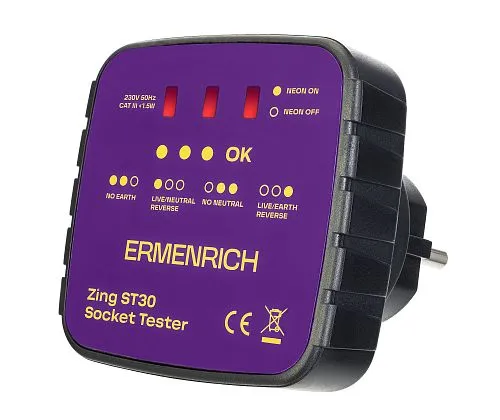

Ermenrich Zing ST30 Socket Tester

The price is valid only for the online store and may differ from the prices in retail stores.

A tool for testing sockets

230

Current voltage measurement range: the range of voltage values that allows certain errors of the device

III (300V)

Equipment overvoltage protection classification

32...+104

Operating temperature range: limit temperature values at which no additional errors occur in electrical measuring devices

Availability

Product ID	81725
Brand	Ermenrich
Warranty	5 years
EAN	5905555021317
Package size (LxWxH)	3.5x3.5x3.1 in
Shipping Weight	0.3 lb

Description

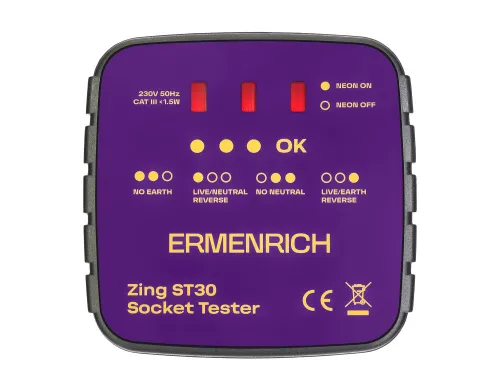

The Ermenrich Zing ST30 Socket Tester is designed to test whether all of the sockets are properly wired and to check the voltage. The tester must be plugged directly into a socket, and the LED’s flashing will indicate various electrical faults: no ground/no neutral, live/neutral reverse, or live/ground reverse. In addition, the specific color code that appears on the tester screen signals the correct wiring condition. The function of each code is written on the device.

Key features:

230V AC
Detects no ground/no neutral
Flashes when live/neutral reverse or live/ground reverse
A special light code to indicate correct wiring

specifications

Product ID	81725
Brand	Ermenrich
Warranty	5 years
EAN	5905555021317
Package size (LxWxH)	3.5x3.5x3.1 in
Shipping Weight	0.3 lb

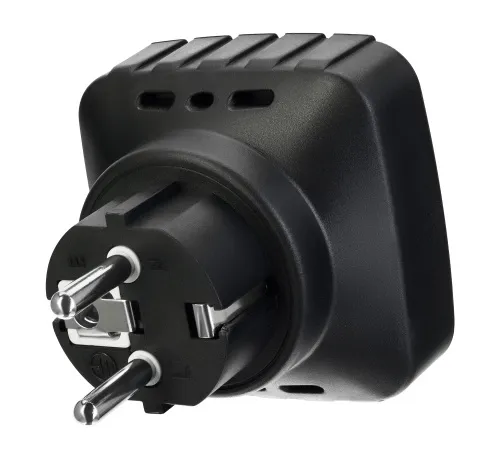

Socket wiring	CEE 7/3, 7/5 (European sockets)
Frequency range, Hz	50
Operating voltage range (AC), V	230
Maximum voltage, V	250
Overvoltage category	III (300V)
Flash light	✓
Safety standards	EN55014-1:2006+ A1:2009+A2:2011; EN61000-3-2:2014; EN61000-3-3:2013; EN55014-2:1997+A1:2001+A2:2008
Operating humidity range, %	0 — 75
Operating temperature range, °F	32...+104
Operating storage range, °C (°F)	–10…+50 (+14…+122)
Body	high-strength ABS plastic
