Ermenrich Zing ST40 Socket Tester

see all

The price is valid only for the online store and may differ from the prices in retail stores.

A device for detecting malfunctions in installed sockets. With an RCD test

48 — 250

Current voltage measurement range: the range of voltage values that allows certain errors of the device

CAT II 300V

Equipment overvoltage protection classification

Not required

The power source is an important element that is necessary for the quality operation of the device

Availability

Product ID	82963
Brand	Ermenrich
Warranty	5 years
EAN	5905555017426
Package size (LxWxH)	2.8x2.8x3.1 in
Shipping Weight	0.2 lb

Description

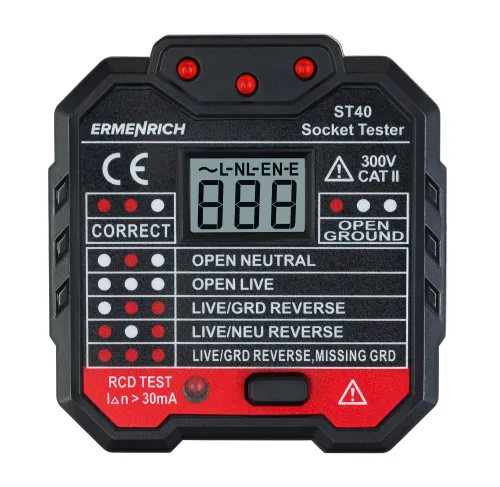

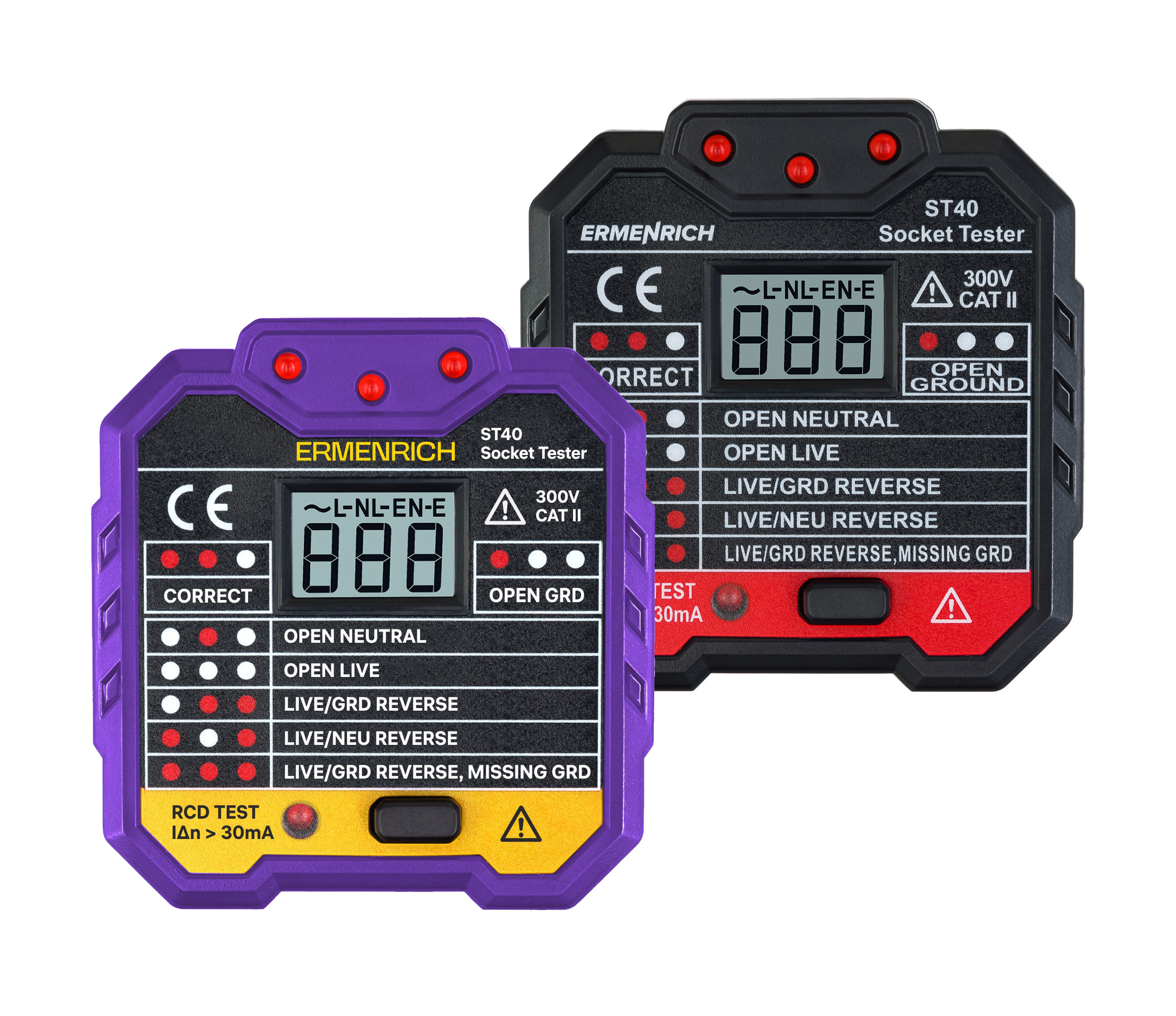

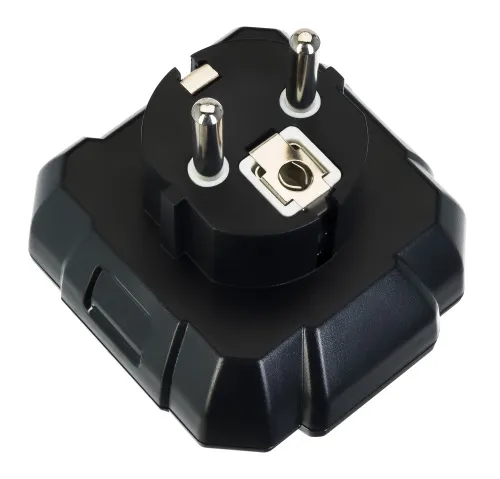

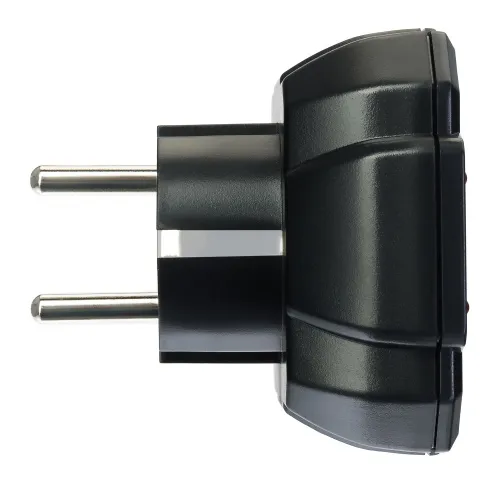

The Ermenrich Zing ST40 Socket Tester with a Euro plug and a dedicated button for testing the performance of the RCD (residual current device). The tester is inserted into a socket and provides light indication with three LEDs. The light codes are directly on the body of the device, and there are seven in total: Everything is in or-der; no ground; no neutral; missing phase; phase/ground reversed; phase/neutral reversed; phase/ground are reversed and ground is missing.

The tester is perfect for checking electrical installation work performed on a construction site and assessing the condition of outlets at home. The device has a built-in backlit screen that displays the measured voltage. Does not require additional power.

Key features:

Voltage measurement, the result is displayed on the built-in screen
Testing the correct connection of sockets – 7 modes
Dedicated RCD test button

Specifications

Product ID	82963
Brand	Ermenrich
Warranty	5 years
EAN	5905555017426
Package size (LxWxH)	2.8x2.8x3.1 in
Shipping Weight	0.2 lb
Frequency range, Hz	45–65
Operating voltage range (AC), V	48 — 250
Overvoltage category	CAT II 300V
Display	yes
Display backlight	✓
RCD test (RCD)	breaking current >30mA
Safety standards	EN61010-1-2-030, EN61326-1
Power supply	not required
