Functions: voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple sensor, continuity test, diode test, NCV, battery test. Automatic measurement limit setting

Voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple
Basic functions of the measuring instrument
CAT III 600V
Equipment overvoltage protection classification
-40...+1832
Operating temperature range: limit temperature values at which no additional errors occur in electrical measuring devices
Availability

Product ID 82987
Brand Ermenrich
Warranty 5 years
EAN 5905555017662
Package size (LxWxH) 7.1x3.9x2.4 in
Shipping Weight 0.9 lb
Description

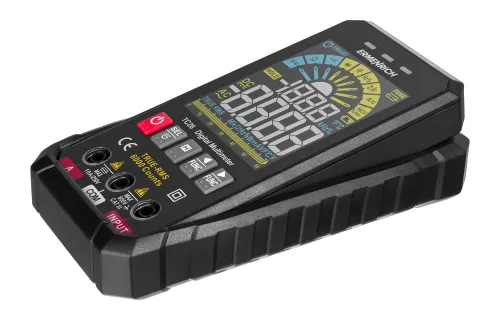

The Ermenrich Zing TC26 Digital Multimeter is a True RMS electrical measuring tool with voltmeter, ammeter, ohmmeter, frequency meter, capacitance meter, duty cycle meter, and thermocouple functions. It provides a true RMS calculation of the variables and is, therefore, highly accurate. The device is suitable for completing the professional tasks of a technician working with electrical equipment and electrical networks, but it is also suitable for handymen.

Thanks to its compact size and light weight, the multimeter is easy to carry with you: It easily fits in your shirt or jacket pocket. The screen is easy to read as it is large and contrasting. There is a graphic scale. In some situations, it is convenient to use the Hold function that “freezes” the readings on the screen so that they can be viewed later.

The multimeter has a wide range of additional functions. It can be used for testing networks for open circuits and short circuits, diode testing, and location of hidden live wiring. The device can also detect phases. For some measurements, you do not have to select the operating mode manually: The Smart function provides automatic signal recognition for voltage, resistance, and continuity tests.

The multimeter is powered by four standard batteries. There is a flashlight and an auto-off function to help you use the charge battery charge.

Key features:

  • True RMS device: The calculations are based on the true RMS method
  • Measuring modes: voltage, current, resistance, frequency, capacitance, duty cycle, temperature
  • Diode test, high voltage detection, phase detection, hold function

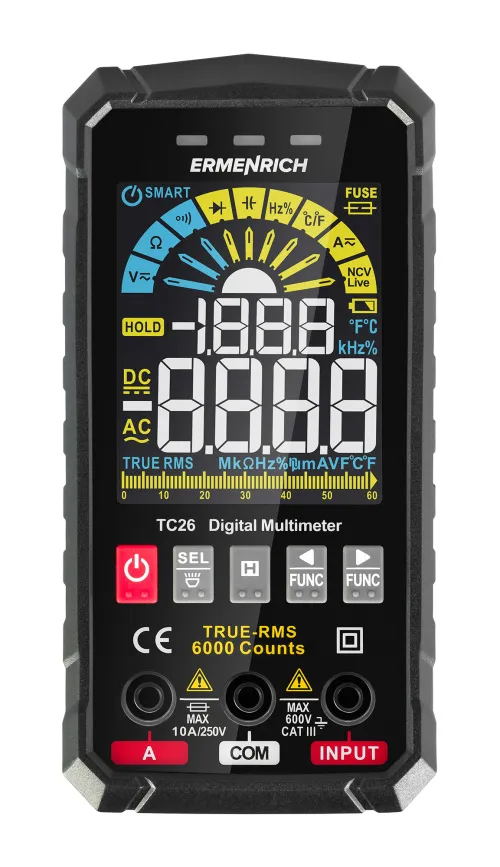

  • Large color screen with digits as well as a graphic scale and backlight

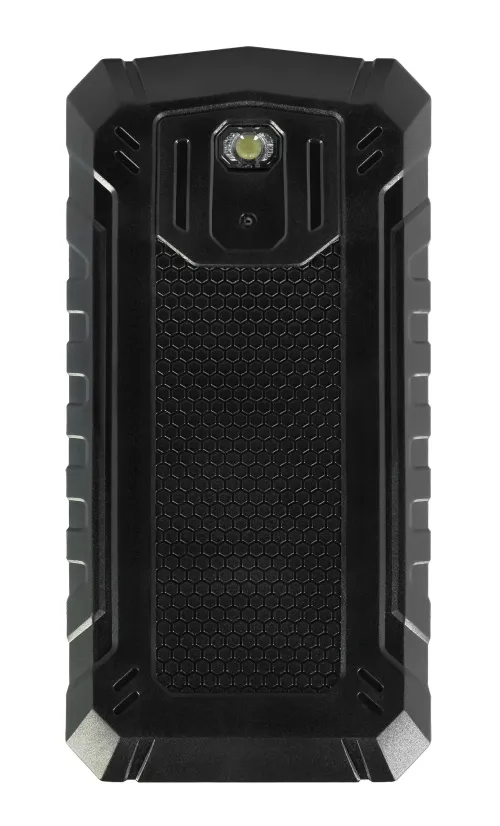

  • Powered by batteries, flashlight for working in the dark or in low-light conditions, auto-off function

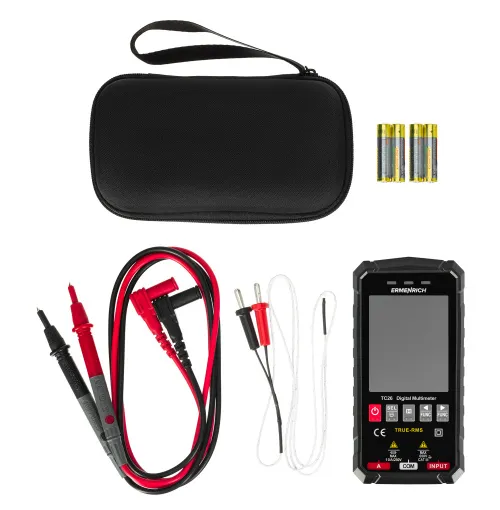

The kit includes:

  • Digital multimeter
  • Probes

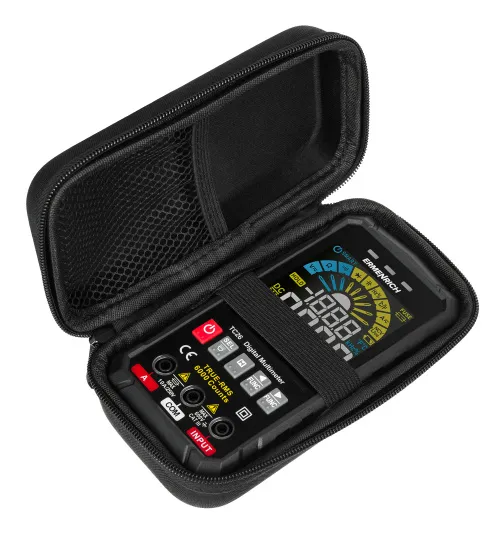

  • Pouch
  • User manual and warranty card
specifications
Product ID 82987
Brand Ermenrich
Warranty 5 years
EAN 5905555017662
Package size (LxWxH) 7.1x3.9x2.4 in
Shipping Weight 0.9 lb
Selection of the measuring limit automatic
Basic functions voltmeter, ammeter, ohmmeter, capacitance meter, frequency meter, duty cycle meter, thermocouple
DC voltage measuring limit 60mV/600mV/6V/60V/600V: error ±(0.5%+3)
AC voltage measuring limit 6/60/600V: error ±(0.8%+3)
DC current measuring limit 600mA/10A: error ±(1.2%+3)
AC current measuring limit 600mA/10A: error ±(1.5%+3)
Resistance measuring limit 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ: error ±(1.0%+3)
Capacity measuring limit 6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF: error ±(3.0%+5)
Frequency measurement limits 60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz: error ±(1.0%+3)
Duty cycle measurement range 1–99%: error ±(3.0%+3)
Non-contact voltage detection (NCV)
True RMS
Hold function
Automatic recognition function (Smart) + (only for DC and AC voltage, resistance and continuity)
Phase detector (Live)
Overvoltage category CAT III 600V
Display VA
Display counts 6000
Display backlight
Graphic scale
Flash light
Safety standards EN61010-1,-2-030; EN61010-2-033; EN61326-1
Operating temperature range, °F -40...+1832
Continuity test +, combined with resistance measurement mode (<50Ω)

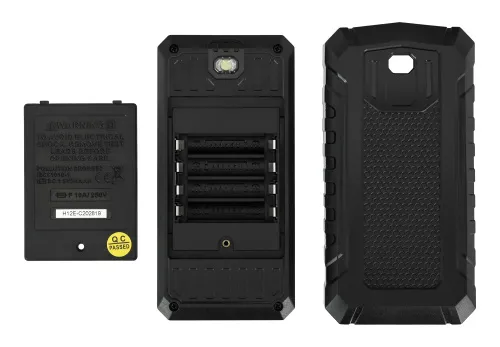

Power supply 4 AAA batteries (not included)
Low battery status indicator
Auto power off
