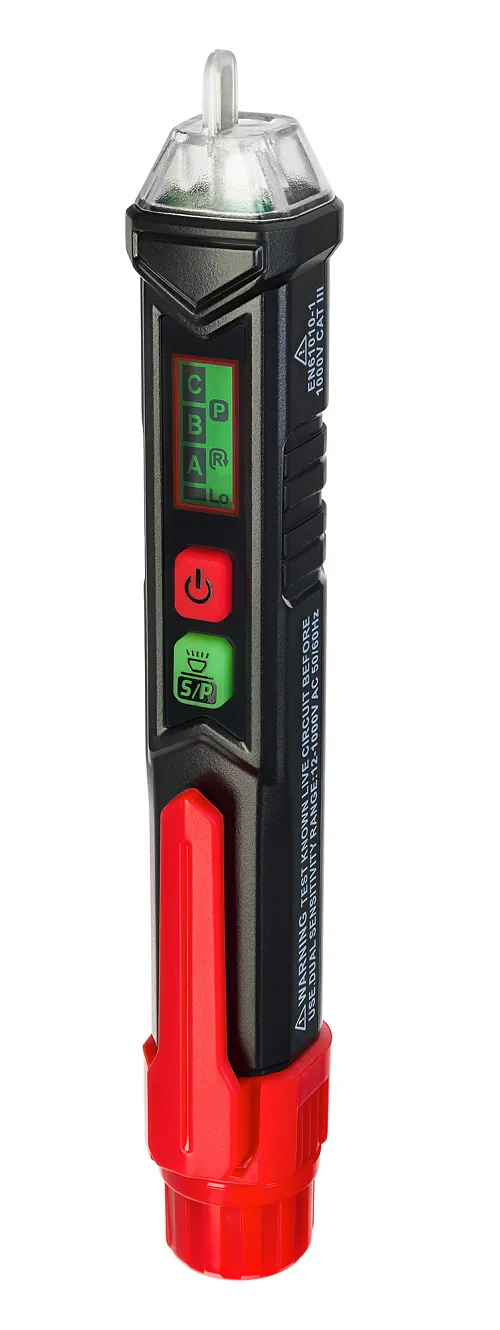

Ermenrich Zing WT60 Voltage Tester

The price is valid only for the online store and may differ from the prices in retail stores.

Non-contact. With phase detector. For home and professional use

III (300V)

Equipment overvoltage protection classification

2 AAA batteries (not included)

The power source is an important element that is necessary for the quality operation of the device

Availability

Product ID	82955
Brand	Ermenrich
Warranty	5 years
EAN	5905555017341
Package size (LxWxH)	6.3x1.6x0.8 in
Shipping Weight	0.1 lb

Description

The Ermenrich Zing WT60 Voltage Tester is used for basic diagnostics of electrical equipment and networks. The device features a display with a graphic scale. It notifies you about the results of its work with light and sound indicators. It features a built-in flashlight for working in dark or dimly lit spaces. Battery power makes it easy to use the device in the field. The batteries are replaceable and the device notifies of a low charge.

The device is non-contact, i.e., to detect voltage, you only need to put it close to the conductor and not touch it directly. This increases work safety. The device does not produce quantitative values of the measured volt-age; its value is indicated by the graphic scale and the intensity of light and sound indicators. Functionally, the device helps identify hidden wiring, break locations, and find the phase or neutral.

The auto-off function after long periods of inactivity (>5 minutes) saves battery power.

Key features:

Non-contact voltage detection, phase detector
Light and sound indication, graphic scale on the built-in screen
A flashlight for work in dark space
Battery-powered, auto-off function to save battery power

specifications

Product ID	82955
Brand	Ermenrich
Warranty	5 years
EAN	5905555017341
Package size (LxWxH)	6.3x1.6x0.8 in
Shipping Weight	0.1 lb
AC voltage measuring range	12–1000 (high sensitivity), 48–1000 (low sensitivity)
Frequency range, Hz	50–60
Overvoltage category	III (300V)
Screen features	graphic scale
Display backlight	✓
Audible alerts	✓
Light alert	✓
Flash light	✓
Safety standards	EN61010-1-2-030, EN61326-1
Power supply	2 AAA batteries (not included)
Non-contact phase detector	✓
Low battery status indicator	✓
Auto power off	+, after 5 minutes of inactivity

References
and downloads

Ermenrich Measuring Tools (pdf)

(PDF, 1.07 Mb)

User manual: Ermenrich Zing WT60 voltage tester (pdf)

(PDF, 614.45 Kb)
