Ermenrich Seek VE20 Industrial Endoscope

Ermenrich Seek VE20 Industrial Endoscope

photograph Ermenrich Seek VE20 Industrial Endoscope, 1

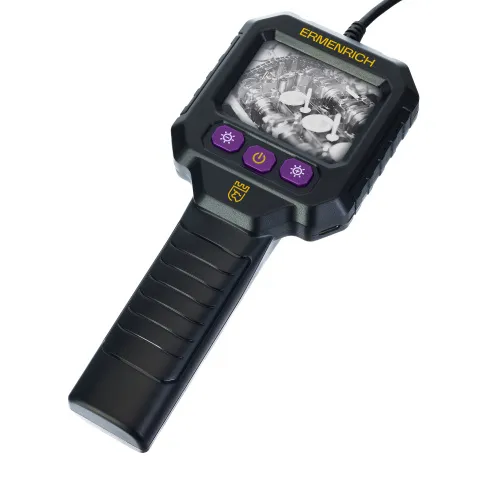

photograph Ermenrich Seek VE20 Industrial Endoscope, 2

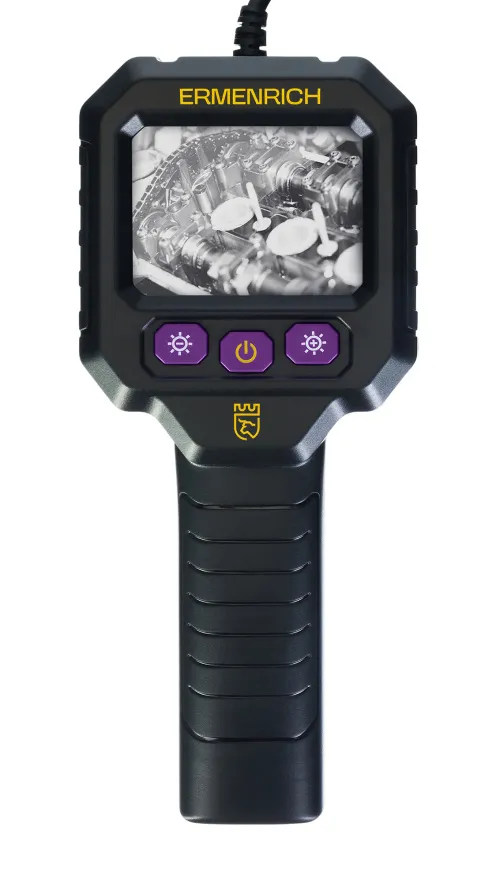

photograph Ermenrich Seek VE20 Industrial Endoscope, 3

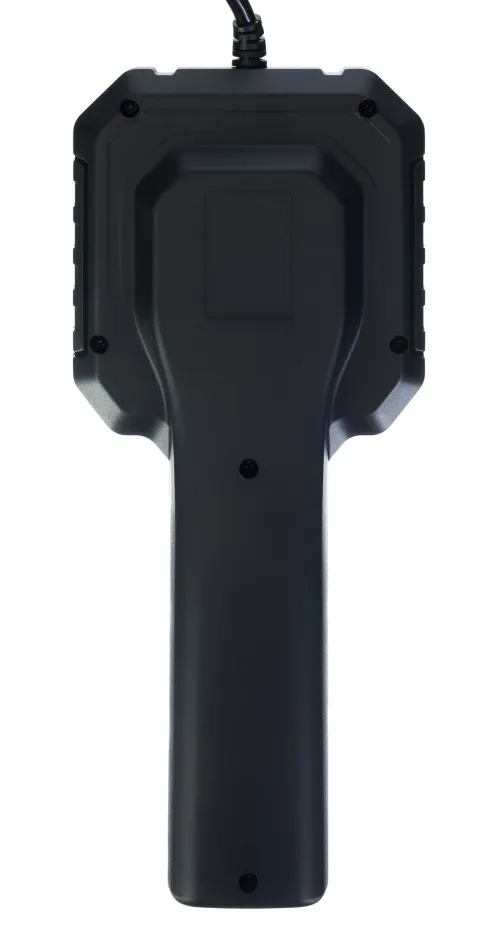

photograph Ermenrich Seek VE20 Industrial Endoscope, 4
see all

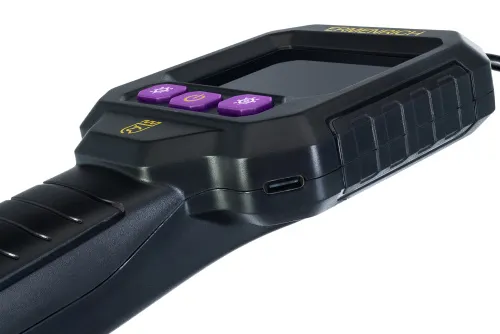

photograph Ermenrich Seek VE20 Industrial Endoscope, 5
photograph Ermenrich Seek VE20 Industrial Endoscope, 6
The price is valid only for the online store and may differ from the prices in retail stores.

Technical borescope with a single front camera and a 10-meter cable

70
The camera’s large field of view covers the maximum area, but it reduces the image detail
8 (front)
The width of the objective at the end of the endoscope through which the image is transmitted to the screen for observation
Product ID 83593
Brand Ermenrich
Warranty 5 years
EAN 5905555020822
Package size (LxWxH) 5.1x9.8x3.5 in
Shipping Weight 1.5 lb
description
specifications
downloads
video
questions/feedback
Description

The Ermenrich Seek VE20 industrial endoscope is designed for inspecting hard-to-reach areas in machinery, structures, and confined spaces. An essential tool for pipeline inspection, wall cavity checks, automotive maintenance, and servicing industrial or household appliances.

An 8mm camera is mounted on a semi-rigid yet flexible 10-meter cable. The camera is equipped with 8 adjustable LEDs for clear visibility in dark environments. It provides a 70° field of view. The camera housing is dustproof, water-resistant, and capable of withstanding temporary submersion. The image transmits in real time to a 2.8" color TFT screen with HD resolution (1280x720px).

The device is powered by a 2600mAh lithium-ion battery. A full charge provides up to 5 hours of continuous operation. The battery charges via a standard USB Type-C cable and adapter (not included).

Key features:

  • Endoscope with an 8mm camera and LED lighting
  • 10-meter long cable
  • 2.8" color display with 1280x720px resolution
  • Lithium-ion battery with up to 5 hours of operation
  • Camera protection against dust and moisture

The kit includes:

  • Industrial endoscope
  • USB Type-C cable
  • User manual and warranty card
Specifications
Product ID 83593
Brand Ermenrich
Warranty 5 years
EAN 5905555020822
Package size (LxWxH) 5.1x9.8x3.5 in
Shipping Weight 1.5 lb
Type industrial
Display color TFT
Display diagonal, inch 2.8
Display resolution, px 1280x720
Number of cameras 1pc (front)
Camera viewing angle, ° 70
Camera diameter, mm 8 (front)
Camera lights 8 LEDs
Waterproof IP67, full dust protection, short-term waterproof (lenses and LEDs)
Power supply 2600mAh Li-ion battery, charging via 5V, 1A DC adapter (not included)
Battery life, h 5
References
and downloads
Ermenrich Measuring Tools (pdf)
(PDF, 1.07 Mb)
Ermenrich measuring tools: product guide (pdf) EN
(PDF, 1.96 Mb)
User manual: Ermenrich Seek VE20 industrial endoscope (pdf)
(PDF, 605.46 Kb)
High-resolution images (zip)
(ZIP, 28.1 Mb)
