Ermenrich Ping RD20 Radiation Detector

see all

Found it cheaper?

Get the same price + gift!

The price is valid only for the online store and may differ from the prices in retail stores.

Detector for measuring gamma, beta, and X-ray radiation. Geiger-Muller counter

Geiger-Muller counter

The dosimeter sensor detects the presence of ionizing radiation

0.05µSv to 50mSv

Measuring range that the device can capture

OLED

The screen type influences readability under different lighting conditions

Availability

Product ID	83070
Brand	Ermenrich
Warranty	5 years
EAN	5905555018645
Package size (LxWxH)	5.5x2.4x0.8 in
Shipping Weight	0.2 lb

Description

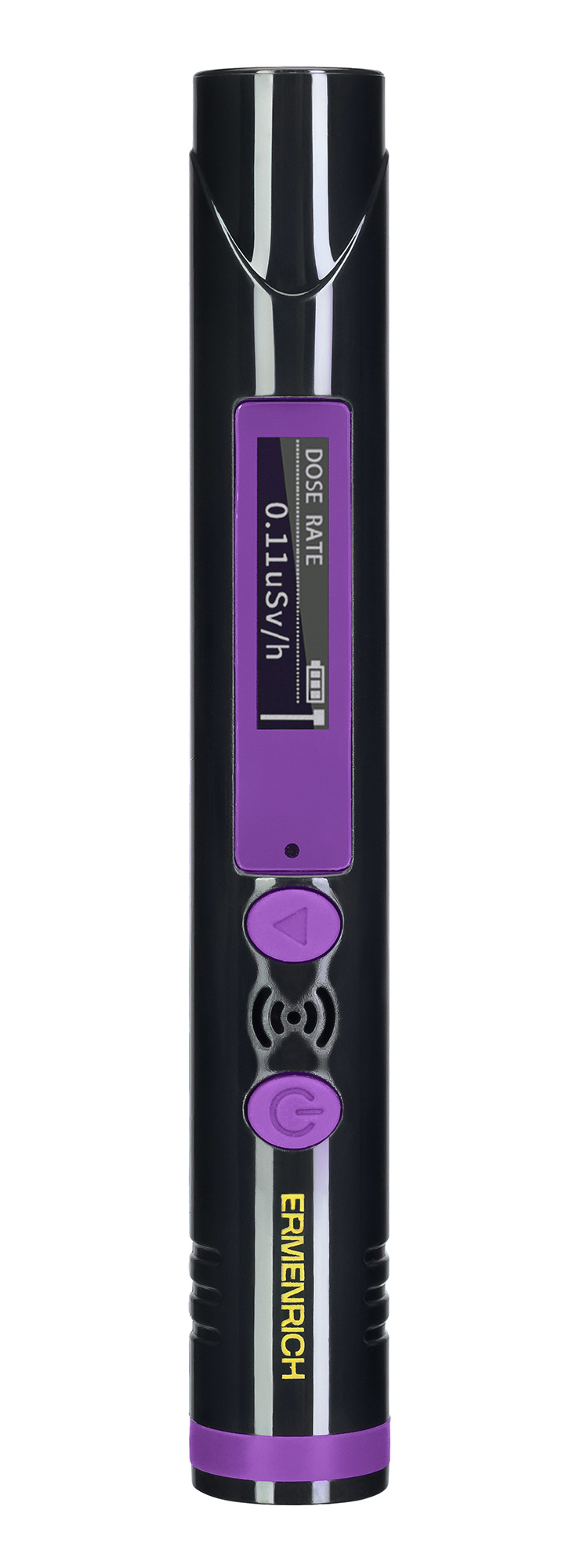

The Ermenrich Ping RD20 Radiation Detector is a compact and convenient device for determining background radiation in the environment, water, food, etc. It measures gamma, beta, and X-ray radiation in the range from 0.05µSv to 50mSv.

With its miniature size and low weight, the device has the full functionality of a dosimeter with a Geiger-Muller counter and can operate for up to 50 hours on a single charge. A 150mAh lithium battery is used for power supply. The LCD screen displays the readings and battery level.

Key features:

Measurement of gamma, beta, X-ray radiation
Geiger-Muller counter
Compact body, LCD display
Up to 50 hours of uninterrupted work
Sound and light alerts

The kit includes:

Radiation detector
USB Type-C cable
User manual and warranty card

specifications

Product ID	83070
Brand	Ermenrich
Warranty	5 years
EAN	5905555018645
Package size (LxWxH)	5.5x2.4x0.8 in
Shipping Weight	0.2 lb
Radiation measurement (gamma, beta, X-ray)	+, for gamma radiation only reference values, not exact
Sensor	Geiger-Muller counter
Length, mm	48
Measuring range	0.05µSv to 50mSv
Cumulative dose measurement range	0.1µSv to 100mSv
Exposure dose rate (EDR) measurement range	0.08µSv/h to 50mSv/h
Measurement error based on data from a cesium isotope study used as a source of gamma radiation	–17%... +25%
Measuring time, sec	<10 s
Audible alerts	✓
Light alert	✓
Display	OLED
Number of lines displayed on the screen	1
Waterproof	IP3X, particle protection >2.5mm
Battery life, h	2 — 3
Operating time, h	50
Low battery status indicator	✓
Power supply	150mAh lithium rechargeable battery (charging via USB Type-C cable with a 5V/2A AC adapter)
Operating temperature range, °F	-4...+122
Operating humidity range, %	0 — 95
