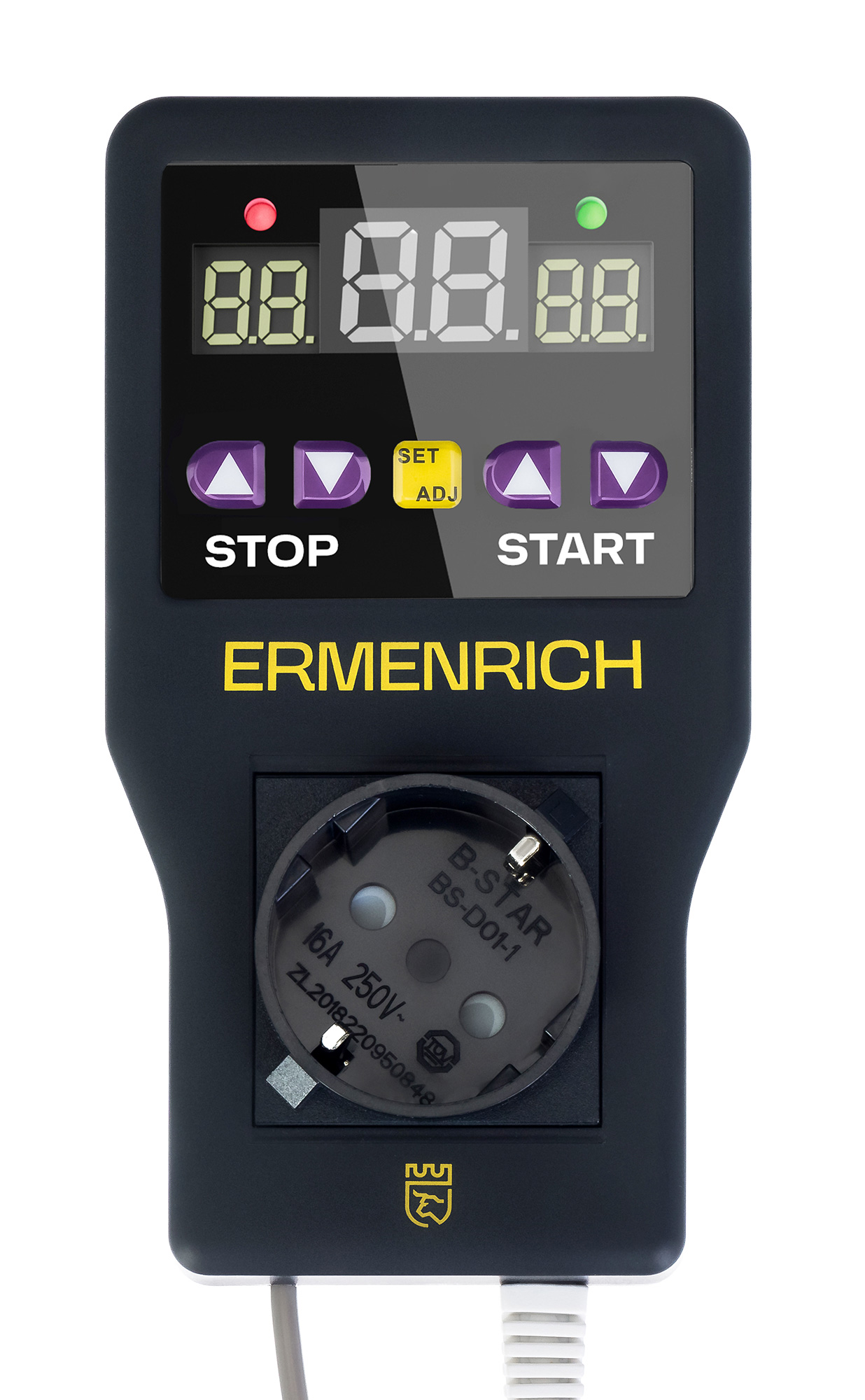

Ermenrich SC20 Temperature Controller
For adjusting room temperature and controlling heating devices
Product ID | 83592 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555020815 |
Package size (LxWxH) | 7.1x4.3x1.6 in |
Shipping Weight | 0.8 lb |
The Ermenrich SC20 microprocessor-based temperature controller allows you to control the temperature on any type of premises – residential, office, industrial, farms, and greenhouses. You can connect it to heating appliances, air conditioners, water heating systems, etc. The controller sensor reads the ambient temperature. When the temperature reaches the desired level, it either turns on the device connected to it or turns it off, thereby maintaining the desired temperature.
An NTC sensor on a 1 meter long cable is used to read the temperature. Measuring range: −9 to +99°C, measurement accuracy ±1°C. The temperature controller allows you to control heating and cooling. It also has a time control function to set it to turn on and off on a timer or at specified intervals. When high temperatures are reached, the controller gives a light signal.
The device has current overload protection and utilizes an AC power supply. In the event of a power failure, the device saves the settings.
Key features:
- NTC thermoregulation sensor, 1 meter cable
- Temperature measurement range from −9 to +99°C, measurement accuracy ±1°C
- Supports connection to heating appliances, air conditioners, water heating systems
- On and off setup: on a timer or at specified intervals
- Overload protection (current), saves settings in case of power failure
- AC power supply
Product ID | 83592 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555020815 |
Package size (LxWxH) | 7.1x4.3x1.6 in |
Shipping Weight | 0.8 lb |
Usage location | indoors |
Cable length, ft | 3.3 |
Measuring range | −9…+99 °C |
Measurement accuracy | ±1 °C |
Saving settings in case of power failure | ✓ |
Calibration | + |
Time control function | automatic switching on and off after specified periods of time, switching on and off by timer |
Temperature control | ✓ |
Power supply | AC network |
Operating temperature range, °F | 14...+140 |
Operating humidity range, % | 20 — 90 |
Supply voltage | 220 |
Power consumption, W | 1200 |
Overload protection (current) | 10A |
Protection grade | IP20, protection against large particles |
