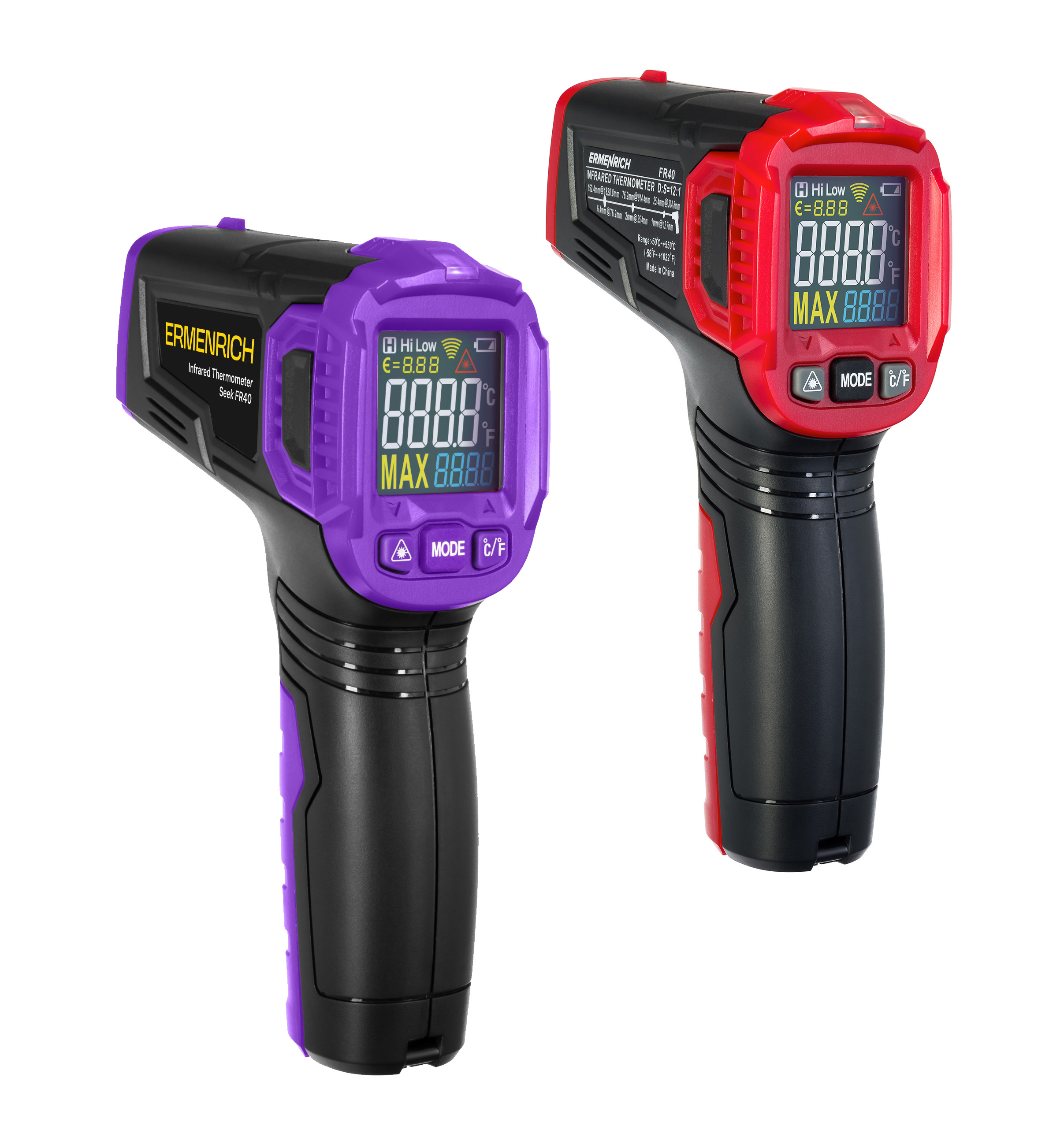

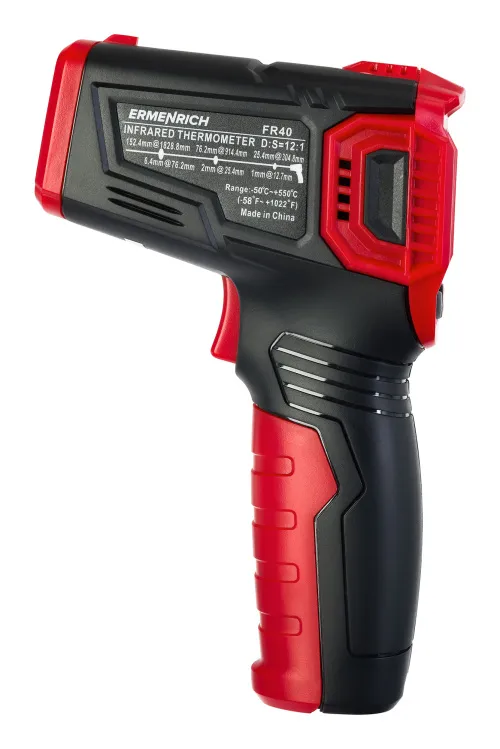

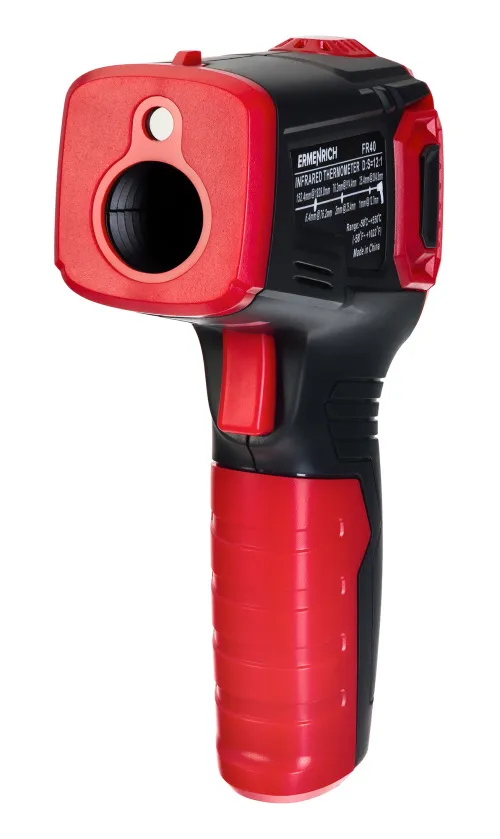

Ermenrich Seek FR40 Infrared Thermometer

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Pyrometer for non-contact temperature measurement

Thermometer

Data and parameters measured by the device

LCD, color

The screen type influences readability under different lighting conditions

2 AAA batteries (not included)

The power source is an important element that is necessary for the quality operation of the device

Availability

Product ID	82957
Brand	Ermenrich
Warranty	5 years
EAN	5905555017365
Package size (LxWxH)	7.5x2.4x4.7 in
Shipping Weight	0.5 lb

Description

The Ermenrich Seek FR40 is an infrared thermometer (pyrometer) for non-contact temperature measurement. The perfect tool for measurements in conditions where physical contact is impossible or unsafe. It measures temperature in the range of −50 to +550°C (−58 to +1022°F) using infrared radiation. Response time under 0.5 seconds.

The thermometer is equipped with a laser pointer for the precise targeting of the object. First, you need to hold the “trigger” down for the device to begin continuous measurement. To stop the process and record the obtained values, simply release the button. You can set the minimum and maximum values, upon reaching which the device will give a light signal. You can also choose the result to be displayed in degrees Celsius or Fahrenheit.

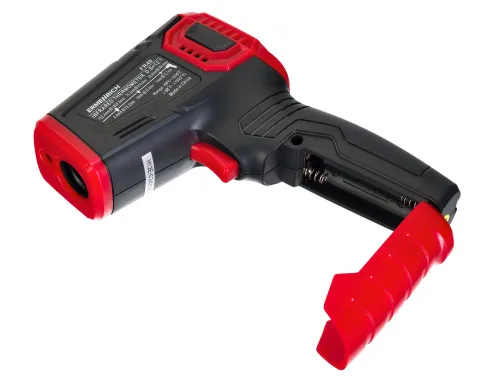

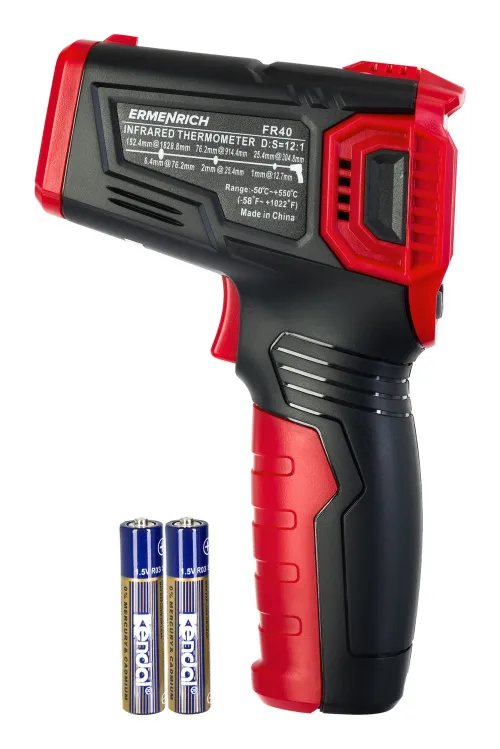

The thermometer is powered by 2 AAA batteries (not included). To save battery power, there is an auto-off function after 30 seconds of inactivity. The battery charge indicator helps change the power supply in a timely manner.

Key features:

Non-contact temperature measurement in the range of −50 to +550°C (−58 to +1022°F)

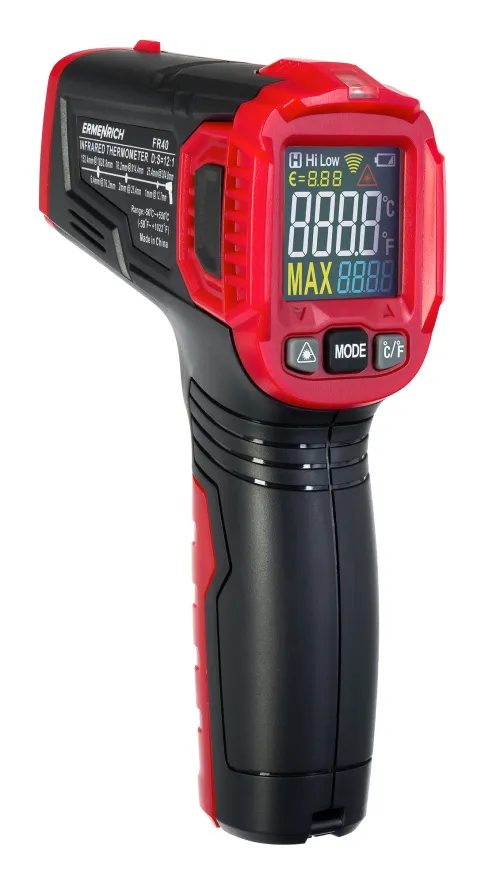

Color screen, freeze function
Setting the minimum and maximum temperature values, light signal
Powered by standard batteries, auto-off

specifications

Product ID	82957
Brand	Ermenrich
Warranty	5 years
EAN	5905555017365
Package size (LxWxH)	7.5x2.4x4.7 in
Shipping Weight	0.5 lb
Type	infrared thermometer
Built-in features	thermometer
Thermometer (temperature)
Units of measurement	°C, °F
Measuring range	−50°C to +550°C (−58 to +1022°F)
Accuracy	±3°C in the range of −50 to 0°C/±6°F in the range of −58 to +32°F; ±(2.0%+2°C) in the range of 0 to +550°C/±(2.0%+4°F) in the range of +32° to +1022°F
Response time	<0.5
Optical resolution (D:S)	12:1
Emissivity	0.10–1
Spectral response, μm	8 — 14
General specifications
Min/max alert	✓
Hold function	✓
Limit value function (Min/Max)	+ (maximums only)
Laser	yes
Laser light control	✓
Display	LCD, color
Display backlight	✓
Low battery status indicator	✓
Power supply	2 AAA batteries (not included)
Auto power off	✓
Safety standards	EN61326-1, EN60825-1

References
and downloads

Ermenrich Measuring Tools (pdf)

(PDF, 1.07 Mb)

User manual: Ermenrich Seek FR40 infrared thermometer (pdf)

(PDF, 2.62 Mb)
