Ermenrich NetGeeks NP35 Network Cable Tester

see all

Found it cheaper?

Get the same price + gift!

The price is valid only for the online store and may differ from the prices in retail stores.

Functions: cable testing, Port Flash function, cable tracing, cable crystal head quality check, telephone line status test

Telephone, STP/UTP (CAT5, CAT6) network cable

Tracing cable types

STP/UTP (CAT5, CAT6) network cable

Testing cable types

1970

Maximum length of the tested cable

Availability

Product ID	82547
Brand	Ermenrich
Warranty	5 years
EAN	5905555016917
Package size (LxWxH)	8.7x5.5x2 in
Shipping Weight	1.1 lb

Description

The Ermenrich NetGeeks NP35 tester is designed for testing and tracing cables. It enables you to identify installation errors or faults in network and low-current systems: short circuits, open circuits, crossed pairs. The Port Flash function can quickly identify the network port to which the tested table is connected. There are other features: a cable crystal head QC and a telephone line status test.

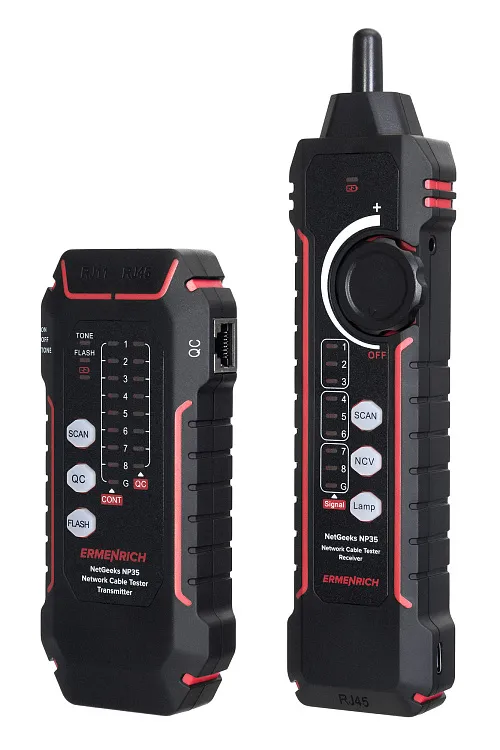

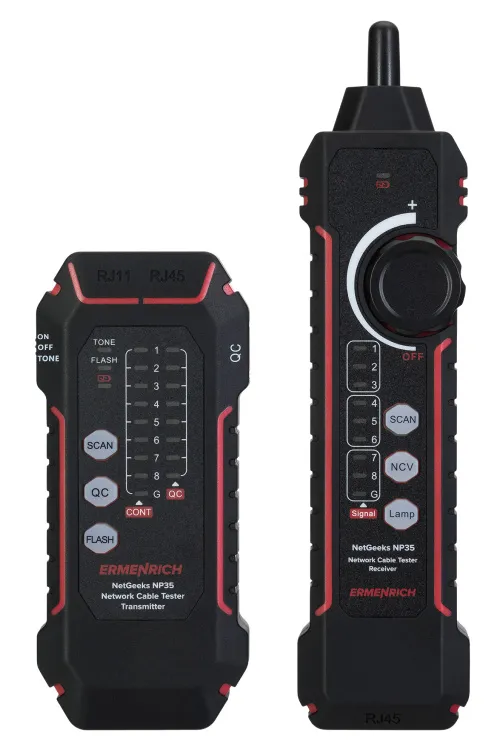

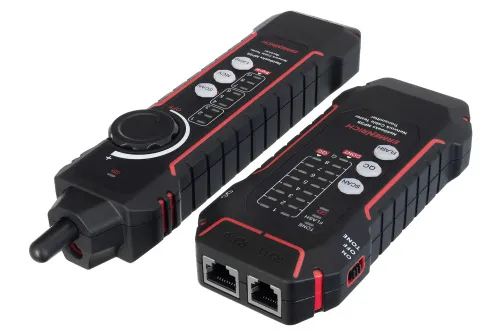

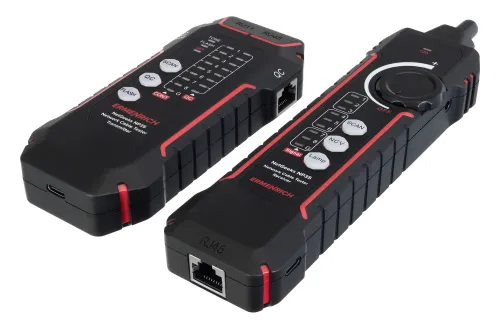

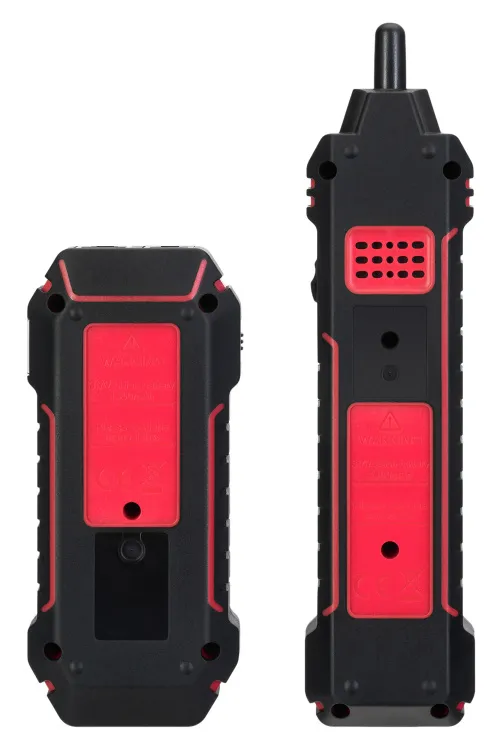

The Ermenrich NetGeeks NP35 tester consists of a transmitter and a receiver, both powered by rechargeable batteries. The receiver has an adjustable sensitivity and can safely locate the source of voltage (outlets, cables, machinery). The receiver is equipped with a flashlight for comfortable operation in dark areas as well as earbuds that can be connected to the receiver to avoid excessive external noise.

The device supports STP/UTP (CAT5, CAT6) network cables and telephone cables. It can be used for both home and professional use.

Key features:

Tester for tracing and testing network cables
Cable testing, Port Flash for port detection
Cable crystal head QC, telephone line condition test, voltage polarity detection
Powered by a rechargeable battery, option to connect earbuds

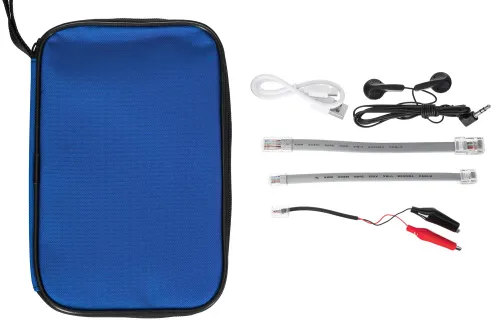

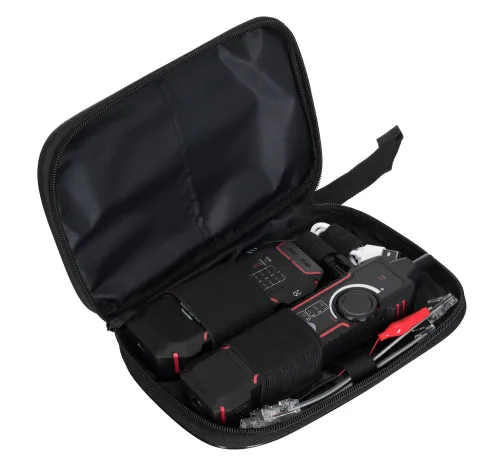

The kit includes:

Transmitter
Receiver
RJ11 patch cord
RJ45 patch cord
Alligator clip
DC cable
Earbuds
Type-C USB cable
User manual and warranty card

specifications

Product ID	82547
Brand	Ermenrich
Warranty	5 years
EAN	5905555016917
Package size (LxWxH)	8.7x5.5x2 in
Shipping Weight	1.1 lb

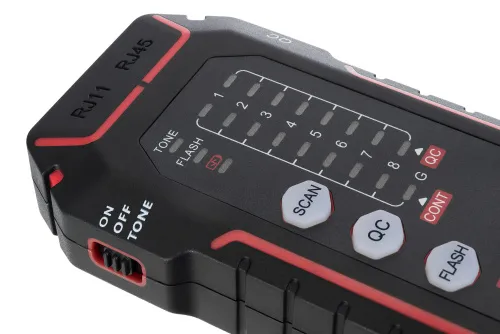

Transmitter

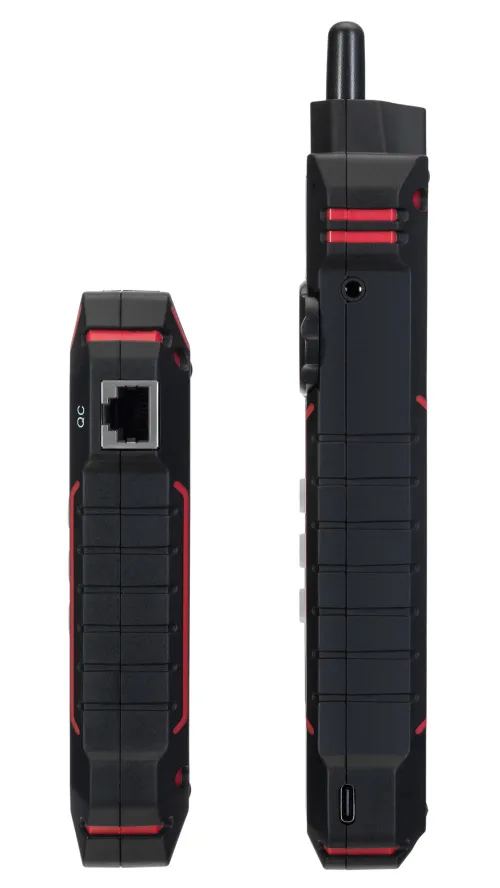

Ports	USB 2.0 (C type), RJ45, RJ11, QC
Tracing cable types	telephone, STP/UTP (CAT5, CAT6) network cable
Testing cable types	STP/UTP (CAT5, CAT6) network cable
Maximum length of the tested cable, ft	1970
Cable testing	+
Port flash function	✓
Port flash function	+
Сable crystal head QC	✓
Cable tracing	✓
Crosstalk protection	✓
Voltage polarity detection	✓
Telephone line status test	+, (stand-by, ringing, off-hook)
Key features

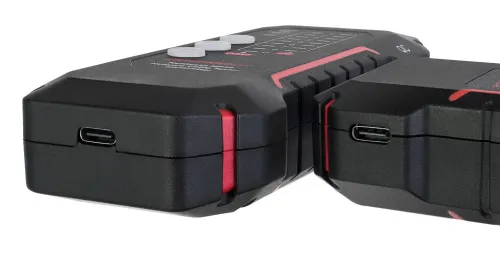

Power supply	1400 mAh, 3.7V lithium polymer battery, charging via a USB Type-C cable (included)
Low battery status indicator	✓
Operating temperature range, °F	–10… +40 (14… 104)
Operating humidity range, %	20…70
Receiver / Remote unit
Ports	USB 2.0 (C type), RJ45, earbuds
Adjustable sensitivity	✓
Non-contact voltage detection (NCV)	✓

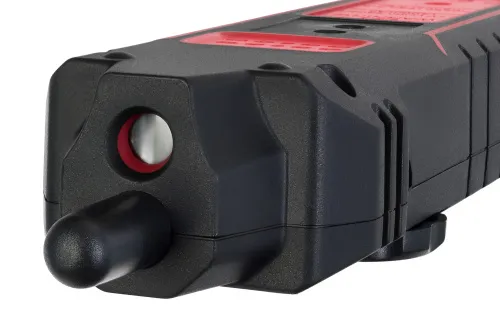

Flash light	✓
Power supply	1400 mAh, 3.7V lithium polymer battery, charging via a USB Type-C cable (included)
Operating temperature range, °F	–10… +40 (14… 104)
Operating humidity range, %	20…70
