Ermenrich NetGeeks NP40 Digital Cable Tracker

see all

Found it cheaper?

Get the same price + gift!

The price is valid only for the online store and may differ from the prices in retail stores.

Functions: TDR cable length measurement, cable testing, Port Flash function, cable tracing, PoE test

Telephone, common wires, STP/UTP (CAT5E, CAT6, CAT6A) network cable

Tracing cable types

STP/UTP (CAT5E, CAT6, CAT6A) network cable

Testing cable types

1970

Maximum length of the tested cable

Availability

Product ID	82550
Brand	Ermenrich
Warranty	5 years
EAN	5905555016948
Package size (LxWxH)	9.1x6.3x2 in
Shipping Weight	1.1 lb

Description

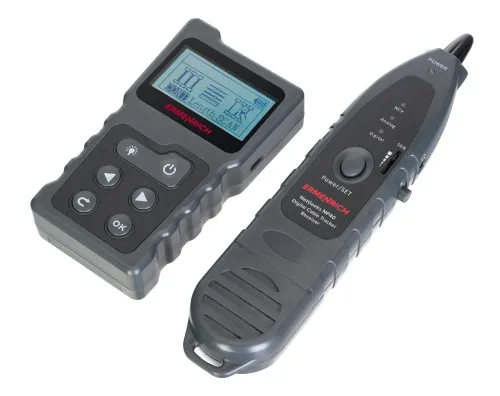

The Ermenrich NetGeeks NP40 multifunctional is a digital cable tester that is designed for tracing twisted pair and telephony, testing lines for faults and installation errors, measuring cable lengths and the distance to open or short circuits. The device will become an effective tool for technicians deploying and maintaining a computer or telephone network in an office, at a facility, or at home.

In the base mode of operation, the device can check the wires within the cable for damage: open circuits, short circuits, crossed pairs. In the cable length measurement mode, you can measure the total cable length within 200 meters as well as the distance to the break. TDR measurements, high accuracy, and calibration can be performed, if needed.

The Port Flash function can be used to find the exact port on the network switch or router to which the target cable is connected. The PoE test identifies the PSE type and detects midspan/endspan. The device also measures voltage and polarity. The tester receiver can be set to NCV mode for non-contact voltage detection.

The transmitter and receiver are powered by batteries (not included).

Key features:

Cable tracing, testing lines for faults and installation errors
Cable length measurement with the TDR technique (pulse reflectometry)
Measuring the distance to open or short circuits
PoE test with voltage measurement, identification of a PSE type, midspan/endspan identification
Port Flash and NCV functions, powered by batteries

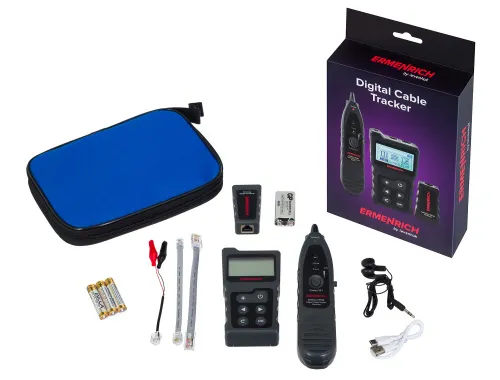

The kit includes:

Transmitter
Receiver
Remote unit
RJ11 patch cord
RJ45 patch cord
Alligator clip
DC cable
Earbuds
Type-C USB cable

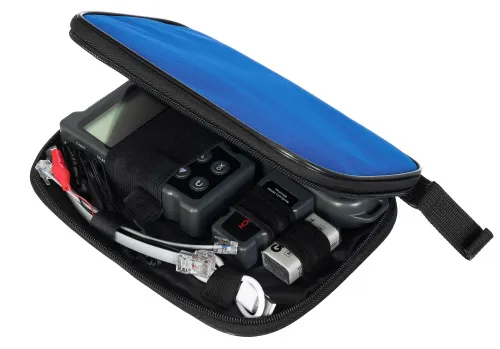

Carry bag
User manual and warranty card

specifications

Product ID	82550
Brand	Ermenrich
Warranty	5 years
EAN	5905555016948
Package size (LxWxH)	9.1x6.3x2 in
Shipping Weight	1.1 lb
Transmitter

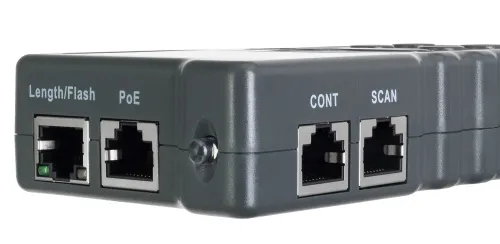

Ports	PoE, Scan, Length/Flash, Cont
Tracing cable types	telephone, common wires, STP/UTP (CAT5E, CAT6, CAT6A) network cable
Testing cable types	STP/UTP (CAT5E, CAT6, CAT6A) network cable
Maximum length of the tested cable, ft	1970
Cable testing	+ (open circuits, short circuits, crossed pairs, reversed pairs, split pairs, crosstalk)
Port flash function	+, (full duplex/half duplex, auto-nego/non-auto-nego, 10/100/1000Mbit/s)
Cable tracing	✓
PoE test	✓
Voltage polarity detection	✓
Cable length measurement
Measuring method	Time-domain pulse reflectometry (TDR)
Units of measurement	meters/yards, feet
Measuring range, ft	8.2 — 656.2
Error	3 (±0.5m/1.6ft)
Measuring the distance to short circuit	✓
Calibration	+
PoE test
Power source equipment (PSE) type test	standard (IEEE 802.3at/af)/non-standard
Operating voltage range (DC), V	5 — 60
Key features
Protection	input voltage: 48V, current: 5mA
Display	LCD
Display resolution, px	128х64
Display backlight	✓

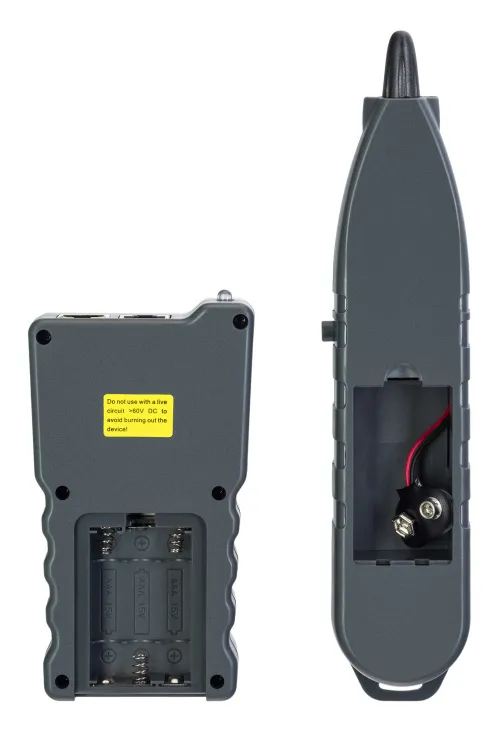

Power supply	charging via a USB Type-C cable (included), 3 rechargeable AAA batteries (not included)
Low battery status indicator	✓
Auto power off	15 min, 60 min, 30 min
Operating temperature range, °F	−10… +60 (14… 140)
Operating humidity range, %	20…70

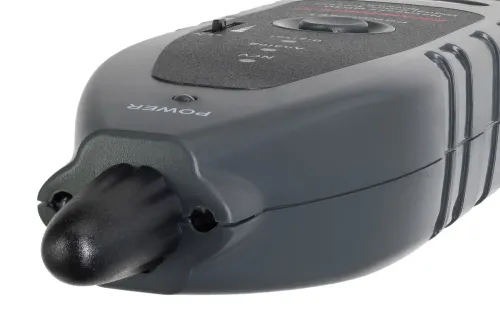

Receiver / Remote unit

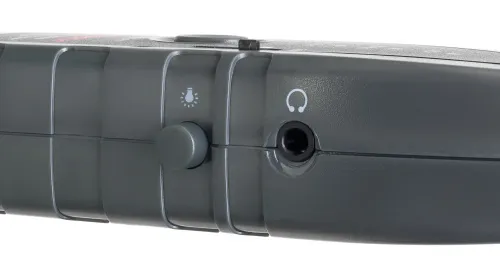

Ports	RJ45, earbuds
Adjustable sensitivity	✓
Non-contact voltage detection (NCV)	✓
Flash light	✓
Power supply	9V battery (not included)
Operating temperature range, °F	−10… +60 (14… 140)
Operating humidity range, %	20…70
