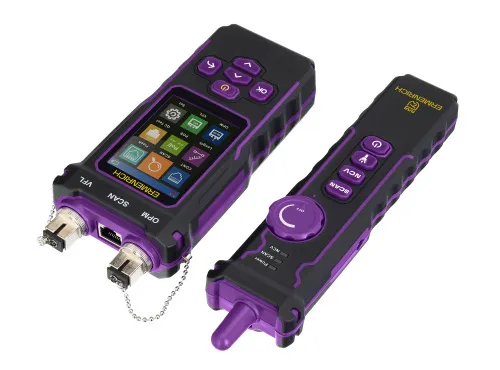

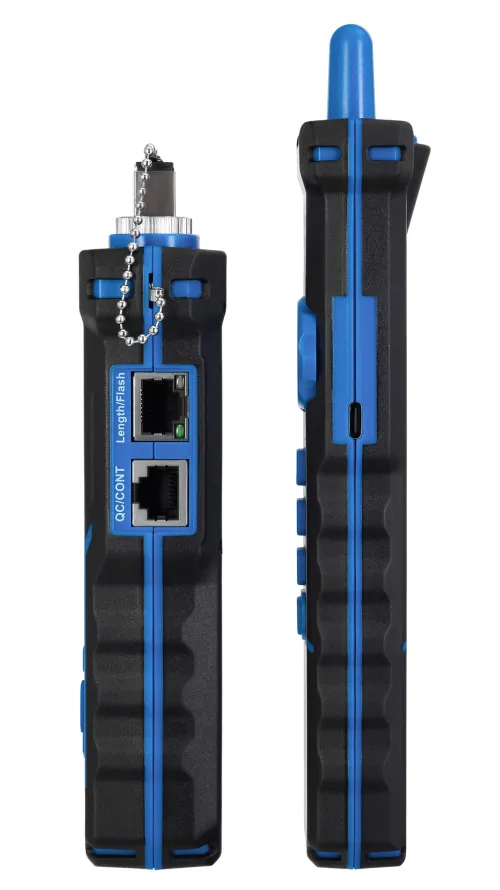

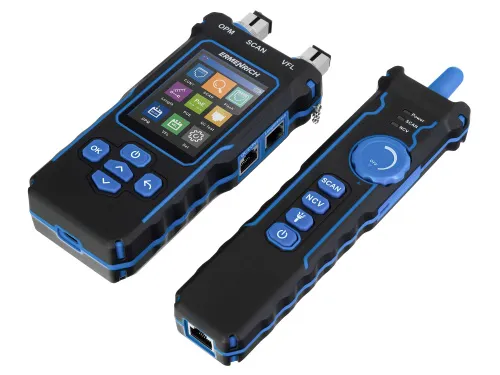

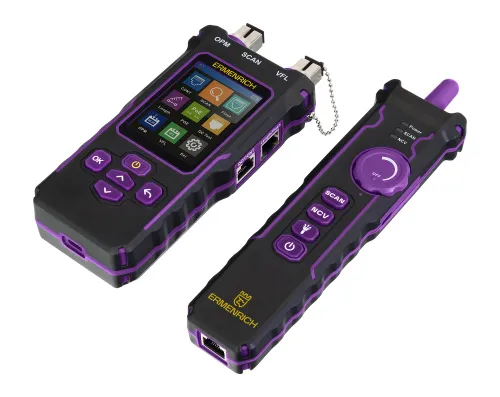

Ermenrich NetGeeks NP60 Optical Wire Tracker
Functions: cable length measurement, cable testing, Port Flash function, cable tracing, PoE test, optical power measurement, VFL function, cable crystal head quality check
Product ID | 82552 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555016962 |
Package size (LxWxH) | 9.4x6.3x2 in |
Shipping Weight | 1.3 lb |
The Ermenrich NetGeeks NP60 combines the functionality of a cable tester, cable length tester, and optical multimeter. It is an excellent choice for installing, testing, and operating twisted pair cable networks, including those used in high-speed Internet connections. It is a great tool for household use and in high demand for professionals too.
In the base test mode, the device tests the condition of a cable line. If there is an open circuit, a crossed pair, or a short circuit somewhere, the test will quickly identify it. If necessary, the crystal head of the twisted pair cable can also be QC tested. The PoE test not only measures the voltage, but also identifies the PSE type and midspan/endspan. The Port Flash function enables you to quickly locate the exact port on the network switch or router to which the target cable is connected.
In the optical power meter mode, the tester supports 6 wavelengths and can measure both absolute and relative optical power. The option to set up the reference power level simplifies the measurement procedure. There is also a VFL function, which enables you to locate optical fiber breakage. In the cable length meter mode, it is possible to measure up to 200 meters.

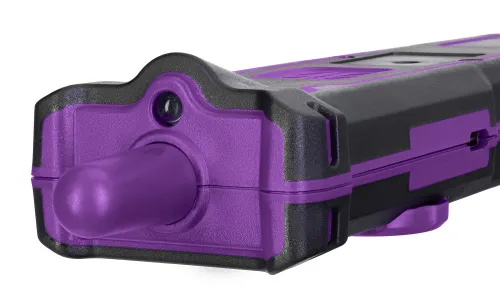

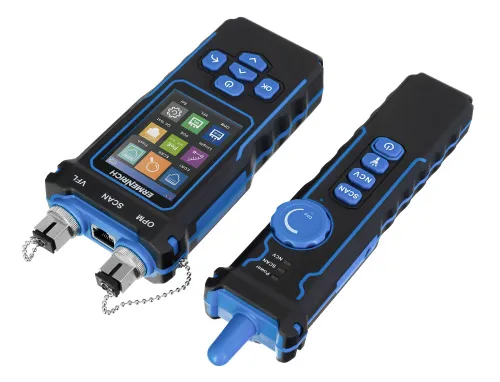

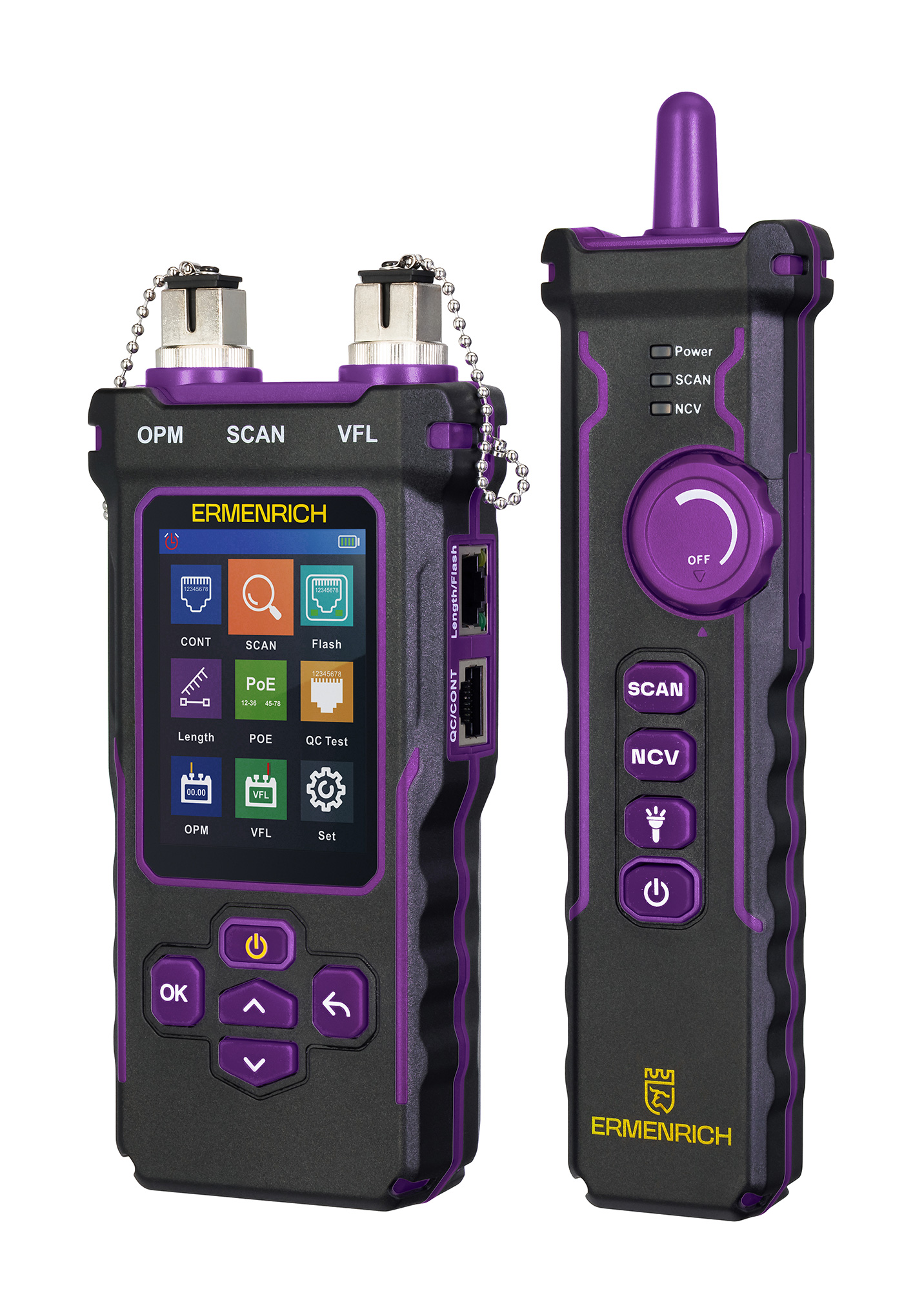

The receiver can operate as a non-contact high voltage meter (NCV function) and is equipped with a flashlight to illuminate dark areas. Both the transmitter and receiver are powered by a rechargeable battery.
Key features:
- 3-in-1: cable tester, optical power tester, cable length meter
- Cable testing, cable crystal head QC, PoE test, Port Flash function
- Length measurement up to 200 meters, selectable units of measurement
- Optical multimeter with the VFL function and adjustable reference power level
- Powered by a rechargeable battery

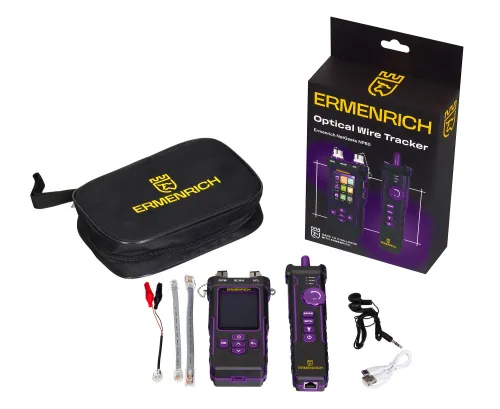

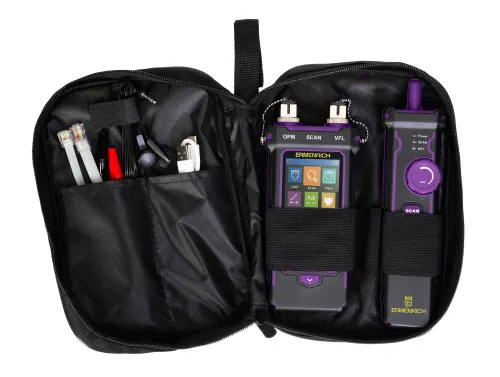

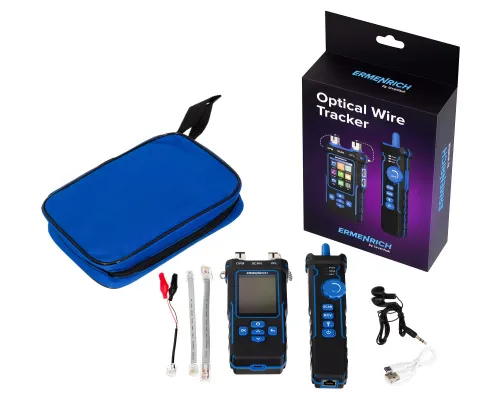

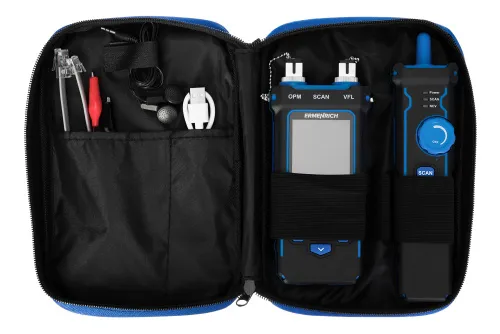

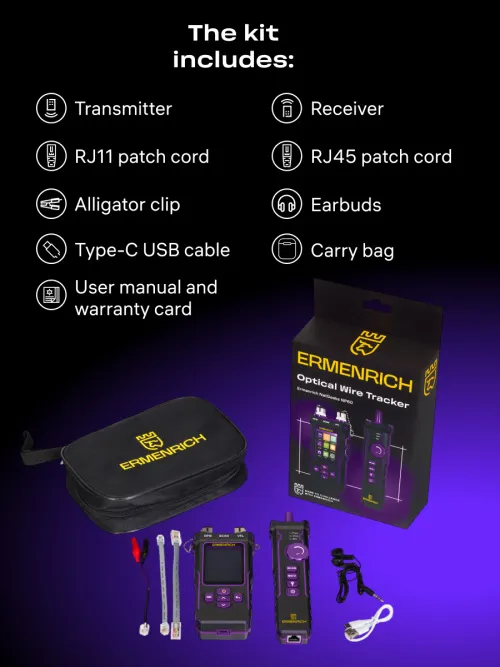

The kit includes:
- Transmitter
- Receiver
- RJ11 patch cord
- RJ45 patch cord
- Alligator clip
- DC cable
- Earbuds
- Type-C USB cable
- Carry bag
- User manual and warranty card
Product ID | 82552 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555016962 |
Package size (LxWxH) | 9.4x6.3x2 in |
Shipping Weight | 1.3 lb |

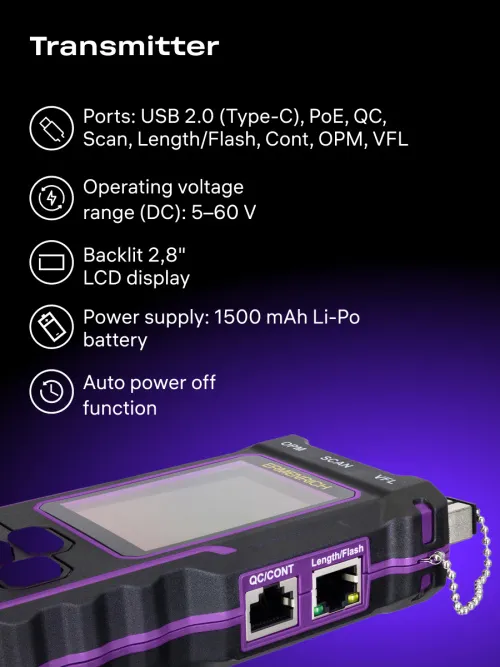

Transmitter | |

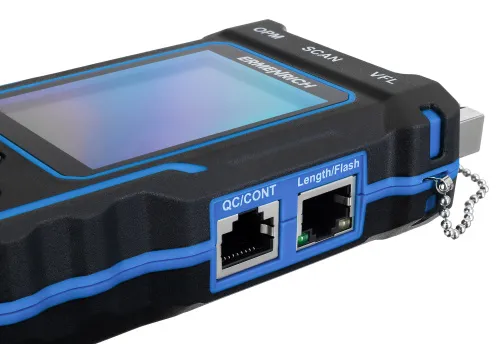

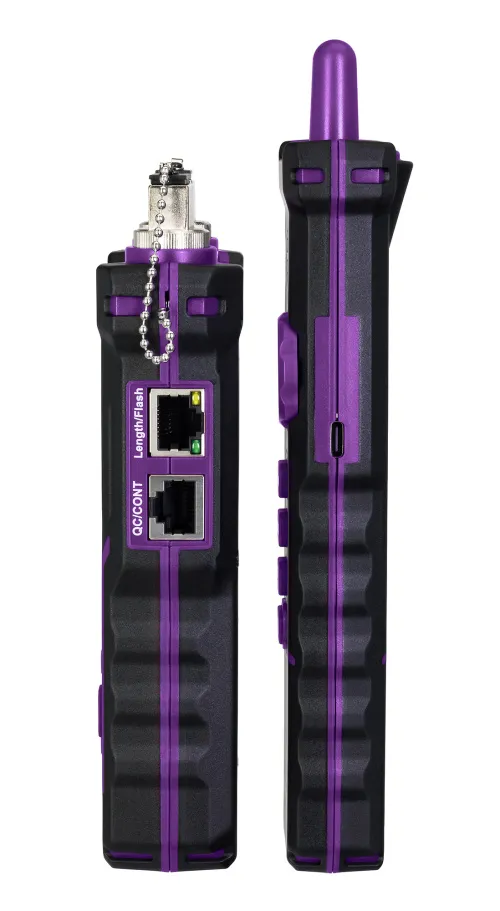

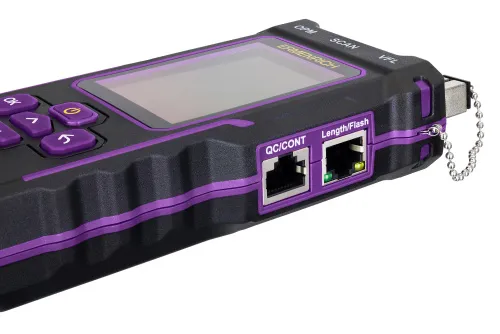

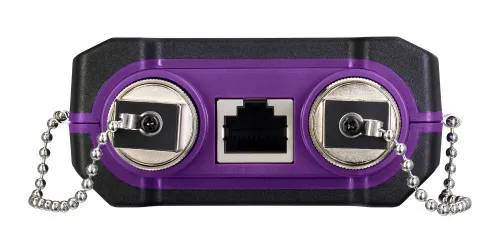

Ports | USB 2.0 (C type), PoE, QC, Scan, Length/Flash, Cont, OPM, VFL |
Testing cable types | STP/UTP (CAT5, CAT6) network cable |
Maximum length of the tested cable, ft | 1970 |
Cable testing | + |
Port flash function | +, (full duplex/half duplex, auto-nego/non-auto-nego, 10/100/1000Mbit/s) |
Сable crystal head QC | ✓ |
Cable tracing | ✓ |
Crosstalk protection | ✓ |
PoE test | ✓ |
Voltage polarity detection | ✓ |
Cable length measurement | |
Units of measurement | meters/yards, feet |
Measuring range, ft | 8.2 — 656.2 |
PoE test | |
Power source equipment (PSE) type test | standard (IEEE 802.3at/af)/non-standard |
Operating voltage range (DC), V | 5 — 60 |
Optical power measurement | |

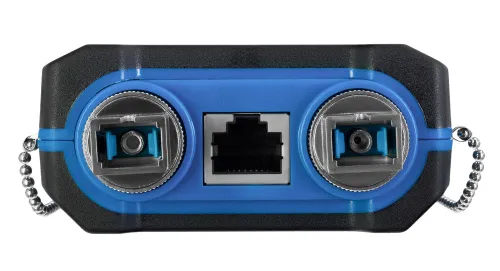

Optical power meter wavelength, nm | 850/ 1300/ 1310/ 1490/ 1550/ 1625 |
Units of measurement | dB, dBm, W |
Option to set the reference level | ✓ |
Visual fault locator (VFL) | ✓ |
Key features | |
Protection | input voltage: 48V, current: 5mA |
Display | LCD |
Display diagonal, inch | 2.8 |
Display resolution, px | 320x240 |
Display backlight | ✓ |

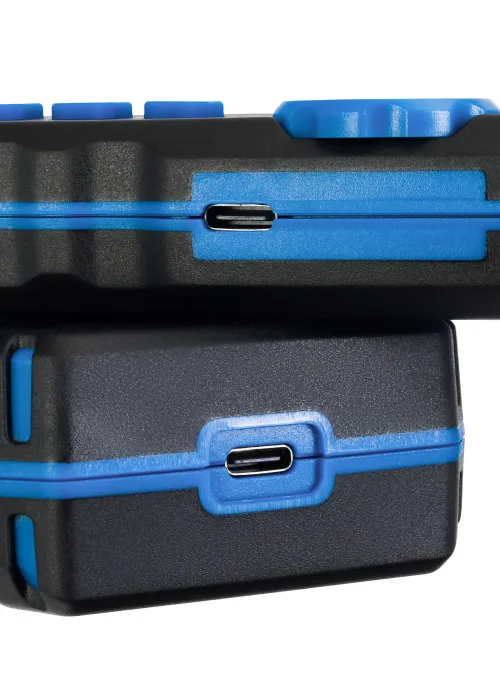

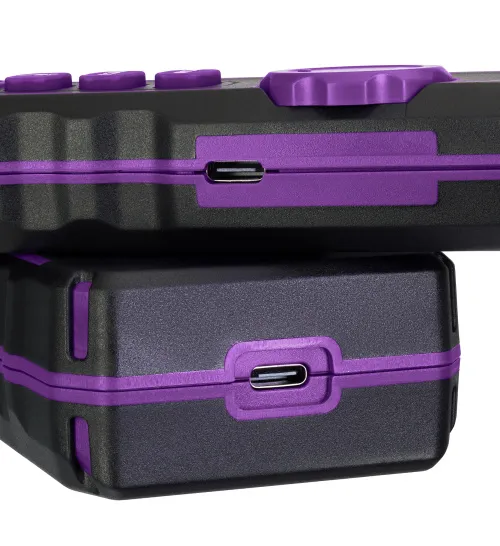

Power supply | charging via a USB Type-C cable (included), 1500mAh, 3.7V lithium polymer battery |
Low battery status indicator | ✓ |
Auto power off | 15 min, 60 min, 120 min, 30 min |
Operating temperature range, °F | −10… +60 (14… 140) |
Operating humidity range, % | 20…70 |

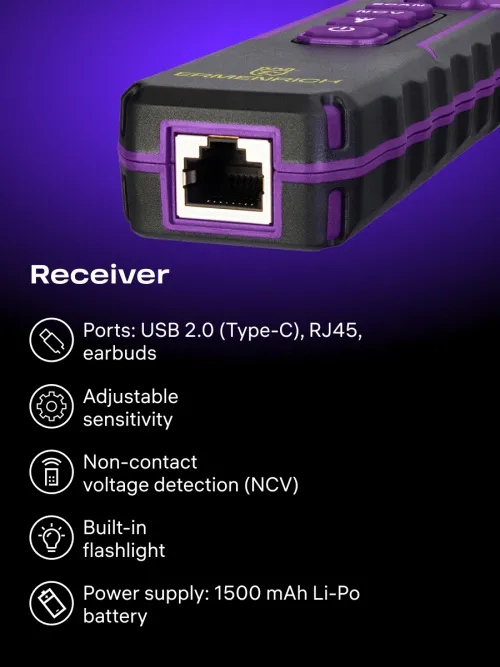

Receiver / Remote unit | |

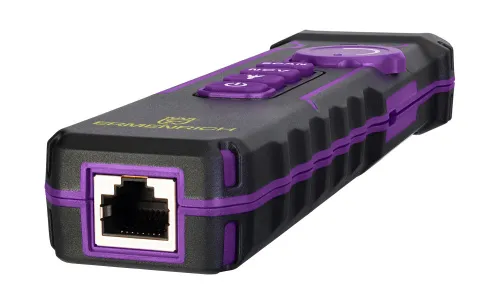

Ports | USB 2.0 (C type), RJ45, earbuds |
Adjustable sensitivity | ✓ |
Non-contact voltage detection (NCV) | ✓ |
Flash light | ✓ |
Power supply | charging via a USB Type-C cable (included), 1500mAh, 3.7V lithium polymer battery |
Operating temperature range, °F | −10… +60 (14… 140) |
Operating humidity range, % | 20…70 |
