Ermenrich NetGeeks NU10 Optical Multimeter

Ermenrich NetGeeks NU10 Optical Multimeter

picture Ermenrich NetGeeks NU10 Optical Multimeter
picture Ermenrich NetGeeks NU10 Optical Multimeter
picture Ermenrich NetGeeks NU10 Optical Multimeter
picture Ermenrich NetGeeks NU10 Optical Multimeter
see all
picture Ermenrich NetGeeks NU10 Optical Multimeter
picture Ermenrich NetGeeks NU10 Optical Multimeter
picture Ermenrich NetGeeks NU10 Optical Multimeter
picture Ermenrich NetGeeks NU10 Optical Multimeter
picture Ermenrich NetGeeks NU10 Optical Multimeter
The price is valid only for the online store and may differ from the prices in retail stores.

Optical power meter

850/ 1300/ 1310/ 1490/ 1550/ 1625
Wavelengths supported by the device
FC, SC, ST
Types of optical connectors: the interfaces of the device must match the adapters
-50 — 26
The range of the optical signal that the multimeter is capable of measuring with high accuracy
Availability
Product ID 82556
Brand Ermenrich
Warranty 5 years
EAN 5905555017006
Package size (LxWxH) 7.5x5.9x2.4 in
Shipping Weight 0.7 lb
description
specifications
downloads
questions/feedback
accessories
Description

The Ermenrich NetGeeks NU10 optical multimeter is a compact device for testing fiber-optic communication lines. You can measure the absolute optical power or relative loss of optical power between two points in the fiber optic cable. The device is useful to those who install and maintain cable networks or inspect and certify telecommunications equipment.

The multimeter supports six wavelengths: You can select the desired one with a push of a button. The FC/SC/ST interfaces are used for connection. There is an option to set the reference level for the current wavelength, which makes it easier to determine the power loss. The measurements are displayed on the built-in backlit screen. The device runs on batteries. The auto-off function helps save the power.

Key features:

  • Absolute and relative optical power measurements
  • FC/SC/ST connectors, supports 6 wavelengths
  • Option to set the reference level
  • Powered by batteries; auto-off function
  • Portable design and simple operation

The kit includes:

  • Transmitter

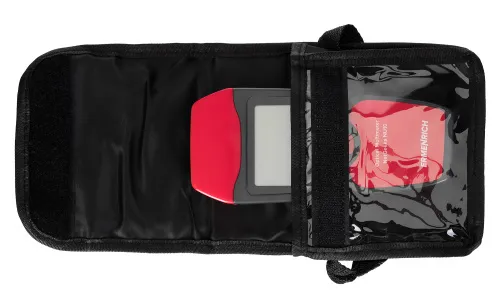

  • Pouch

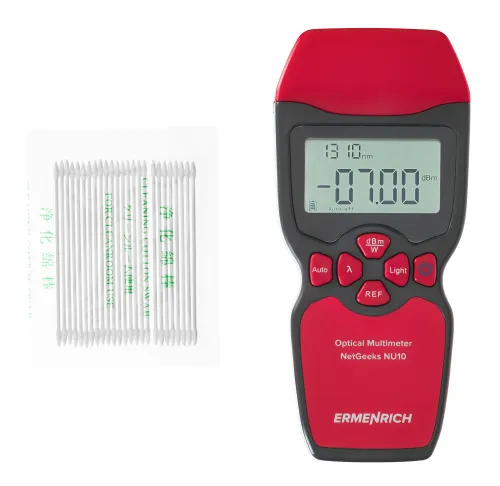

  • Cotton swabs
  • User manual and warranty card
specifications
Product ID 82556
Brand Ermenrich
Warranty 5 years
EAN 5905555017006
Package size (LxWxH) 7.5x5.9x2.4 in
Shipping Weight 0.7 lb
Type optical multimeter
Optical power meter wavelength, nm 850/ 1300/ 1310/ 1490/ 1550/ 1625

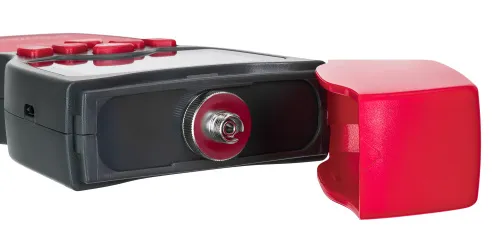

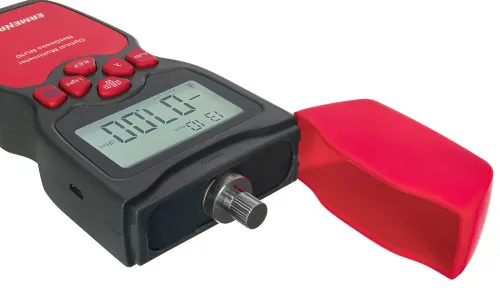

Fiber connector type FC, SC, ST
Maintained cable type single-mode (SM), multimode (MM)
Units of measurement dB, dBm, W
Power detection range, dBm -50 — 26
Option to set the reference level ✓

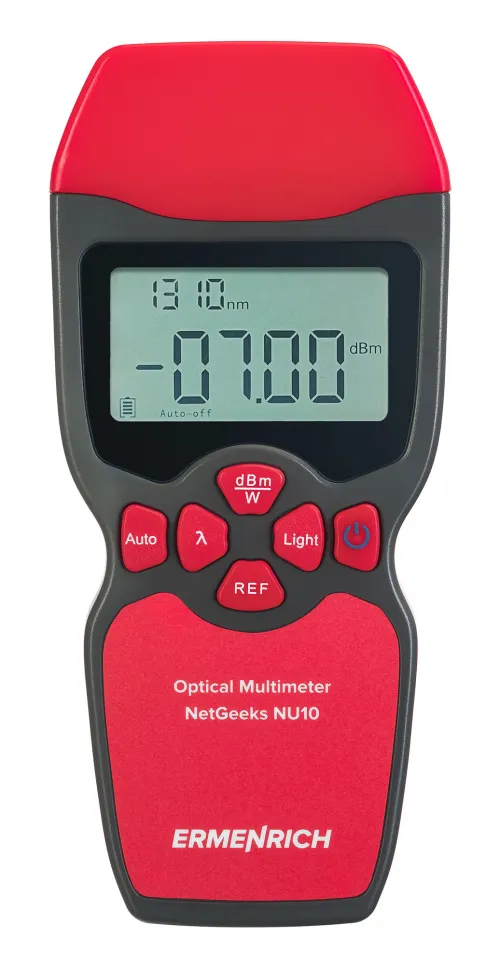

Display FSTN LCD
Display backlight ✓

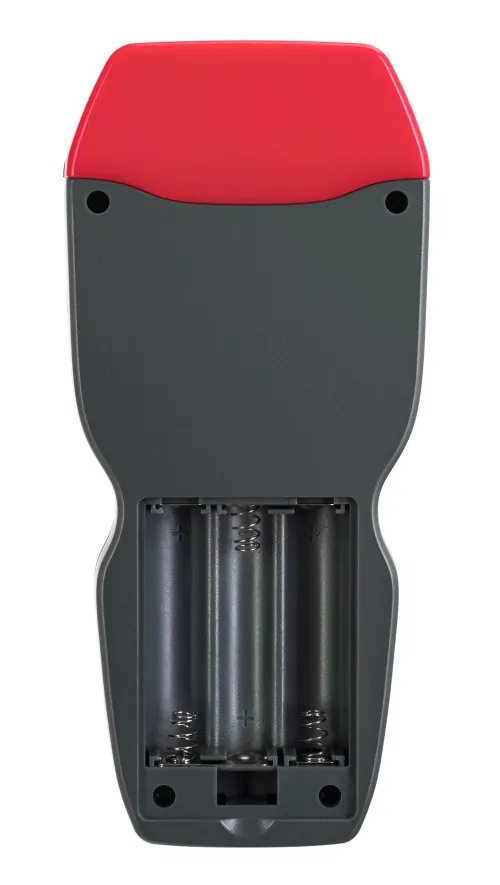

Power supply 3 AAA batteries (not included) or AC power (a microUSB cable and an AC adapter not included)
Low battery status indicator ✓
Auto power off ✓
Operating temperature range, °F 14...+140
Operating humidity range, % 20 — 60
References
and downloads
Ermenrich Measuring Tools (pdf)
(PDF, 1.07 Mb)
User manual: Ermenrich NetGeeks NU10 optical multimeter (pdf)
(PDF, 16.03 Mb)
High-resolution images (zip)
(ZIP, 52.13 Mb)
