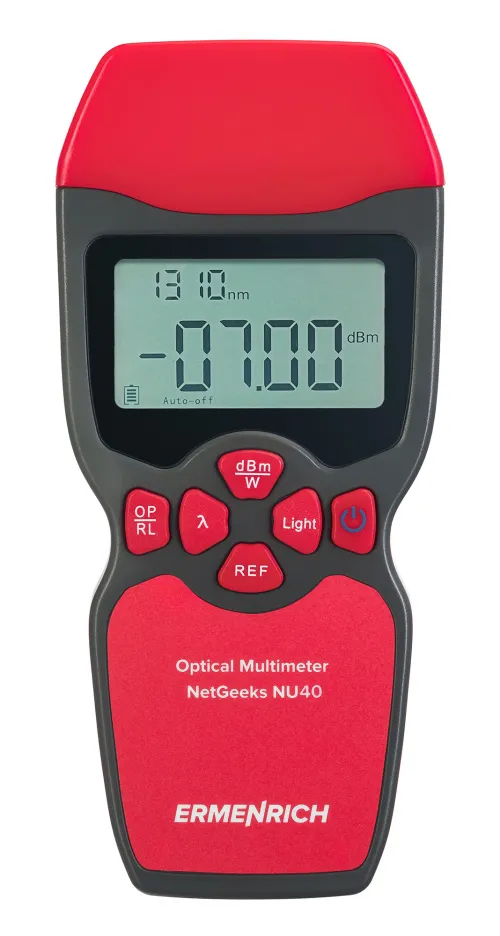

Ermenrich NetGeeks NU40 Optical Multimeter

see all

Found it cheaper?

Get the same price + gift!

The price is valid only for the online store and may differ from the prices in retail stores.

Hybrid optical power meter

850/ 1300/ 1310/ 1490/ 1550/ 1625

Wavelengths supported by the device

FC, SC, ST

Types of optical connectors: the interfaces of the device must match the adapters

-50 — 26

The range of the optical signal that the multimeter is capable of measuring with high accuracy

Availability

Product ID	82559
Brand	Ermenrich
Warranty	5 years
EAN	5905555017037
Package size (LxWxH)	7.5x5.9x2.4 in
Shipping Weight	0.8 lb

Description

Optical multimeter, or optical power meter, Ermenrich NetGeeks NU40 – an essential tool for professionals who install and maintain fiber-optic communication lines (FOCL). The device allows you to measure the absolute power and find losses between two points in the line. It has a light source function for checking fiber optic cables. The multimeter is equipped with two connectors and it supports a hybrid operating mode: When testing a cable, it can simultaneously act as an optical power meter and a light source for assessing signal loss.

The device is equipped with FC, SC, ST connectors and can work with single-mode and multi-mode cables. You can adjust and select the operating mode with the buttons. The measurements are displayed on the built-in screen, which has a backlight for low-light conditions. The multimeter is powered by standard batteries (not included).

Key features:

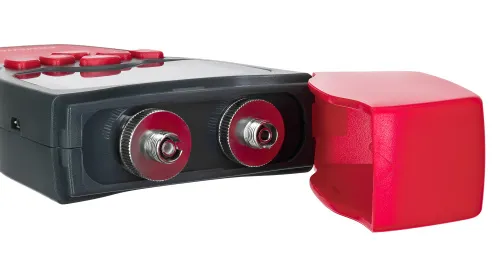

Supports single-mode and multi-mode cables, FC, SC, ST connectors
Measuring absolute and relative optical power, six wavelengths
Light source function for checking fiber optic cables
Hybrid cable operating mode: The device is a light source and an optical power meter
Powered by standard batteries, auto-off function to save battery power

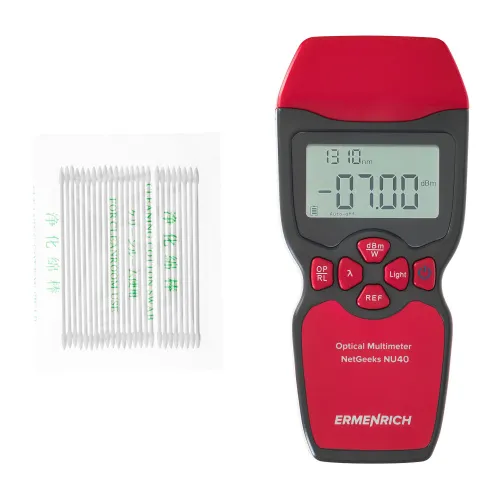

The kit includes:

Transmitter
Pouch
Cotton swabs
User manual and warranty card

specifications

Product ID	82559
Brand	Ermenrich
Warranty	5 years
EAN	5905555017037
Package size (LxWxH)	7.5x5.9x2.4 in
Shipping Weight	0.8 lb
Type	optical multimeter
Optical power meter wavelength, nm	850/ 1300/ 1310/ 1490/ 1550/ 1625
Fiber connector type	FC, SC, ST
Maintained cable type	single-mode (SM), multimode (MM)
Units of measurement	dB, dBm, W
Power detection range, dBm	-50 — 26
Option to set the reference level	✓
Display	FSTN LCD
Display backlight	✓

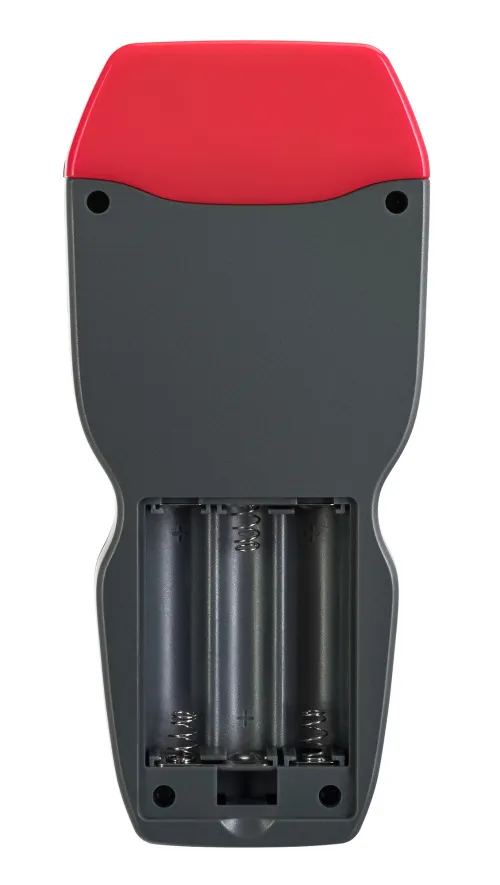

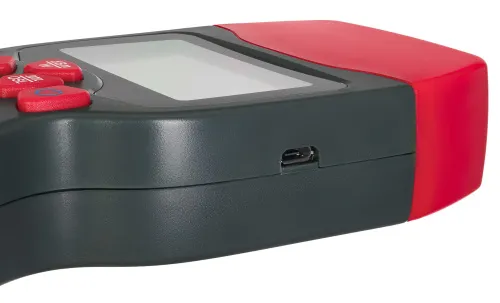

Power supply	3 AAA batteries (not included) or AC power (a microUSB cable and an AC adapter not included)
Low battery status indicator	✓
Auto power off	✓
Operating temperature range, °F	14...+140
Operating humidity range, %	20 — 70
