Functions: cable length measurement, cable testing, cable tracing, Port Flash, PoE test, telephone line status test, VFL function

Telephone, coaxial, STP/UTP (CAT5, CAT6) network cable
Testing cable types
6560
Maximum length of the tested cable
1400 mAh, 3.7V lithium polymer battery
The power source is an important element that is necessary for the quality operation of the device
Availability

Product ID 82553
Brand Ermenrich
Warranty 5 years
EAN 5905555016979
Package size (LxWxH) 9.4x6.3x3.1 in
Shipping Weight 1.9 lb
Description

Ermenrich Ping SM110 is a multifunctional tester for cable tracing, length measurement, and testing of different types of cables. It also allows you to check the status of telephone lines and detect polarity. Option to run a PoE test. The device has a Flash Port function to identify the port on the switch or router. The VFL function helps you to detect if a cable is damaged or to locate a cable in a cable bundle by flashing a red light on the connector.

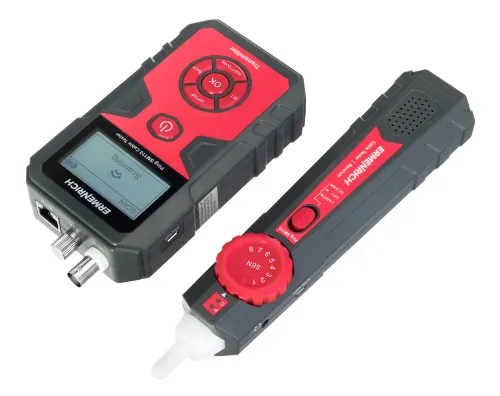

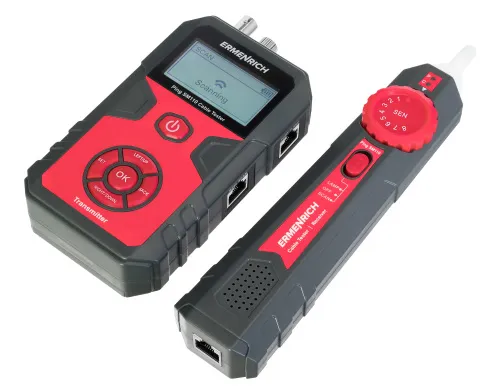

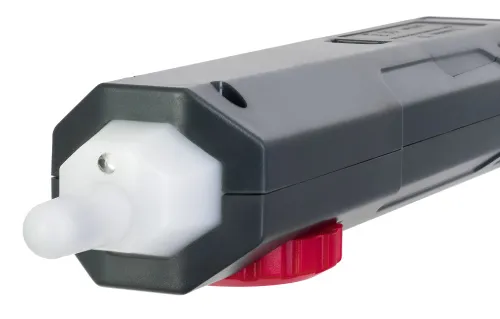

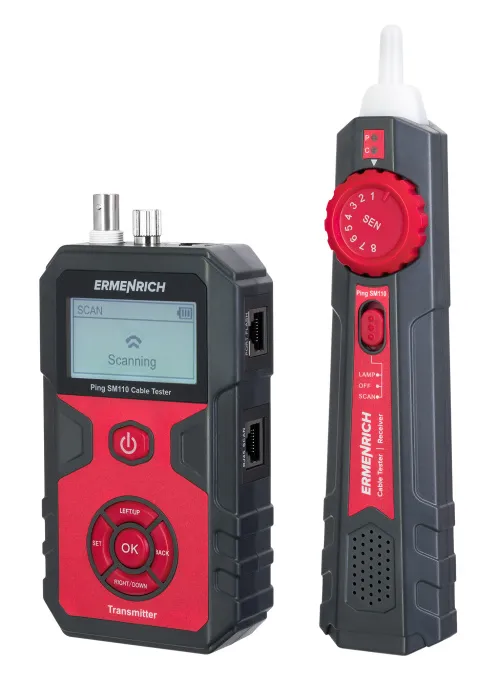

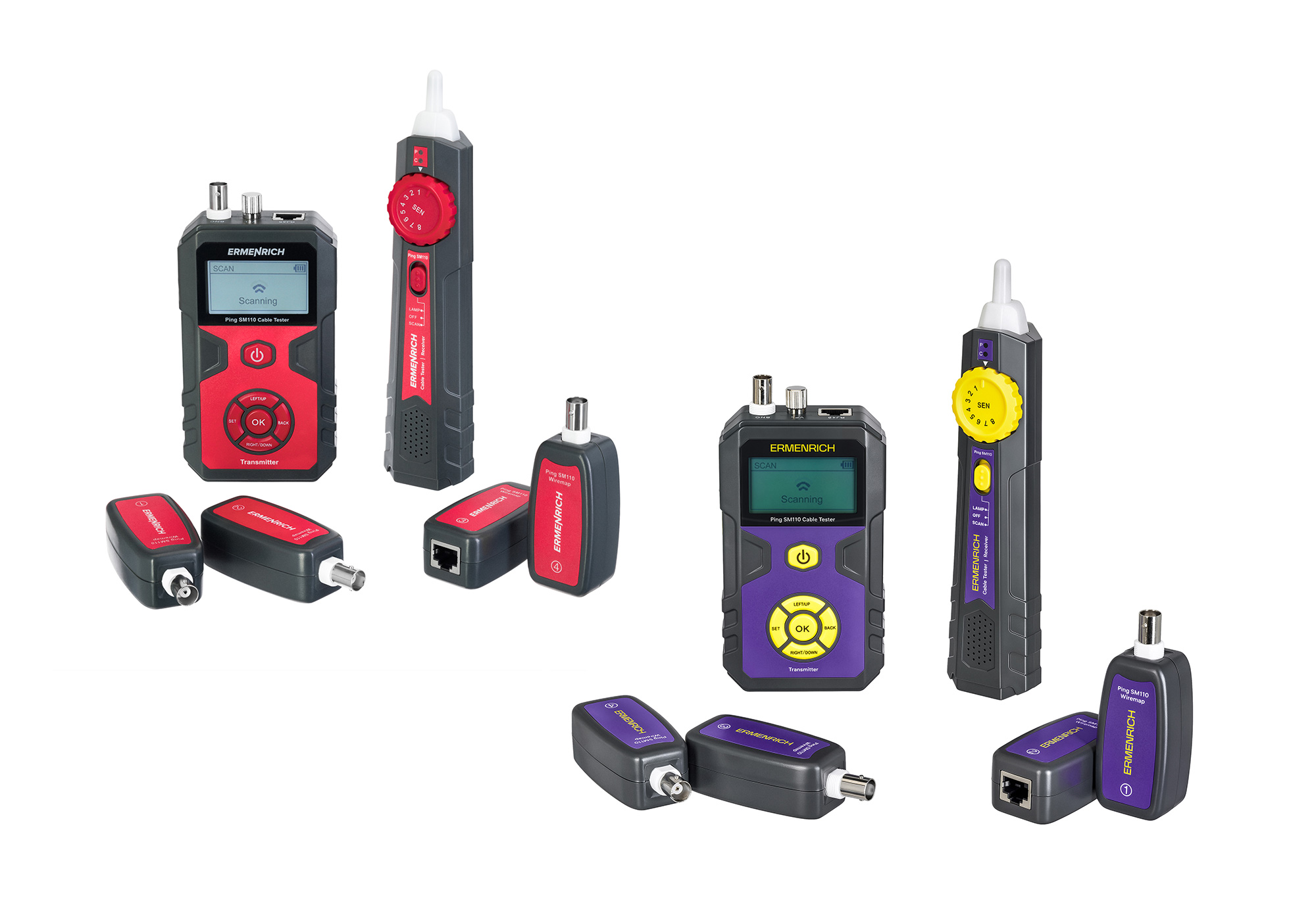

The Ermenrich Ping SM110 cable tester includes three main units: a transmitter with a screen and control buttons, a receiver with a speaker and adjustable sensitivity, and 4 remote units. Adapters and patch cords are also included. All of the accessories come in a carry bag that is convenient to take with you and will keep all your devices safe and secure.

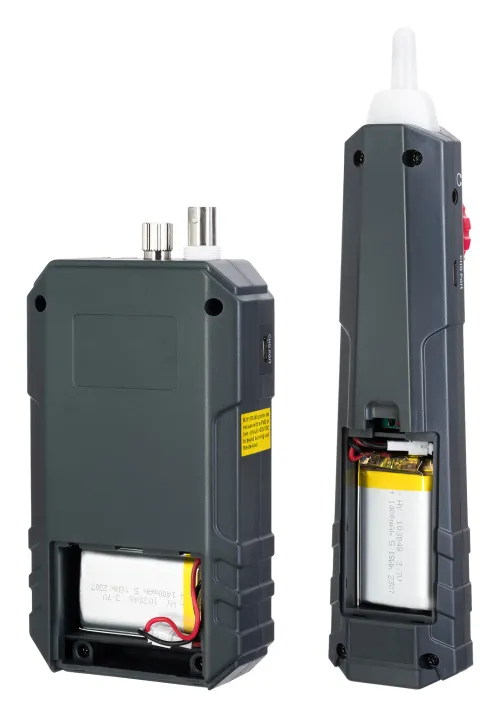

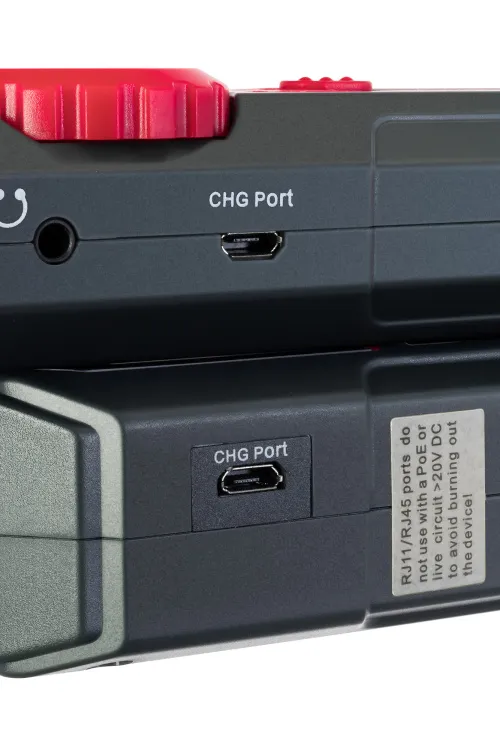

The transmitter and receiver are equipped with rechargeable batteries, an adapter, and a charging cable.

Key features:

  • Wire mapping and tracing coaxial and network cables
  • Checking the condition and polarity of telephone lines
  • Cable length measurement up to 2,000 meters (6560ft)
  • PoE test, Port Flash, and VFL functions
  • Powered by a rechargeable battery (transmitter and receiver)

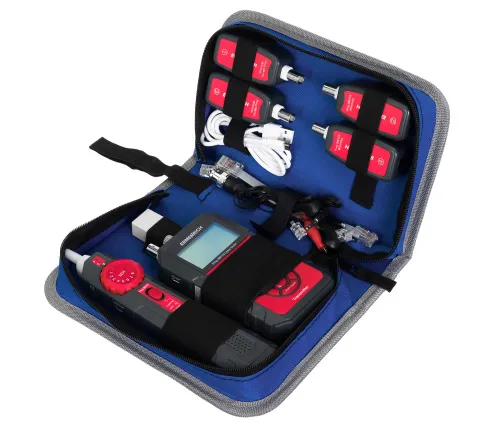

The kit includes:

  • Receiver
  • Transmitter

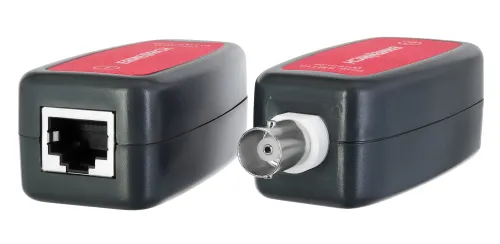

  • Remote units – 4 pcs.
  • Earbuds
  • Alligator clip
  • Network patch cord
  • Telephone patch cord
  • Telephone adapter 6p4c (RJ11 module)
  • Adapter BNC-RJ11
  • AC adapter 5V, 1A
  • Micro USB cable
  • Bag
  • User manual and warranty card
specifications
Product ID 82553
Brand Ermenrich
Warranty 5 years
EAN 5905555016979
Package size (LxWxH) 9.4x6.3x3.1 in
Shipping Weight 1.9 lb
Transmitter
Ports microUSB, RJ45 (main), RJ45 (scan), BNC, PoE, Flash, VFL
Testing cable types telephone, coaxial, STP/UTP (CAT5, CAT6) network cable
Maximum length of the tested cable, ft 6560
Cable testing +
Port flash function +
Cable tracing
PoE test
Voltage polarity detection
Telephone line status test +
Measuring range, ft 32.8 — 6562
Visual fault locator (VFL)
Key features
Signal frequency, kHz 130
Data transmission + (5 memory slots)
Display LCD
Display resolution, px 128х64
Display backlight
Power supply 1400 mAh, 3.7V lithium polymer battery
Low battery status indicator
Auto power off 15 min, 60 min, 30 min
Operating temperature range, °F −10… +60 (14… 140)
Receiver / Remote unit

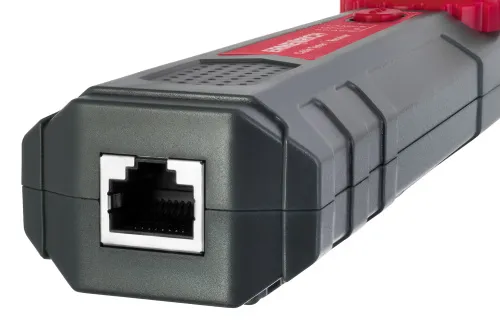

Ports microUSB, BNC, RJ45
Signal frequency, kHz 130
Power supply 1400 mAh, 3.7V lithium polymer battery
Operating temperature range, °F −10… +60 (14… 140)
