Ermenrich Reel GE100 Laser Meter
Measuring distances, area, volume, and angles. Pythagorean theorem feature. Measurement distance: up to 100 meters (330ft)
Product ID | 83074 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555018683 |
Package size (LxWxH) | 6.7x4.3x1.6 in |
Shipping Weight | 0.4 lb |

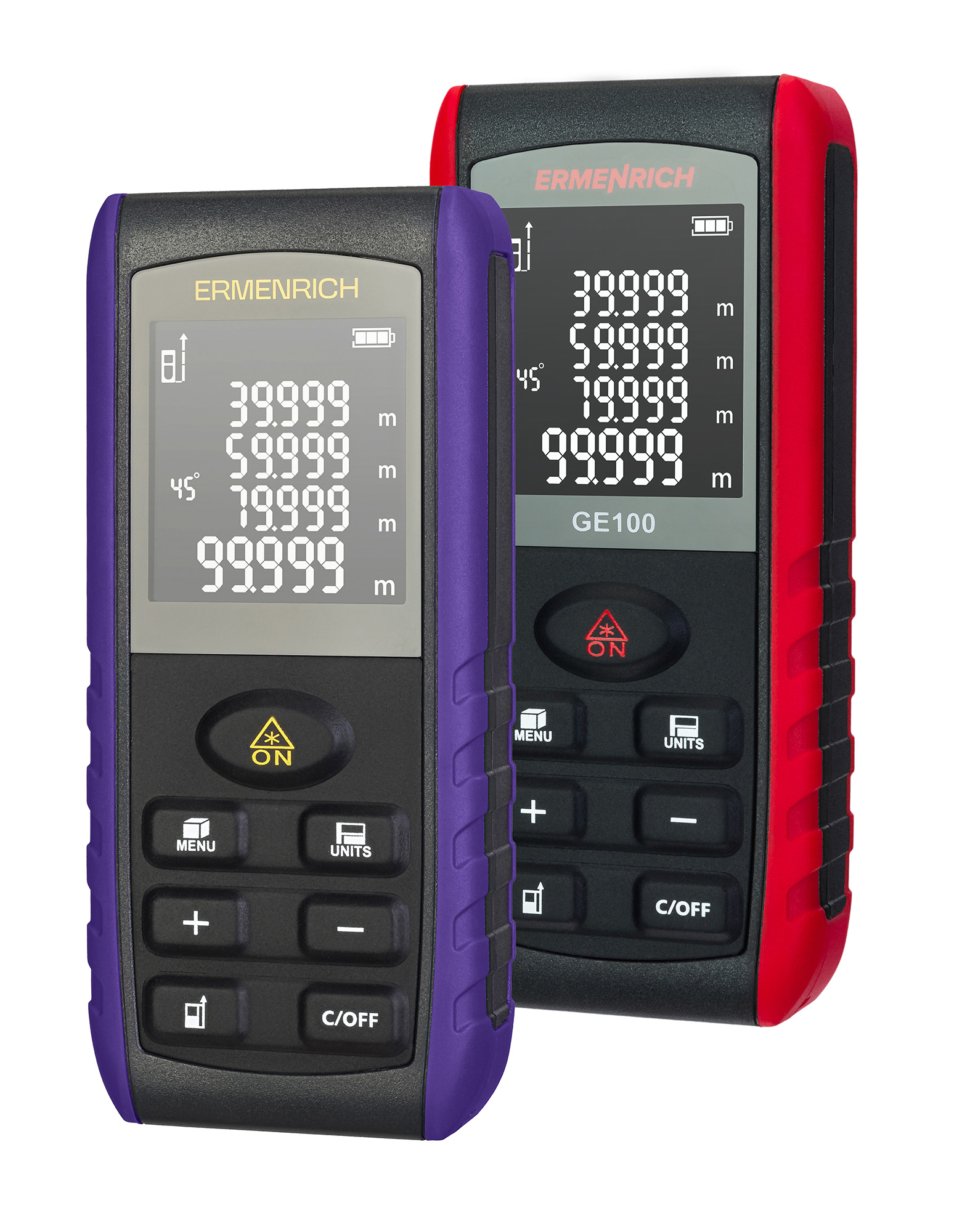

The Ermenrich Reel GE100 laser meter is a compact device designed for various tasks in construction, repair, and everyday life. It enables you to determine the distance from point to point with an accuracy of within 2 millimeters as well as to calculate area, volume, and measure the angles of objects. The meter also has the Pythagorean theorem feature – calculating distances using intermediate measurements. This is convenient when it is impossible to put the meter at the desired point or if there is an obstacle in the path of the beam.
Both single measurement and continuous scanning modes are available. The measurement results are displayed on a 4-line display. The built-in memory stores up to 99 groups of data. To power the device, you only need 2 AAA batteries. The charge level indicator will help you replace them in a timely manner, and the auto-off function will save energy.
Key features:
- Measuring distances, area, volume, and angles
- Single distance measurement mode or continuous scanning mode
- Pythagorean theorem feature for measuring distances under difficult conditions
- 4-line screen, easy-to-access control buttons
- Operates on AAA batteries, auto-off function, charge level indicator
Product ID | 83074 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555018683 |
Package size (LxWxH) | 6.7x4.3x1.6 in |
Shipping Weight | 0.4 lb |
Type | laser |
Single distance measurement mode | ✓ |
Scanning mode | ✓ |
Measuring range | 0.16–328ft |
Units of measurement (length) | m, ft, in |
Measurement accuracy | ±2 |
Angle measurements | ✓ |
Area measurement | ✓ |
Units of measurement (area) | m2, sq. ft., sq. in. |
Volume measurement | ✓ |
Units of measurement (volume) | m3, cu ft, cu in |
Pythagorean theorem feature | ✓ |
Addition and subtraction | ✓ |
Reference point | ✓ |
Reference point | rear/front (top/bottom) |
Buzzer indicator | ✓ |
Laser designator | <1mW, 620–690nm, class 1 |
Laser beam/device auto-off | 30/180 seconds |
Number of lines displayed on the screen | 4 |
History record | 99 groups |
Power supply | 2 AAA batteries (not included) |
Operating life of one set of batteries | >5000 measurements |
Operating temperature range, °F | +32...+104 (+32…+104°F) |
