Ermenrich Reel GM60 Laser Meter
Measuring distances, angles, area, and volume. Pythagorean theorem feature
Product ID | 81419 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555015859 |
Package size (LxWxH) | 1.6x6.7x4.3 in |
Shipping Weight | 0.4 lb |
The Ermenrich Reel GM60 laser meter is a compact, versatile tool that is ideal for all types of engineering, construction, and renovation work. Not only can it measure distances and lengths of objects within 60 meters (200ft) but also other parameters such as angles, area, and volume. One of the helpful functions is the Pythagorean theorem feature. It takes indirect measurements by calculating the desired value based on two intermediate measurements. This is a great method of taking measurements when it may not be possible to hit the exact target point with a laser.
The Ermenrich Reel GM60 is user-friendly thanks to its compact design and a large 4-line display. Both single distance measurement and continuous measurement modes are available as well as a few multiple units of measurement. Professionals will appreciate its silent mode – you can work in silence by turning off audible alerts. The device is powered by 2 standard AAA batteries, one battery set lasts for over 5,000 measurements. To save power, there are auto-off function of the laser and the device itself. The history record of the device can store a large amount of data – 100 groups.
Key features:
- Measuring distances, angles, area, and volume

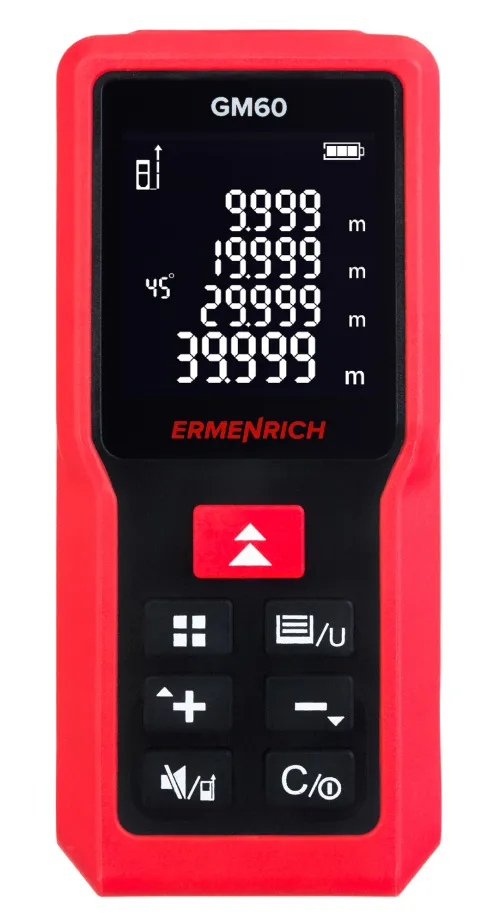

- 4-line screen, simple control buttons
- Single distance measurement mode and continuous measurement (scan) mode
- The Pythagorean theorem feature for calculating unknown values
- Powered by batteries, auto-off function
Product ID | 81419 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555015859 |
Package size (LxWxH) | 1.6x6.7x4.3 in |
Shipping Weight | 0.4 lb |
Type | laser |
Single distance measurement mode | ✓ |
Scanning mode | ✓ |
Measuring range | 0.16–200ft |
Units of measurement (length) | m, ft, in |
Measurement accuracy | ±2 |
Angle measurements | ✓ |
Angle measurement range, ° | ±50 |
Units of measurement (angles) | minutes (angular), seconds (angular) |
Area measurement | ✓ |
Units of measurement (area) | m², sq.ft. |
Volume measurement | ✓ |
Units of measurement (volume) | m3, cu.ft. |
Pythagorean theorem feature | ✓ |
Addition and subtraction | ✓ |
Reference point | ✓ |
Silent mode | ✓ |
Laser designator | <1mW, 620–690nm, class 1 |
Laser beam/device auto-off | 30/180 seconds |
Number of lines displayed on the screen | 4 |
History record | 100 groups |

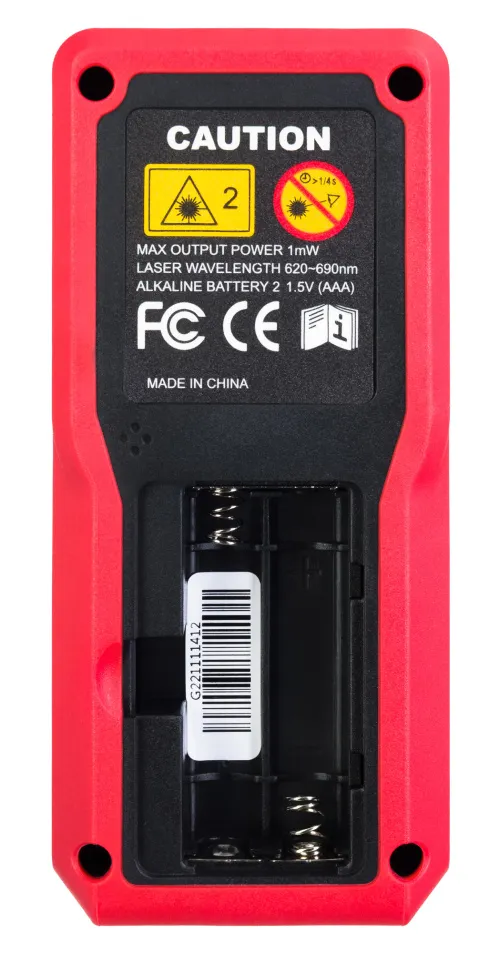

Power supply | 2 AAA batteries (not included) |
Operating life of one set of batteries | >5000 measurements |
Low battery status indicator | ✓ |
Operating temperature range, °F | +32...+104 (+32…+104°F) |
