Monocular microscope for laboratory research with halogen lighting. Magnification: 40–1000x

The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
School/educational, laboratory/medical
Application and use of the microscope

Product ID 73811
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004518
Package size (LxWxH) 15.4x9.8x8.3 in
Shipping Weight 7.3 lb

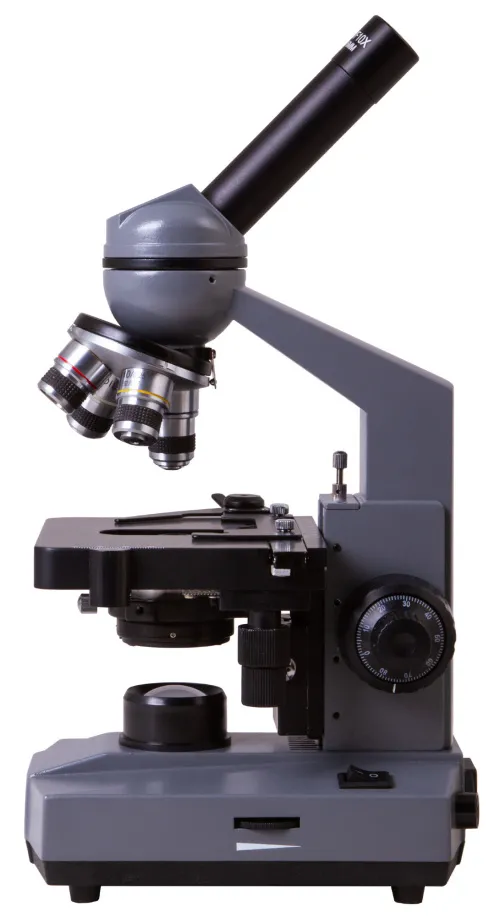

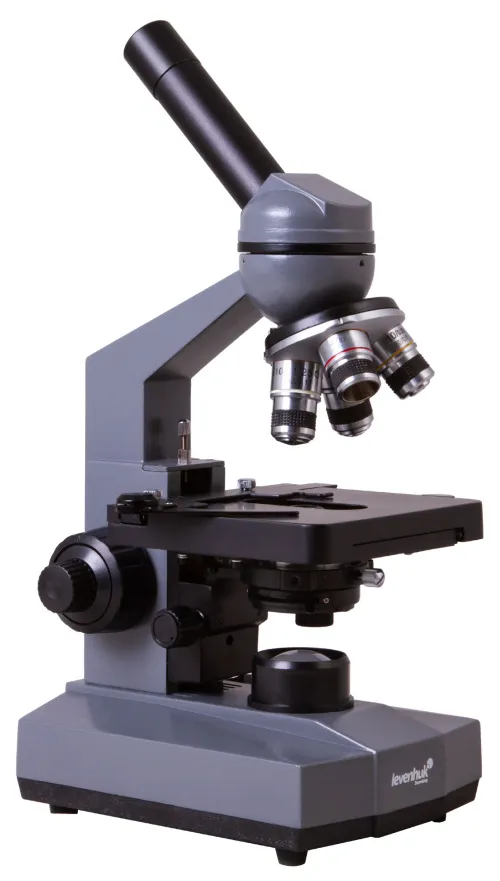

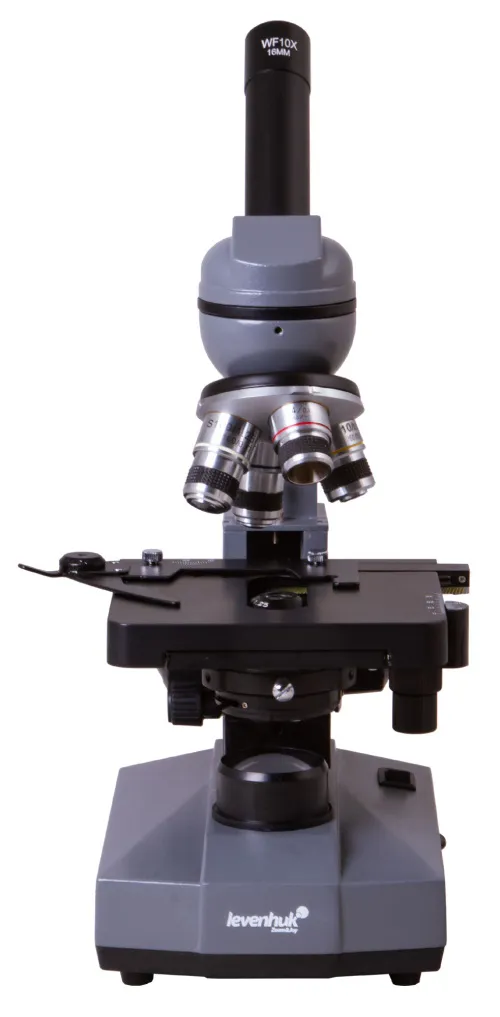

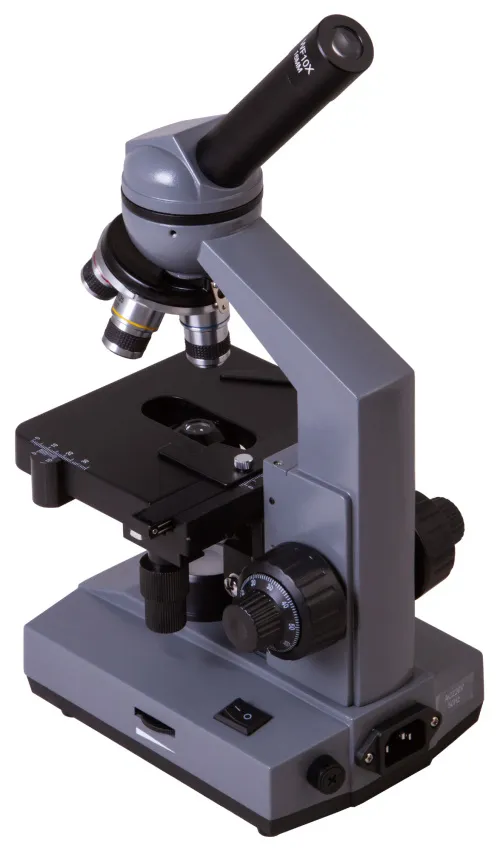

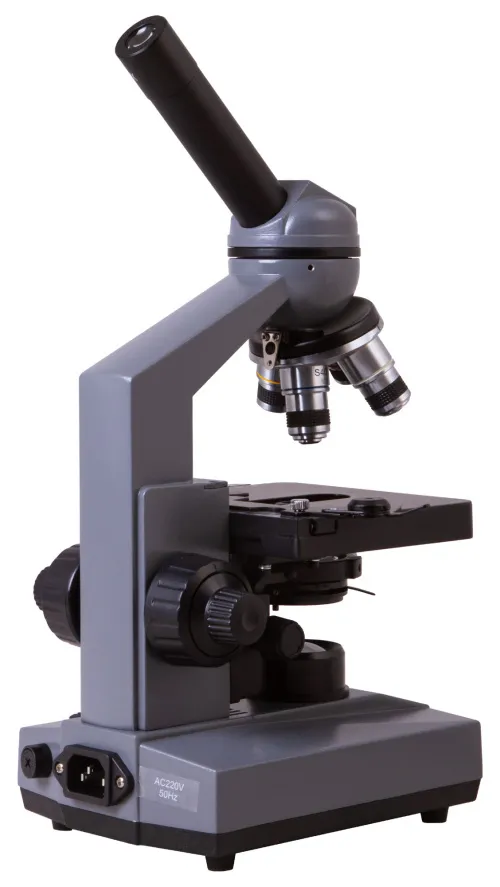

Levenhuk 320 BASE monocular laboratory microscope is an excellent choice for equipping a medical laboratory, educational institute, or a scientific and educational center. This microscope performs great in any kind of microbiological research: cytological, histological, hematological, and more. Demanding professionals and specialists in different scientific fields appreciate the microscope's possibilities.

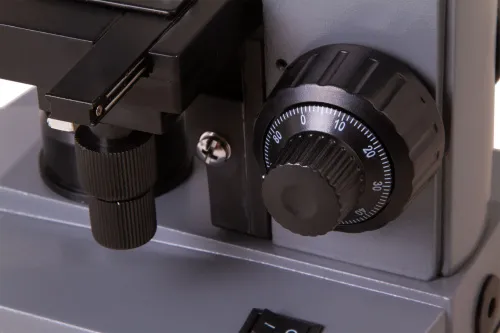

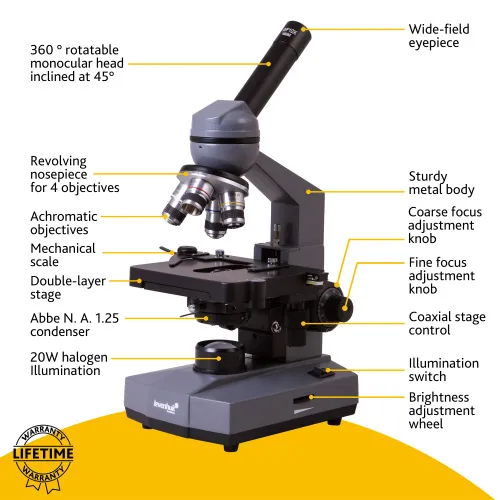

The optics provide magnification in a range from 40x to 1000x. Due to the achromatic optics, a transmitted image features high sharpness and contrast. The monocular head is 360° rotatable, a wide-angle eyepiece provides an excellent field of view. Coarse and fine focusing knobs are used for sharpness adjustment.

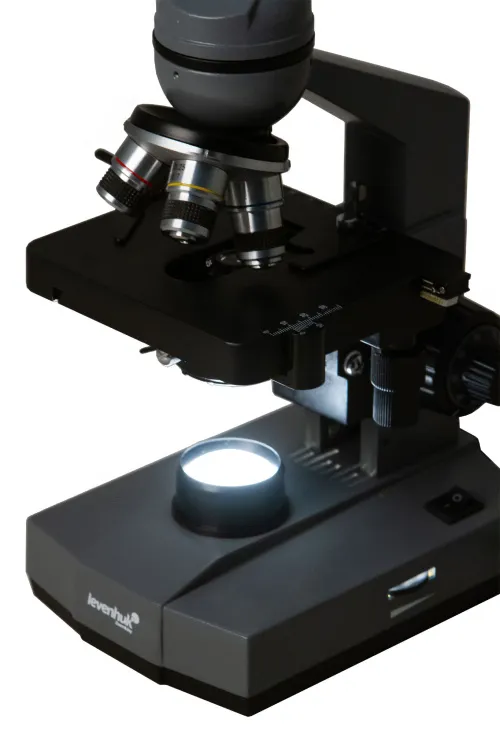

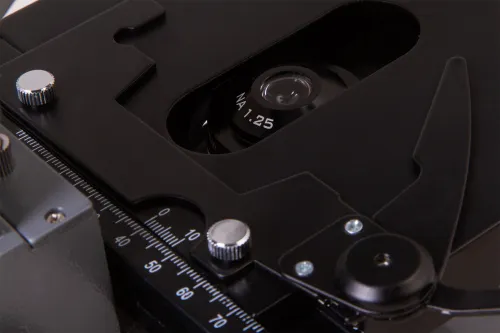

A microscope stage is equipped with a mechanical scale for precise placing of specimens. There is an Abbe condenser with an iris diaphragm under a stage, and halogen illumination underneath. Illumination features adjustable brightness. It is powered by an AC supply.

Levenhuk 320 BASE can be used for observations using the brightfield research method or oil immersion. All research is conducted in the transmitted light.


  • Laboratory microscope with 40–1000x magnification
  • Monocular 360° rotatable head
  • Achromatic lenses and wide-angle eyepiece
  • 20W halogen illumination with brightness adjustment

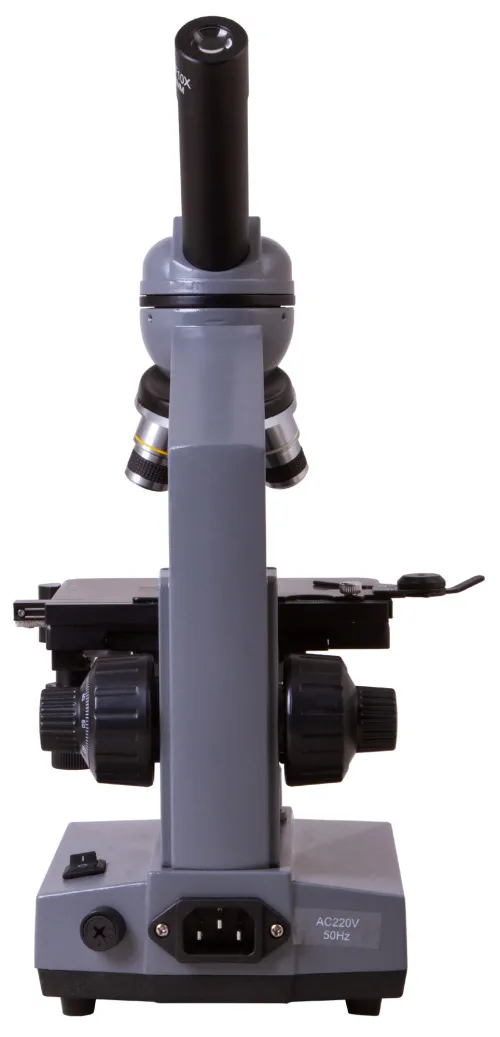

  • Powered by an AC supply

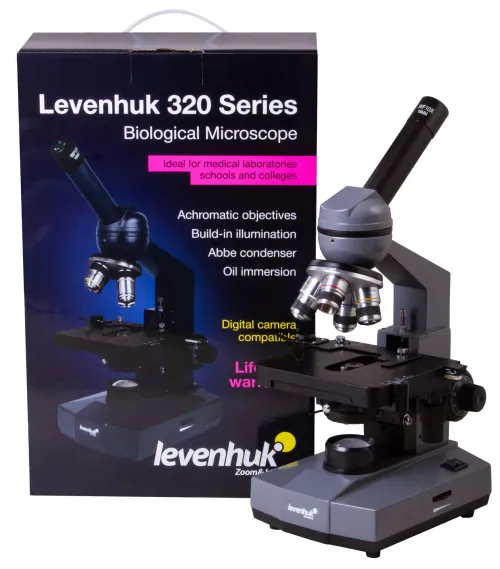

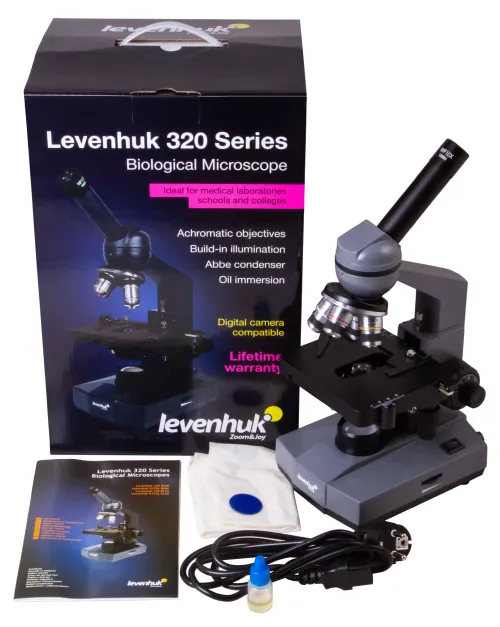

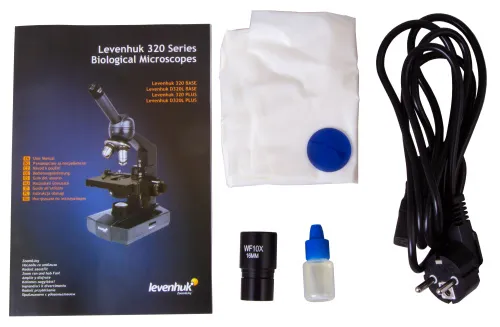

The kit includes:

  • Microscope

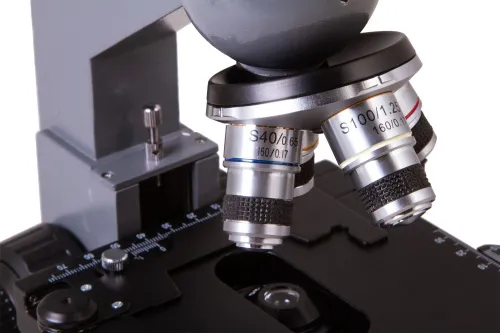

  • Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)

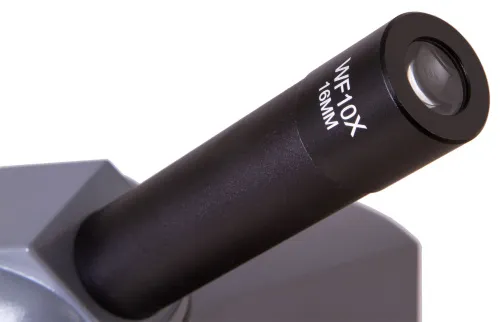

  • Wide-angle WF10x eyepiece
  • Blue filter
  • Bottle of immersion oil
  • AC adapter
  • Dust cover
  • User manual and lifetime warranty

Caution! Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries. Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter.

Some things you can see under a microscope:

Levenhuk 320 BASE Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

Product ID 73811
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004518
Package size (LxWxH) 15.4x9.8x8.3 in
Shipping Weight 7.3 lb
Type biological, light/optical
Head monocular
Optics material optical glass
Nozzle 360 ° rotatable
Head inclination angle 45 °
Magnification, x 40 — 1000
Eyepiece tube diameter, in 0.9
Eyepieces WF10x
Objectives achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece for 4 objectives
Stage, mm 110x125
Stage moving range, mm 58/25
Stage features mechanical double-layer
Condenser Abbe N. A. 1.25 with an iris diaphragm
Diaphragm iris
Focus coaxial, coarse (20mm) and fine (0.02mm)
Body metal
Illumination halogen
Brightness adjustment
Power supply 220V/50Hz
Light source type 20W
Light filters blue
Additional immersion oil included
User level beginners, experienced users
Assembly and installation difficulty level easy
Application school/educational, laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
