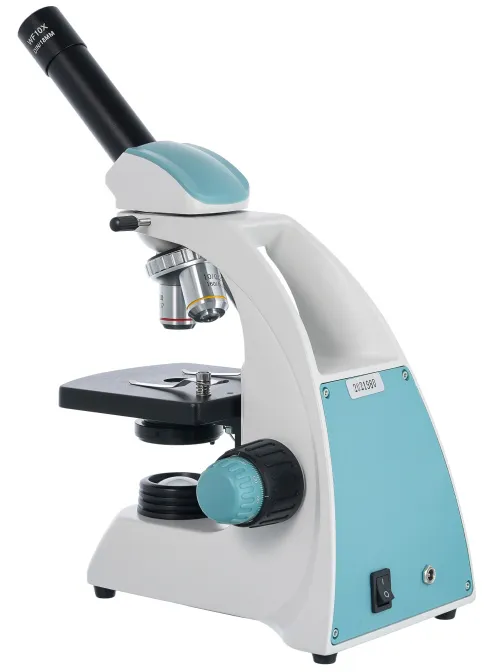

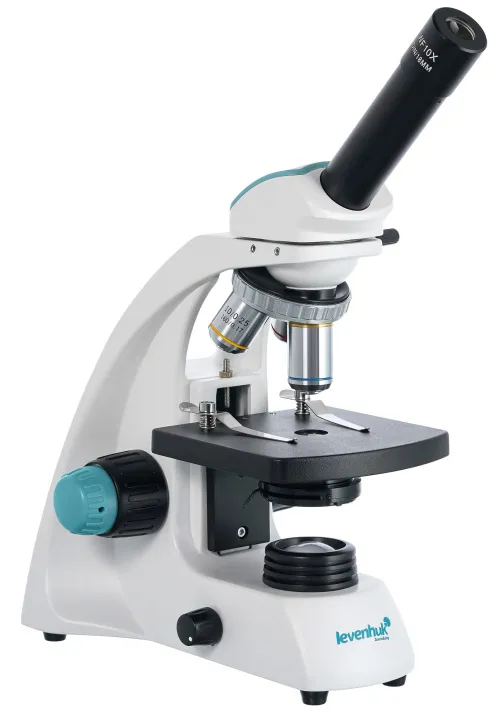

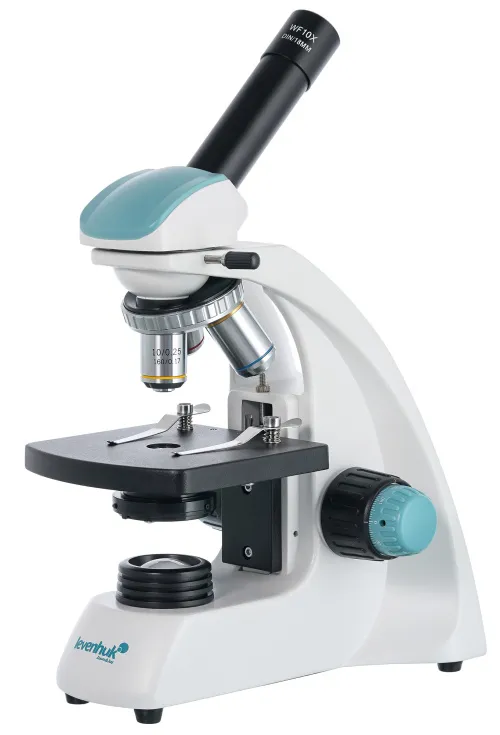

Levenhuk 400M Monocular Microscope
Magnification: 40–400x. Monocular head, achromatic objectives, LED light with a collector
Product ID | 75419 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555005249 |
Package size (LxWxH) | 15.7x7.5x10.6 in |
Shipping Weight | 6.4 lb |
Levenhuk 400M Monocular Microscope is designed for conducting laboratory research on biological samples. It delivers a sharp and contrast image and allows for observing samples at magnification from 40x to 400x. This microscope can also be used in medical, educational, and research institutions. The microscope features a built-in LED light that works on batteries or via an AC power supply.

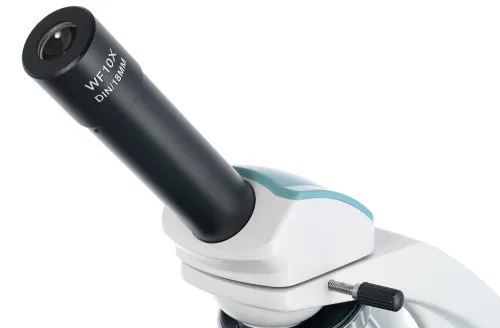

The optics are based on a wide-field eyepiece and achromatic objectives of various magnification. Overall magnification of an optical system allows for working with medium and large structures. The monocular head is conveniently inclined at 45° and is 360° rotatable. A microscope is excellent to use for individual and group work as well.

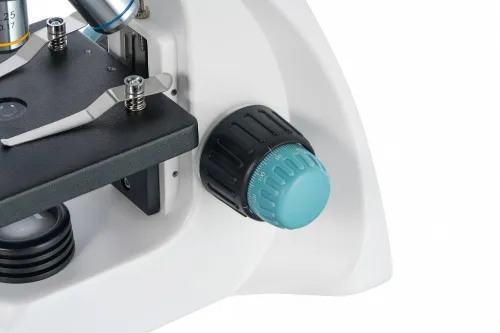

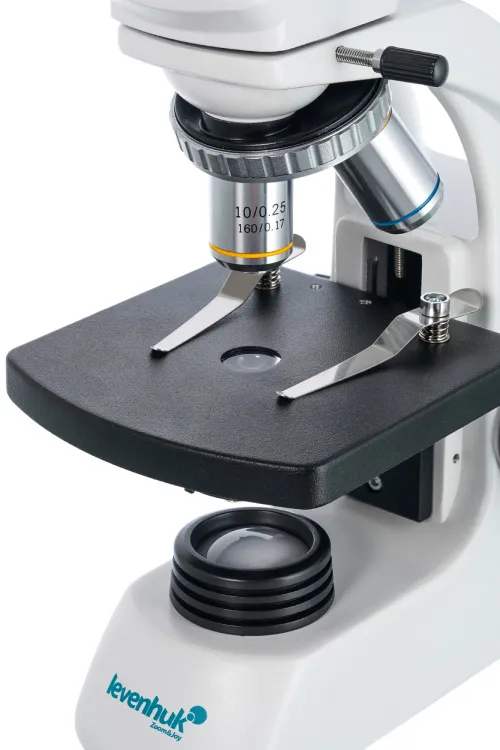

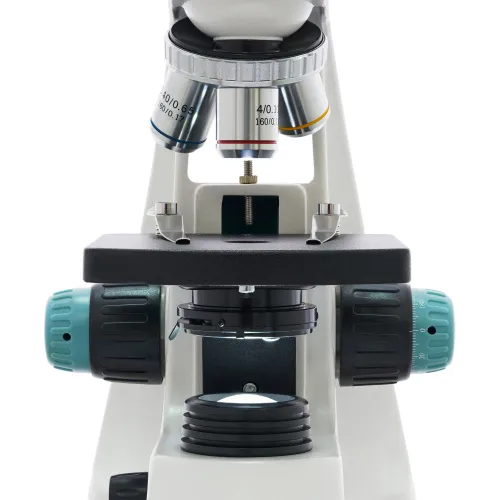

The stage is equipped with two holders; right underneath there is an Abbe condenser with an iris diaphragm. You can install light filters in a special holder (the kit includes a blue, green and yellow light filters). A standard coaxial mechanism is used for focusing. There is fine and coarse focusing adjustment available.
A lighting system consists of an LED light with a collector. It is located at the bottom of the microscope. The lighting features adjustable brightness. Due to battery-powered operation, Levenhuk 400M is mobile and can be used even in places without access to electricity.
The body is made of metal: therefore, the microscope is reliable and has a long service life.
Features:
- Rotatable monocular head inclined at 45°
- Magnification: from 40x to 400x, achromatic optics
- Lower LED light with brightness adjustment
- Power supply is variable: by batteries or AC power supply
- Metal body, standard eyepiece barrel diameter

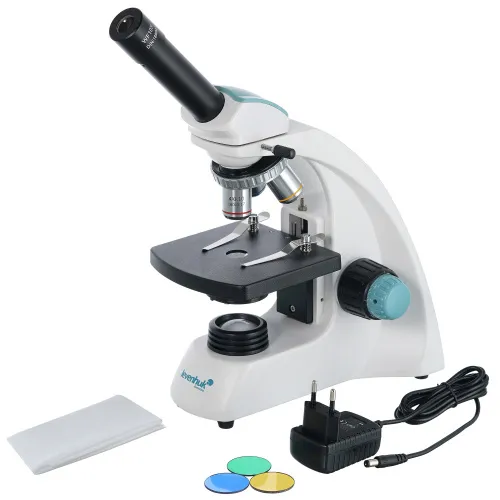

The kit includes:
- Microscope
- 4x, 10x, 40xs achromatic objectives
- WF10x/18mm eyepiece (1pc.) with a pointer
- Condenser N.A. 0.65 with an iris diaphragm and a filter holder
- Charging power cord
- Filters: blue, green, yellow
- Dust cover
- User manual and lifetime warranty
Product ID | 75419 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555005249 |
Package size (LxWxH) | 15.7x7.5x10.6 in |
Shipping Weight | 6.4 lb |
Type | biological, light/optical |
Head | monocular |
Optics material | optical glass |
Nozzle | 360 ° rotatable |
Head inclination angle | 45 ° |
Magnification, x | 40 — 400 |
Eyepiece tube diameter, in | 0.9 |
Eyepieces | WF10x/18mm (1pc.) with a pointer |
Objectives | achromatic: 4x, 10x, 40xs (spring) |
Revolving nosepiece | for 3 objectives |
Stage, mm | 110x110 |
Stage moving range, mm | fixed |
Stage features | with clips |
Condenser | N.A. 0.65 with an iris diaphragm and filter holder |
Diaphragm | iris |
Focus | coaxial, coarse (12mm) and fine (0.002mm) |
Body | metal |
Illumination | LED |
Brightness adjustment | ✓ |
Power supply | 110–220V, via AC adapter (included; US type plug adapter is not included), 3 AA batteries (not included) |
Light source type | with a collector, 1W LED |
Light filters | blue, green, yellow |
User level | beginners, experienced users |
Assembly and installation difficulty level | easy |
Application | school/educational, laboratory/medical |
Illumination location | lower |
Research method | bright field |
Pouch/case/bag in set | dust cover |
