Magnification: 40–1000x. Trinocular head, achromatic objectives, LED light with a collector

The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Application and use of the microscope

Product ID 75421
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005263
Package size (LxWxH) 16.5x8.3x11.4 in
Shipping Weight 9 lb

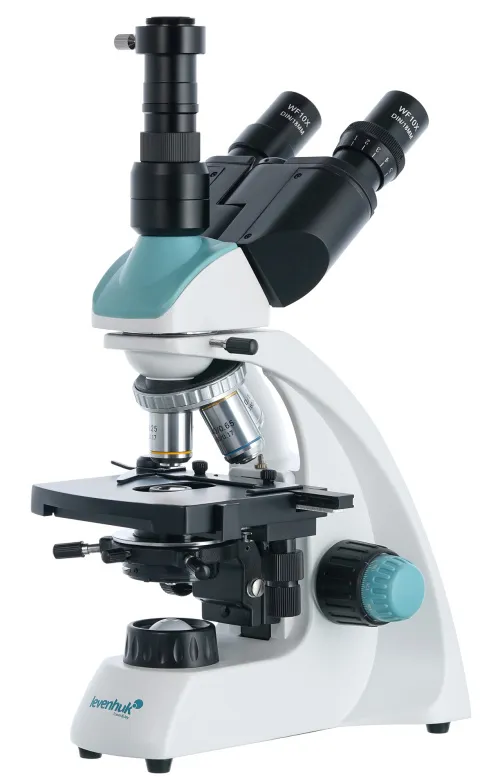

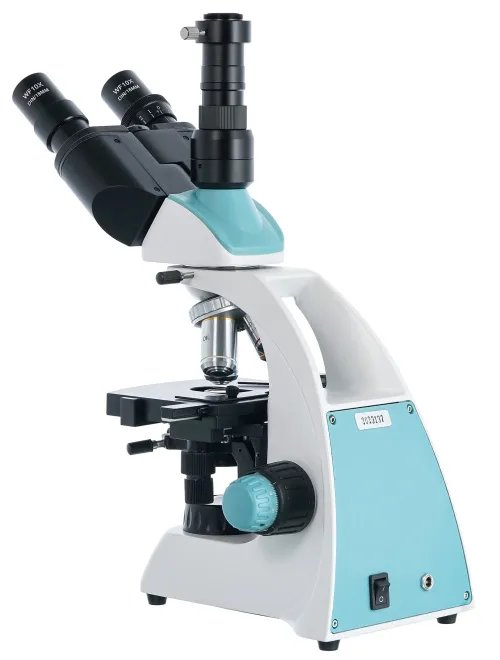

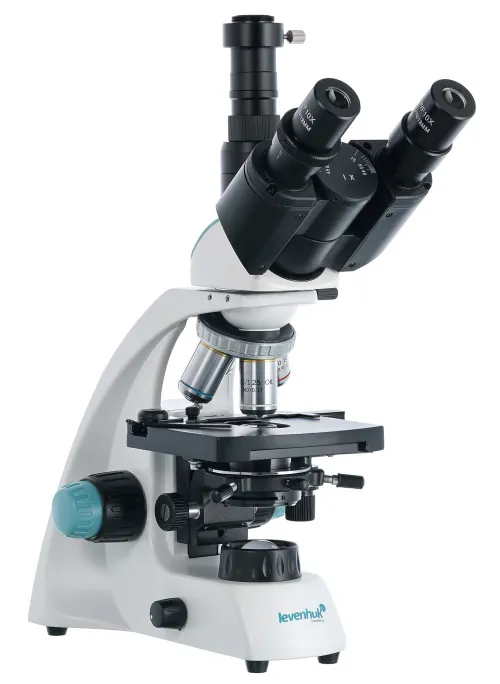

The Levenhuk 400T is a classic trinocular microscope with a binocular visual part and a vertical tube for installing a digital camera in it. This microscope is an excellent choice for a laboratory. It will help a medical worker, microbiologist, biochemist, or any other specialist who studies biological samples. The microscope uses the achromatic optics and comes with an LED light. A bright field method and oil immersion can be used for research.

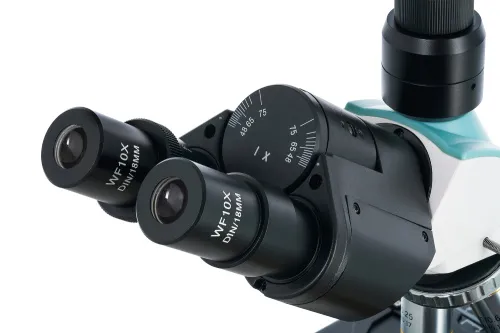

A microscope head is rotatable, which is practical for group work. A visual part is inclined at 30°: that makes lengthy work with a microscope more comfortable. The 10x eyepieces provide a wide field of view, while achromatic optics deliver details of small structures clearly and sharply. The objectives with 4x, 10x, 40x, and 100x magnification are installed in a revolving nosepiece. Overall microscope magnification varies from 40x to 1000x. Please note that this microscope allows for applying oil immersion research method using a 100x objective. What is more, 40x and 100x objectives feature protective spring-loaded frames.

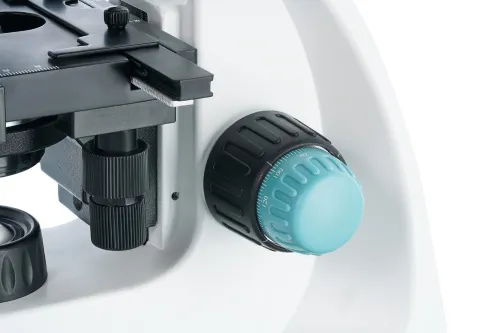

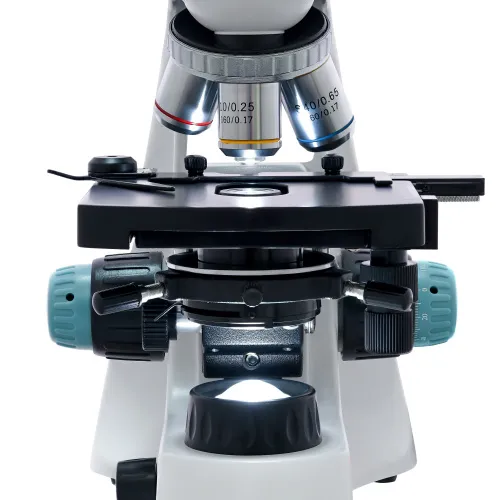

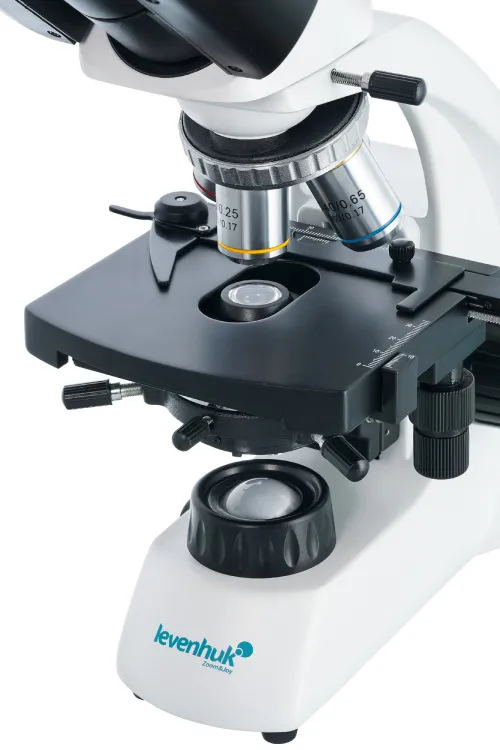

The stage is equipped with a mechanical scale. Next to the stage, there are fine and coarse focusing knobs. Right underneath, there is a bright field Abbe condenser with an iris diaphragm and a filter holder. The lighting system consisting of an LED light and collector is located even lower. The lighting features brightness adjustment and is powered by batteries or an AC power supply. The microscope body is made of metal.


  • Trinocular rotatable head with a tube for installing a digital camera
  • The wide-field achromatic optics with 40–1000x magnification
  • Lower LED lighting with a collector and brightness adjustment
  • Power supply is variable: by batteries or AC power supply
  • Metal body, practical coarse and fine focusing

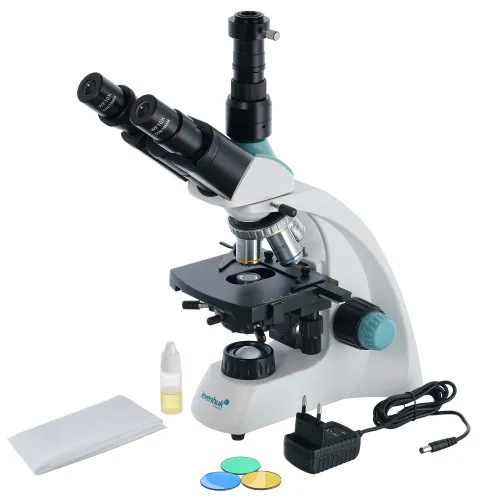

The kit includes:

  • Microscope
  • 4x, 10x, 40xs, 100xs (oil) achromatic objectives
  • WF10x/18mm eyepieces (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Charging power cord
  • C-mount
  • Bottle of immersion oil
  • Filters: blue, green, yellow
  • Dust cover
  • User manual and lifetime warranty
Product ID 75421
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005263
Package size (LxWxH) 16.5x8.3x11.4 in
Shipping Weight 9 lb
Type biological, light/optical
Head trinocular
Optics material optical glass
Nozzle 360 ° rotatable
Head inclination angle 30 °
Magnification, x 40 — 1000
Eyepiece tube diameter, in 0.9
Eyepieces WF10x/18mm (2 pcs.)
Objectives achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece for 4 objectives
Interpupillary distance, in 1.9 — 3
Stage, mm 115x110
Stage moving range, mm 55/20
Stage features mechanical double-layer
Eyepiece diopter adjustment, diopters ±5
Condenser Abbe N.A. 1.25 with an iris diaphragm and filter holder
Diaphragm iris
Focus coaxial, coarse (12mm) and fine (0.002mm)
Body metal
Illumination LED
Brightness adjustment
Power supply 110–220V, via AC adapter (included), 3 AA batteries (not included)
Power supply: batteries/built-in battery yes
Light source type with a collector, 1W LED
Light filters blue, green, yellow
User level experienced users
Assembly and installation difficulty level easy
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
