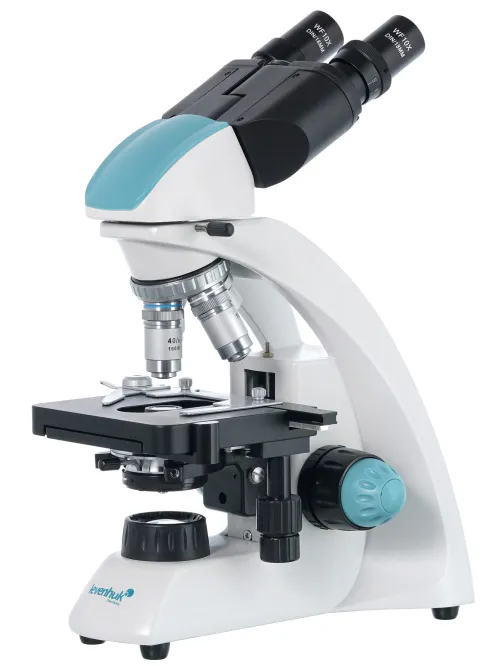

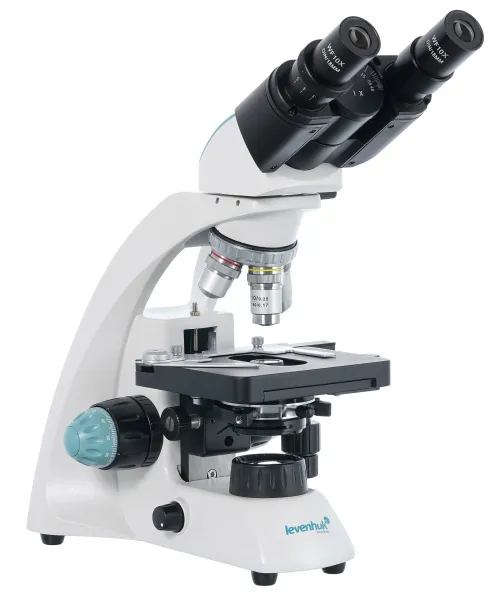

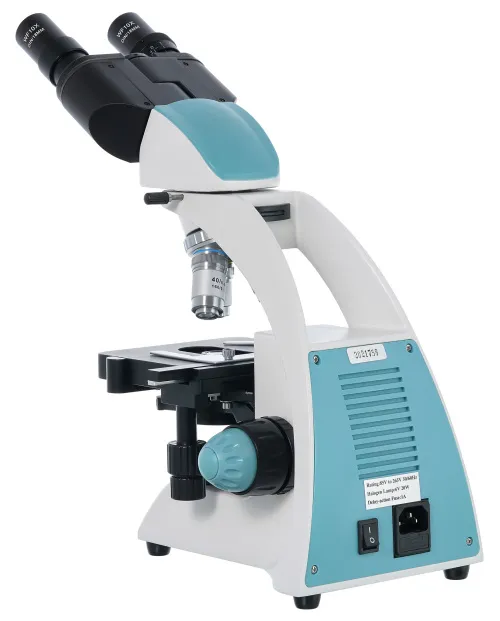

Levenhuk 500B Binocular Microscope

see all

Found it cheaper?

Get the same price + gift!

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 40–1000x. Binocular head, achromatic objectives, halogen light with a collector

Binocular

The microscope head is a core element of the microscope that you look through to see a magnified sample

40 — 1000

How much the size of a sample increases when you observe it through a microscope

Laboratory/medical

Application and use of the microscope

Availability

Product ID	75425
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555005300
Package size (LxWxH)	16.5x10.2x13 in
Shipping Weight	10.9 lb

Description

Use a Levenhuk 500B Binocular Microscope in a laboratory to study stained microscope slides of plant and animal tissues. Due to the halogen light, the entire color range will be transmitted as accurately as possible, and the contrast of details will impress even the most demanding researchers. This microscope is a great choice for a biochemist, microbiologist, or veterinarian.

The microscope features wide-field eyepieces with 10x magnification and achromatic objectives with 4x, 10x, 40x, and 100x magnification. The binocular head is conveniently inclined at 30°; what's more, it is rotatable. The optics allow for examining samples at magnifications from 40x to 1000x using a bright field method as well as oil immersion. Two objectives feature front lens protection (a spring-loaded frame): 40x and 100x ones. Immersion oil is used with a 100x objective.

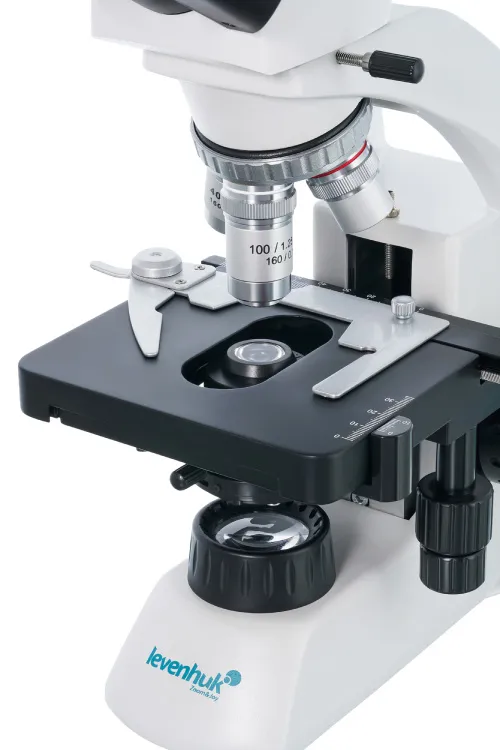

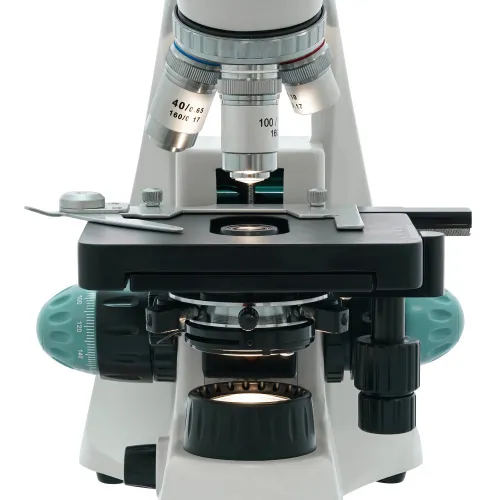

The microscope is equipped with a stage with a mechanical scale that helps to place the specimen accurately under the objective. Under the stage, there is an Abbe condenser with adjustable height with an iris diaphragm. You can install a light filter in a special holder. Powerful halogen lighting is equipped with a collector; there is a brightness adjustment. The lighting is powered by an AC power supply.

All of the optical elements in the microscope are made of glass. The body is made of metal.

Features:

Binocular microscope with achromatic optics
Conveniently inclined visual part; the head is 360° rotatable
Wide-field eyepieces, 40–1000x optics magnification range
Halogen light with a collector powered by an AC supply
Brightness adjustment of the lighting, coarse and fine focusing
Slot for installing an analyzer (an analyzer is not included)

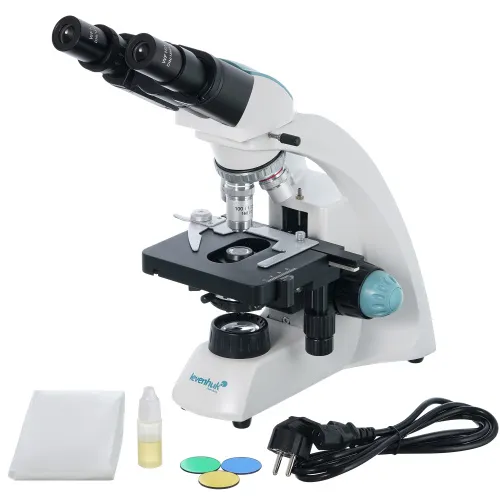

The kit includes:

Microscope
4x, 10x, 40xs, 100xs (oil) achromatic objectives
WF10x/18mm eyepieces (2 pcs)
Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
Filters: blue, green, yellow
Fuse
Bottle of immersion oil
Power cord
Dust cover
User manual and lifetime warranty

specifications

Product ID	75425
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555005300
Package size (LxWxH)	16.5x10.2x13 in
Shipping Weight	10.9 lb
Type	biological, light/optical
Head	binocular
Optics material	optical glass
Nozzle	360 ° rotatable
Head inclination angle	30 °
Magnification, x	40 — 1000
Eyepiece tube diameter, in	0.9

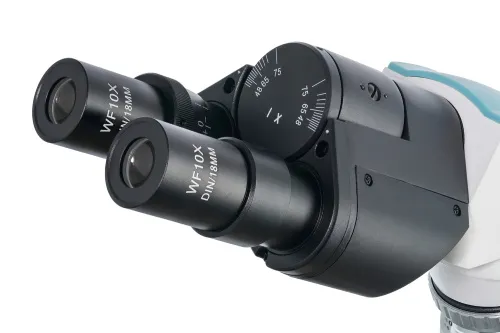

Eyepieces	WF10x/18mm (2 pcs.)
Objectives	achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece	for 4 objectives
Interpupillary distance, in	1.9 — 3
Stage, mm	115x125
Stage moving range, mm	70/30
Stage features	mechanical double-layer
Eyepiece diopter adjustment, diopters	±5
Condenser	Abbe condenser N.A. 1.25 with an iris diaphragm and filter holder, with adjustable height
Diaphragm	iris

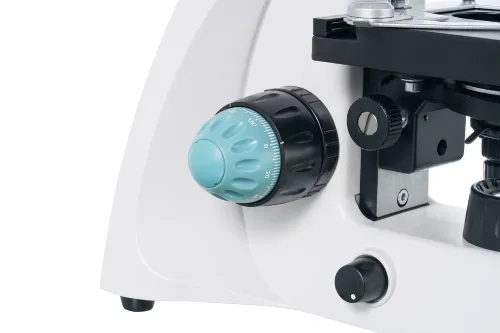

Focus	coaxial, coarse (30mm) and fine (0.002mm)
Body	metal
Illumination	halogen
Brightness adjustment	✓
Power supply	110–220V (US type plug adapter is not included)
Light source type	with a collector, halogen 12V/20W
Light filters	blue, green, yellow
Ability to connect additional equipment	a slot for installing an analyzer (an analyzer is not included)
User level	experienced users
Assembly and installation difficulty level	easy
Application	laboratory/medical
Illumination location	lower
Research method	bright field
Pouch/case/bag in set	dust cover
