Magnification: 40–400x. Monocular head, achromatic objectives, halogen light with a collector

Monocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 400
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability

Product ID 75424
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005294
Package size (LxWxH) 16.5x10.2x13 cm
Shipping Weight 8.6 kg
Description

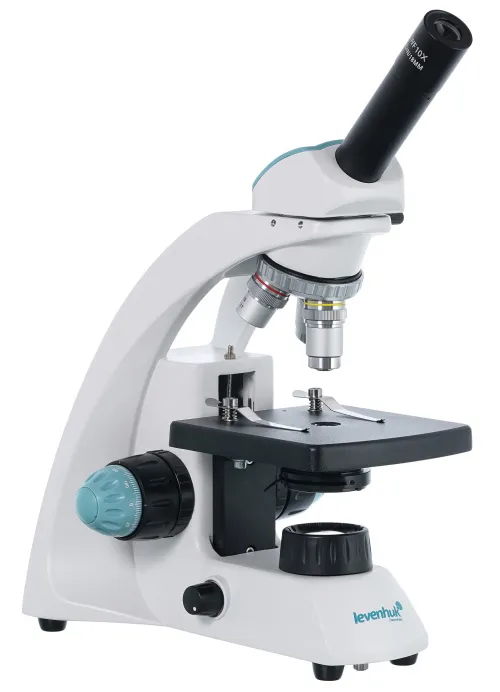

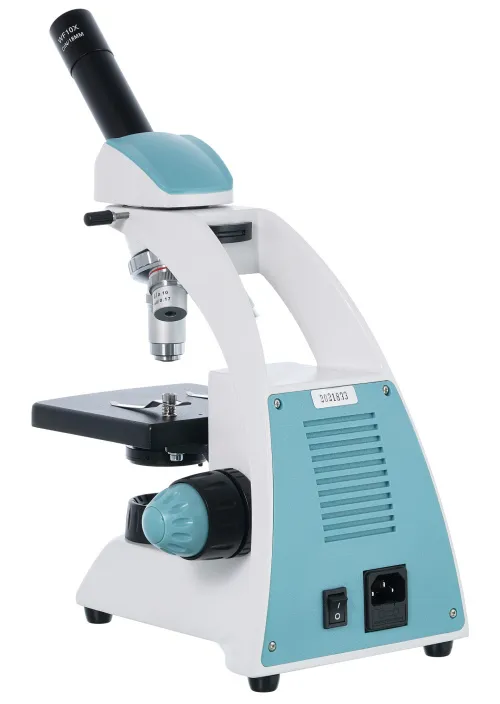

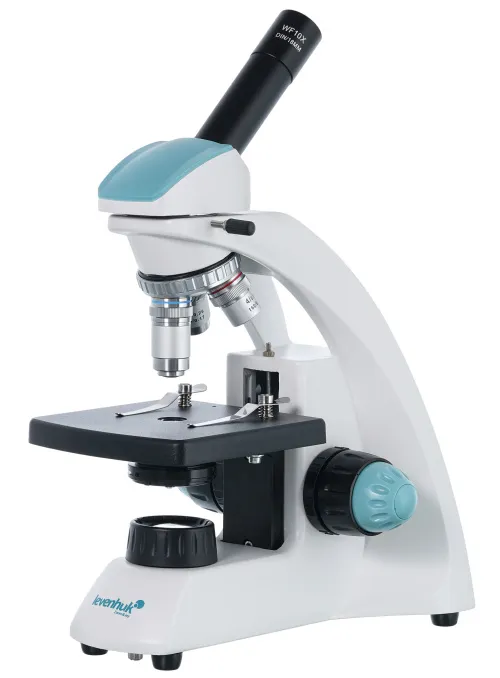

The Levenhuk 500M laboratory microscope is a perfect choice for work in the field of histology or any other microscopy research that requires staining samples. Due to halogen lighting, the microscope delivers brighter colors and makes observed microscope slides more contrasted. This microscope is excellent for any bright field microbiological research in incident light.

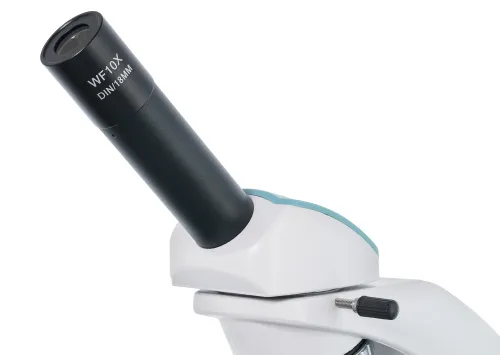

A monocular head is conveniently inclined at 45° and is 360° rotatable. A wide-field eyepiece with 10x magnification provides a good view. The achromatic objectives magnify 4, 10, and 40 times. The 40x objective is also equipped with a protective spring-loaded front lens frame. The microscope magnification varies from 40 to 400 times, which is excellent for studying large and medium-sized structures.

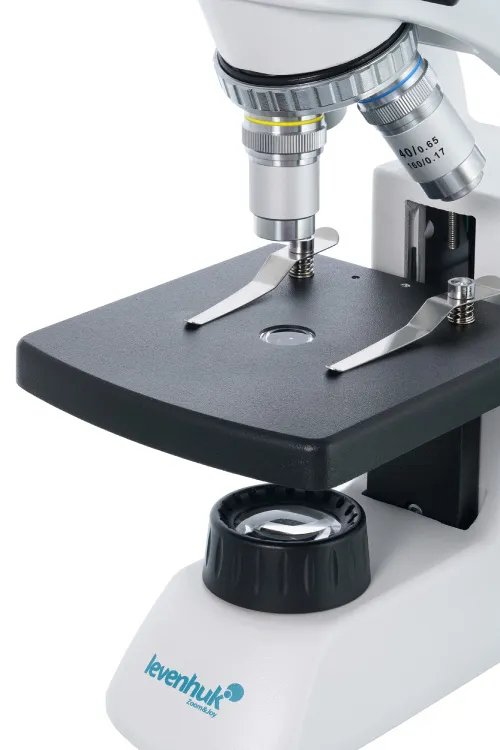

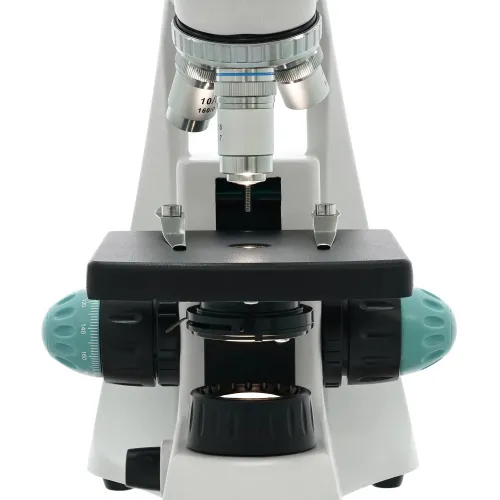

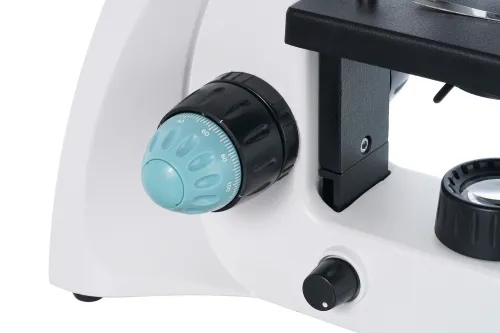

The microscope stage is equipped with standard clips. Next to the stage, there are coarse and fine focusing knobs. The lighting unit is located at the bottom, right under the bright field condenser with an iris diaphragm and a filter holder. The lighting consists of a halogen bulb with a collector; the brightness is adjustable. The lighting is powered by an AC power supply.

Features:

  • Rotatable monocular head inclined at 45°
  • Wide-field achromatic optics with 40–400x magnification
  • Lower halogen lighting with a collector and brightness adjustment
  • AC power supply
  • Reliable metal body
  • Slot for installing an analyzer (an analyzer is not included)

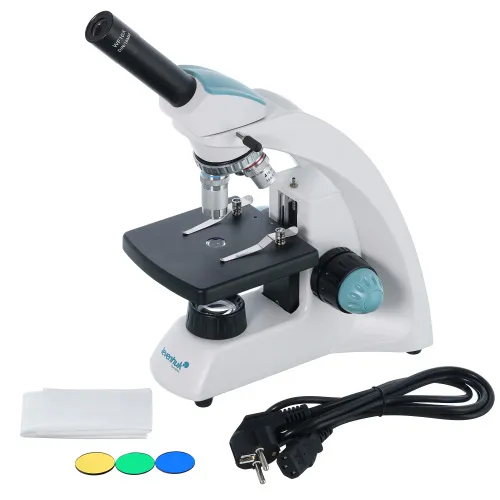

The kit includes:

  • Microscope
  • 4x, 10x, 40xs achromatic objectives
  • WF10x/18mm eyepiece (1 pc.) with a pointer
  • Condenser N.A. 0.65 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Fuse
  • Power cord
  • Dust cover
  • User manual and lifetime warranty
specifications
Product ID 75424
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005294
Package size (LxWxH) 16.5x10.2x13 cm
Shipping Weight 8.6 kg
Type biological, light/optical
Head monocular
Optics material optical glass
Nozzle 360 ° rotatable
Head inclination angle 45 °
Magnification, x 40 — 400
Eyepiece tube diameter, in 0.9
Eyepieces WF10x/18mm
Objectives achromatic: 4x, 10x, 40xs (spring)
Revolving nosepiece for 3 objectives
Stage, mm 110x110
Stage moving range, mm fixed
Stage features with clips
Condenser N.A. 0.65 with an iris diaphragm and filter holder
Diaphragm iris
Focus coaxial, coarse (30mm) and fine (0.002mm)
Body metal
Illumination halogen
Brightness adjustment
Power supply 110–220V
Light source type with a collector, halogen 6V/20W
Light filters blue, green, yellow
Ability to connect additional equipment a slot for installing an analyzer (an analyzer is not included)
User level experienced users
Assembly and installation difficulty level easy
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
