Magnification: 40–1000x. Trinocular head, achromatic objectives, halogen light with a collector

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical
Application and use of the microscope
Availability

Product ID 75426
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005317
Package size (LxWxH) 16.1x12.6x10.2 in
Shipping Weight 11.3 lb
Description

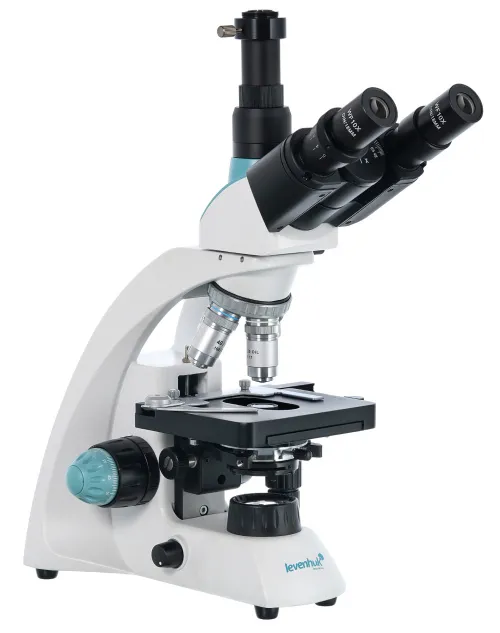

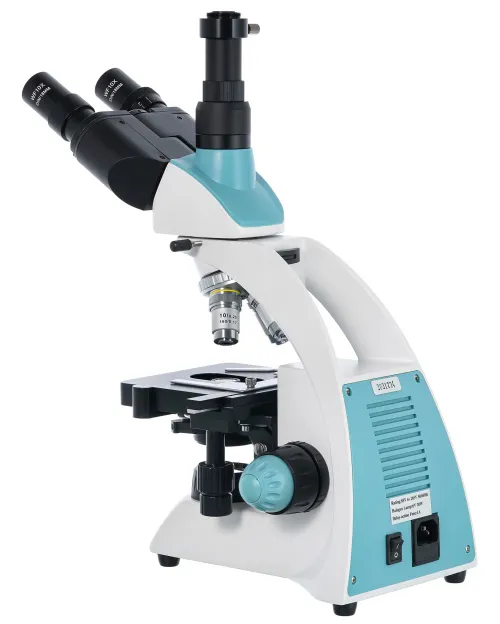

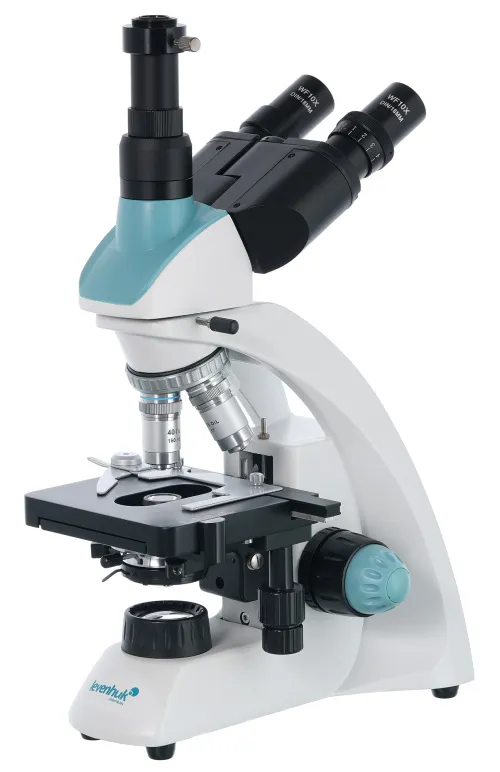

Levenhuk 500T is a trinocular laboratory microscope with a magnification range from 40x to 1000x. It is equipped with the wide-field achromatic optics, which deliver clear and sharp images. Since halogen light is used as illumination, the image looks true-to-life, and all of the colors and details of the samples seem crisp and clear. The microscope is a true treasure for working in a research laboratory, medical center, or veterinary office.

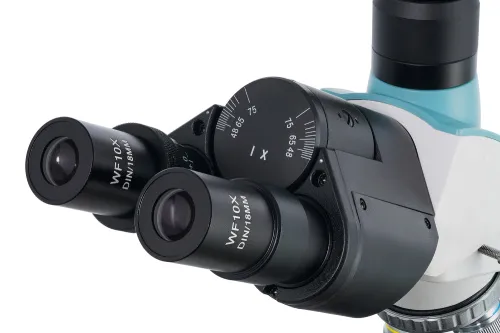

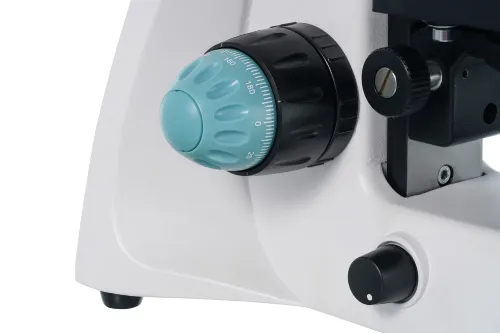

The head consists of an inclined visual unit and a vertical tube for installing a digital camera in it (not included). The head can be rotated 360°. The kit includes two wide-field eyepieces and four achromatic objectives with various magnification. The sharpness of the optics is adjusted using coarse and fine focusing knobs located on the base of the microscope. This microscope is designed for bright field observations. A 100x objective can be used for observations using the oil immersion method. To protect the front lens, the 40x and 100x objectives are equipped with spring-loaded frames.

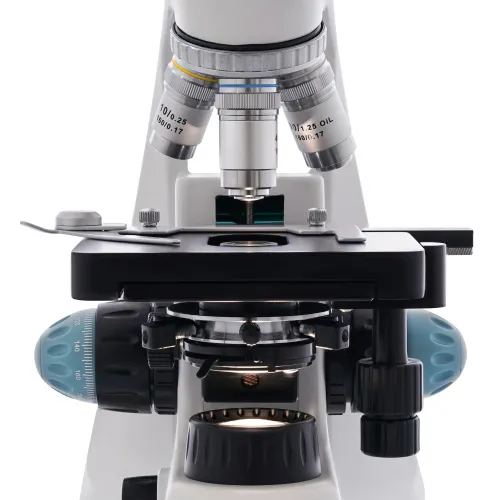

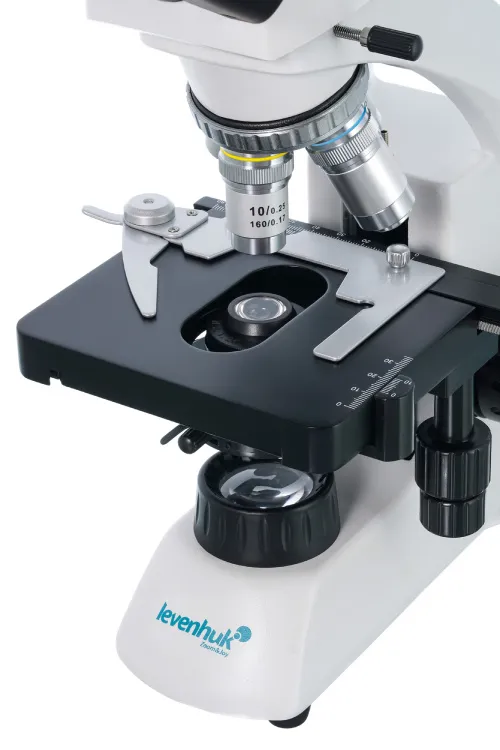

A mechanical scale is installed on the stage: it helps you quickly place the sample exactly under the objective. Under the stage, there is a bright field Abbe condenser with adjustable height. There is an iris diaphragm and filter holder. The lighting system consists of a halogen bulb with a collector. The powerful bulb provides uniform and bright lighting of the working area. The light brightness is adjustable. AC power is used for the power supply.

Features:

  • Trinocular rotatable head with a tube for installing a digital camera
  • Wide-field achromatic optics with a 40–1000x magnification range
  • Halogen lighting with a collector, brightness adjustment, an AC power supply
  • Condenser with an iris diaphragm, with adjustable height
  • Coarse and fine focusing, metal body
  • Slot for installing an analyzer (an analyzer is not included)

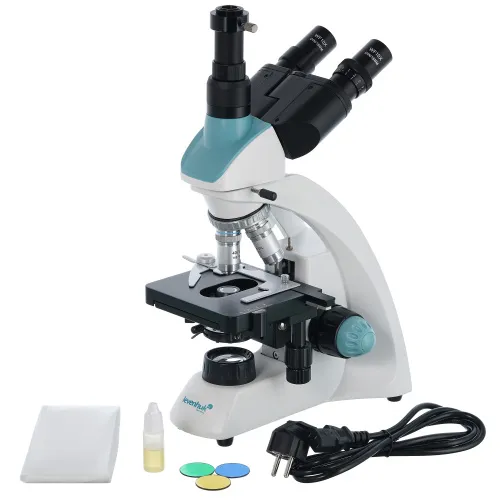

The kit includes:

  • Microscope
  • 4x, 10x, 40xs, 100xs (oil) achromatic objectives
  • WF10x/18mm eyepieces (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Fuse
  • C-mount
  • Bottle of immersion oil
  • Power cord
  • Dust cover
  • User manual and lifetime warranty
specifications
Product ID 75426
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005317
Package size (LxWxH) 16.1x12.6x10.2 in
Shipping Weight 11.3 lb
Type biological, light/optical
Head trinocular
Optics material optical glass
Nozzle 360 ° rotatable
Head inclination angle 30 °
Magnification, x 40 — 1000
Eyepiece tube diameter, in 0.9
Eyepieces WF10x/18mm (2 pcs.)
Objectives achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece for 4 objectives
Interpupillary distance, in 1.9 — 3
Stage, mm 115x125
Stage moving range, mm 70/30
Stage features mechanical double-layer
Eyepiece diopter adjustment, diopters ±5
Condenser Abbe condenser N.A. 1.25 with an iris diaphragm and filter holder, with adjustable height
Diaphragm iris
Focus coaxial, coarse (16mm) and fine (0.002mm)
Body metal
Illumination halogen
Brightness adjustment
Power supply 110–220V (US type plug adapter is not included)
Light source type with a collector, halogen 12V/20W
Light filters blue, green, yellow
Ability to connect additional equipment a slot for installing an analyzer (an analyzer is not included)
User level experienced users
Assembly and installation difficulty level easy
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
