Magnification: 40–500х

Monocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 500
How much the size of a sample increases when you observe it through a microscope
School/educational
Application and use of the microscope
Availability

Product ID 71916
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004273
Package size (LxWxH) 9.8x7.9x14.2 in
Shipping Weight 6.4 lb
Description

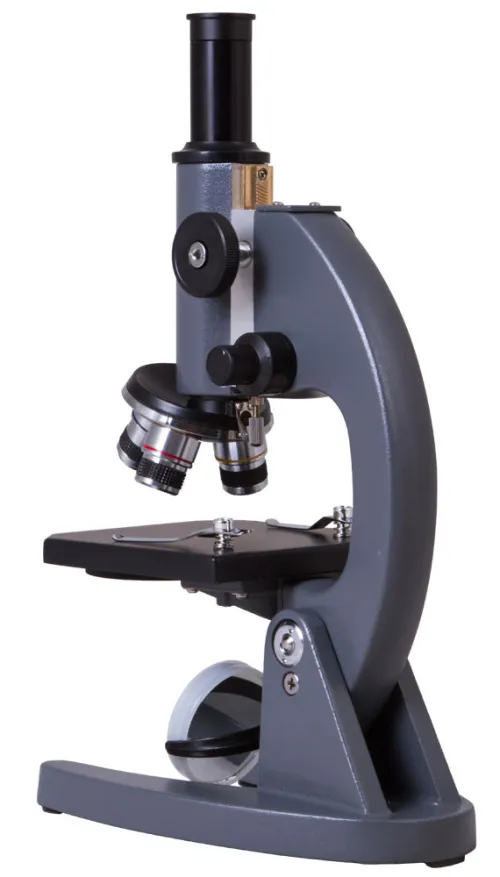

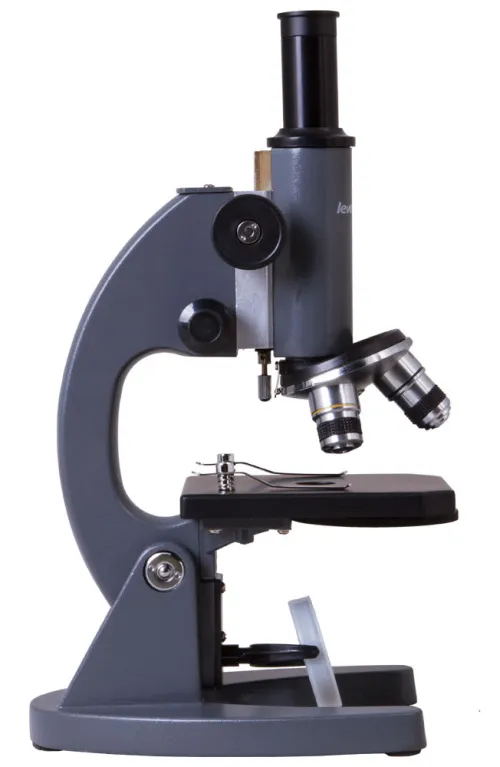

Levenhuk 5S NG Microscope is an entry-level optical tool that is excellent for studies or scientific hobby. It will be wonderful for a child, a middle school- or high school-aged student. With Levenhuk 5S NG Microscope, you can perform laboratory work in biology, carry out scientific experiments at home, and explore the micro world. The microscope provides up to 500x magnification that ensures a wonderful image of single-celled organisms. This magnification is enough for exploring prepared microscope slides.

Levenhuk 5S NG Microscope is a simple, reliable and safe optical instrument. A mirror is used for illumination of the microscope slides. It does not require electrical power or AC supply, so a kid will not come in contact with electricity. You can leave a young explorer alone without worrying about his or her safety. A diaphragm disk adjustment is used for the illumination intensity control.

All of the microscope’s optical elements are made of glass and are protected by a durable metal body. The revolving nosepiece is designed for three objective lenses and rotates easily. The monocular nosepiece allows for changing the eyepieces to achieve appropriate magnification. The stage is equipped with standard stage clips. You can adjust sharpness with the fine and coarse focusing knobs.

Features:

  • Microscope for studies and hobby
  • All-glass optics
  • Simple and durable design
  • Reliable metal body

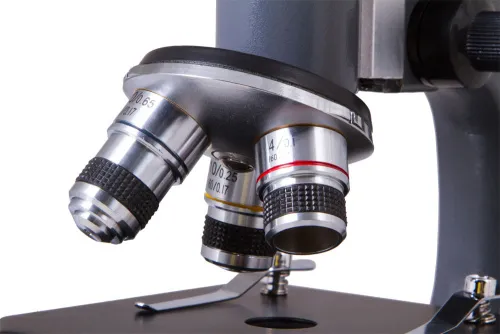

  • Revolving nosepiece for three objective lenses
  • Diaphragm disk with 5 apertures
  • Mirror illumination that does not require AC supply

The kit includes:

  • Microscope
  • Objective lenses: 4x, 10x, 40x

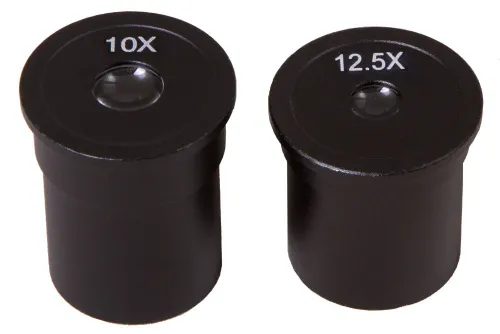

  • Eyepieces: 10x, 12.5x
  • User manual and lifetime warranty

Levenhuk 5S NG Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

specifications
Product ID 71916
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004273
Package size (LxWxH) 9.8x7.9x14.2 in
Shipping Weight 6.4 lb
Type biological, light/optical
Head monocular
Optics material optical glass
Nozzle fixed (non-rotatable)
Head inclination angle not angled
Magnification, x 40 — 500
Eyepiece tube diameter, in 0.9
Eyepieces 10x, 12.5x
Objectives 4x, 10x, 40xs (spring)
Revolving nosepiece for 3 objectives
Stage, mm 110x120
Stage moving range, mm fixed

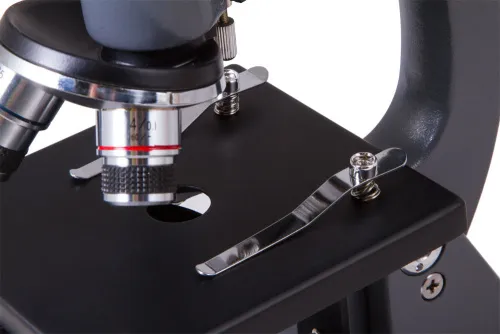

Stage features with clips
Diaphragm diaphragm disc (5 apertures)

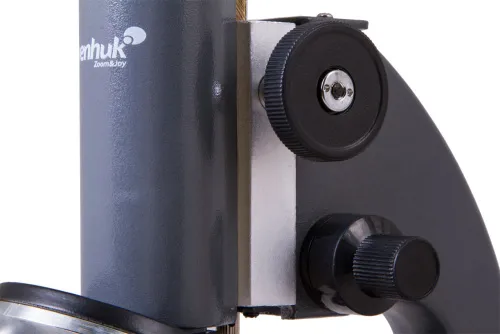

Focus coarse (50mm) and fine (1.8–2.2mm)
Body metal
Illumination mirror
User level beginners
Assembly and installation difficulty level extremely simple
Application school/educational
Illumination location lower
Research method bright field
