Stereo microscope. Binocular head. Magnification: 20–40x

The microscope head is a core element of the microscope that you look through to see a magnified sample
20 — 40
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope

Product ID 35321
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004532
Package size (LxWxH) 13.8x10.6x19.3 in
Shipping Weight 11.4 lb

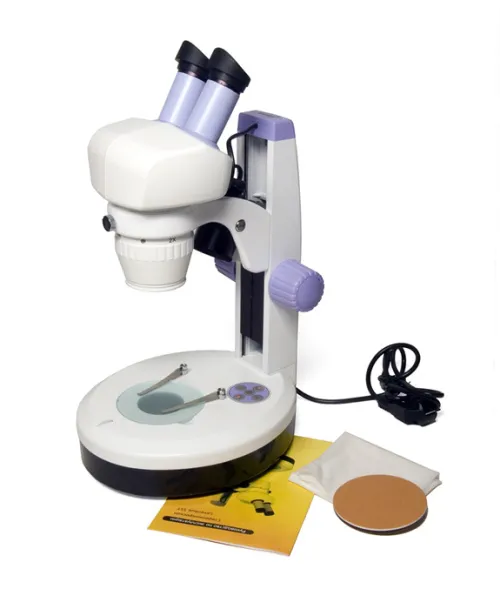

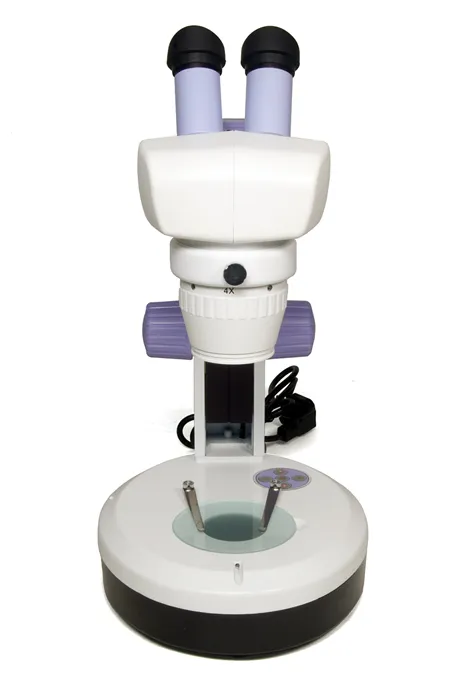

Levenhuk 5ST Microscope is a modern tool perfect for use both at home and in a professional laboratory. Due to the long working distance (160 mm, 6.3 in) of this lab microscope, you will be able to study everything you wish, including geological samples, jewelry, watches, textiles, agricultural products and more.

The optics in this modern measuring microscope render a high-quality image of observed objects, which allows for detailed studies of specimens and precise measurements of their dimensions.

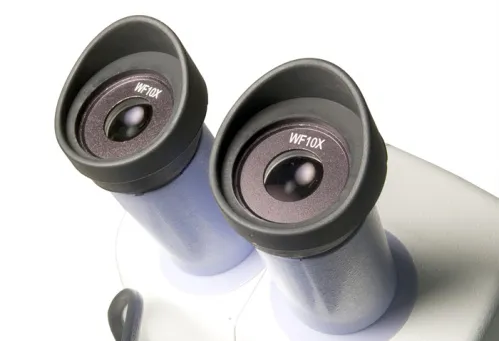

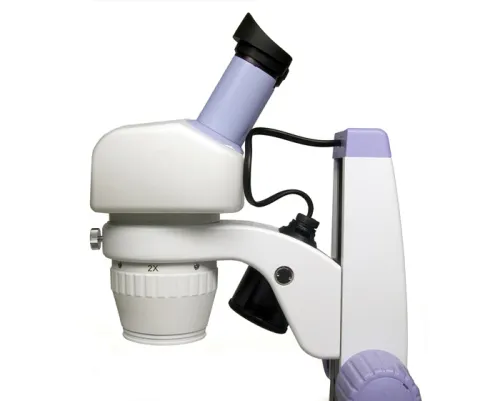

With a WF10x eyepiece and objective lenses of 2x and 4x, this laboratory microscope yields magnification from 20x to 40x. The binocular head of the Levenhuk 5ST is inclined at 60 degrees, so that you may observe the specimens for a long time without getting tired.

The interpupillary distance of the binocular head may be adjusted within 54–76 mm (2.1–3 in) range for additional comfort during observations. The image is brought into focus by turning the coarse focus wheel on the microscope body. The upper and lower illumination sources provide the necessary illumination for your observations.

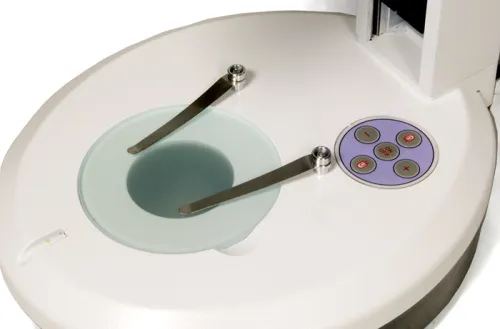

For much more effective observations, the stage plate may be rotated so that it faces either the black or the white side upwards, to increase the contrast of the observed specimen.

The kit includes:

  • Levenhuk stereo microscope
  • Binocular head
  • 10x eyepiece – 2 pieces
  • Two objective lenses: 2x, 4x
  • Silicon case
  • Matte glass stage
  • Stage plate with black and white sides
  • Rubber eyecups
  • User manual and lifetime warranty

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

Levenhuk 5ST Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of the eyepiece by using the 23.2–30.5mm adapter included in the kit with each camera.

Product ID 35321
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004532
Package size (LxWxH) 13.8x10.6x19.3 in
Shipping Weight 11.4 lb
Type stereo/instrumental
Head binocular
Optics material optical glass
Nozzle fixed (non-rotatable)
Head inclination angle 30 °
Magnification, x 20 — 40
Eyepiece tube diameter, in 1.2
Eyepieces WF10x (2 pcs.)
Objectives 2x–4x (zoom)
Working distance, in 6.3
Interpupillary distance, in 2.1 — 3
Stage, mm Ø93
Stage moving range, mm fixed
Stage features with clips, two plates: black and white double-sided and matte glass
Focus coarse (100mm)
Body metal
Illumination LED
Brightness adjustment
Power supply 220V/50Hz
User level beginners
Assembly and installation difficulty level extremely simple
Application for applied research
Illumination location dual
Research method bright field
Pouch/case/bag in set dust cover
Questions and Answers
Jil Lane (2018.02.14)
focusing distance at 20x?
Customer service:
Levenhuk 5ST Microscope provides 160 mm focusing distance.
Emma Payne (2017.02.23)
Does the model support observations in the dark field mode? or it needs additional equipment?!
Customer service:
Levenhuk 5ST Microscope is suitable for studies in the dark field mode without additional equipment.
Max Torres (2016.11.05)
When focusing, my chin abuts the microscope tripod... is there any solution?
Customer service:
Just turn the microscope head in the opposite direction.
Samuel (2016.06.11)
Hello! Can I increase magnification power of this model from 40x to, let's say, 80 or 100? What accessories should I get?
Customer service:
Levenhuk 5ST Microscope is not designed to produce a larger magnification.
Isaac Joyce (2015.06.18)
What accessories can I buy to decrease the magnification power (I need it to be lower than 20x). I haven't found anything suitable in the catalog.
Customer service:
Unfortunately, the Levenhuk 5ST microscope is equipped with two integrated eyepieces that can not be replaced.
Ricky Knox (2015.03.05)
Does this microscope provide magnifications in the range of 20-40x? Or just 20 and 40x? And what about field of view at these magnifications?
Customer service:
Levenhuk 5ST Microscope provides magnifications of 20x and 40x. At 20x magnification field of view will be 0.9 mm, at 40x - 0.45 mm.
Dwight Dotson (2014.11.12)
Can I use a digital camera with this microscope?
Customer service:
Yes, you can use a digital camera with Levenhuk 5ST Microscope. Take a closer look at this model: Levenhuk M130 BASE Digital Camera - .
Hue Tran (2014.08.20)
Actually I did not expect that this purchase will meet my demands. But it turned out that the microscope is very convenient and easy to use. Its stage with clips makes my work truly easy and enjoyable. It produces quality three-dimensional images of observed objects. I recommend this microscope to everyone who works with clocks and chips. This model is excellent !!!
Customer service:
Thank you for your feedback on Levenhuk 5ST Microscope!
