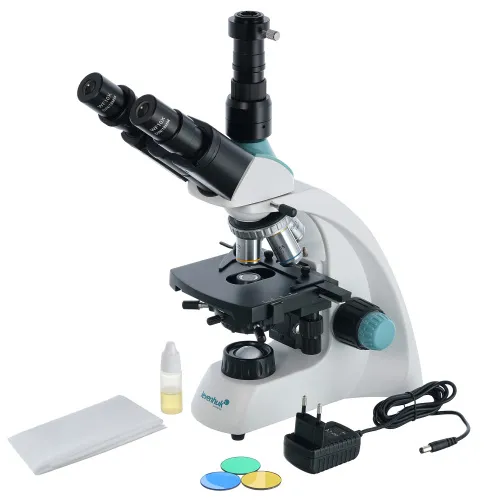

Levenhuk D400T Digital Trinocular Microscope

see all

Found it cheaper?

Get the same price + gift!

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 40–1000x. Trinocular head, achromatic objectives, LED illumination with a collector lens

Trinocular

The microscope head is a core element of the microscope that you look through to see a magnified sample

40 — 1000

How much the size of a sample increases when you observe it through a microscope

Laboratory/medical

Application and use of the microscope

Availability

Product ID	75435
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555005270
Package size (LxWxH)	16.5x8.3x11.4 in
Shipping Weight	9.2 lb

Description

The Levenhuk D400T is a digital biological microscope with a 3.1MP camera included in the kit. This instrument can be used for visual observations as well as photographing samples, video shooting, and transmitting the image to the screen. The image resolution reaches 2048х1536 pixels. This microscope is a great choice for a laboratory, veterinary office, or educational institution.

It features a trinocular head. The visual module is inclined, which prevents tensing your neck muscles up during long hours of observations. The eyepiece tube for a digital camera (included) is vertical. The kit includes two wide-field eyepieces with 10x magnification. The optical system includes two wide-field eyepieces with 4x, 10x, 40x, and 100x magnification. The front lenses of the 40x and 100x objectives are equipped with protective spring-loaded frames. Moreover, a 100x objective lens can be used for oil immersion.

There is a mechanical scale for fixing microscope slides. A bright LED light and collector lens are located at the bottom. The illumination brightness is adjustable. The light system also includes an Abbe condenser with an iris diaphragm that allows for adjusting luminous intensity. You can utilize light filters with this microscope.

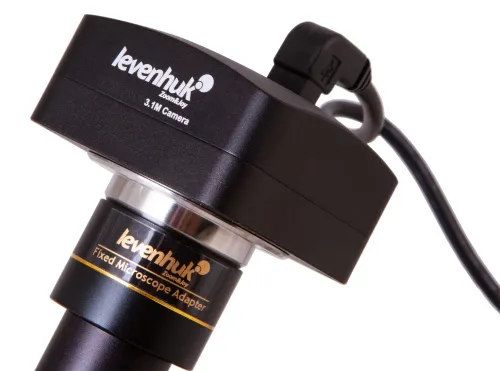

The digital camera (included) comes with the software for it. It allows you to edit previously saved images: zoom them, crop them, change the contrast and brightness, and so forth.

Note: Remember that the power supply in the US and Canada is 110V, and it is 220–240V in most European countries. Please refer to the specifications table for the correct voltage and never attempt to plug a 110V device into a 220V outlet and vice versa without using a converter.

Some things that you can see under a microscope:

Earthworm (cross section) under a microscope

You can find these and many more interesting microscope slides to observe in the Levenhuk Prepared Slides Sets.

The Levenhuk D400T Digital Trinocular Microscope is compatible with Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in an eyepiece tube instead of an eyepiece.

Main Features:

Wide-field achromatic optics
Magnification: 40–1000x
Lower LED lighting for observations in transmitted light
Collector and brightness adjustment, power supply by batteries or AC power supply
3.1MP digital camera is included

The kit includes:

Microscope
Achromatic objective lenses: 4x, 10x, 40x, and 100x (oil immersion)
WF10x/18mm eyepieces (2 pcs)
Abbe condenser N.A. 1.25 with an iris diaphragm and filter holder
Charging power cord
C-mount
Vial of immersion oil
Filters: blue, green, yellow
Dust cover
Digital camera
Camera adapter
USB cable for the camera
Software CD
User manual and lifetime warranty

specifications

Product ID	75435
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555005270
Package size (LxWxH)	16.5x8.3x11.4 in
Shipping Weight	9.2 lb
Type	biological, light/optical, digital
Head	trinocular
Optics material	optical glass
Nozzle	360 ° rotatable
Head inclination angle	30 °
Magnification, x	40 — 1000
Eyepiece tube diameter, in	0.9
Eyepieces	WF10x/18mm (2 pcs.)
Objectives	achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece	for 4 objectives
Interpupillary distance, in	1.9 — 3
Stage, mm	115x110
Stage moving range, mm	55/20
Stage features	mechanical double-layer
Eyepiece diopter adjustment, diopters	±5
Condenser	Abbe N.A. 1.25 with an iris diaphragm and filter holder
Diaphragm	iris
Focus	coaxial, coarse (12mm) and fine (0.002mm)
Body	metal
Illumination	LED
Brightness adjustment	✓
Power supply	3 AA batteries (not included), 110–220V, via AC adapter (included, US type plug adapter is purchased separately)
Power supply: batteries/built-in battery	yes
Light source type	with a collector, 1W LED
Light filters	blue, green, yellow
User level	experienced users
Assembly and installation difficulty level	easy
Software language	Windows: English, Russian, French, German, Polish, Chinese, Turkish, Mac and Linux: English
Application	laboratory/medical
Illumination location	lower
Research method	bright field
Digital camera included	✓
Pouch/case/bag in set	dust cover
Maximum resolution	2048x1536
Megapixels	3.1
Sensor element	1/2"
Pixel size, μm	3.2x3.2
Video recording	yes
Image format	.jpg, .bmp, .png, .tif and others
Video format	output: .wmv, .avi, .h264 (Windows 8 and later), h265 (Windows 10 and later)
Spectral range, nm	400–650
White balance	manual, automatic
Exposure control	manual, automatic
Sensitivity, V/lux-sec@550nm	1.5
Frame rate	up to 11 frames per second
Dynamic range, dB	75
Usage location	eyepiece tube (replaces an eyepiece)
Method of exposure	ERS (Electronic Rolling Shutter)
Software, drivers	LevenhukLite
Programmable options	image size, brightness, exposure control
Output	USB 2.0
System requirements	Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM
Camera power supply	via USB cable
