Levenhuk D70L Digital Biological Microscope

see all

Found it cheaper?

Get the same price + gift!

The price is valid only for the online store and may differ from the prices in retail stores.

Digital microscope with large color display and connectivity to PC

Digital screen/PC monitor

The microscope head is a core element of the microscope that you look through to see a magnified sample

40 — 1600

How much the size of a sample increases when you observe it through a microscope

School/educational

Application and use of the microscope

Availability

Product ID	66826
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555007328
Package size (LxWxH)	15.7x10.2x6.7 in
Shipping Weight	7.8 lb

Description

General information

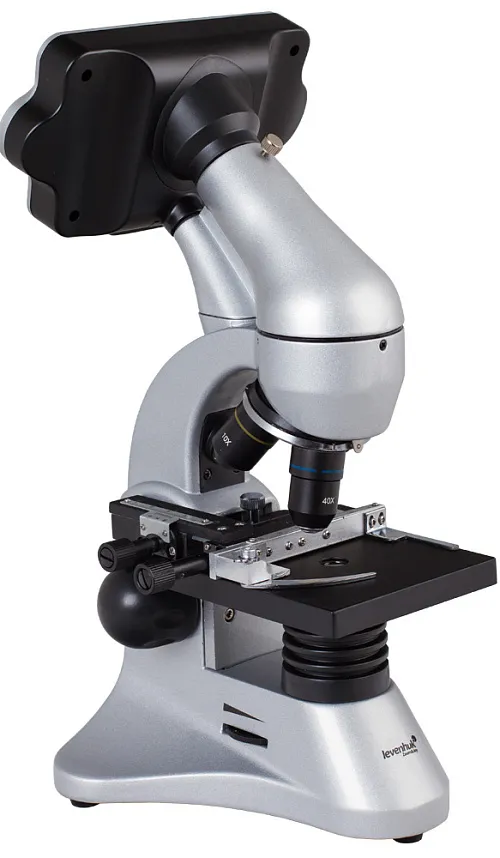

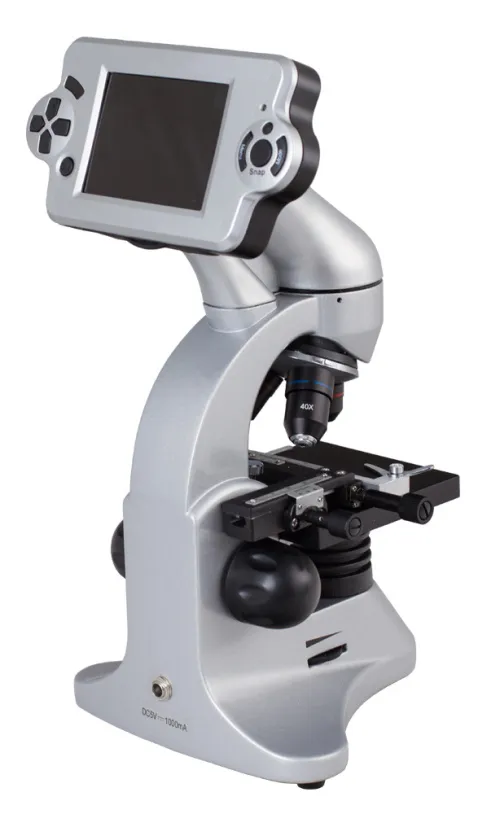

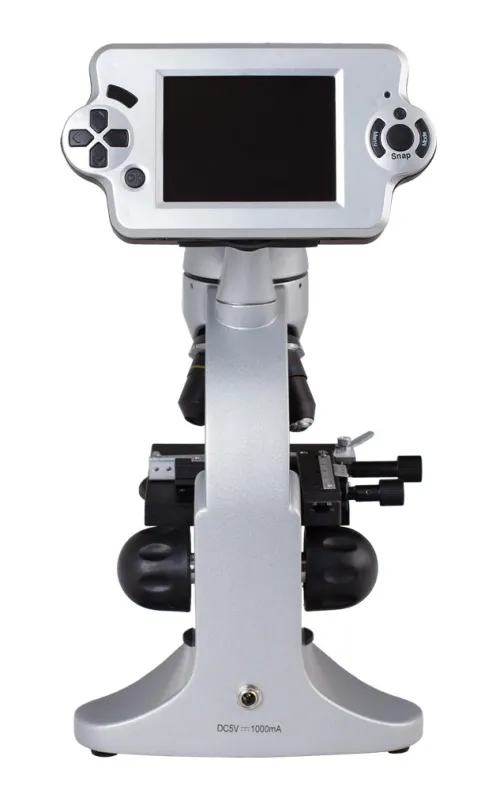

Levenhuk D70L Digital Biological Microscope features superb image definition, especially at the edges, ensured by hardware reliable performance. The basic configuration provides wide image processing possibilities.

The Levenhuk D70L is used for observations of transparent and opaque objects in transmitted light using the bright field method, for biological use and teaching demonstrations.

The microscope includes:

Stand with focusing arm
Base with built-in illumination
Bracket with stage
Revolving nosepiece with objectives
LCD display, memory card slot
Diaphragm disk with 5 color filters
Illumination lens upper/lower

Levenhuk D70L modules:

Focusing arm
The focusing arm located on the stand allows vertical movement of the stage. Handles are lined up at the both sides of the stand. The total focusing value is at least 10 mm (0.4 in).

Stage
The stage is fixed on the bracket secured on the focusing arm block. The specimen holder is located on the stage surface, and the diaphragm disk is attached to the lower part of the stage. A stopping screw limits movement of the stage bracket, which eliminates possible contact between the objective and the specimen.

Revolving nosepiece
The revolving nosepiece holds the objectives; to replace an objective, rotate the ring until it reaches the fixed position.

Head

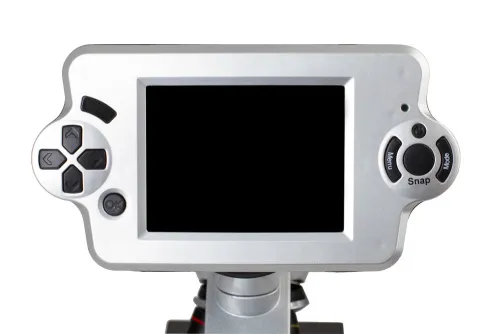

3.6" LCD display.

Maintenance of the microscope

The microscope should be kept clean and protected from damage. When it is not in use, cover the microscope with a special case included.
To maintain the microscope, regularly wipe dust off it, then clean it with a soft cloth slightly moistened with acid-free petroleum jelly. Afterwards, wipe it with a dry, soft, clean tissue.
Metallic parts should be kept clean. Special attention should be paid to maintaining cleanliness of the optics (especially objectives and eyepieces).
Never touch the optic surfaces with your fingers.
In case dust soils the objective lens deep in the casing, carefully wipe the lens with a clean cotton swab slightly moistened with Levenhuk cleaning spray or spirits mixture. If you notice dust inside the objective or a film on the inside of the lenses, the objective should be sent for repair.
Never attempt to disassemble objectives and eyepieces; doing so would void the lifetime warranty.

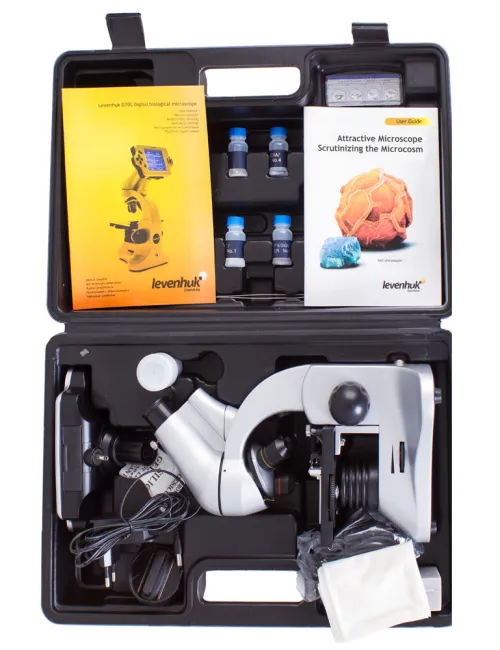

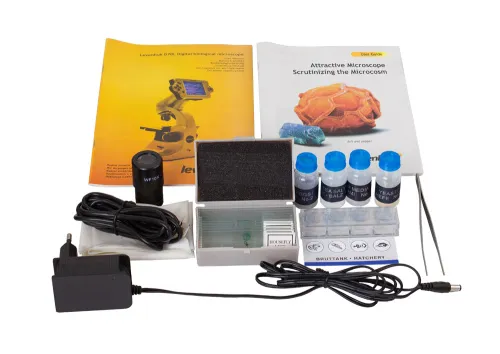

The kit includes:

Microscope
Objectives: 4x, 10x, 40x
Eyepiece: WF10x
Eyepiece adapter
Retractable LCD display with memory card slot
8GB SD memory card
USB cable
Coordinate moving stage with clips
Diaphragm disk with 5 color filters
Built-in upper and lower LED illuminations
AC adapter*
"Attractive Microscope. Scrutinizing the Microcosm" User Guide
Forceps
Dropper
Brine shrimp hatchery
Microtome (tool for making fine slices for observation; allows obtaining specimen slices of sub-millimeter thickness)
Flask with yeast
Flask with pitch for making specimens
Flask with sea salt
Flask with brine shrimp (a sea organism used as a food source for fish)
5 ready-to-use specimens and 5 blank slides
Dust cover
Plastic case
User manual and lifetime warranty

* Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

Levenhuk D70L Digital Biological Microscope is also compatible with Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

Microscopes Comparison Table

	Levenhuk Rainbow D2L 0.3M Digital Microscope, Moonstone	Levenhuk Rainbow D50L PLUS 2M Digital Microscope, Moonstone	Levenhuk D70L Digital Biological Microscope
Head	monocular	monocular	monocular
Head	rotatable	rotatable	not rotatable
Eyepieces	WF10х	WF16x	WF10x
Objectives	4х, 10х, 40х	4х, 10х, 40х	4х, 10х, 40х
Barlow lens	no	2x	no
MAX magnification, x	400	1280	1600
Stage, mm	90x90, with stage clips	90x90, with stage clips	90x95, coordinate moving stage with clips
Stage moving range, mm	from 0 to 15	from 0 to 11	from 0 to 10
Brightness adjustment	yes	yes	yes
Dust cover	yes	yes	yes
Case	no	yes	yes
Upper illumination	fixed	fixed	fixed
Lower illumination	fixed	fixed	fixed
Illumination power supply	AC adapter, batteries	AC adapter, batteries	AC adapter, batteries
Camera power supply	USB cable	USB cable	USB cable
Body	plastic	metal	metal
Eyepiece tube	metal	metal	plastic (LCD display)
Megapixels	0.3	2	2
Video recording	yes	yes	yes
Maximum resolution	640x480	1600х1200	1600x1200
Levenhuk K50 Experiment Kit	yes	yes	yes

Levenhuk N80 NG "See it all" Slides Set

Levenhuk K50 Experiment Kit

Levenhuk G50 Blank Slides, 50 pcs

specifications

Product ID	66826
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555007328
Package size (LxWxH)	15.7x10.2x6.7 in
Shipping Weight	7.8 lb
Type	biological, light/optical, digital
Head	digital screen/PC monitor
Optics material	optical glass
Nozzle	fixed (non-rotatable)
Magnification, x	40 — 1600
Eyepiece tube diameter, in	0.9
Eyepieces	WF10x
Objectives	4x, 10x, 40x
Revolving nosepiece	for 3 objectives
Stage, mm	90x95
Stage moving range, mm	0–10, vertical
Stage features	with a mechanical stage
Condenser	N.A. 0.65
Focus	coarse (13mm)
Body	metal
Illumination	LED
Brightness adjustment	✓
Power supply	2 AA batteries (not included), 220V/50Hz
Power supply: batteries/built-in battery	yes
Operating temperature range, °F	-22...+158
Ability to connect additional equipment	Windows and MacOS PC for data transfer
User level	beginners
Assembly and installation difficulty level	easy
Application	school/educational
Illumination location	dual
Research method	bright field
Experiment kit included	✓
Digital camera included	✓
Pouch/case/bag in set	dust cover, case
Megapixels	2
Video recording	yes
Image format	.jpg, .bmp, .png, .tif and others
Software, drivers	pre-installed Android software
Output	AV, USB 2.0

References
and downloads

User manual: Levenhuk D70L digital microscope (pdf)

(PDF, 1.98 Mb)

High-resolution images (zip)

(ZIP, 162.21 Mb)

High-resolution images: Levenhuk K50 Experiment Kit (zip)

(ZIP, 78.37 Mb)

click to
download

Questions and Answers

O PHICHITSURAKIJ (2019.07.11)

You mentioned above that the D70L can be connected to a PC via a cable for transfer of images, and the PC will see it as a flash drive. Is the cable a USB cable? If so, where is the USB connection on the D70L?

Customer service:

Dear O PHICHITSURAKIJ, thank you for interest in Levenhuk products. You can transfer your images using the 2GB microSD memory card that comes in the kit. The USB cable is also come in the kit. The connection is in display part.
Is there any additional information you might need?

Ree Duke (2018.02.10)

Hi! Could you please tell me which digital camera with HDMI output is suitable for the Levenhuk D70L microscope? Purpose - real-time image transferring to a high-definition TV screen.

Customer service:

Our product range, unfortunately, doesn’t include digital cameras with HDMI output.

Max Max (2018.01.02)

Does the kit include empty slides?

Customer service:

Yes, Levenhuk D70L microscope kit includes 5 ready-to-use slides and 5 blank slides.

Denialla St (2017.12.24)

Hello! I would like to clarify a few moments: 1. Will the microscope work completely autonomously? Without connecting it to the mains? As I understood, batteries provide illumination. But what about the display?
2. Can I replace eyepiece and/or objective lens in order to increase magnification? If yes, then what items would you recommend? I saw somewhere in the comments that wf16x is suitable, but 20x already not. Levenhuk 10x/18 is ok or not?
3. Can I use Barlow lens?
4. Will I be able to transfer images directly to the screen or projector or only through a PC?
5. Where can I see images and videos made with this microscope?

Customer service:

1. Levenhuk D70L Microscope can be used without connection to the mains, but only with an eyepiece. LCD display won’t work.
2. The microscope has a standard barrel diameter of 23.2 mm. You can use 16x eyepiece, as well as 10x/18. There are no suitable objective lenses in our product range.
3. No, the design of the microscope doesn’t allow the use of a Barlow lens.
4. Images are displayed on the LCD screen. You can send photos and videos to a PC using cables or memory card.
5. Photos and videos can be viewed on the microscope display, as well as on a PC monitor when transferred.

Denialla St (2017.12.24)

Hello! I would like to clarify a few moments:
1. Will the microscope work completely autonomously? Without connecting it to the mains? As I understood, batteries provide illumination. But what about the display?
2. Can I replace eyepiece and/or objective lens in order to increase magnification? If yes, then what items would you recommend? I saw somewhere in the comments that wf16x is suitable, but 20x already not. Levenhuk 10x/18 is ok or not?
3. Can I use Barlow lens?
4. Will I be able to transfer images directly to the screen or projector or only through a PC?
5. Where can I see images and videos made with this microscope?

Customer service:

nobody (2017.04.10)

My LevenhukLite Software cant see Levenhuk D70L. This microscope can be connected to the PC only as a flash drive? can I transfer online from the microscope camera to the computer screen?

Customer service:

That is right, the computer sees the Levenhuk D70L digital microscope as a flash drive, it is impossible to broadcast an image from the microscope camera to the computer screen online.

John (2017.04.10)

Please, tell me the parameters of the AV cable for connecting the microscope to the TV. What the connector this is…such a small plug diameter? It looks like a mini 2.5 jack, but i need to know for sure. Should there be two or one RCA on the TV side or what?

Customer service:

The Levenhuk D70L Digital Microscope cannot be connected via AV cable. The plug you are asking about is the power connector.

Daniel Patton (2017.01.09)

Tell me, at what expense we achieve such a powerful magnification of 1600õ? We want to use the microscope in the paper production to determine the color of the fiber. Do the filters allow to distinguish blue, red, yellow colorization?

Customer service:

1. Levenhuk D70L model provides 400x optical magnification. 1600x is obtained due to digital interpolation ("stretching" of the image). 2. Unfortunately, we did not conduct such studies and have no answer to this question.

Daniel Patton (2017.01.09)

Tell me, at what expense we achieve such a powerful magnification of 1600х? We want to use the microscope in the paper production to determine the color of the fiber. Do the filters allow to distinguish blue, red, yellow colorization?

Customer service:

Brian Miller (2016.12.31)

Can I equip this microscope with an immersion lens?

Customer service:

Unfortunately no, Levenhuk D70L Digital Biological Microscope can't be equipped with an immersion lens.

Mathew Reed (2016.10.16)

body material?

Customer service:

Levenhuk D70L Digital Biological Microscope has silumin body.

Mathew Reed (2016.10.16)

Is the optics used in this model comparable to Levenhuk 320 microscope (if not consider an oil immersion lens that comes with the 320 model)? Does the kit include a standard eyepiece?

Customer service:

Levenhuk D70L Digital Biological Microscope comes with a 10x eyepiece. Yes, objectives used in these two models are similar in quality.

Carla Moss (2014.10.11)

Is this model suitable for observing bacteria?

Customer service:

Amateur microscopes do not allow you to observe bacteria, because most bacteria are too small and can be seen only under 1200x magnification and the sample has to be stained. So you will need an advanced instrument and special sample preparation methods. We recommend that you consider this model: Levenhuk D320L Digital Biological Microscope - http://www.levenhuk.com/catalogue/microscopes/levenhuk-d320l-base-3m-digital-monocular-microscope/

adam lawrence (2014.05.31)

We have bought this microscope, so we have to say that this is a wonderful instrument, its capabilities are impressive! Highly recommend!!
Only one thing… the SD card in the kit is 2Gb, correct the info! That was a great surprise though!:)

Customer service:

Thank you for your feedback on Levenhuk D70L Digital Biological Microscope!

adam lawrence (2014.05.31)

We have bought this microscope, so we have to say that this is a wonderful instrument, its capabilities are impressive! Highly recommend!!
Only one thing... the SD card in the kit is 2Gb, correct the info! That was a great surprise though!:)

Customer service:

Thank you for your feedback on Levenhuk D70L Digital Biological Microscope!

charlie (2014.05.26)

Ooops, sorry! Or D50L?

Customer service:

Levenhuk D70L Digital Biological Microscope is more functional due to its LCD monitor.

charlie (2014.05.26)

Really need your professional help! What to choose: D2L NG or D70 NG?

Customer service:

Levenhuk D70L Digital Biological Microscope would be a preferable choice due to its higher camera resolution and rich kit of useful accessories.

amber hopper (2014.05.10)

Is it possible to see water crystals and bacteria using this model?

Customer service:

Unfortunately, it's not possible, observing this kind of samples requires minimum 1200x magnification power. Please, take a look at Levenhuk 320 PLUS Biological Monocular Microscope - http://www.levenhuk.com/catalogue/microscopes/levenhuk-320-plus-biological-monocular-microscope/ .

Laurie (2014.04.15)

Is it possible to use other objectives and eyepieces?

Customer service:

You never know with objectives, but eyepieces of other manufacturers are mostly suitable. Note that eyepiece barrel diameter should be 23.2 mm.

Duane Duffy (2014.04.12)

does 16x eyepiece come in the kit? Is it reasonable to use more powerful eyepieces?

Customer service:

16x eyepiece is not included in the kit of Levenhuk D70L Digital Biological Microscope. Yes, using more powerful eyepieces is reasonable.

Duane Duffy (2014.04.12)

Is it possible to observe dust mite and bacteria with this microscope?
And one more question: if I attach an upper lighting to D320L, will I be able to observe opaque objects?
I'd like to be able to see bacteria and mites, and different opaque objects.

Customer service:

Levenhuk D70L allows you to see mites, but unfortunately, you can't observe bacteria. It's possible to observe opaque objects with Levenhuk D320L if you equip it with upper illumination.

Anthony Perez (2013.11.09)

It's said everywhere that a digital camera comes in the kit (Microscopes Comparison Table, Specifications) except "the kit includes" section. So does it come in the kit or not? All digital microscopes include a camera in the kit?

Customer service:

Levenhuk D70L Digital Biological Microscope is equipped with a built-in digital 2Mpx camera, which displays images on the LCD monitor. All Levenhuk digital microscopes are equipped with cameras.

Danny Miles (2013.07.20)

Is it possible to attach Levenhuk 20x eyepiece to this microscope instead of the nosepiece? What would the resulting magnification be?

Customer service:

No, unfortunately, the construction of the Levenhuk D70L
Digital Biological Microscope does not provide an
opportunity to attach Levevnhuk 20x eyepiece instead of
the nosepiece.

Valery Ayres (2013.07.14)

Does Levenhuk D70L Digital Biological Microscope allow observing objects in dark-field mod? Is there any additional device for this? Thank you.

Customer service:

No, the Levenhuk D70L Digital Biological Microscope works
in bright-field mode only. The option of observing using
dark-field mode is available in other models, for example
Levenhuk MED D45T Digital Trinocular Microscope
http://www.levenhuk.com/catalogue/microscopes/levenhuk-med-d45t-digital-trinocular-microscope/

Victor (2013.07.14)

Can I use Levenhuk D70L Digital microscope at 28.4 to 23 degrees Fahrenheit?

Customer service:

Yes, you can surely use this model under these
temperature conditions. The operating temperature range
of the Levenhuk D70L model is from -22 to 158 °F.

Andrew Craig (2013.05.21)

Thank you for answering the previous question. And what is the standard eyepiece diameter of Levenhuk microscopes?

Customer service:

It depends on the model. The Levenhuk D70L model doesn't
have an eyepiece at all, it has an LCD screen.

Rob Keys (2013.05.18)

Last summer I wanted to present a Levenhuk microscope to my daughter on her birthday, but I couldn't find it anywhere available for purchasing. So I bought another one. Can I use a Levenhuk digital camera with it? Will it fit (is there any restrictions by diameter or other characteristics)?

Customer service:

Levenhuk Digital cameras may be used with any microscopes that have standard eyepiece diameter.

Liza Brook (2013.05.05)

The camera has an AV port, but there is no cable in the kit. What kind of cable do I need and where can I purchase it?

Customer service:

It's a power port, required cable is included in the kit.

Frank Sigalot (2013.04.24)

Is it possible to use Levenhuk D70L Digital Biological Microscope in cast iron microscopic metallography (100x and 200x magnifications)? To study etched specimen for graphite grains?

Customer service:

Yes, the Levenhuk D70L Digital Biological Microscope is
suitable for these purposes.

Ben (2013.04.23)

Can I use this microscope in a vet lab for leptospirosis diagnosis when we use dark-field method and place a couple of water drops on the stage glass?

Customer service:

This model doesn't have a dark-field condenser. Consider this model: http://www.levenhuk.com/catalogue/microscopes/levenhuk-850b-biological-binocular-microscope/

William Price (2013.04.17)

Can I use Levenhuk D70L for studying samples of minerals and subsurface rocks (0.4 - 1.6 inches in size)

Customer service:

Yes, the Levenhuk D70L model perfectly suits for studying
samples of minerals and rocks surfaces.

Nick Lepore (2013.04.04)

isn't experiment kit included?

Customer service:

Currently the Levenhuk D70L model comes with Levenhuk K50
Experiment Kit.

Ken Bell (2013.03.23)

Hi! I want to buy Levenhuk D70L Microscope for my son, he is 12 y/o: 1) Levenhuk K50 Experiment Kit comes with this microscope, but it doesn't include user manual. Can I purchase it separately or maybe download online? 2) Would it make sense to buy Levenhuk N38 NG Prepared Slides Set or everything that is needed for observation is already included in the Levenhuk K50 Experiment Kit?

Customer service:

Levenhuk K50 Experiment Kit is not included in the standard kit of Levenhuk D70L Digital Biological Microscope.
You can purchase Levenhuk K50 Experiment Kit separately, user manual is included in the kit.

Melissa (2013.03.22)

I am eager to know how capable is this microscope of showing non-transparent objects (metal, razor blade, stone) at 1600x magnification. I mean is there a way to install powerful upper illumination?
I am also interested about how much power requires a microscope that allows observing frozen water (ice) structure.
Thank you for detailed answers.

Customer service:

The Levenhuk D70L model does have upper illumination out
of the box!

Water crystals are usually observed at 400x
magnification.

Mary Conger (2013.03.16)

Hi! There is a no in front of Levenhuk K50 Experiment Kit in Microscopes Comparison Table so I take it it's not included in the kit. But I spy it on photos. Please explain if Levenhuk K50 comes with this model or it doesn't.

Customer service:

It's not the full Levenhuk K50 Experiment Kit that is included in the standard kit, but only a part of it. It includes everything except Attractive Microscope. Scrutinizing the Microcosm User Guide

Val Lois (2013.03.06)

Hello.
1600x magnification: is it just optical or combined with digital?

Customer service:

1600x is the highest magnification for the Levenhuk D70L
model.

Matt (2013.03.03)

does this microscope allow observing through a regular eyepiece without the LCD screen?

Customer service:

Yes, there is a possibility of observing samples without
using LCD display. The Levenhuk D70L model comes with
adapter and 10x eyepiece.

carrie nash (2013.03.01)

Then where are captured images being saved if there is no memory???

Customer service:

On memory card

carrie nash (2013.03.01)

When I insert memory card the screen goes inactive, is it a failure? 2) how much built-in memory does it have, how many images I can store?

Customer service:

1)Please contact our Customer Service Department 2) The
Levenhuk D70L model doesn't have any built-in memory.

carrie nash (2013.03.01)

Is there a removable memory card, or does it save in internal memory?

Customer service:

The Levenhuk D70L model doesn't have any built-in memory,
it has a memory card slot, so images can be saved on
memory card.

Serge Tomlinson (2013.02.26)

Description says that its highest magnification is 400x and Specifications table says that it's 1600x - interesting to know where is the typo? And what is the magnification of an eyepiece replaced by camera?

Customer service:

The information provided in the description is correct.
The highest optical magnification of the Levenhuk D70L
Digital Biological Microscope is 400x; its digital
magnification is 1600x. The magnification of the eyepiece
is 10x.

Chris Lee (2013.02.22)

Correct the description: 16x eyepiece is included in the kit and it is possible to use any other eyepiece, if a client has any, this microscope allows observing directly through an eyepiece without LCD screen. Does the microscope come with any eyepieces? If so then of what magnification?

Customer service:

The Levenhuk D70L Digital Biological Microscope comes
with a 10x eyepiece.

Submit your question/feedback
