Magnification: 40x–1600x. 7" LCD screen, 2Mpx digital camera, achromatic optics, LED illumination with a collector lens

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1600
How much the size of a sample increases when you observe it through a microscope
Application and use of the microscope

Product ID 78902
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005416
Package size (LxWxH) 15x13x10.6 in
Shipping Weight 7.1 lb

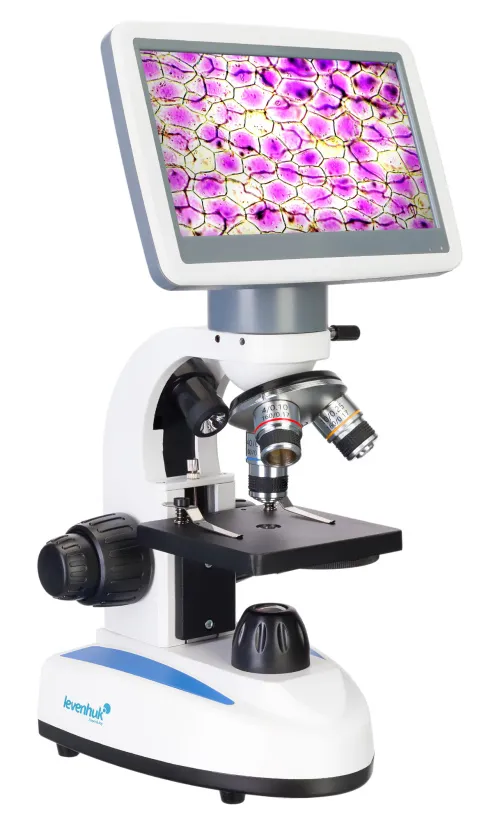

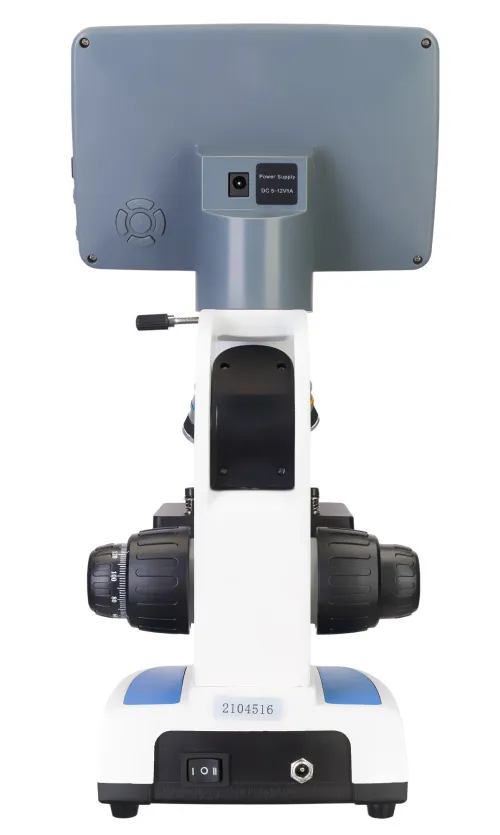

The Levenhuk D85L LCD microscope is designed to examine slides with different transparency of the specimens at 40x–1600x magnification. The microscope is also equipped with a built-in 2Mpx camera that can take photos of specimens and record videos for research. Data is stored on the memory card. Another specific feature of this model is its large 7" LCD screen, which is great for the detailed and comprehensive examinations of specimens.

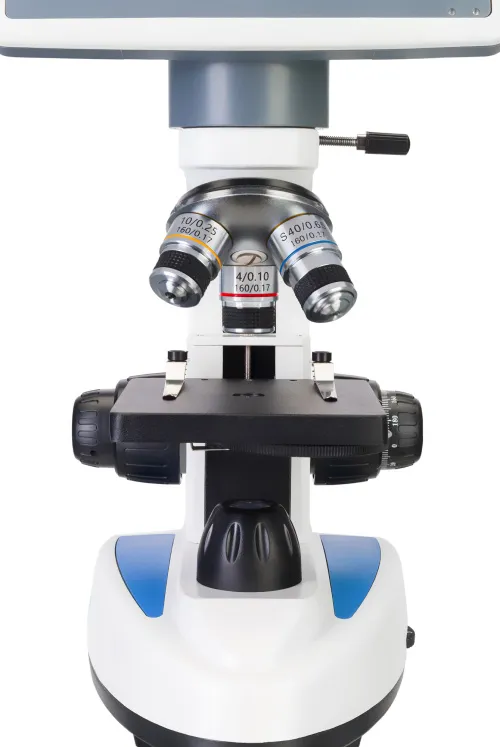

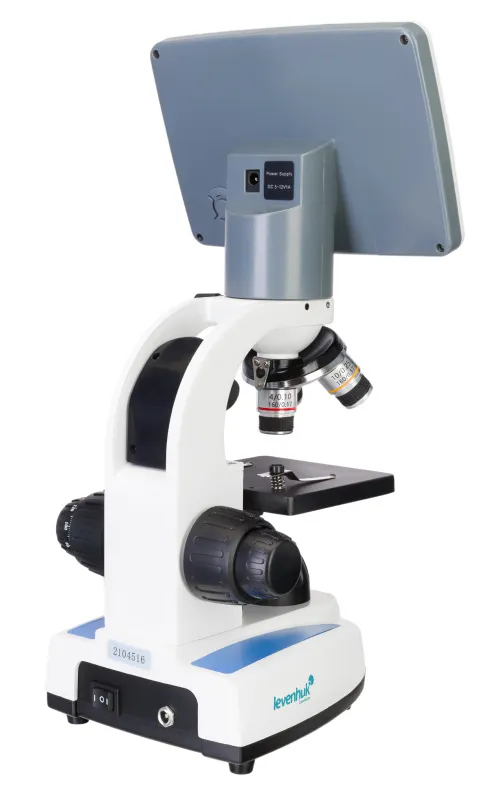

The optical system includes achromatic objective lenses with various magnification powers. The overall optical magnification ranges from 40x to 400x; digital magnification up to 1600x. The real-time image is displayed on the screen in high resolution, detecting any micro-structures. The control buttons placed on the side panel and the backside make the device look minimalistic. Coarse and fine adjustments are possible.

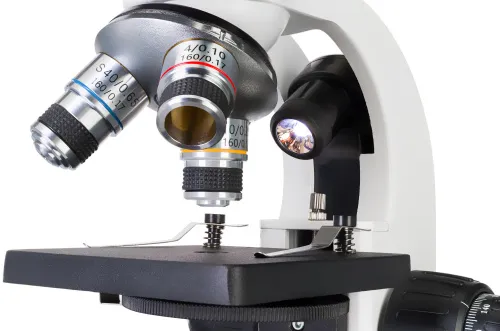

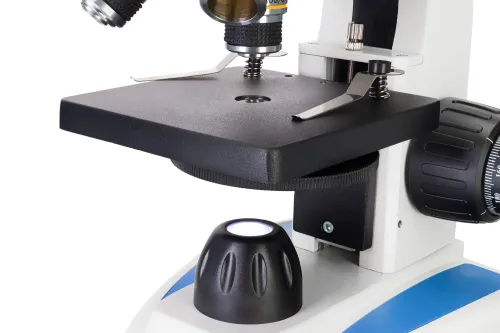

The specimens are secured on the stage with specimen holders and a diaphragm disk. The illumination is dual: the LEDs are located on both sides of the stage. There is a brightness adjustment function. The AC power supply or batteries can power the illumination.

The microscope body is metal; the optics are made of glass.

Key features:

  • For visual observations, photo, and video recording
  • Optical (40x–400x) and digital (up to 1600x) magnification

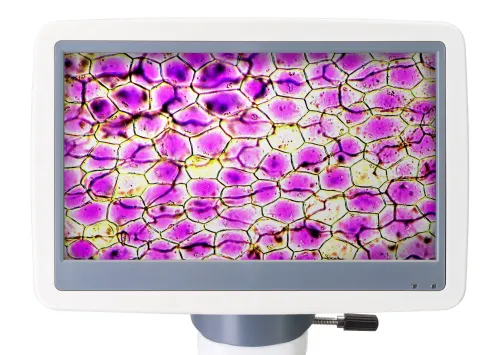

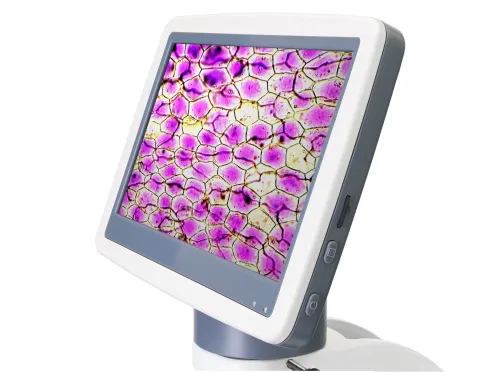

  • The nozzle is a large LCD screen with a 7" diagonal
  • Achromatic optics; dual adjustable illumination
  • To observe specimens in the bright field

The kit includes:

  • Microscope with a 2Mpx digital camera and an LCD screen
  • Achromatic objective lenses of 4x, 10x, 40x
  • N.A. 0.65 condenser with a diaphragm disc
  • Power cord
  • 16GB SD memory card
  • Adapter and power cord to power the camera
  • Dust cover
  • User manual and warranty card
Product ID 78902
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005416
Package size (LxWxH) 15x13x10.6 in
Shipping Weight 7.1 lb
Type biological, light/optical, digital
Head digital screen/PC monitor
Optics material optical glass
Nozzle 7" rotatable color LCD screen
Magnification, x 40 — 1600
Objectives achromatic: 4x, 10x, 40xs (spring)
Revolving nosepiece for 3 objectives
Stage, mm 90x90
Stage moving range, mm 70/30
Stage features with clips
Condenser N.A. 0.65
Diaphragm diaphragm disc (6 apertures)

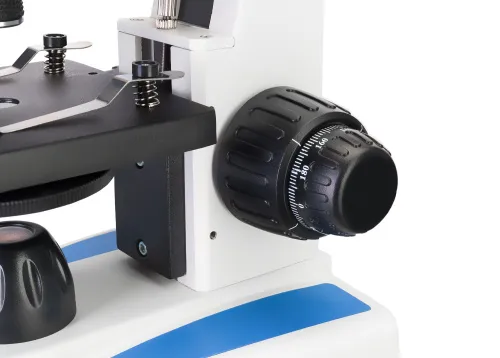

Focus coaxial, coarse (15mm) and fine (0.002mm)
Body metal
Illumination LED
Brightness adjustment
Power supply 3 AA batteries (not included) or 110–240V, via AC adapter (included)
Power supply: batteries/built-in battery yes
Light source type with a collector, 0.2W LED
Ability to connect additional equipment does not support a connection to an external screen or a PC
User level beginners, experienced users
Assembly and installation difficulty level easy
Application school/educational
Illumination location dual
Research method bright field
Pouch/case/bag in set dust cover
Maximum resolution 1920x1080
Megapixels 2
Sensor element 1/2.8"
Pixel size, μm 2.9x2.9
Video recording yes
Image format *.jpg
Video format *.mp4
Spectral range, nm 380–700
White balance manual, automatic
Exposure control manual, automatic
Sensitivity, V/lux-sec@550nm 2
Frame rate 30 frames per second
Usage location microscope stand
Software, drivers Included
Output SD card slot, power cable slot
Camera power supply 5V, 1A, via a network adapter
