Magnification: 40x–2000x. 7" LCD screen, 2Mpx digital camera, achromatic optics, LED illumination with a collector lens

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 2000
How much the size of a sample increases when you observe it through a microscope
School/educational, laboratory/medical
Application and use of the microscope
Availability

Product ID 78903
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005423
Package size (LxWxH) 24x13.4x9.8 in
Shipping Weight 11 lb
Description

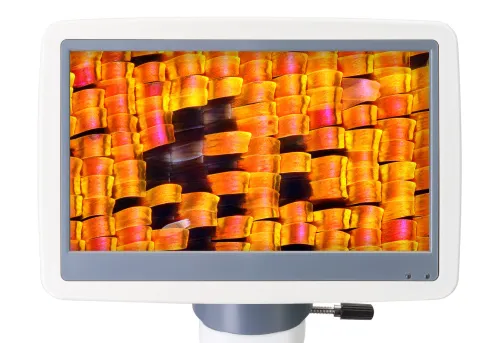

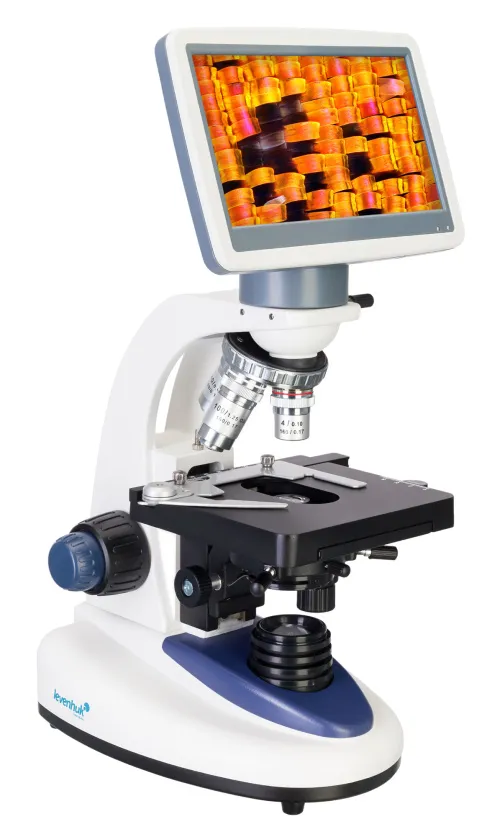

Levenhuk D95L LCD is a digital microscope for studying transparent samples. Due to its digital camera, the microscope serves for visual observations as well as photo and video recording. It also has a 7" LCD screen instead of a standard head, which significantly increases the user's comfort for long observations. The microscope is aimed at amateurs and professional researchers.

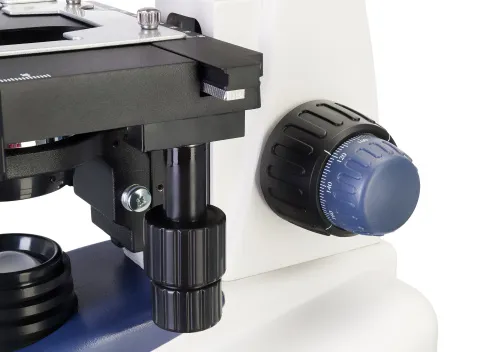

The achromatic lenses provide a clear and sharp image across the entire field of view. The 100x oil immersion objective. The real-time image is displayed on the LCD screen. You can use two types of magnification for observations: the optical magnification ranges from 40x to 1000x and the digital can reach up to 2000x. Focusing is also available in two modes: coarse and fine.

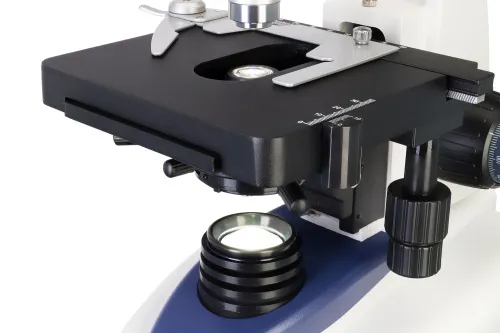

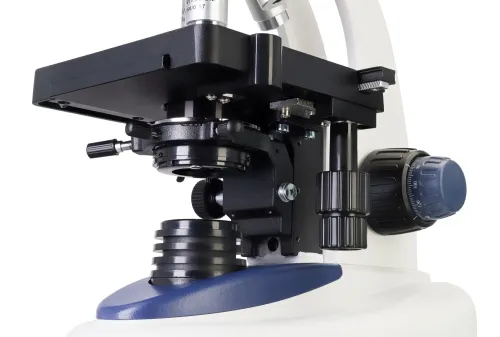

The stage is equipped with a mechanical scale; the Abbe condenser with an iris diaphragm and a filter holder is placed underneath the stage. The illumination is a dimmable lower LED illumination that requires an AC power supply.

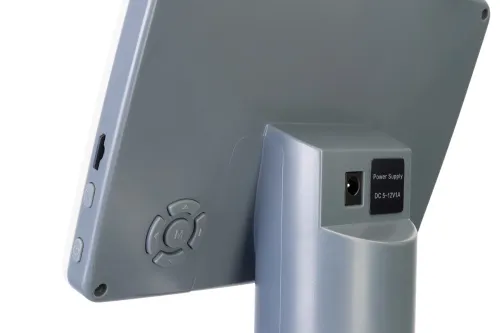

Control buttons for manipulating digital functions are located on the side panel and the back of the screen. The body of the microscope is metal; the optics are made of glass.

Key features

  • Digital camera 2Mpix; 7"LCD screen
  • Optical (40x–1000x) and digital (up to 2000x) magnification
  • Achromatic objectives, adjustable lower illumination
  • Light field observations and oil immersion technique
  • AC power supply

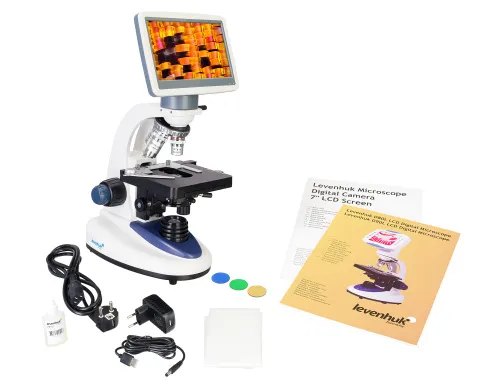

The kit includes:

  • Microscope with a 2Mpx digital camera and an LCD screen

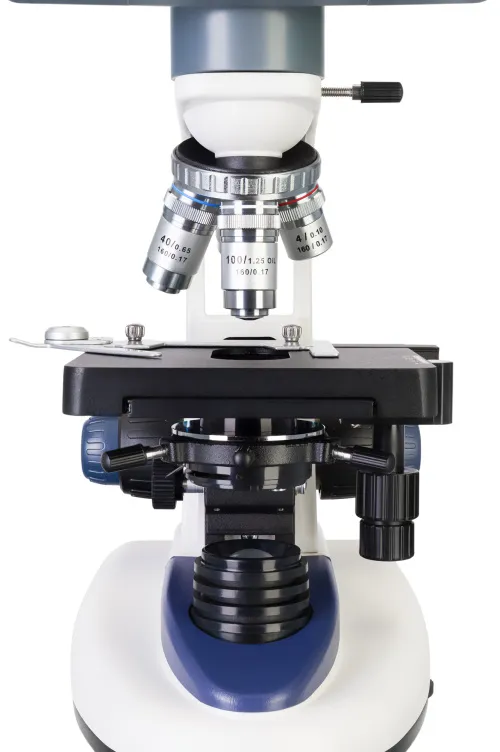

  • Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Bottle of immersion oil
  • Filters: blue, green, yellow
  • Microscope fuse
  • Power cord
  • 16GB SD memory card
  • Adapter and power cord to power the camera
  • Dust cover
  • User manual and warranty card
specifications
Product ID 78903
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555005423
Package size (LxWxH) 24x13.4x9.8 in
Shipping Weight 11 lb
Type biological, light/optical, digital
Head digital screen/PC monitor
Optics material optical glass
Nozzle 7" rotatable color LCD screen
Magnification, x 40 — 2000
Objectives achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece for 4 objectives
Stage, mm 110x126
Stage moving range, mm 70/30
Stage features mechanical double-layer
Condenser Abbe N.A. 1.25 with an iris diaphragm and filter holder
Diaphragm iris
Focus coaxial, coarse (15mm) and fine (0.002mm)
Body metal
Illumination LED
Brightness adjustment
Power supply 100–240V (US type plug adapter is not included)
Light source type with a collector, 1W LED
Light filters blue, green, yellow
Ability to connect additional equipment does not support a connection to an external screen or a PC
User level beginners, experienced users
Assembly and installation difficulty level easy
Application school/educational, laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
Maximum resolution 1920x1080
Megapixels 2
Sensor element 1/2.8"
Pixel size, μm 2.9x2.9
Video recording yes
Image format *.jpg
Video format *.mp4
Spectral range, nm 380–700
White balance manual, automatic
Exposure control manual, automatic
Sensitivity, V/lux-sec@550nm 2
Frame rate 30 frames per second
Usage location microscope stand
Software, drivers Included
Output SD card slot, power cable slot
Camera power supply 5V, 1A via AC adapter (included, US type plug adapter is purchased separately)
