Magnification: 10–300x (with a digital zoom: 10–1200x). Digital portable USB microscope with an LCD screen and a 5M camera

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
10–300, with a digital zoom 10–1200
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope

Product ID 75076
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004396
Package size (LxWxH) 7.9x7.9x2.8 in
Shipping Weight 1.5 lb

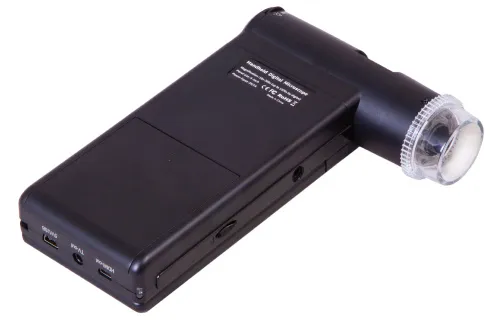

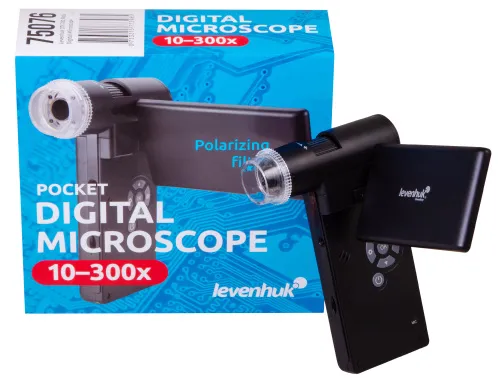

Levenhuk DTX 700 Mobi is a portable microscope that is practical to take with you. It easily fits in a backpack due to its design; it is convenient to hold the microscope with one hand. This microscope can be an excellent research tool for a kid due to the lightweight design. Yet the main application purpose of Levenhuk DTX 700 Mobi is assistance in professional activity. It is useful for studying artworks, minerals, coins, and sections of metals. It can also be used for quality assessment of soldering and repairing appliances. A handheld microscope is often used to check the quality of goods in stores and detect any possible mold growing on fruit and vegetables.

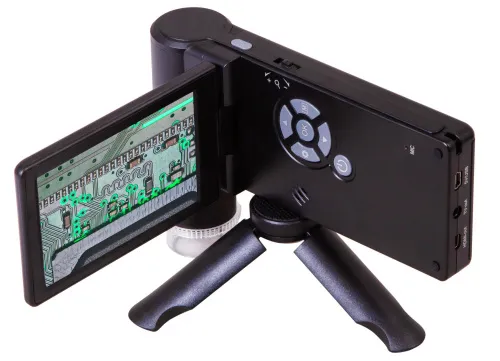

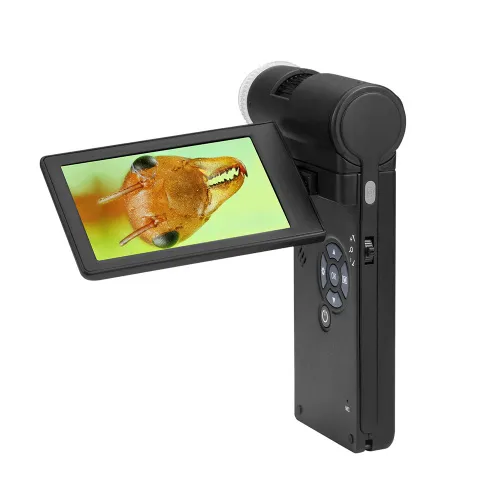

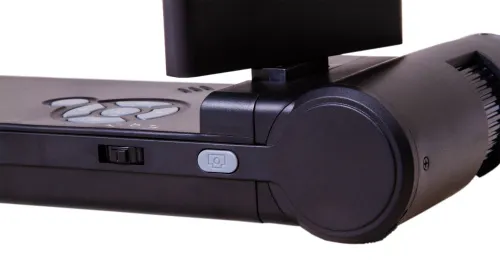

An image is formed by a camera with a 5MP sensor. It transmits a high-resolution color image to a built-in LCD screen. A flip screen can be easily set in the most convenient position for work. In addition, the microscope can capture images and record videos (a memory card is required, which is purchased separately). It is performed by one button on the body. If necessary, Levenhuk DTX 700 Mobi can be connected to an external device: a monitor, a TV, or a computer. All of the necessary cables are already included in the kit.

Before connecting a microscope to a computer, do not forget to install the included software. It will give you access to extended features, allow for measuring linear and angular sizes of objects as well as apply texts and images on pictures.

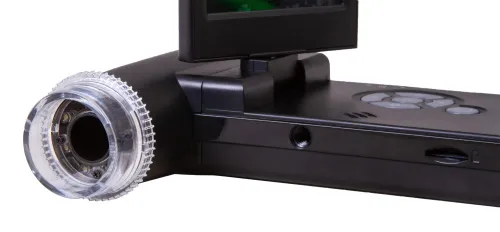

The microscope allows for working with only non-transparent specimens; a LED illumination with adjustable brightness is used as a light source. There is a polarizing filter, which allows for reducing glare and parasite reflections during observing shiny objects. The magnification is smoothly variable in a range from 10x to 300x, a digital zoom allows for observing at up to 1200x magnification. The microscope is powered by a battery (which provides up to 2.5 hours of continuous work) or by an AC power supply.


  • Small portable microscope with a 5M camera

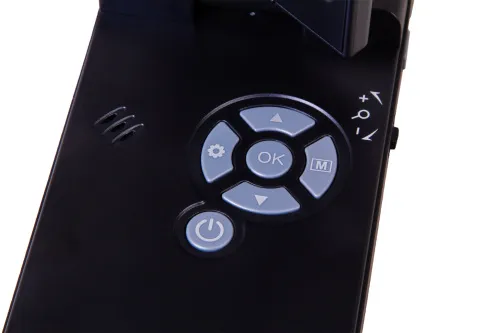

  • Rotatable color LCD screen, button-type control
  • LED illumination with adjustable brightness
  • Built-in polarizing filter
  • Ability to record videos and take pictures and transmit an image to an external screen
  • Image processing software with a measurement function
  • Powered by a battery or an AC power supply

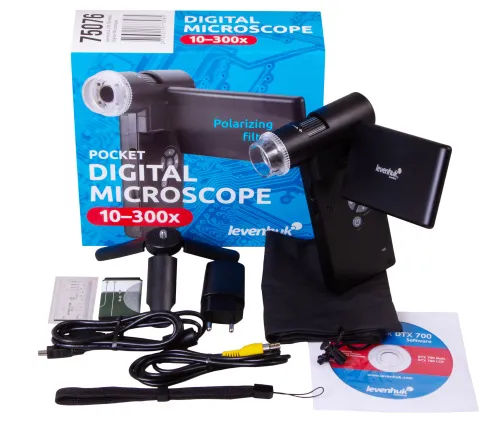

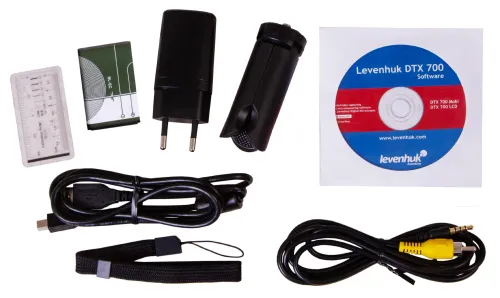

The kit includes:

  • Microscope
  • Adapter (100–240 V, 50/60 Hz)
  • Li-ion battery
  • USB cable
  • AV cable

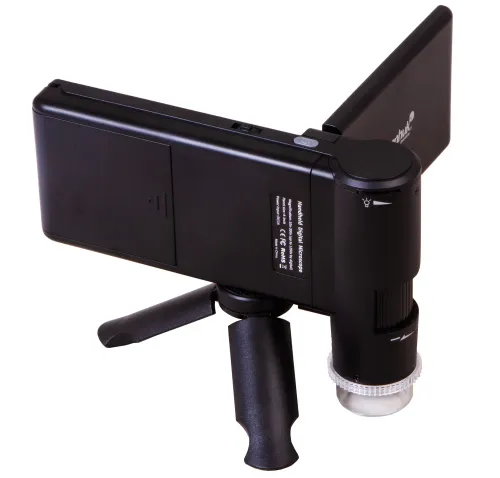

  • Tripod
  • Pouch
  • Software CD
  • User manual and lifetime warranty

Recommendations on using the software: in order for the PortableCapture Plus program (and its other versions) to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Caution! Remember that mains voltage in the U.S. and Canada is 110V and 220-240V in most European countries. Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter.

Levenhuk DTX 700 Mobi Microscope is not compatible with external digital cameras.

Product ID 75076
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004396
Package size (LxWxH) 7.9x7.9x2.8 in
Shipping Weight 1.5 lb
Type digital, portable
Head digital screen/PC monitor
Optics material optical glass
Nozzle 4" rotatable color LCD screen
Magnification, x 10–300, with a digital zoom 10–1200

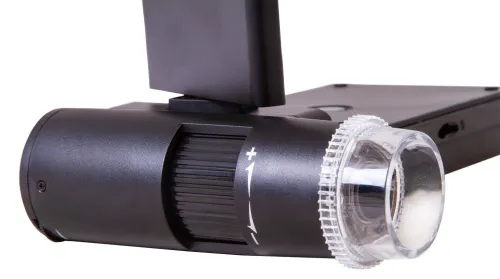

Focus manual, 0–100mm
Body plastic
Illumination LED
Brightness adjustment
Power supply 100–240V, 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh
Power supply: batteries/built-in battery yes
Light source type 8 LEDs
Operating temperature range, °F 14...+149
Additional battery-operated work: 2.5 hours; charging time: 4 hours, a tripod with adjustable height is included (0.5–3 cm)
Ability to connect additional equipment microSD card up to 32 GB (not included)
computer: via an USB cable (included)
TV: via an AV cable (included)
User level beginners, experienced users
Assembly and installation difficulty level easy
Software language English, Russian, German, Spanish, French, Japanese, Chinese
Application for applied research
Illumination location upper
Research method bright field
Pouch/case/bag in set pouch
Megapixels 5
Video recording yes
Image format *.jpg
Video format *.avi
Frame rate 30 frames per second
Software, drivers photo and video processing software with objects measurement feature

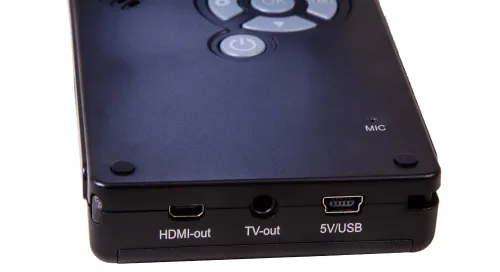

Output USB 2.0, HDMI/TV
System requirements OS: Windows 7/8/10, Mac 10.14 and later, minimum P2 1GHz, 512MB RAM, 512MB video card, USB 2.0 port, CD-ROM
