USB digital microscope with professional tripod. Magnification: 10–300x. Digital camera: 5Mpx

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
10 — 300
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability

Product ID 61022
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004310
Package size (LxWxH) 5.5x8.7x6.7 in
Shipping Weight 2 lb
Description

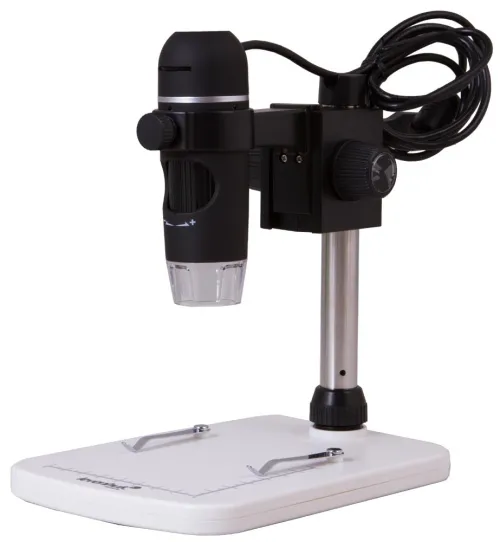

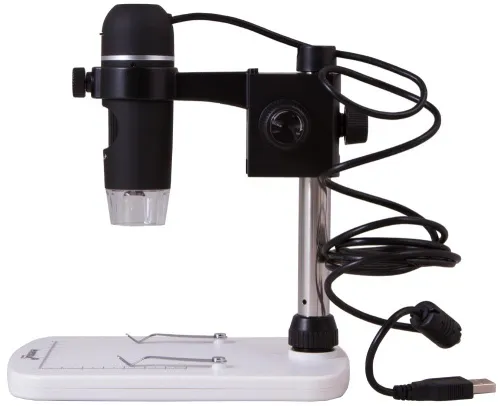

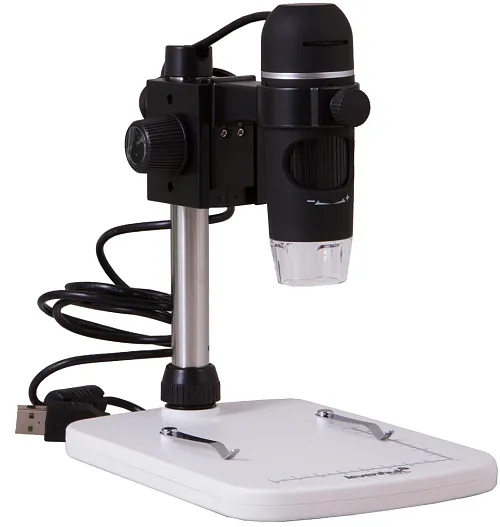

Levenhuk DTX 90 is a modern USB digital microscope designed for high-precision work. The microscope is equipped with a 5Mpx camera and provides magnification within the 10x–300x range. The kit includes a special tripod and a stage with a measuring scale (8cm along the x-axis, 7cm along the y-axis) and two clips to secure a sample under the camera.

Levenhuk DTX 90 Digital Microscope delivers images of the highest quality and resolution. The microscope connects to a PC or laptop via a standard USB 2.0 cable. The image processing software that comes with the kit allows for studying specimens and image editing. In addition to image processing features, the program measures the length of the object, its perimeter, radius, diameter, and the angles.

Levenhuk DTX 90 is very easy to use: The microscope does not require any special knowledge or skills. Due to its compact size, it is perfect for home use. If necessary, you can retract a digital camera and use it without a tripod.

The body of the microscope is rubberized, which makes it pleasant to the touch and secures the grip, preventing the device from slipping out of your hands.

Features:

  • Retractable 5 Mpx digital camera
  • Power supply via USB

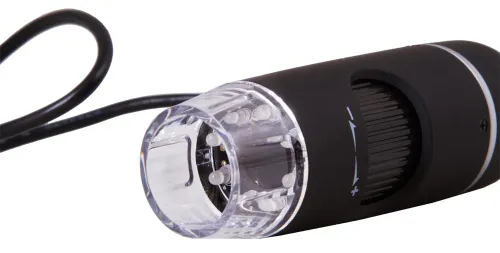

  • 8 white LEDs with adjustable brightness
  • Able to take photos/videos
  • Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
  • Wide range of applications
  • Ease of use
  • Сompatible with Windows and Mac OS

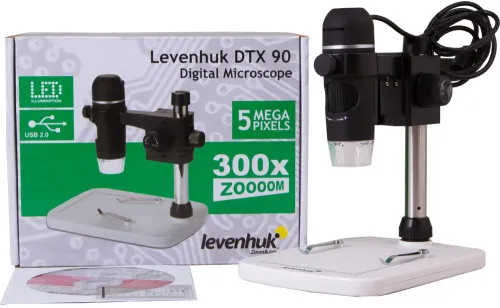

The kit includes:

  • Levenhuk DTX 90 Microscope

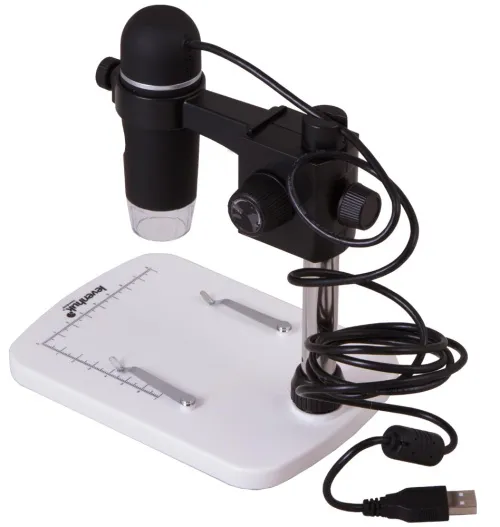

  • Professional tripod
  • Stage with measuring scale
  • Calibrating scale
  • Software CD
  • USB cable
  • User manual and lifetime warranty

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Levenhuk DTX 90 Digital Microscope is not compatible with external digital cameras.

specifications
Product ID 61022
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004310
Package size (LxWxH) 5.5x8.7x6.7 in
Shipping Weight 2 lb
Type digital
Head digital screen/PC monitor
Optics material optical glass
Magnification, x 10 — 300
Stage, mm 120x165
Stage moving range, mm fixed

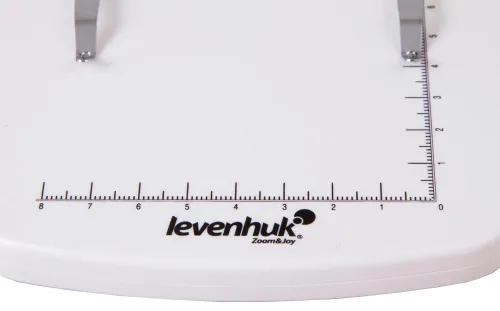

Stage features with clips, with a measuring scale

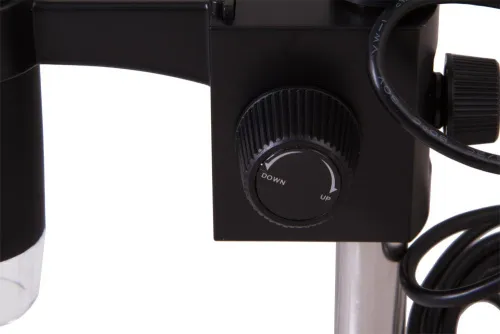

Focus manual, 0–150mm
Body plastic, rubberized
Illumination LED
Brightness adjustment
Power supply 5V DC via USB cable
User level beginners
Assembly and installation difficulty level extremely simple
Image 2592x1944, 2320x1744, 2048x1536, 1920x1080, 1280x1024
Application for applied research
Illumination location upper
Research method bright field
Megapixels 5
Video recording yes
Image format *.jpg
Video format *.avi
Software, drivers photo and video capture and processing software with measurement function, UVC
Output USB 2.0
System requirements Windows 7/8/10/11, Mac 10.12 and later, minimum P4 1.8GHz, 512MB RAM, 64MB video card, USB 2.0 port, CD-ROM
Video
Questions and Answers
Robert (2023.07.13)
Button "OK/[photo symbol]" does not launch a picture shot, even when using MicroCapture Plus application. How can I make pictures using buttons on the housing of the scope?
Customer service:
Hi Robert,
It looks like you need to update the microscope software.
Please download the latest software version directly from our website, it can be found in 'References and downloads' tab of the product description. To correctly re-download the software, all of the previously downloaded files should first be deleted. Hope this helps!
Hr. Frank Ruby (2023.02.23)
can the levenhuk DTX90 work on an ipad
Customer service:
Dear Hr. Frank Ruby, the microscope is not compatible with the ipad. Is there any additional information you might need?
Demetrios (2019.10.01)
Can this microscope work in macos mojave 10.14?
Maybe with photo booth?

Thank you
Customer service:
Hello Demetrios, I regret to say that Levenhuk DTX 90 Digital Microscope is not compatible with mojave 10.14. We also did not test it with PhotoBooth.
Anna Kohl (2018.02.21)
Hello! Is this model good for taking quality pictures of coins, stamps, and small minerals?
Customer service:
Yes, Levenhuk DTX 90 Microscope is ideal for taking photos of coins, stamps, and small minerals.
Prince Young (2018.01.26)
Where can I download drivers?
Customer service:
Drivers can be found in the ‘References and Downloads’section in the product description card.
Nikky Nikky (2017.11.27)
Hi! After installation of the software on Windows 10x64, the system says something like ’initial settings not found, calibration required’. What should I do?
Customer service:
We recommend that you remove old drivers and download new ones from here: https://www.levenhuk.com/catalogue/microscopes/levenhuk-dtx-90-digital-microscope/ . Drivers can be found in the ’Reference and Downloads’ section of the product card.
Alex Winters (2017.08.05)
Do I understand correctly that this eyepiece should be used together with the Barlow lens that is included in the kit (for example with the 50L Plus microscope). But Rainbow WF16x model can be used directly without the Barlow lens and it will fit well in the ocular tube?
Customer service:
Yes, this is right.
jay p (2017.08.01)
I have lost my CD with the Ap for the Levenhuk DTX 90. Where can I go to find a free download, so I may use this microscope at work.
Thanks,
Jay
Customer service:
Dear Jay, thank you for your inquiry. You need to open a product page and click on References and Downloads tab. Please do not hesitate to contact us if you need any further assistance.
Kaoru (2017.05.18)
I would like to point the microscope objective in the up direction, and observe samples in a petri dish - is that possible, to remove the microscope tube and reattach pointing up?
Customer service:
Dear Kaoru, thank you for interest in Levenhuk products. Digital DTX microscopes are designed for observing opaque objects only. For observing transparent objects in the Petri dish, we'd recommend our Levenhuk Rainbow D50L PLUS 2M Digital Microscope (SKU 69081).
Is there any additional information you might need?
Alex Piters (2017.04.01)
Hello! I have two questions: 1. Does your software allow to measure the samples? 2. What is the accuracy of the measurements? Thankyou in advance!
Customer service:
Levenhuk DTX 90 Digital Microscope features several methods of measurements. See more in the user manual (https://loc.levenhuk.com/upload/uf/cd9/35t4ejlw2bt7guc1ks2e9moywrhry4g8/lvh-microscope-dtx-90-um-ml.pdf ).
Jack Cope (2017.03.02)
The description says “Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples” how exactly measurements are accomplished, what are the accuracy and units? Do I need a calibration scale or is it present? These point are not quite clear.
Customer service:
Measurements are performed at the program level, the units can be selected in the menu, small errors are allowed.
The calibration scale is included.
Corey Huffman (2017.02.02)
What are the maximum dimensions of an object that can be measured using this microscope? We want to measure hardware products.
Customer service:
Levenhuk DTX 90 microscope allows you to measure the 5x5 objects.
Samuel Mcmahon (2016.11.27)
is it suitable for working with circuits or other small electronic components?
Customer service:
Yes, Levenhuk DTX 90 Microscope is great for your purpose.
Peter (2016.09.19)
I am able to measure maximum magnification to be about 150X. How do you obtain 300X with digital intepolation (as mentioned in one of the answers to questions on your website), especially for video?
Customer service:
Dear Peter, thank you for interest in Levenhuk products. In order to reach the maximum magnification, you need to choose the maximum resolution. Is there any additional information you might need?
Catherine Grimes (2016.08.29)
Where can I find the latest drivers? Thank you in advance!
Customer service:
Levenhuk DTX 90 software and drivers can be found in the 'References and Downloads' section of the product description page.
Dave Patel (2016.08.29)
Hello! I noticed one thing... when I increase resolution, fps decreases. For instance, 1280x960 resolution gives me 7 fps, when I start to increase it, fps becomes 5 and so on... is it supposed to be so?
Customer service:
Yes, it should be so: the higher the resolution, the less FPS you get.
Shane Reid (2016.07.24)
this software doesn't seem to work with Windows 10... what should I do?
Customer service:
Download the latest version of the Levenhuk DTX 90 software in the 'References and Downloads' section on the product description page.
Jody Lee (2016.06.28)
Hello! I need to check lacquer coatings of some optical products for defects (such as dust, bubbles, and so on). Is this model suitable for this purpose? If it's not, please advise me other digital model.
Customer service:
Yes, Levenhuk DTX 90 Digital Microscope is suitable for checking lacquer surfaces for defects.
Srikanth (2016.05.11)
Can the images be stored in the microscope for field observations without a laptop?
Customer service:
Dear Srikanth, thank you for your inquiry.

Levenhuk DTX 500 Mobi Digital Microscope & Levenhuk DTX 500 LCD Digital Microscope will fit your needs. As these microscopes come with a support of microSD cards.

A MicroSD card (purchased separately) is required to save captured images and recorded videos.

Is there any additional information you might need?
Janet Ugalde (2016.01.06)
What equipment do we need to connect a microscope to existing flat screen? System will be used to allow students & teacher to observe together.
Customer service:

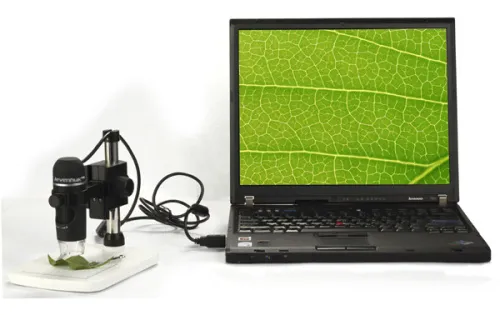

Dear Janet, thank you for interest in Levenhuk products. You just need to connect the microscope to your PC (USB cable comes in a kit). And your PC will transfer the image to your flat screen.

Is there any additional information you might need?
Victor (2015.12.13)
how can I obtain 300x increase? Should I use optical or digital zoom?
Customer service:
300x increase can be achieved using digital interpolation.
Serge Briggs (2015.10.01)
Hey, I'm using Linux OS, are there drivers and soft for Linux?
Customer service:
Unfortunately, the Levenhuk DTX 90 microscope is not compatible with Linux OS.
Edward King (2015.07.27)
Hello, could you please explain how to achieve 300x magnification? Or at least 100x? Thanks
Customer service:

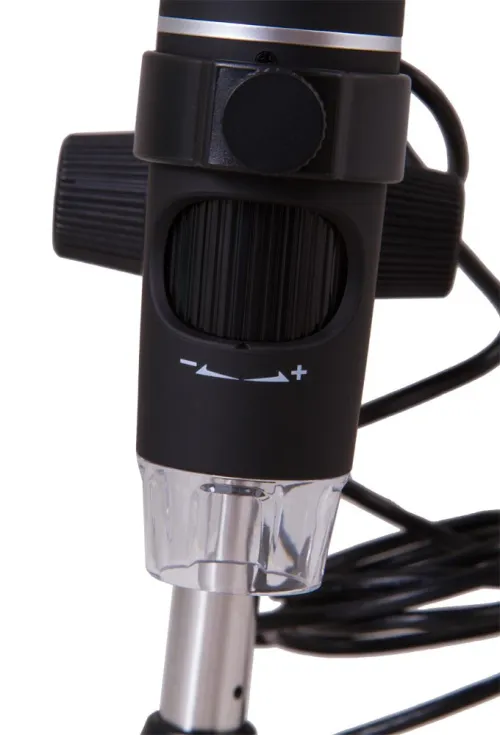

There is a special wheel on the body of the Levenhuk DTX 90 microscope, changing the magnification is done by rotating this wheel.
Irene Kits (2015.07.22)
Good day. Is there a way of getting higher magnification on this microscope by installing other eyepieces?
Customer service:
Levenhuk DTX 90 is a digital microscope, so it doesn't have removable eyepieces.
mahdi (2015.07.18)
does this model provide 300x optical magnification or digital magnification?
Customer service:
Hi Mahdi, thank you for your inquiry. The optical magnification of this model is 10-60x.
Chris (2015.05.26)
I need to measure in micron sizes does your software support measurement in micron?
Customer service:
Dear Chris, thank you for interest in Levenhuk products!
The microscope comes with a special software allowing you to edit created files and perform precise measurements of linear sizes, radiuses and angles with an accuracy of 1 micrometer or better.
Is there any additional information you might need?
Monty Childs (2015.02.26)
Tell me, please, is this model suitable for observing hair, insects, etc.?
Customer service:
Yes, this model is suitable for this purpose. Levenhuk DTX 90 Digital Microscope can be used only with a computer and allows you to observe microscope samples in reflected light, i.e. volume opaque objects such as coins, stones, paper, cloth, whole insects, wool and hair.
Carl PUCKETT (2014.12.12)
when I am trying to run the software some error appears... I've tried to reinstall the program using the CD and from your website, but unsuccessfully...
Customer service:
We recommend that you contact our Customer Service Department - http://www.levenhuk.com/company/contact-us/ .
andrew gould (2014.12.07)
Very good microscope for observing gem stones and for many other purposes.
Customer service:
Thank you for your feedback on Levenhuk DTX 90 Digital Microscope.
andrew gould (2014.12.01)
Where can I find software for the camera? my cd rom doesn't work:(
Customer service:
Levenhuk software can be found on the product description page in the "References and Downloads" section or by following this link: https://loc.levenhuk.com/upload/uf/07f/3uuosunsgc3jk09239q6wm67milcdppg/Levenhuk_DTX_MicroCapture_PLUS_3.3_Win10_Software.zip
Stuart Stokes (2014.10.04)
What's the microscope stage moving range (max and min height)?
Customer service:
The Levenhuk DTX 90 microscope's focusing range is 0-150mm.
