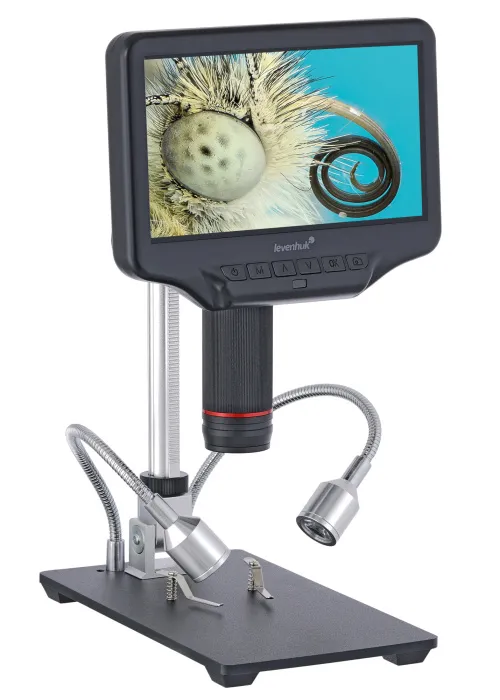

UA Levenhuk DTX RC4 Remote Controlled Microscope
Magnification: 5–270 (digital), 5–40 (optical)
| Product ID | 76824 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555004433 |
| Package size (LxWxH) | 12.6x8.3x3.9 in |
| Shipping Weight | 3.6 lb |

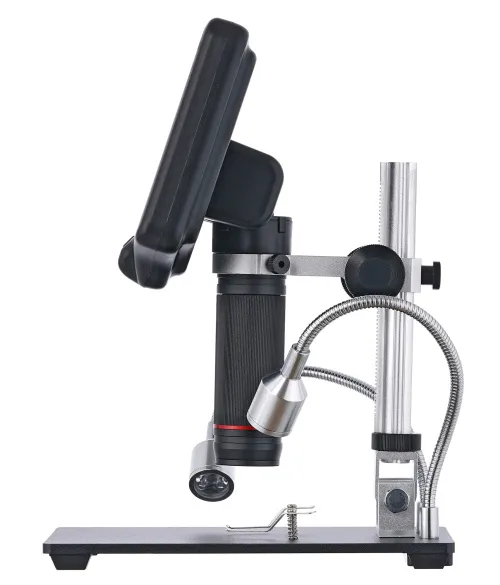

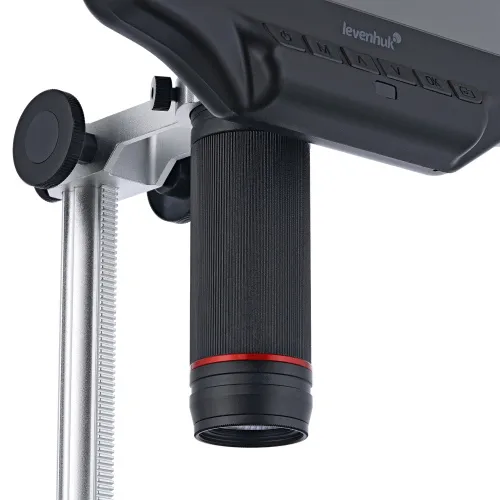

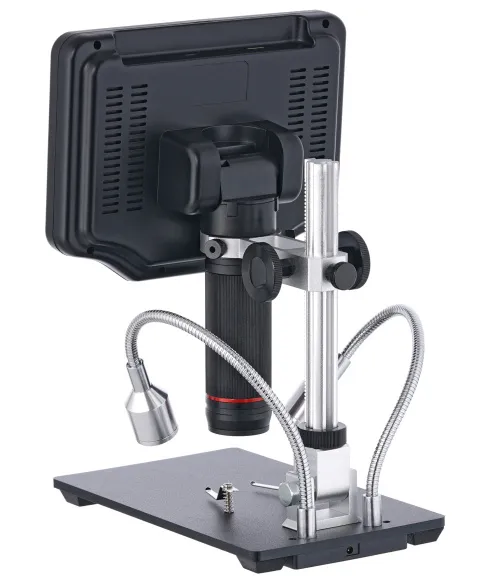

The Levenhuk DTX RC4 Remote Controlled Microscope allows you to study samples under magnification as well as capture images and record videos of research. The image quality is excellent: The built-in sensor enables you to take photos and videos in Full HD resolution! Such optical and digital capabilities allow you to capture all the details of the observed objects and study them in as much detail as possible. The microscope is an excellent assistant for repairing electronics and equipment, evaluating jewelry, and studying geological samples.

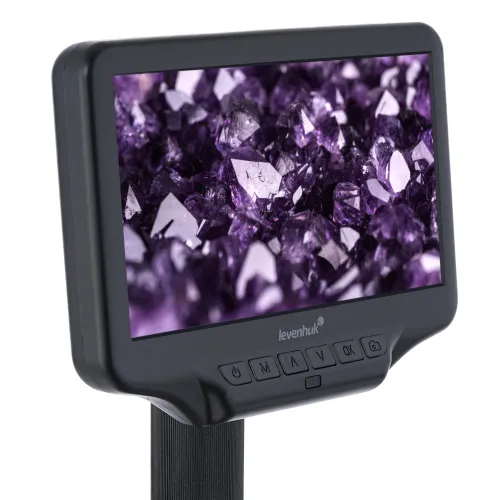

Large rotatable LCD screen
The built-in screen features a 7-inch diagonal. The image from the objective is displayed in color, and it is contrast and easy-to-read. The screen can be tilted at a small angle for convenient operation. The overall magnification can be adjusted in the range of 5x to 270x, and an optical part of the magnification varies from 5x to 40x. The image can also be displayed on an external screen using a connection via an HDMI port.
High resolution photos and video
The Levenhuk DTX RC4 microscope enables you to save your research data in digital format. The recording quality is impressive: You can take photos at 5600x4200 pix and videos at 1920x1080 (Full HD). Based on the video resolution, the frame rate can vary from 24 to 120 frames per second. Images and videos are recorded on a memory card (not included).

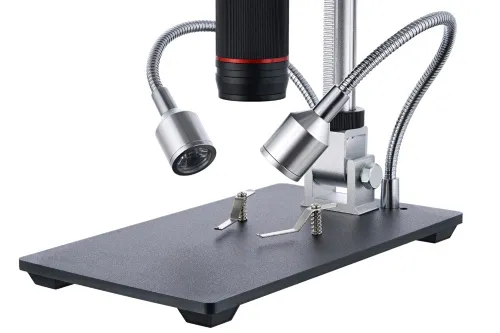

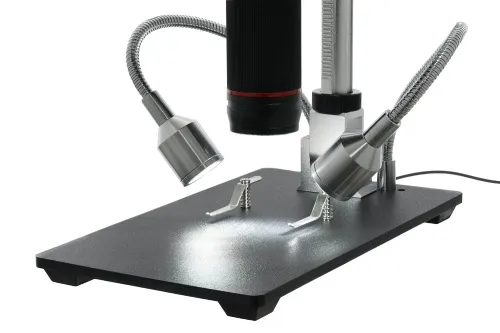

The lighting system on flexible holders
The lighting system consists of two LED spotlights with adjustable brightness. They are fixed on flexible holders, which allow for directing the light at the object as accurately as possible. The spotlights are controlled (brightness adjustment, on/off mode) by a small switch on the power cable.
Multifunctional remote control
In conclusion, let's look at a wireless remote control. It provides access to a variety of options, allowing you to remotely adjust lighting and magnification as well as capture images and videos. The remote control is particularly practical during presentations or group research.
Features:
- Optical and digital magnification
- Large 7" color LCD screen
- Screen can be tilted to any angle for the most convenient operation
- High image and video quality
- The image from the objective can be displayed on an external monitor or a TV screen
- LED spotlights on flexible holders
- Multifunctional remote control, practical for holding presentations
The kit includes:
- LCD screen
- Stand
- Base with clips
- Spotlights on flexible holders
- Infrared remote control
- UV filter (pre-mounted on the objective)
- Power cable with a switch and lighting brightness adjustment knob
- HDMI cable
- Network adapter
- Tools and fasteners
- User manual and lifetime warranty
| Product ID | 76824 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555004433 |
| Package size (LxWxH) | 12.6x8.3x3.9 in |
| Shipping Weight | 3.6 lb |
| Type | digital |
| Head | digital screen/PC monitor |
| Optics material | optical glass |
| Nozzle | 7" rotatable color LCD screen |
| Magnification, x | 5 — 270 |
| Stage, mm | 120x200 |
| Stage moving range, mm | fixed |
| Stage features | with clips |
| Focus | coarse (77 mm) |
| Body | plastic |
| Illumination | LED |
| Brightness adjustment | ✓ |
| Power supply | illumination and LCD screen: 110–220 V (US type plug adapter is not included); 5 V, 2 A via a USB cable (included); remote control: AAA battery – 2 pcs. (not included) |
| Light source type | two spotlights on flexible holders |
| Light filters | UV filter |
| Operating temperature range, °F | -4...+158 |
| User level | beginners |
| Assembly and installation difficulty level | easy |
| Application | for applied research |
| Illumination location | upper |
| Research method | bright field |
| Maximum resolution | photo: 5600x4200 pixels; video: 1920x1080 pixels |
| Megapixels | sensor: 4; image: 24 |
| Sensor element | 1/3” CMOS |
| Pixel size, μm | 2x2 |
| Video recording | yes |
| Image format | *.jpg |
| Video format | *.mp4 |
| Spectral range, nm | 410–1100 |
| White balance | manual |
| Exposure control | manual |
| Sensitivity, V/lux-sec@550nm | 1.9 |
| Frame rate | 24/30/60/120 (depends on the resolution) |

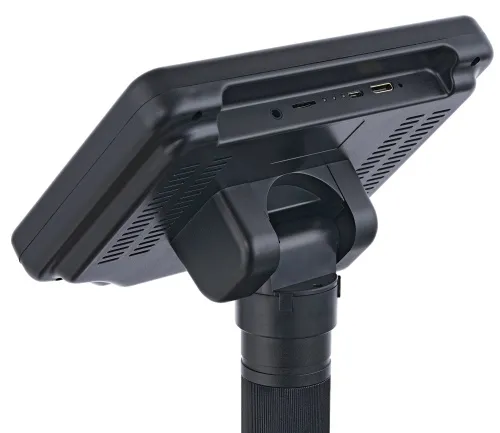

| Output | microSD card slot, HDMI, microUSB |
| System requirements | not intended for connecting to a computer |
Is there any additional information you might need?
You can connect the microscope to a TV/monitor with an HDMI connector.
1. Connect the microscope to the mains.
2. Use an HDMI cable (included) for connecting the LCD screen to the TV/monitor. The
image on the LCD screen turns off and the display on the connected screen starts
View photos and videos
1. Insert the microSD card into the SD slot.
2. Press the “Video” button twice to turn on the viewing mode.
3. Press the “Right” and “Left” buttons to view the pictures and videos. Press the
“Capture” button to start playing the video.
Is there any additional information you might need?
Raise the holder to the top. Scroll the focus wheel till you see the most clear view on the screen. The view you see now is close to 5X magnification.
Lower the holder to the middle of the stand. Scroll the focus wheel till you see the most clear view on the screen. The view you see now is close to 270X magnification.
