Magnification: 10–200x. Digital USB microscope with a stand and 3Mpx digital camera

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
10 — 200
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope

Product ID 70422
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004358
Package size (LxWxH) 5.5x8.7x6.7 in
Shipping Weight 2.3 lb

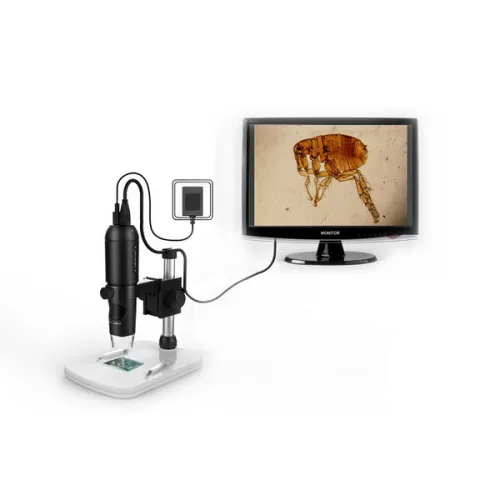

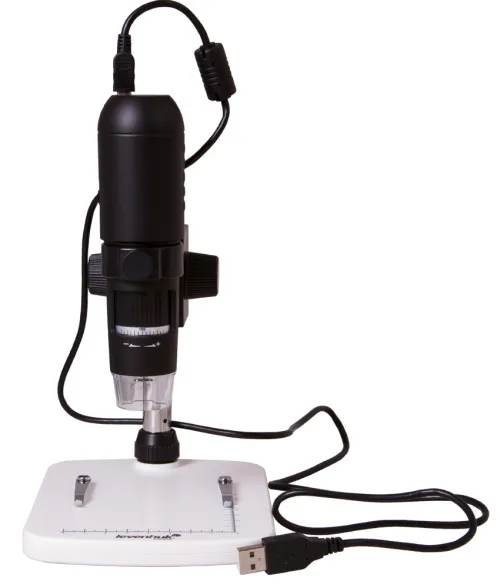

Levenhuk DTX TV is a digital microscope with an option to view studied samples on a PC or TV screen (the external screen must have an HDMI connector). This microscope will come in handy for presentations, lectures, and seminars: You can display images and show the steps of working with specimens.

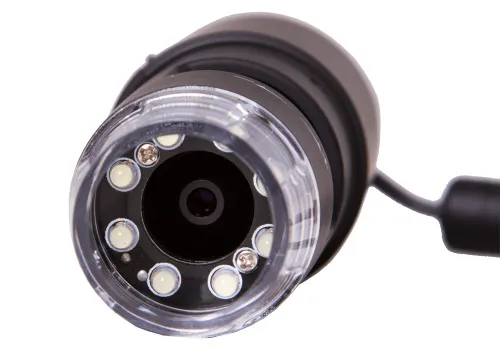

The microscope has smooth variable magnification that ranges from 10 to 200x. At low magnification, you can use the microscope as a digital magnifier to view small prints and illustrations. At high magnification, you can examine biological specimens or the structure of minerals. The microscope has 8 built-in bright LEDs so you can study samples even in complete darkness. It is recommended to mount the microscope on a tripod to get the sharpest images.

The microscope connects to a PC via a standard USB cable. To access all the options of the microscope, including image processing, it is necessary to install special software (included). The software can be used for taking pictures of samples, recording, changing the image size, contrast and brightness adjustments, and taking sample measurements.

The Levenhuk DTX TV Digital Microscope is a simple microscope that requires no special skills or training, which makes it a great tool for home use, education, or a hobby.


  • Digital microscope
  • Can be connected to a PC or TV
  • Built-in LED illumination

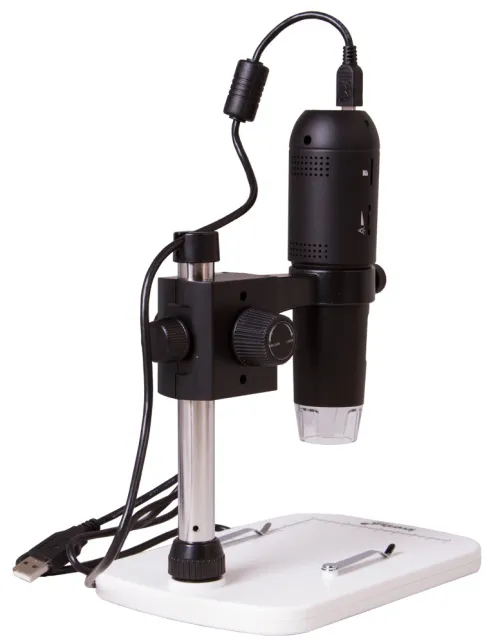

  • Convenient stand
  • Digital camera resolution – 3 Mpx
  • Necessary cables and software included

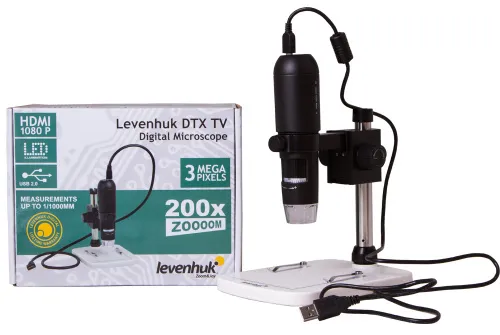

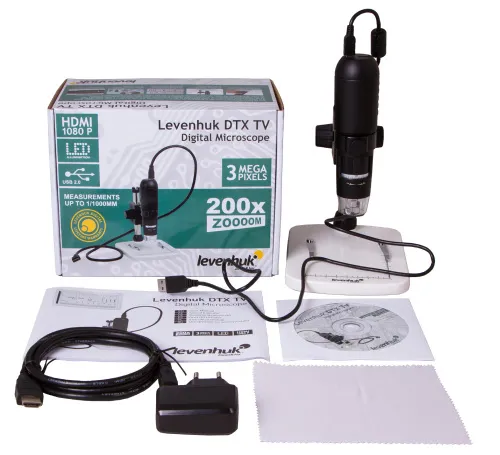

The kit includes:

  • Digital microscope
  • Stand
  • Adapter*
  • USB cable
  • HDMI cable
  • Calibrating scale
  • Software CD
  • User manual and lifetime warranty

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Levenhuk DTX TV Digital Microscope is not compatible with external digital cameras.

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Product ID 70422
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004358
Package size (LxWxH) 5.5x8.7x6.7 in
Shipping Weight 2.3 lb
Type digital
Head digital screen/PC monitor
Optics material optical polymer glass
Magnification, x 10 — 200
Stage, mm 120x165
Stage moving range, mm fixed

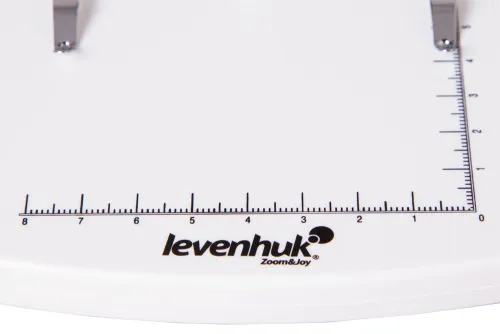

Stage features with clips, with a measuring scale

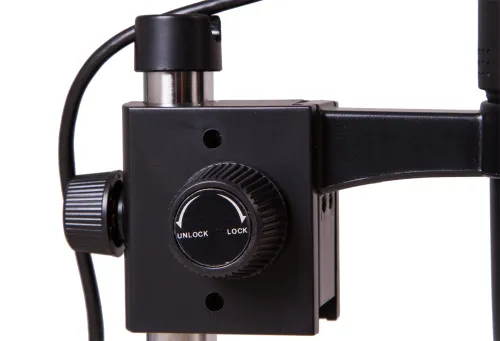

Focus manual, 10–50mm
Body plastic
Illumination LED
Brightness adjustment
Power supply 100–240V, 50/60Hz, 5V
Operating temperature range, °F 23...+122
Additional 8 LEDs

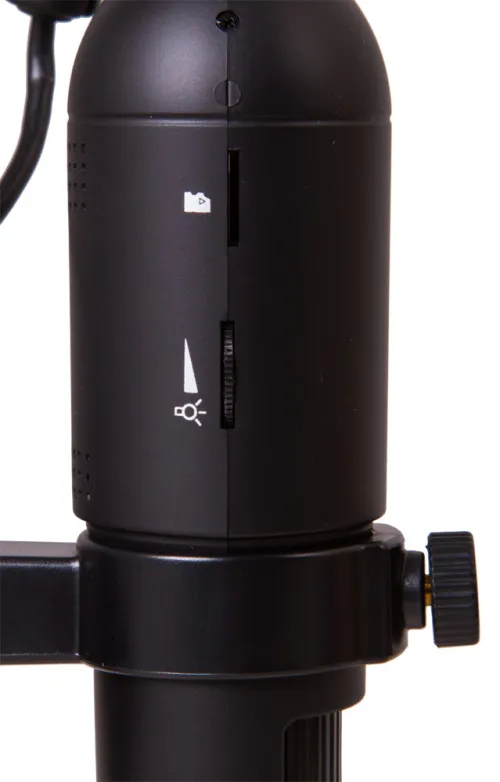

Ability to connect additional equipment supports microSD memory cards up to 32GB (not included)
User level beginners, experienced users
Assembly and installation difficulty level easy
Application for applied research
Illumination location upper
Research method bright field
Megapixels 3
Video recording yes
Image format *. jpg, 14M, 8M, 5M, 3M, 2M, WVGA
Video format HDMI: *. h264; USB: *. mjpeg; 1080p Full HD, 720p, VGA
Frame rate 30 frames per second
Software, drivers photo and video processing software with objects measurement feature

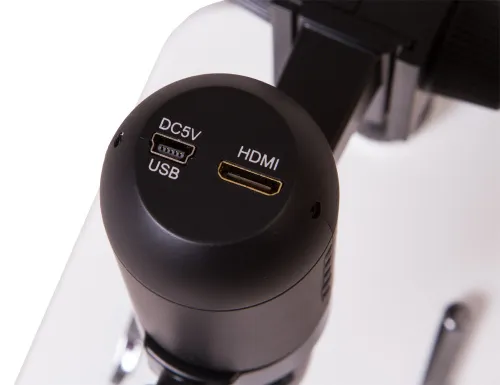

Output mini-USB, microSD card slot, HDMI
System requirements OS Windows 7/8/10, Mac 10.7~10.14; 1.8GHz Intel P4 and above, RAM 512 MB, video card 64MB, USB 2.0, CD-ROM, monitor with HDMI input
Questions and Answers
Aleksander Alekseev (2020.07.20)
> Please do not hesitate to contact us if you need any further assistance.

Many thanks for the quick reply. However after installing the software (v3.0.0) it still says "No device found". I'm using MacOS Catalina 10.15.5. The PhotoBooth software (the default USB webcam client) doesn't see the microscope either.
Customer service:
Dear Aleksander, thank you for your inquiry. Please go to Settings and allow using software that is not from App Store on your PC. 3) Check the Camera settings. If you use the camera, you need to turn it off as the microscope is also recognized as the camera. If you still have the issue, please contact our technical support:
Aleksander Alekseev (2020.07.20)
Hi! I purchased Levenhuk DTX TV maybe a year ago or so. I'm pretty happy with it. However recently I bought MacBook 16" late 2019. Turned out it doesn't see the microscope, even after installing the official software. What drivers do I need and whee I can download them?
Customer service:
Dear Aleksander, thank you for your inquiry. Here is the latest software update:
Please do not hesitate to contact us if you need any further assistance.
Sara Koner (2017.10.16)
Measurement accuracy?
Customer service:
Levenhuk DTX TV Microscope’s measure size is micron.
