Digital USB microscope with LCD display, a stand and 3mpx digital camera

Digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
10 — 220
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability

Product ID 72474
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004365
Package size (LxWxH) 8.3x6.7x5.5 in
Shipping Weight 2.5 lb
Description

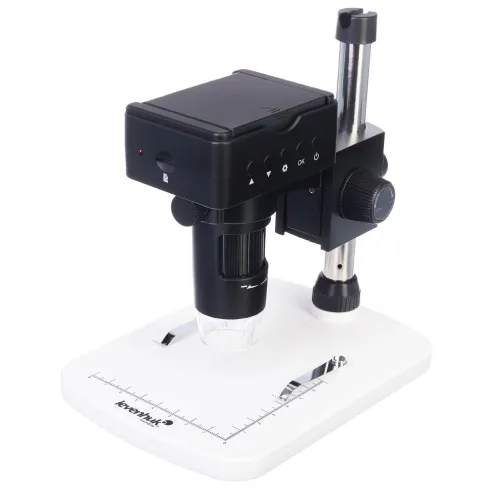

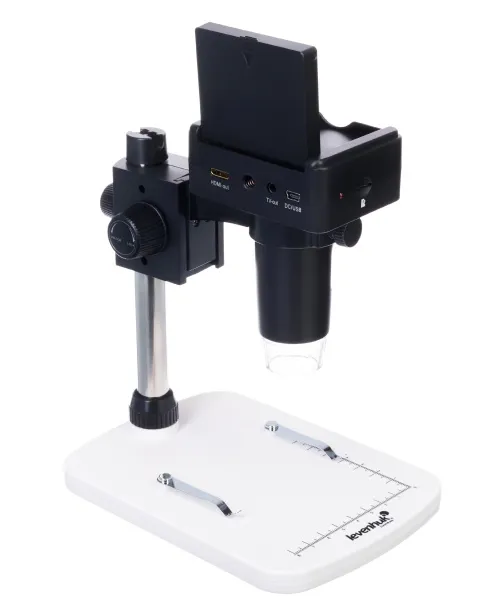

Levenhuk DTX TV LCD Digital Microscope is an up-to-date optical tool for exploring the micro world. It features a built-in 3mpx digital camera and color LCD display. You will be able to observe the objects around you at up to 220x magnification with Levenhuk DTX TV LCD, and also take photos, record videos and output images to an external screen online. Pupils, students, teachers, collectors, engineers and those who are interested in science will love this microscope.

The microscope features several working modes. The first mode is used for regular observations, the second one allows for recording photos and videos to a memory card (included in the kit), and the third one is used for image output to a TV or computer screen. The kit includes all of the necessary connecting cables and image processing software. This microscope is equipped with a remote control for convenient use. It does not allow for setting up the microscope but provides remote access to recording photos and videos. Just push a few buttons and then you’ll have the photos! A remote control is irreplaceable when the microscope is focused and you can accidentally change precise focusing by touching the microscope.

Levenhuk DTX TV LCD is an industrial microscope. The stage features measuring scales, and the included software allows for measuring the dimensions of the samples. The illumination consists of bright LED light sources located next to an objective lens and features adjustable brightness. The focusing is done manually by moving the microscope up and down along the stand. The stage is equipped with metal stage clips.

Features:

  • Built-in color LCD display
  • Runs on built-in battery or power supply
  • Image output to an external screen (display, laptop, TV)
  • Video resolution of up to 1080 px, image resolution of up to 12mpx

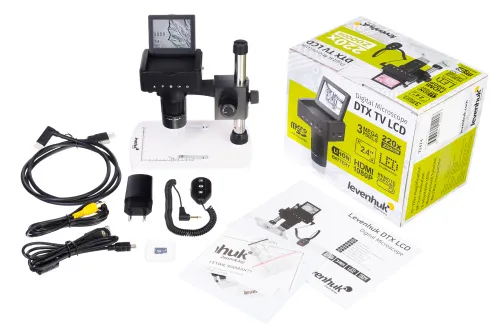

The kit includes:

  • Digital microscope
  • Stand
  • Adapter

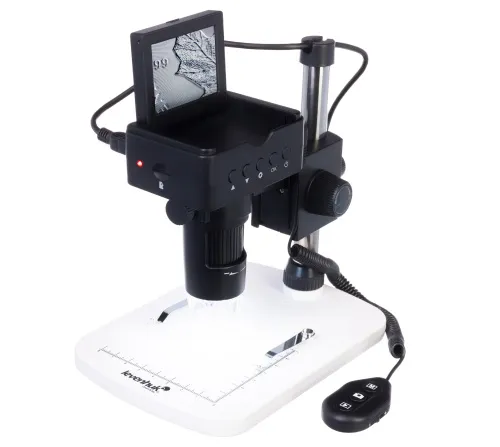

  • A remote control for recording photos and videos
  • HDMI cable
  • USB cable
  • TV cable
  • 4 GB microSD card
  • Software CD
  • User manual and lifetime warranty

Recommendations on using the software:

In order for the program PortableCaptureHD to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Levenhuk DTX TV LCD Digital Microscope is not compatible with external digital cameras.

specifications
Product ID 72474
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004365
Package size (LxWxH) 8.3x6.7x5.5 in
Shipping Weight 2.5 lb
Type digital
Head digital screen/PC monitor
Optics material optical glass
Nozzle 2.4'' color LCD screen (fixed)
Magnification, x 10 — 220
Stage, mm 120x165
Stage moving range, mm fixed
Stage features with clips, with a measuring scale

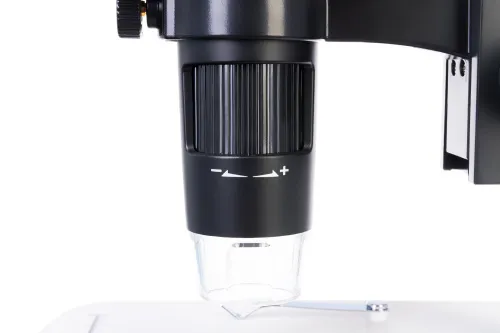

Focus manual, 10–50mm
Body plastic
Illumination LED
Brightness adjustment
Power supply 100–240V, 50/60Hz (US type plug adapter is not included), built-in Li-ion battery, 5V
Power supply: batteries/built-in battery yes
Operating temperature range, °F 23...+122
Additional 2.4" color LCD screen (6.1cm); battery charging time: 90/120 minutes

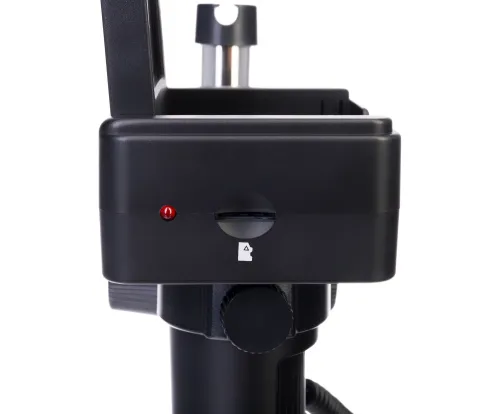

Ability to connect additional equipment supports MicroSD memory cards up to 32GB (MicroSD 4GB memory card included)
User level beginners, experienced users
Assembly and installation difficulty level easy
Software language Russian, English, German, Spanish, French, Korean, Italian, Portuguese, Dutch, Polish, Japanese, Chinese
Application for applied research
Illumination location upper
Research method bright field
Megapixels 3
Video recording yes
Image format *. jpg, 12M, 8M, 5M, 3M
Video format *.avi, 1080p, 720p, VGA
Frame rate 30 frames per second
Software, drivers photo and video capture and processing software with measurement function

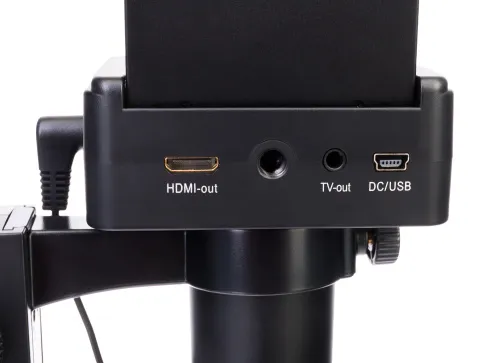

Output USB 2.0, HDMI/TV
System requirements OS Windows 7/8/10, Mac 10.7 and late; 1.8GHz Intel P4 and above, RAM 512 MB, video card 64MB, USB 2.0, CD-ROM, monitor with HDMI input
