Levenhuk LabZZ M2 Microscope

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 100–900x. Experiment kit included

Monocular

The microscope head is a core element of the microscope that you look through to see a magnified sample

100 — 900

How much the size of a sample increases when you observe it through a microscope

Children (3-7 year old)

Application and use of the microscope

Availability

Product ID	69740
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555011486
Package size (LxWxH)	3.1x11x11.4 in
Shipping Weight	1 lb

Description

Levenhuk LabZZ M2 Microscope is a great instrument for a young biologist. The microscope is very easy to use; it allows for studying transparent microscope samples, and also comes with an interesting experiment kit. A kid will be able to observe ready-to-use microscope slides and watch Artemia’s growth in a hatchery. The kit also includes special tools for independent preparation of microscope samples.

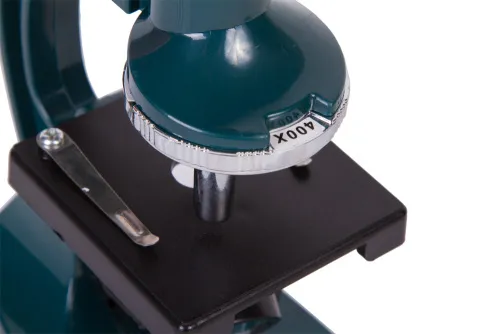

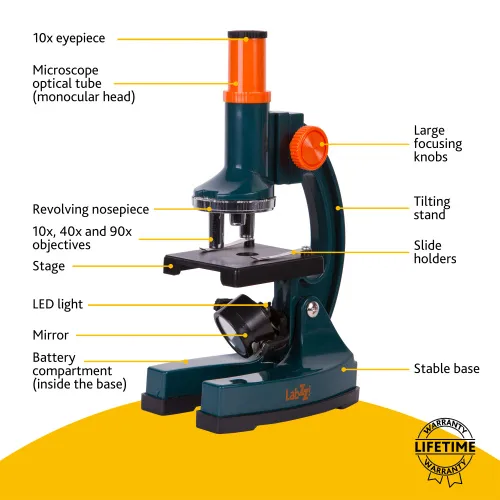

Levenhuk LabZZ M2 Microscope has a revolving nosepiece equipped with three objective lenses. The lenses come pre-installed. These lenses enable you to obtain several fixed magnifications in the 100x–900x range. Illumination is located below the stage. You can choose a mirror or LED – the illumination unit rotates around its axis.

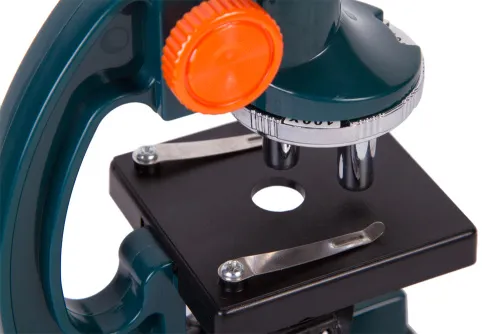

The stage is equipped with special metal clips for sample fixation. Focusing is carried out by means of a separate knob. Illumination runs on batteries (not included). The body is lightweight–made of reliable plastic. The microscope with all the enclosures is packed in a bright colorful box.

Features:

Children’s microscope
Magnification up to 900x
Experiment kit included
Lightweight plastic body
Illumination: mirror or LED

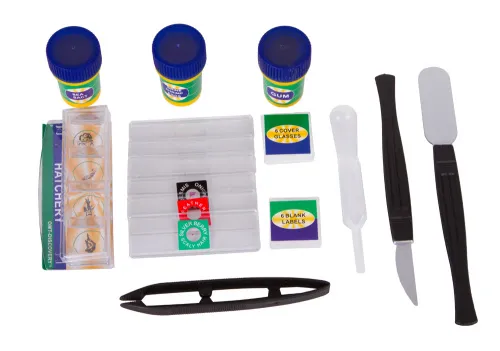

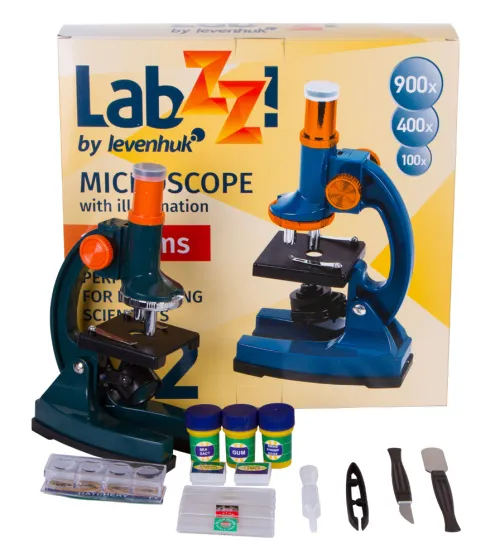

The kit includes:

Microscope
Eyepiece
Pipette
Prepared slides (3 pcs)
Blank slides (3 pcs)
Cover slips (6 pcs)
Slide stickers (6 pcs)
Glue
Sea salt
Flask with brine shrimp
Brine shrimp hatchery
Spatula
Scalpel
Pestle

Levenhuk LabZZ M2 Microscope is not compatible with Levenhuk digital cameras due to non-standard 17-mm eyepiece tube diameter.

specifications

Product ID	69740
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555011486
Package size (LxWxH)	3.1x11x11.4 in
Shipping Weight	1 lb
Type	biological, light/optical
Head	monocular
Optics material	optical polymer glass
Nozzle	fixed (non-rotatable)
Head inclination angle	not angled
Magnification, x	100 — 900
Eyepiece tube diameter, in	0.7
Eyepieces	10x
Objectives	10x, 40x, 90x
Revolving nosepiece	for 3 objectives
Stage, mm	60x65
Stage moving range, mm	fixed
Stage features	with clips
Focus	coarse
Body	plastic
Illumination	LED, mirror
Power supply	2 AA batteries (not included)
Power supply: batteries/built-in battery	yes
User level	for children
Assembly and installation difficulty level	extremely simple
Application	children (3-7 year old)
Illumination location	lower
Research method	bright field
Experiment kit included	✓

References
and downloads

User manual: Levenhuk LabZZ M1/M2/M3 microscopes (pdf)

(PDF, 4.68 Mb)

High-resolution images (zip)

(ZIP, 115.96 Mb)

click to
download

Questions and Answers

Emma Wright (2018.01.06)

Glue in the kit? What is it used for?

Customer service:

It serves as a fixator of a sample on the microscope slide.

Archer Flint (2017.12.13)

Hello! Can I observe opaque samples with this model?

Customer service:

Levenhuk LabZZ M2 Microscope is equipped with lower illumination only; therefore you won’t be able to observe opaque samples, only transparent. Please consider Levenhuk Rainbow 2L Microscope https://www.levenhuk.com/catalogue/microscopes/levenhuk-rainbow-2l-microscope/ - the model has combined illumination, allowing you to explore both transparent and opaque objects.

Steve (2017.10.12)

Hi! Does this microscope require batteries?

Customer service:

They are only required in case you want to use incandescent lamp illumination. Using mirror illumination, you won’t need them.

Tony Finch (2017.09.15)

Is there anything worthy within 50$?

Customer service:

Levenhuk LabZZ M101 is the best choice in this price category.

Tony Finch (2017.09.15)

Hello! I want to make a birthday gift for my 6 y.o. son. I am choosing between Levenhuk LabZZ M2 and Levenhuk LabZZ101, which one will you recommend?

Customer service:

In terms of optics quality Levenhuk LabZZ M101 microscope is definitely better.

Eugene Watt (2017.08.05)

Could you tell me please how should I use the Barlow lens that is included in 50L Plus microscope kit? Should I just fix it in the ocular tube and then put an eyepiece on top for the 2x magnification? Or do I need to pull the tube out in order to get the 2x magnification? Also, what does the scale from 10 to 40 on the Barlow Lens mean?

Customer service:

In order to get larger magnification you need to pull out the Barlow lens. The more you pull it out, the larger its magnification. The scale shows the level of magnification.

Bernard Warren (2017.06.14)

What can I study through this microscope apart from the ready-made slides?

Customer service:

You can see thin cuts of fruit skin and leaves, protozoa and insects using Levenhuk LabZZ M2 microscope (you will have to illuminate the sample yourself from the top).

Cody Spencer (2017.05.30)

Will this microscope be suitable for watching microorganisms in a drop of water?

Customer service:

No, Levenhuk LabZZ M2 microscope isn't suitable for these purposes

Alex Bredford (2017.02.28)

Hello. Is it possible to see insects through this microscope, for example, a mosquito, a fly?

Customer service:

Levenhuk LabZZ M2 Microscope is not suitable for observing insects. It is equipped with lower illumination only. To view opaque objects, you need a microscope with top illumination. For example, Levenhuk Rainbow 2L Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-rainbow-2l-microscope/ .

Matthew Fuller (2017.01.01)

Hell!. Bought LabZZ M2 microscope… and there is no instructions on how to prepare a sample from the components included in the package? Where can I find this information?

Customer service:

Levenhuk LabZZ M2 microscope user manual can be downloaded on the product description page ("References and Downloads" section).

Joann Roach (2016.12.15)

Greetings!
Can I observe your prepared slides sets with this model? Thank you

Customer service:

Yes, Levenhuk LabZZ M2 Microscope allows you to observe Levenhuk prepared slides sets.

Carmella Vang (2016.11.21)

Which microscope will be a good choice for viewing bugs, mosquitoes, bees wings and other tiny things? Or maybe a simple magnifier will do the job?

Customer service:

Levenhuk LabZZ M2 Microscope is suitable for viewing transparent samples. To observe opaque objects (bugs, spiders, etc.) you will need a microscope with upper lighting. For example, Levenhuk Rainbow 2L Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-rainbow-2l-microscope/ . You can also buy a magnifiers with 5x and more magnification.

Ivan Byers (2016.11.04)

Can I observe bacteria, blood with this microscope?

Customer service:

Levenhuk LabZZ M2 microscope doesn't have enough power for these tasks. Please consider Levenhuk 320 PLUS Biological Monocular Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-320-plus-biological-monocular-microscope/ .

Felix Pate (2016.11.01)

suitable for a 8 yo child?

Customer service:

Levenhuk LabZZ M2 microscope is designed for familiarization with the microcosm of preschool-aged children. We recommend that you consider Levenhuk LabZZ M101 Microscope - https://www.levenhuk.com/catalogue/microscopes/levenhuk-labzz-m101-microscope/ .

Guy Coleman (2016.10.31)

Could you please advise me the best microscope for about $100 (or lower)?

Customer service:

Please consider Levenhuk Rainbow series microscopes - https://www.levenhuk.com/catalogue/microscopes/levenhuk/levenhuk-rainbow/ .

Ed Cox (2016.10.18)

Does the kit include a case?

Customer service:

No, Levenhuk LabZZ M2 kit doesn't include a case. Consider the Levenhuk LabZZ M3 model - https://www.levenhuk.com/catalogue/microscopes/levenhuk-labzz-m3-microscope-with-a-camera-adapter/ .

Ed Cox (2016.10.14)

Can I use this model to observe Levenhuk N20 NG slides?

Customer service:

Yes, the Levenhuk N20 NG set is ideal for observations with Levenhuk LabZZ M2 microscope.
