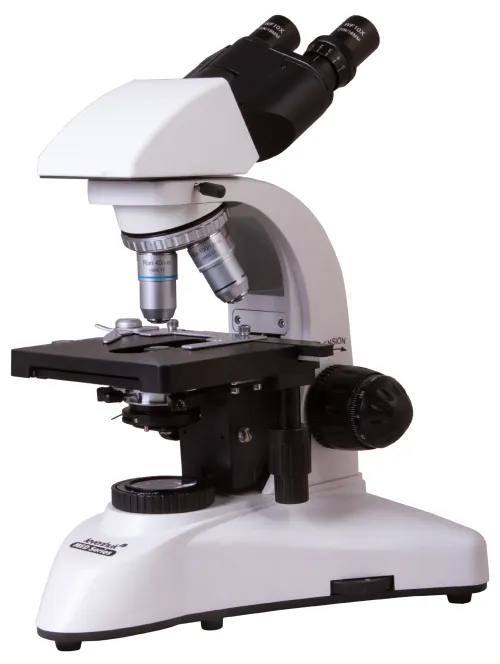

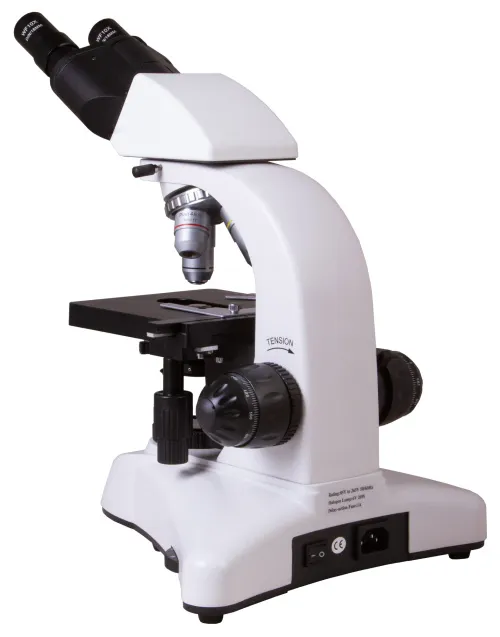

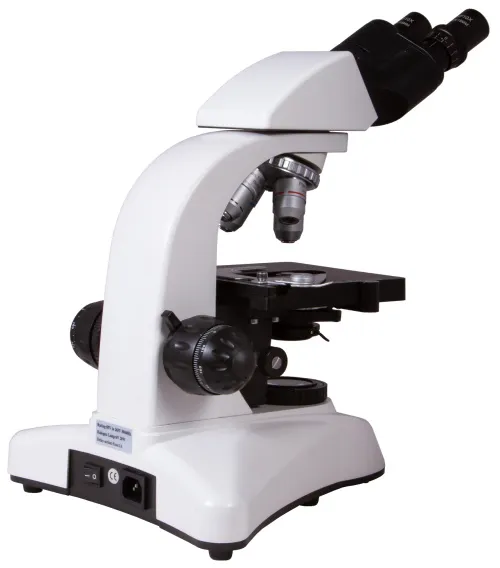

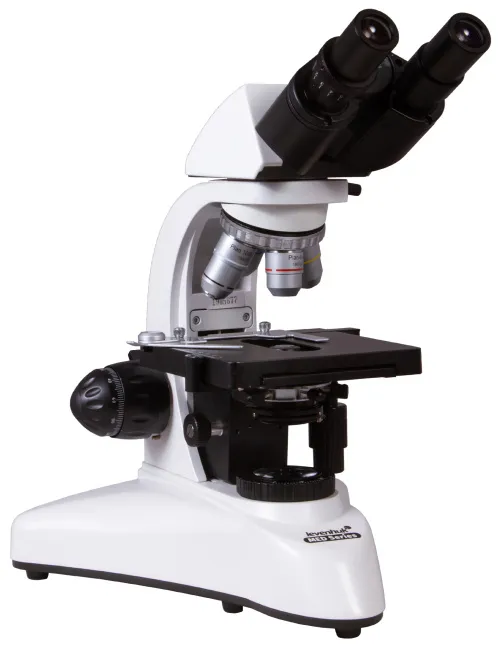

Levenhuk MED 25B Binocular Microscope
Magnification: 40–1000x. Binocular head, plan achromatic objective lenses, an Abbe condenser, a dark field condenser (oil)
Product ID | 73992 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555004945 |
Package size (LxWxH) | 20.5x14.2x13.4 in |
Shipping Weight | 16.8 lb |

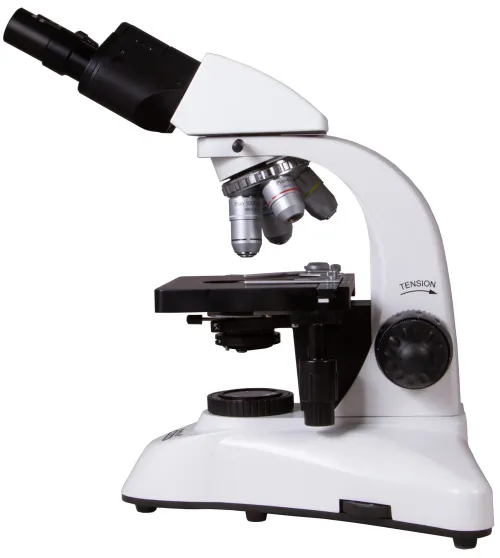

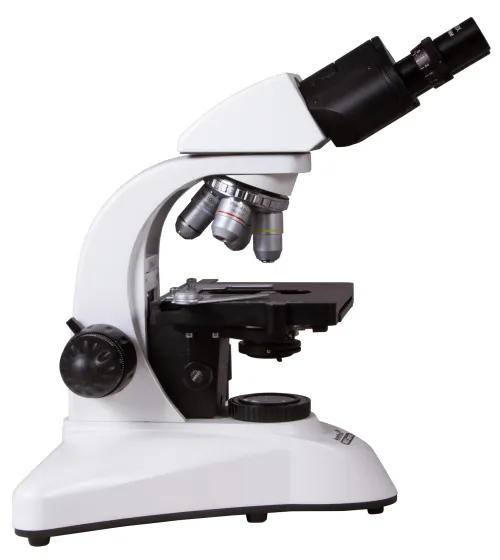

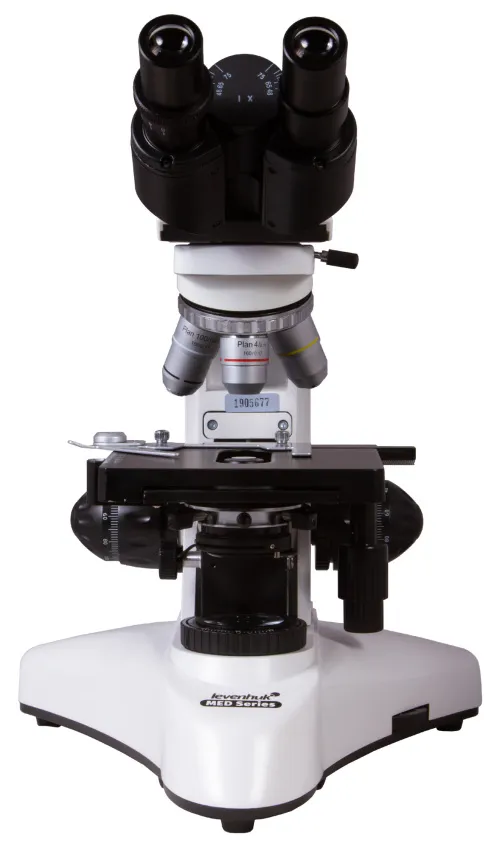

Levenhuk MED 25B Microscope is a binocular model with two condensers, a bright field and dark field one. Both condensers can be used for conducting observations using an oil immersion method. This microscope is designed for professional work in the field of medicine, microbiology, biochemistry, and other scientific fields. It can be used for research, diagnostics, or educational activities. This microscope allows for conducting observations at a magnification of up to 1000x, setting up Köhler illumination, and studying complicated detailed microstructures.

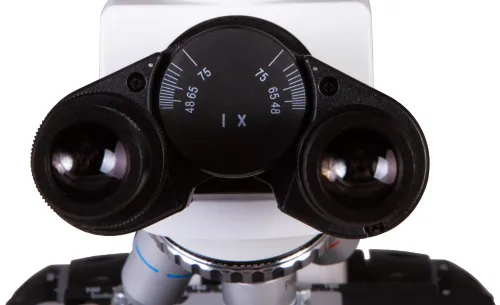

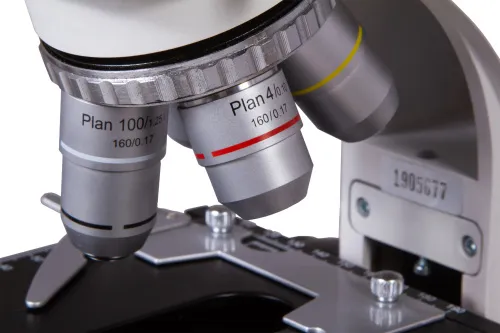

The trinocular head is 360° rotatable. The vertical part is inclined 30°, which provides for comfortable lengthy observations. The kit includes wide-field eyepieces with 10x magnification. They have a diopter adjustment and allow for adapting the optics to individual eyesight. A revolving nosepiece contains four plan achromatic objective lenses, which deliver an image without aberrations, a 100x objective lens allows for conducting observations using oil immersion. Two objectives use protective spring-loaded frames. The optics of all the accessories has an anti-fungal coating.

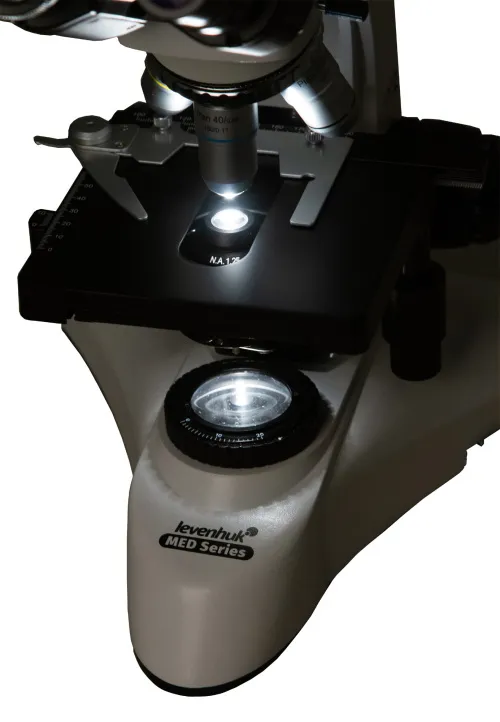

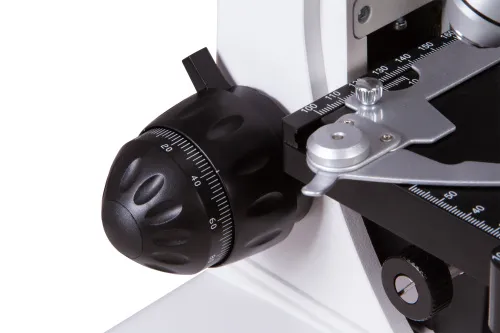

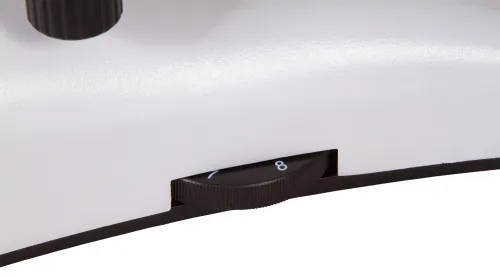

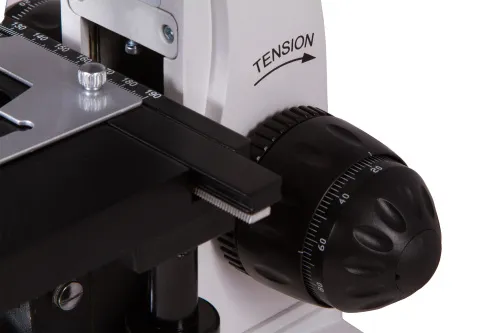

The specimens are placed on a stage with the help of a mechanical scale. The double-layer stage can be moved along two axes. Sharpness adjustment is done by rotating coarse and fine focusing adjustment knobs. The mechanisms have a small pitch and extra smooth sharpness adjustment. The specimens are illuminated from below by a 20W halogen bulb. Its illumination features adjustable brightness. The light passes through an Abbe condenser with an iris diaphragm, on which you can install filters (three filters are included in the kit). Moreover, you can install a dark field condenser on a microscope. It is included in the kit as well and allows for using oil immersion.

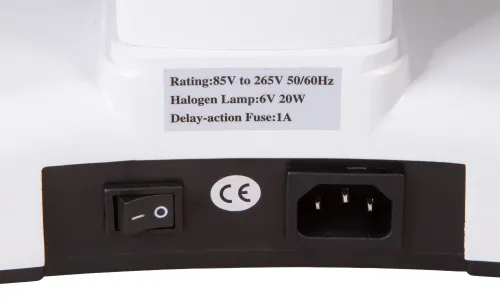

The light is powered by an AC power supply.
Features:
- Binocular head
- Plan achromatic optics provide magnification of 40x to 1000x
- Anti-fungal coating of all the optical surfaces
- 20W halogen light is powered by an AC power supply
- Köhler illumination is available
- Bright field and dark field observations are available

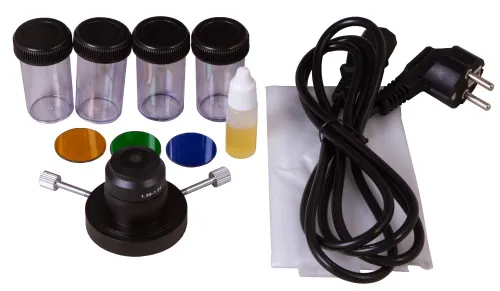

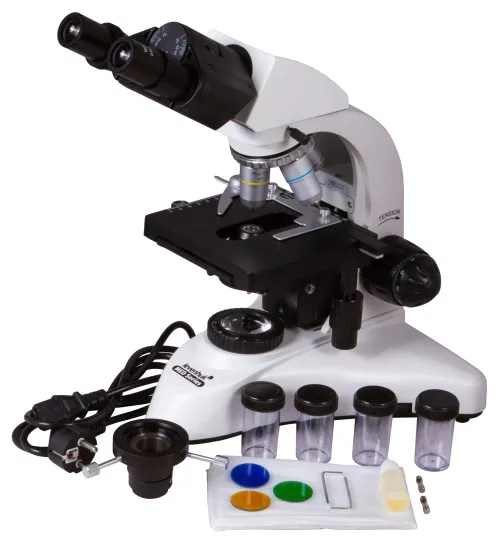

The kit includes:
- Microscope base with a stand
- 360° rotatable binocular head
- Plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating
- Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
- Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder

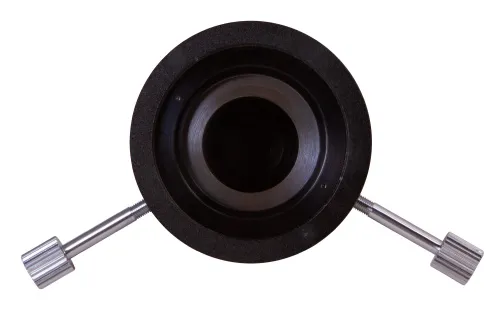

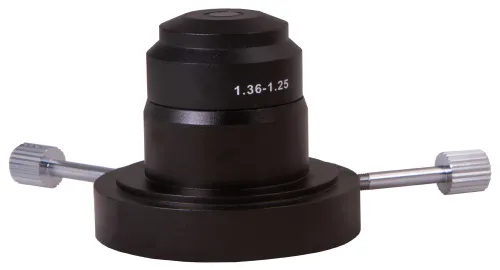

- Dark field condenser (oil)
- Filters: blue, green, yellow
- Vial of immersion oil
- Fuse (2 pcs)
- Power cord for microscope
- Dust cover
- User manual and lifetime warranty
Caution:
Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
Some things you can see under a microscope:
![](https://loc.levenhuk.com/upload/medialibrary/8ce/hxqb1v19dg6aw81cnhmyhbzgxt3w8jku/4-lime-twig.jpg)
![](https://loc.levenhuk.com/upload/medialibrary/686/p0xf7aixezx2z9bb8ede7d7t4ec0sevl/2-cat-fur.jpg)
![](https://loc.levenhuk.com/upload/medialibrary/786/koerfy6erhi254eql1xbs05cpvr6gdux/18-daphnia.jpg)
![](https://loc.levenhuk.com/upload/medialibrary/d2e/hsthv05yt28b20bih1oc8cdkfdh6472g/1-bird-feathers.jpg)
![](https://loc.levenhuk.com/upload/medialibrary/321/tr1my7yvo72hakk5iks9ul0yc3wef676/15-earthworm.jpg)
Levenhuk MED 25B Binocular Microscope is also compatible with other Levenhuk digital cameras(additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.
Product ID | 73992 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555004945 |
Package size (LxWxH) | 20.5x14.2x13.4 in |
Shipping Weight | 16.8 lb |
Type | biological, light/optical |
Head | binocular |
Optics material | optical glass with anti-fungal coating |
Nozzle | 360 ° rotatable |
Head inclination angle | 30 ° |
Magnification, x | 40 — 1000 |
Eyepiece tube diameter, in | 0.9 |
Eyepieces | WF10x/18mm, wide-field with diopter adjustment (2 pcs.) |
Objectives | planachromat: 4x, 10x, 40xs, 100xs (oil immersion) |
Revolving nosepiece | for 4 objectives |
Interpupillary distance, in | 2.2 — 3 |
Stage, mm | 140x140 |
Stage moving range, mm | 75/50 |
Stage features | mechanical double-layer |
Eyepiece diopter adjustment, diopters | ±5 |
Condenser | Abbe N.A. 1.25 with an iris diaphragm and filter holder |
Diaphragm | iris |
Focus | coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion |
Body | metal |
Illumination | halogen |
Brightness adjustment | ✓ |
Power supply | 100–240V |
Light source type | 12V/30W |
Light filters | blue, green, yellow |
Additional | collector lens, Köhler illumination, dark field condenser (oil) |
User level | experienced users, professionals |
Assembly and installation difficulty level | complicated |
Application | laboratory/medical |
Illumination location | lower |
Research method | bright field, dark field |
Pouch/case/bag in set | dust cover |
