Magnification: 40–1000x. Trinocular head, 5.1MP digital camera, achromatic objective lenses, and an Abbe condenser with an iris diaphragm, and a filter holder

The microscope head is a core element of the microscope that you look through to see a magnified sample
40 — 1000
How much the size of a sample increases when you observe it through a microscope
Application and use of the microscope

Product ID 73986
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004884
Package size (LxWxH) 18.5x15x9.4 in
Shipping Weight 12.8 lb

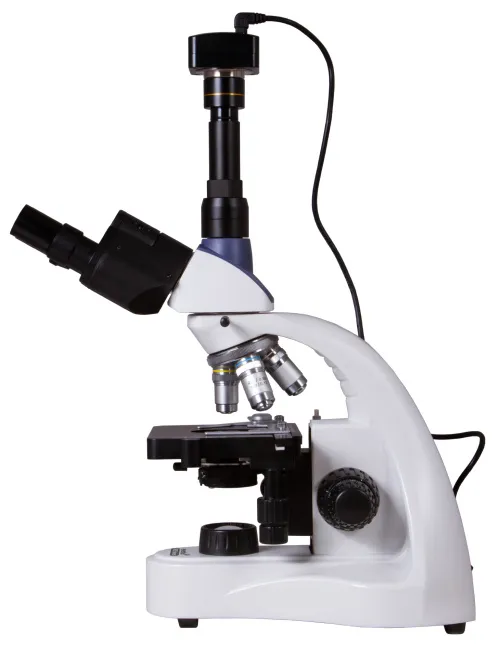

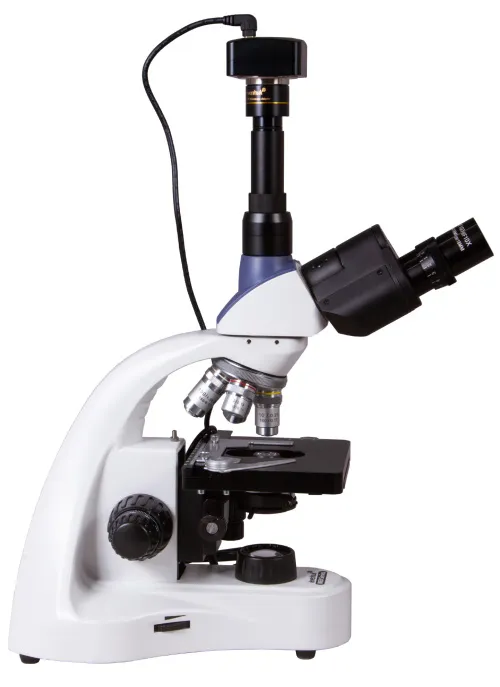

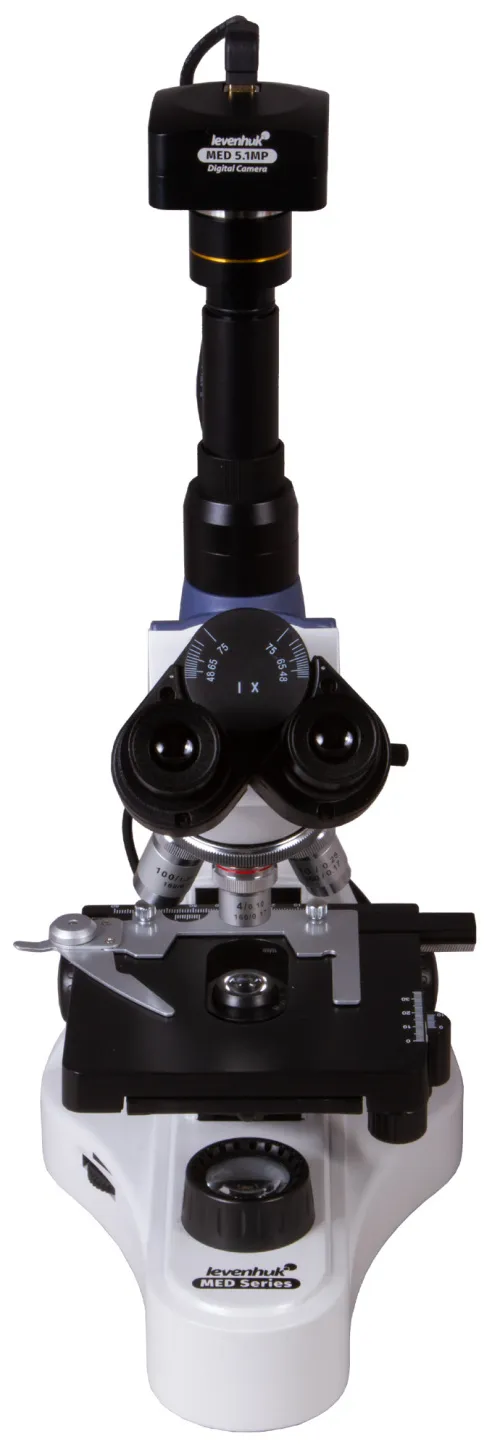

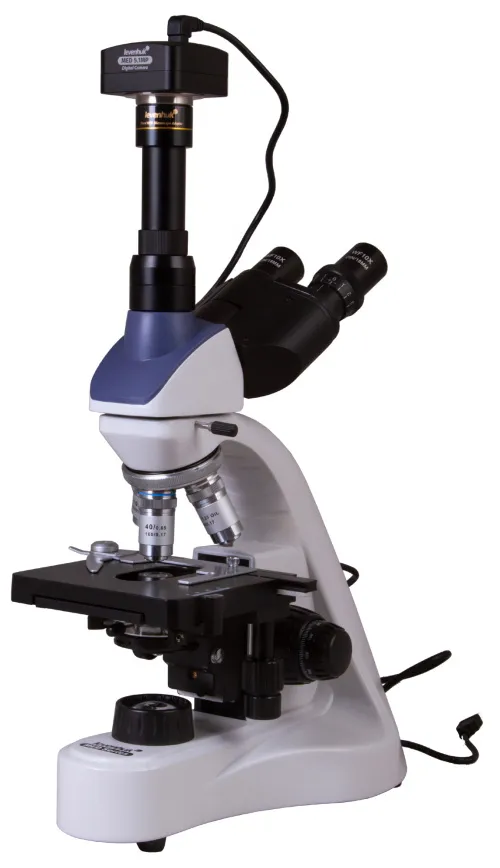

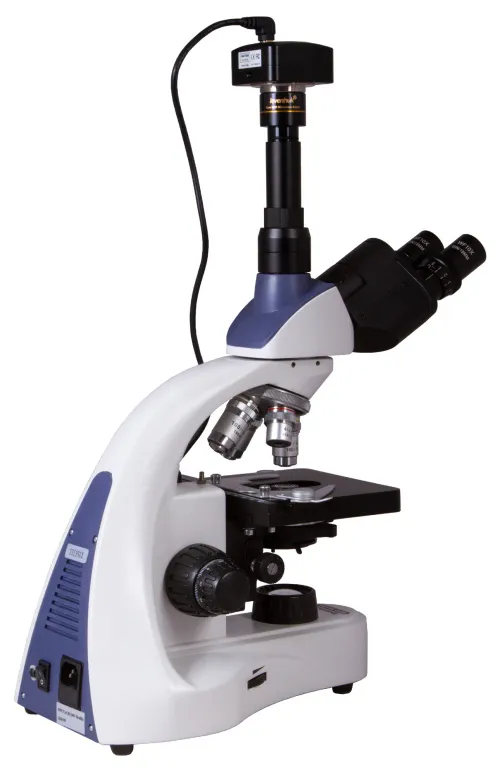

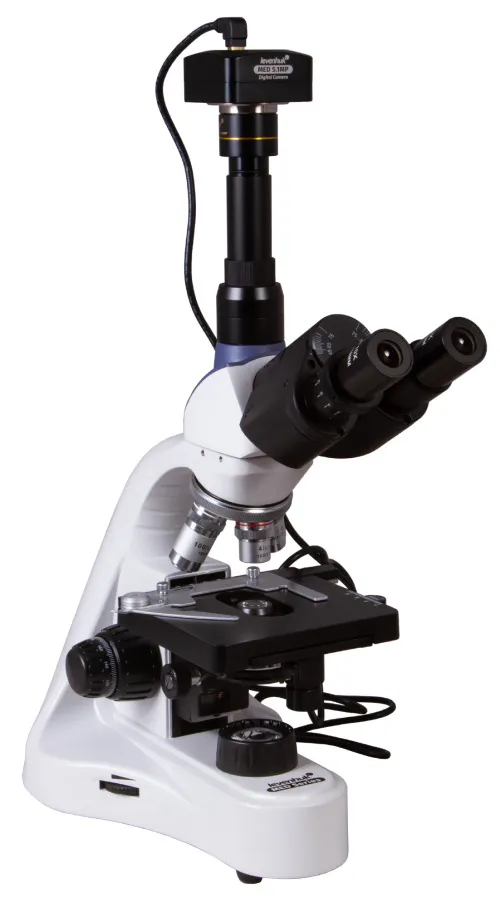

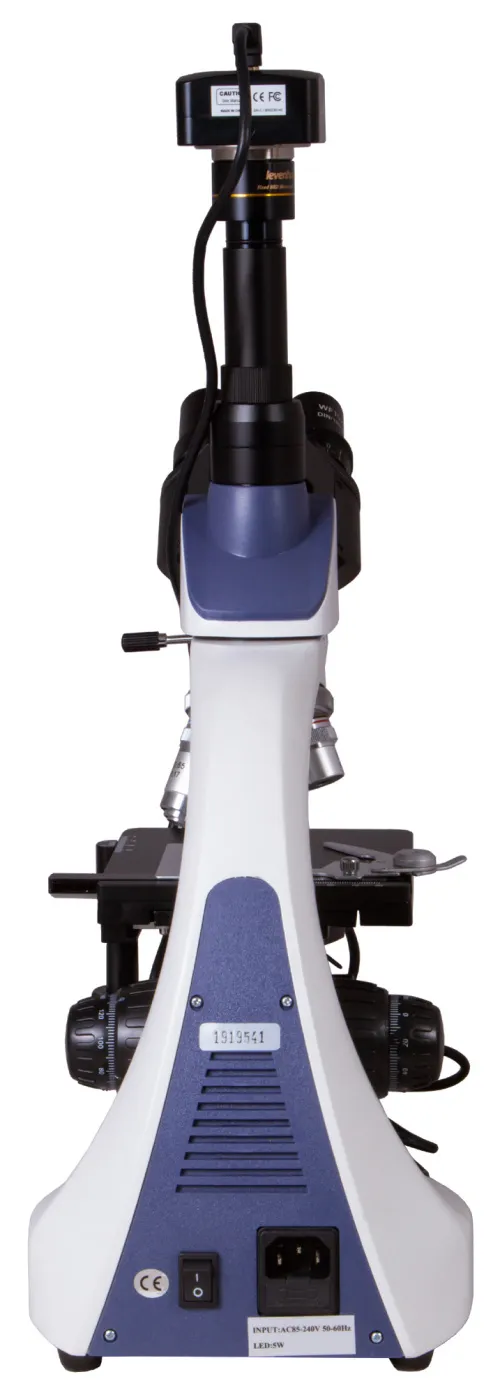

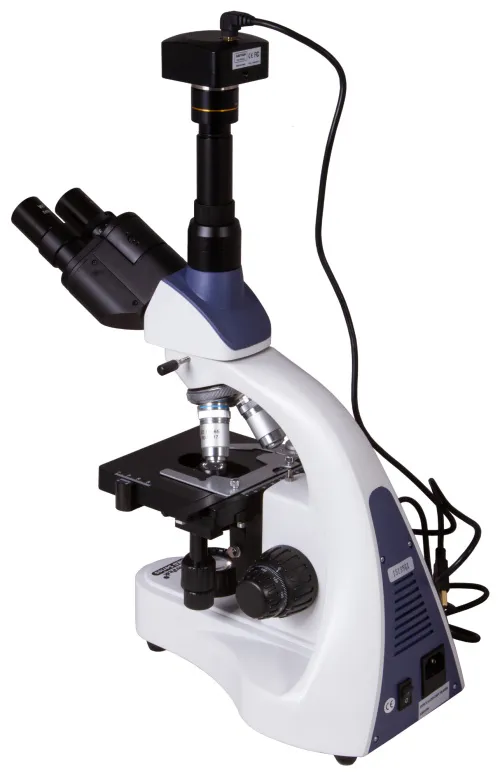

Levenhuk MED D10T Digital Microscope is a classic trinocular model with a digital camera in the kit. It is a great assistant in studying the micro world at magnifications in a range from 40x to 1,000x and recording observations in photo- or video mode. The microscope is suitable for holding lectures and seminars, conducting professional biological, clinical and diagnostic research as well as research in various scientific fields. The achromatic microscope optics is excellent for high-precision work with specimens.

A practical rotatable head

The trinocular head consists of a binocular visual part (it is intended for observations) and an ocular tube (for installing a digital camera in it). Due to that, you can study a specimen and transmit an image to an external screen simultaneously. This microscope design makes it a perfect choice for group research, when several people observe the same specimen. A visual part has 30° inclination. It is convenient to use during lengthy observations and, moreover, it reduces tension on the neck muscles and shoulder girdle. What’s more, this head is 360° rotatable.

High-class optics

The revolving nosepiece is designed for four objective lenses. The kit includes objective lenses of various magnification; the 40x and 100x objective lenses are equipped with spring-loaded frames for protecting the optics from accidental damage. A 100x objective lens is suitable for observations using oil immersion (a bottle of immersion oil is included in the kit). Wide-field eyepieces provide a good view and provide 10x magnification. All of the optical elements of the microscopes have an anti-fungal coating.

Digital capabilities

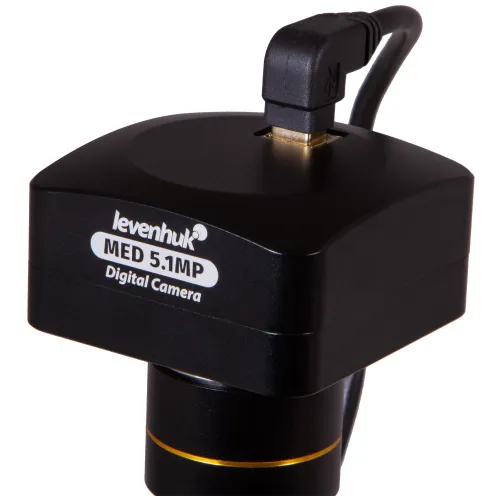

The 5.1MP digital camera is installed in the vertical ocular tube of the microscope. The camera can work in a photo and video mode. The camera is connected to a computer with a pre-installed image processing software (a software CD and USB cable are included in the kit). The camera makes working in a laboratory easier and more practical for an explorer: there is no need to strain your eyes when observing slides through eyepieces, as everything can be seen on a computer screen. This special program allows for the simple processing of photos and videos, setting up shooting parameters, and saving data for further work. The software allows for adjusting the size, image brightness and contrast, exposure time, calibrating a camera and objective lenses as well as measuring specimens or structures (several measurement units are available). High image quality allows for using them for professional research.

Convenient work with microscope slides

A stage is moveable along two axes, and it comes with a mechanical scale. The microscope lighting system is located underneath. It consists of a bright 5W LED light and an Abbe condenser with an iris diaphragm and filter holder (three light filters are included). The light is powered by an AC supply. The illumination system also features a brightness adjustment. Coarse and fine focusing adjustments are used for sharpness adjustment.


  • Laboratory microscope with 40–1000x magnification
  • 360° rotatable trinocular head, inclined at 30°
  • Achromatic optics with an anti-fungal coating
  • Lower 5W LED light with brightness adjustment
  • Powered by an AC power supply
  • 5.1MP digital camera is included in the kit

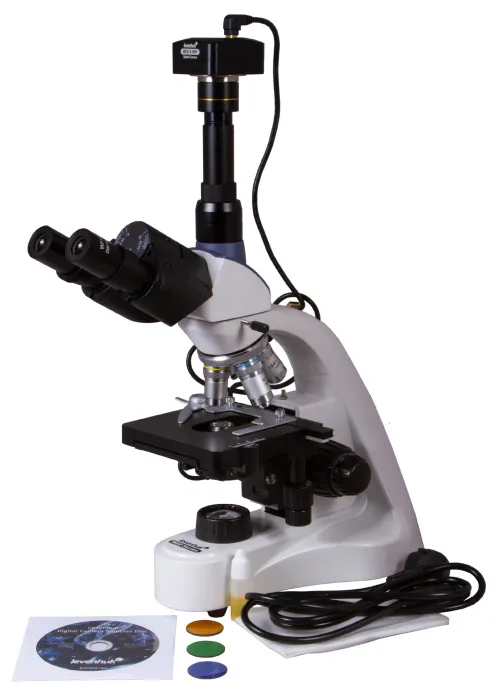

The kit includes:

  • Microscope base with a stand
  • 360° rotatable trinocular head
  • Achromatic objective lenses: 4х, 10х, 40xs, 100хs (oil) with an anti-fungal coating
  • Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
  • Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
  • Filters: blue, green, yellow
  • Bottle of immersion oil
  • Fuse (2 pcs)
  • Power cord for microscope
  • Dust cover
  • 5.1MP digital camera
  • Camera adapter
  • USB cable for connecting and powering camera
  • Software CD and drivers
  • User manual and lifetime warranty


Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

Levenhuk MED D10T Digital Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.

Product ID 73986
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555004884
Package size (LxWxH) 18.5x15x9.4 in
Shipping Weight 12.8 lb
Type biological, light/optical, digital
Head trinocular
Optics material optical glass with anti-fungal coating
Nozzle 360 ° rotatable
Head inclination angle 30 °
Magnification, x 40 — 1000
Eyepiece tube diameter, in 0.9
Eyepieces WF10x/18mm, wide-field with diopter adjustment (2 pcs.)
Objectives achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
Revolving nosepiece for 4 objectives
Interpupillary distance, in 1.9 — 3
Stage, mm 125х130
Stage moving range, mm 70/50
Stage features mechanical double-layer
Eyepiece diopter adjustment, diopters ±5
Condenser Abbe N.A. 1.25 with an iris diaphragm and filter holder
Diaphragm iris
Focus coaxial, coarse (30mm) and fine (0.002mm)
Body metal
Illumination LED
Brightness adjustment
Power supply 100–240V
Light source type 5W
Light filters blue, green, yellow
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application laboratory/medical
Illumination location lower
Research method bright field
Digital camera included
Pouch/case/bag in set dust cover
Maximum resolution 2048x1536
Megapixels 5.1
Sensor element 1/2.5"
Pixel size, μm 2.2x2.2
Video recording yes
Image format *.jpg, *.bmp, *.png, *.tif and others
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650
White balance manual, automatic
Exposure control 0.294–2000μs
Sensitivity, V/lux-sec@550nm 0.53
Frame rate 7@2592x1944
Dynamic range, dB 66
Usage location the third 23.2mm ocular tube of the microscope
Software, drivers LevenhukLite
Programmable options image size, brightness, shutter time
Output USB 2.0
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM
