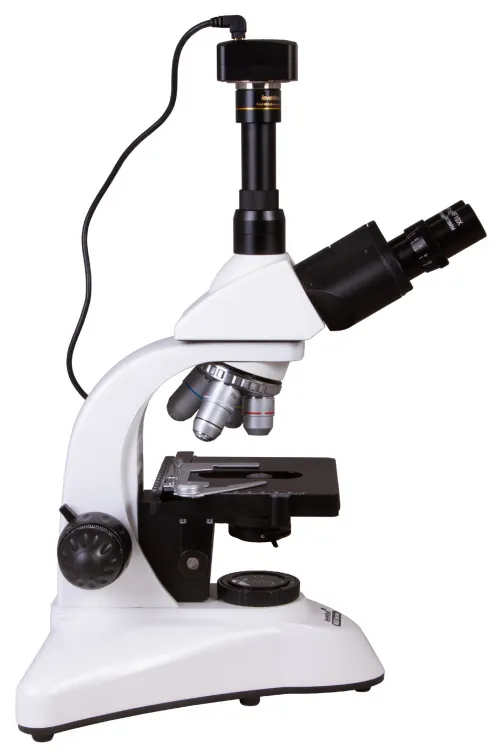

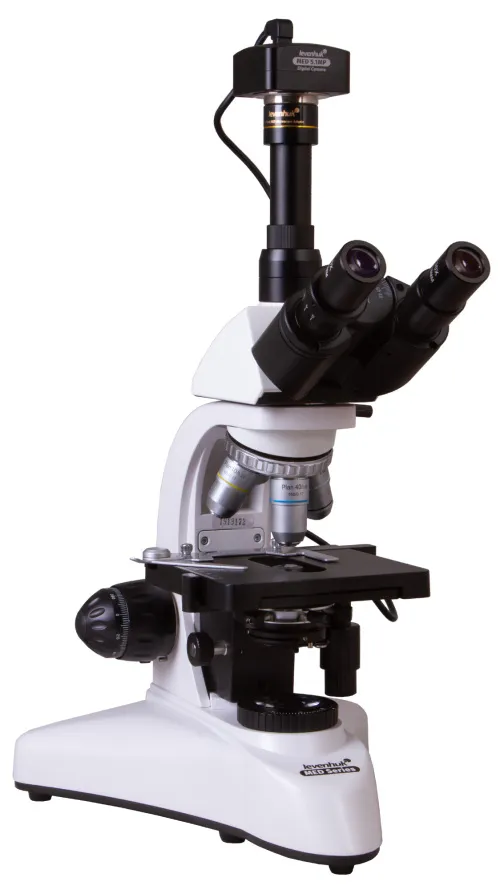

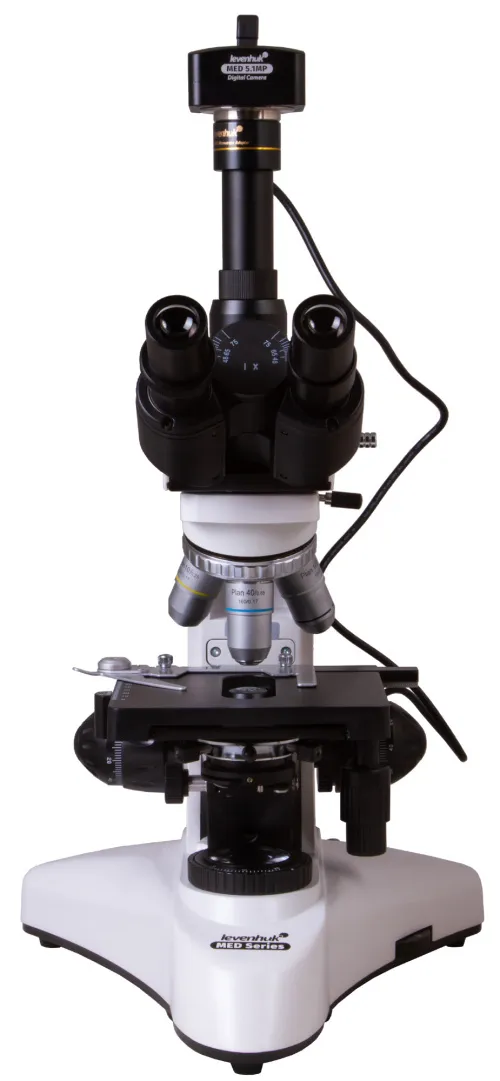

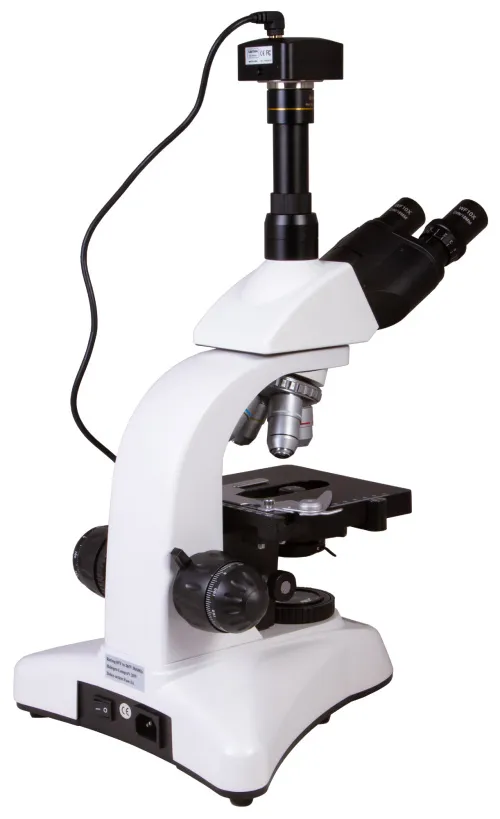

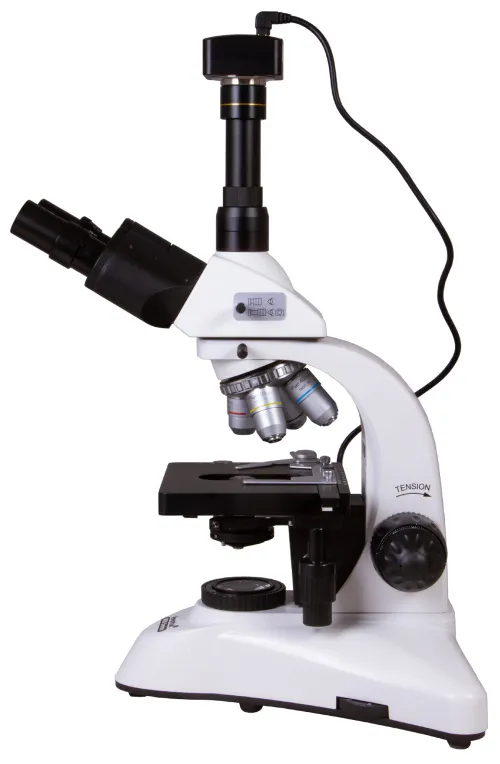

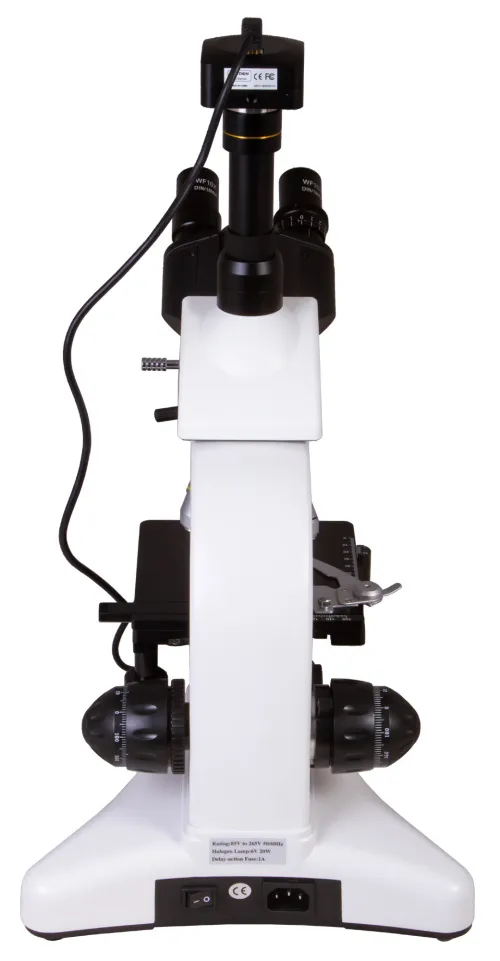

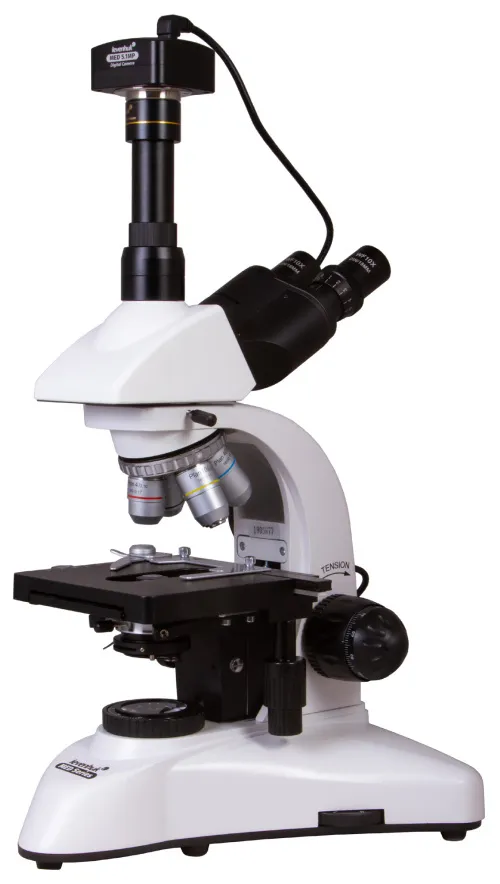

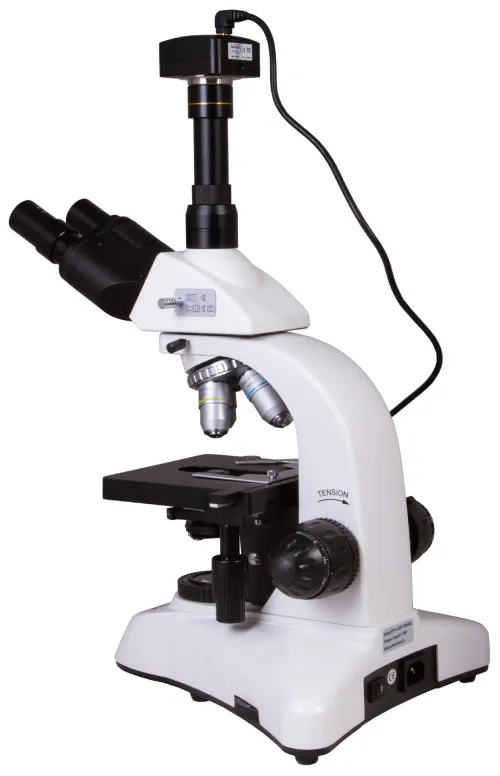

Levenhuk MED D25T Digital Trinocular Microscope
Magnification: 40–1000x. Trinocular head, 5.1MP digital camera, plan achromatic objective lenses, an Abbe condenser, a dark field condenser (oil)
Product ID | 73994 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555004969 |
Package size (LxWxH) | 22.8x14.2x13.4 in |
Shipping Weight | 18.7 lb |
Levenhuk MED D25T is a digital trinocular microscope with a 5.1M camera with plan achromatic optics and two condensers (bright field and dark field). It can be used in various scientific fields: medicine, biochemistry, microbiology, and others. This microscope is a great choice for a laboratory worker, university professor, and a staff member of a medical center or research institute.
A rotatable head with a beam splitter
The microscope comes with a trinocular head with a beam splitter. The binocular visual part has a practical 30° inclination angle, and a third ocular tube for a digital camera is vertical. Such a design allows for conducting regular observations and using a camera for transmitting an image to an external screen while also shooting videos and photos at the same time. This head is also practical to use due to its 360° rotatable head.
Observations without optical aberrations
The microscope uses plan achromatic objective lenses, which create a nearly flat field of view and reduce chromatic aberrations. The objective lenses with 40x and 100 magnification are equipped with spring-loaded frames. In addition, a 100x objective lens can also be used for oil immersion. Wide-field eyepieces feature diopter adjustment and provide 10x magnification. The objective lenses and eyepieces have a protective anti-fungal coating.
Digital capabilities
A sensor in the digital camera allows for delivering sharp and detailed images of research. You can shoot videos at a high frame rate, which is why the recorded videos are very smooth. Software included in the kit allows for processing recorded videos and photos and setting up a digital camera. The software allows for adjusting size, image brightness and contrast, exposure time and white balance, calibrating a camera and objective lenses, measuring specimens or structures (several measurement units are available). An included USB cable is used for connecting it to a computer. A trinocular microscope with a digital camera provides for easier lengthy work in a laboratory. An image observed through an objective lens is also transmitted to an external screen. That removes the necessity to continuously observe through the eyepieces and strain the eyes and the rotator cuff.
Convenient work with microscope slides
The stage is equipped with a mechanical scale. Sharpness adjustment is done by rotating coarse and fine focusing adjustment knobs. An Abbe condenser is equipped with an iris diaphragm and a filter holder. The kit includes a dark field oil condenser for conducting observations using dark field method. The illumination system consists of a 20W halogen light with adjustable brightness. Setting up Köhler illumination is available. The light is powered by an AC power supply.
The Levenhuk MED 25 series includes optimal microscopes for cytology that allow for the observations using oil immersion in the bright field and dark field.
Features:
- Trinocular head with a beam splitter
- Plan achromatic optics provides magnification of 40x to 1000x
- Anti-fungal coating of all the optical surfaces
- 20W halogen light is powered by an AC power supply
- Köhler illumination is available
- Bright field and dark field observations are available
- 5.1MP digital camera is included

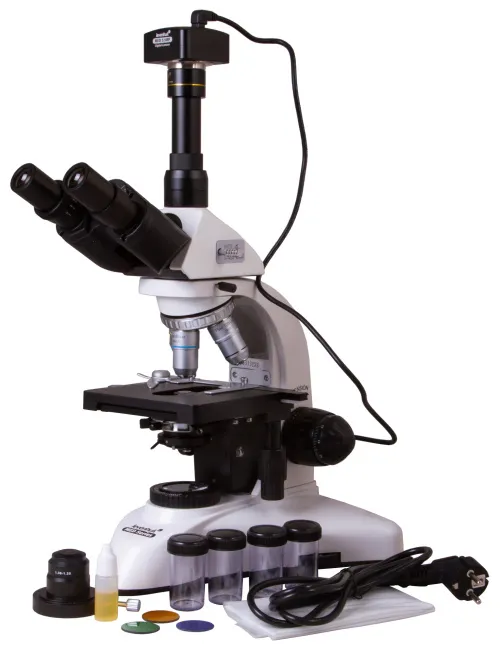

The kit includes:
- Microscope base with a stand
- 360° rotatable trinocular head
- Plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with an anti-fungal coating
- Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
- Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
- Dark field condenser (oil)
- Filters: blue, green, yellow
- Vial of immersion oil
- Fuse (2 pcs)
- Power cord for microscope
- Dust cover
- 5.1MP digital camera
- Camera adapter
- Camera mount
- USB cable for connecting and powering camera
- Software CD and drivers
- User manual and lifetime warranty
Caution:
Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
Some things you can see under a microscope:
![](https://loc.levenhuk.com/upload/medialibrary/8ce/hxqb1v19dg6aw81cnhmyhbzgxt3w8jku/4-lime-twig.jpg)
![](https://loc.levenhuk.com/upload/medialibrary/686/p0xf7aixezx2z9bb8ede7d7t4ec0sevl/2-cat-fur.jpg)
![](https://loc.levenhuk.com/upload/medialibrary/786/koerfy6erhi254eql1xbs05cpvr6gdux/18-daphnia.jpg)
![](https://loc.levenhuk.com/upload/medialibrary/d2e/hsthv05yt28b20bih1oc8cdkfdh6472g/1-bird-feathers.jpg)
![](https://loc.levenhuk.com/upload/medialibrary/321/tr1my7yvo72hakk5iks9ul0yc3wef676/15-earthworm.jpg)
Levenhuk MED D25T Digital Trinocular Microscope is also compatible with other Levenhuk digital cameras(additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.
Product ID | 73994 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555004969 |
Package size (LxWxH) | 22.8x14.2x13.4 in |
Shipping Weight | 18.7 lb |
Type | biological, light/optical, digital |
Head | trinocular |
Optics material | optical glass with anti-fungal coating |
Nozzle | 360 ° rotatable, with switching (dividing) luminous flux |
Head inclination angle | 30 ° |
Magnification, x | 40 — 1000 |
Eyepiece tube diameter, in | 0.9 |
Eyepieces | WF10x/18mm, wide-field with diopter adjustment (2 pcs.) |
Objectives | planachromat: 4x, 10x, 40xs, 100xs (oil immersion) |
Revolving nosepiece | for 4 objectives |
Interpupillary distance, in | 2.2 — 3 |
Stage, mm | 140x140 |
Stage moving range, mm | 75/50 |
Stage features | mechanical double-layer |
Eyepiece diopter adjustment, diopters | ±5 |
Condenser | Abbe N.A. 1.25 with an iris diaphragm and filter holder |
Diaphragm | iris |
Focus | coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion |
Body | metal |
Illumination | halogen |
Brightness adjustment | ✓ |
Power supply | 100–240V |
Light source type | 12V/30W |
Light filters | blue, green, yellow |
Additional | collector lens, Köhler illumination, dark field condenser (oil) |
User level | experienced users, professionals |
Assembly and installation difficulty level | complicated |
Application | laboratory/medical |
Illumination location | lower |
Research method | bright field, dark field |
Digital camera included | ✓ |
Pouch/case/bag in set | dust cover |
Maximum resolution | 2048x1536 |
Megapixels | 5.1 |
Sensor element | 1/2.5" |
Pixel size, μm | 2.2x2.2 |
Video recording | yes |
Image format | *.jpg, *.bmp, *.png, *.tif and others |
Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
Spectral range, nm | 380–650 |
White balance | manual, automatic |
Exposure control | 0.294–2000μs |
Sensitivity, V/lux-sec@550nm | 0.53 |
Frame rate | 7@2592x1944 27@1280x960 90@640x480 |
Dynamic range, dB | 66 |
Usage location | the third 23.2mm ocular tube of the microscope |
Software, drivers | LevenhukLite |
Programmable options | image size, brightness, shutter time |
Output | USB 2.0 |
System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM |
Camera power supply | via USB cable |
