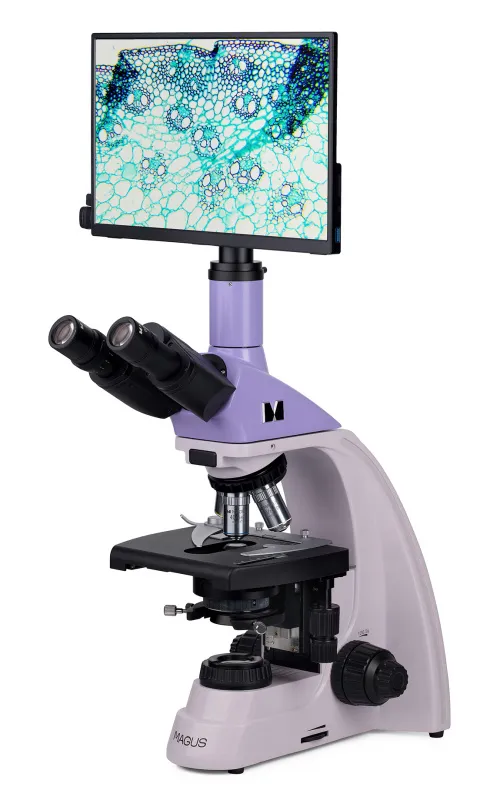

With a camera and monitor. Magnification: 40–1000x. Trinocular head, achromatic objectives, 30W halogen bulb

The microscope head is a core element of the microscope that you look through to see a magnified sample
40–1000 basic configuration (*optional: 40–1500/1600/2000)
How much the size of a sample increases when you observe it through a microscope
Application and use of the microscope

Product ID 83005
Warranty 5 years
EAN 5905555017952
Package size (LxWxH) 16.9x10.6x24.8 in
Shipping Weight 27.9 lb

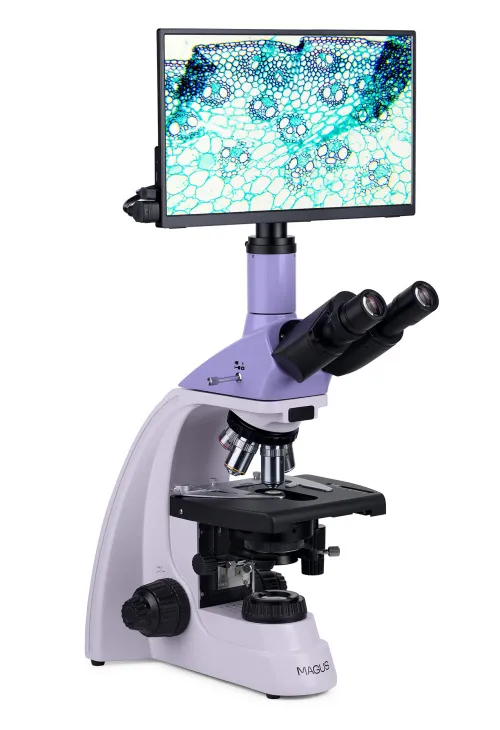

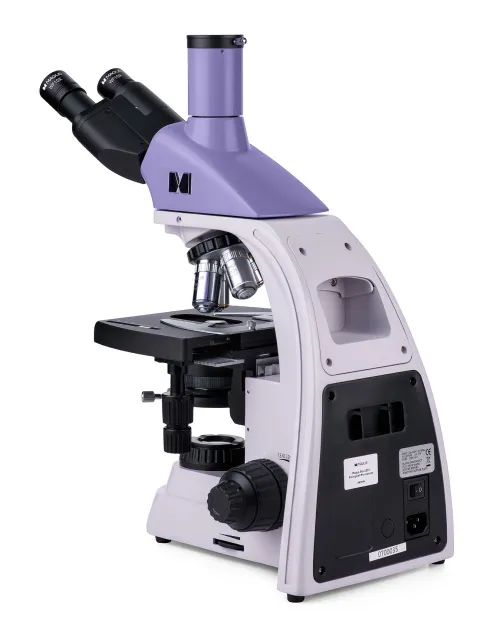

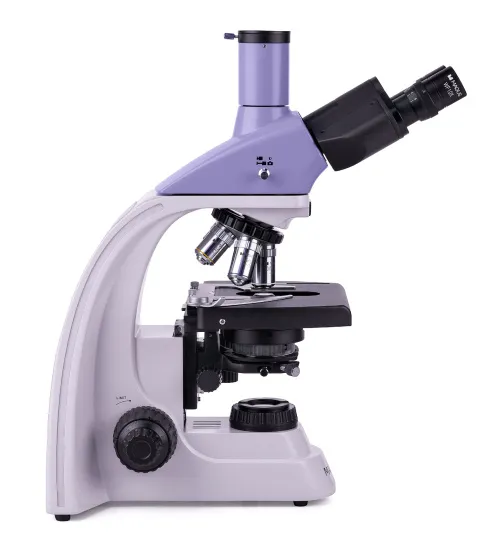

MAGUS Bio 230T is a biological trinocular microscope for laboratory and research observations in the field of medicine, pharmaceuticals, forensics, biotechnology, etc. It is suitable for the observation of flat biological translucent and transparent specimens: thin sections and smears. Equipped with achromatic objectives and a halogen bulb, the transmitted light microscopy technique (brightfield) is used for studying samples. The design of the microscope provides the possibility of installing additional accessories that allow for the use of other microscopy techniques: darkfield, phase contrast, polarized light.

Digital camera

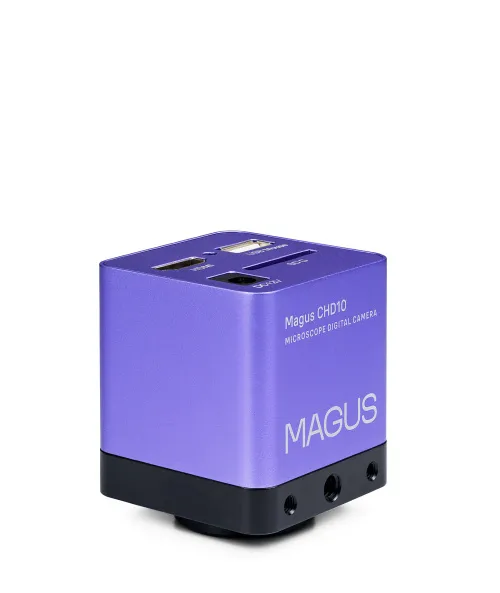

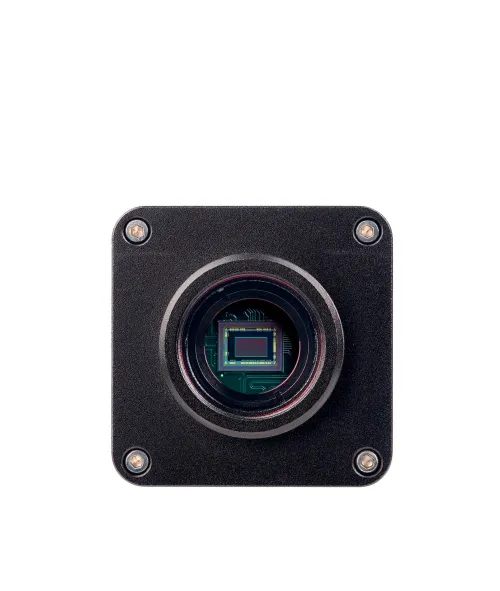

The digital HDMI-camera MAGUS CHD10 is equipped with a 2MP sensor and produces realistic Full HD images at a resolution of 1920x1080px. It is an autonomous camera that does not require connection to a computer or the installation of additional software. The camera can be connected directly to a TV, monitor, or projector to display an image. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. Video is recorded at 60fps. The camera combines high FPS and high bandwidth HDMI. Therefore, videos are vivid, with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.

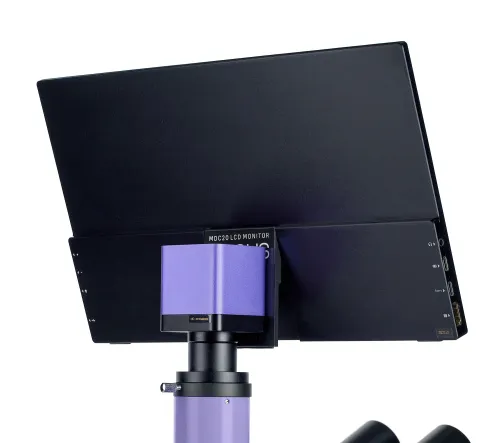

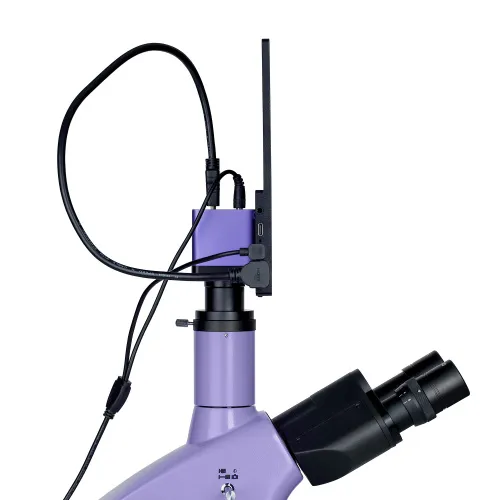

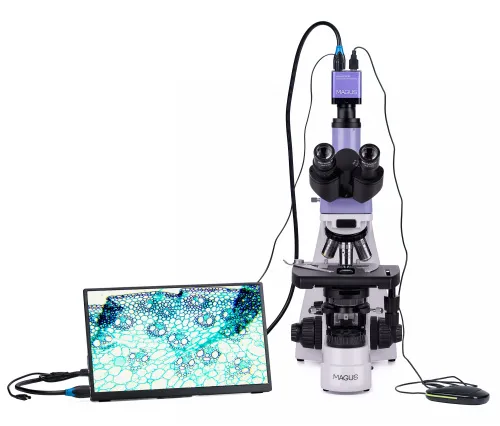

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera occurs via its HDMI interface. The monitor displays real-time images. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. When looking at the screen even from a large angle, the image is not distorted. The screen size is 13.3''.

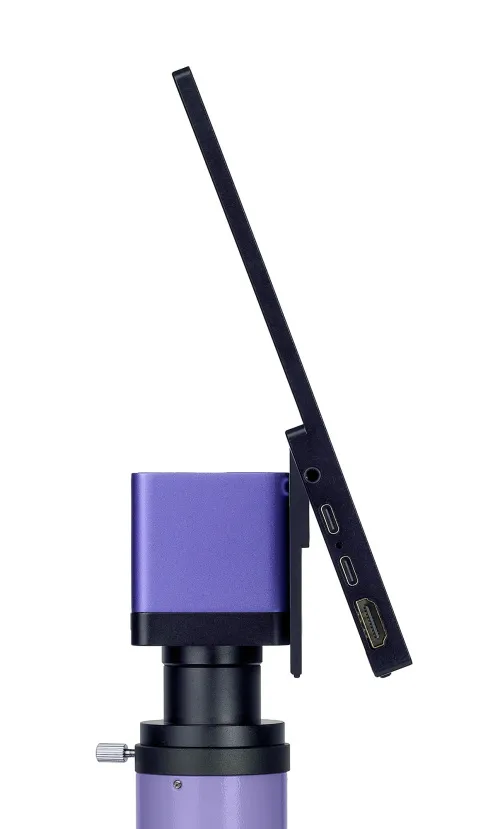

The monitor can be installed on a horizontal surface using a folding stand or mounted directly on a camera or tripod.

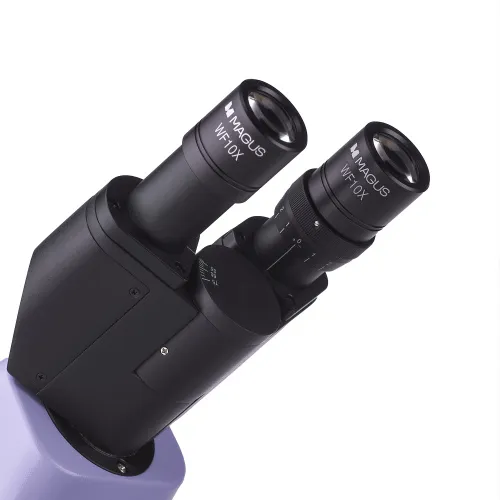

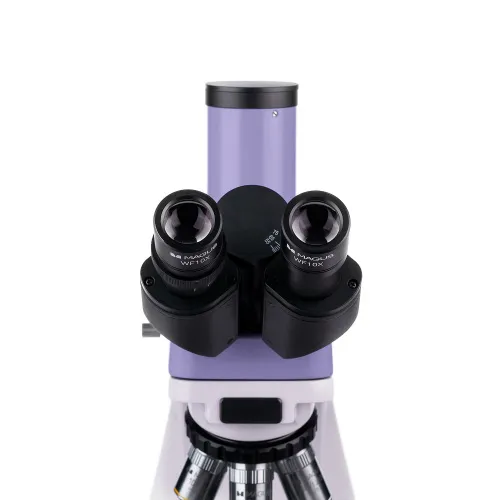

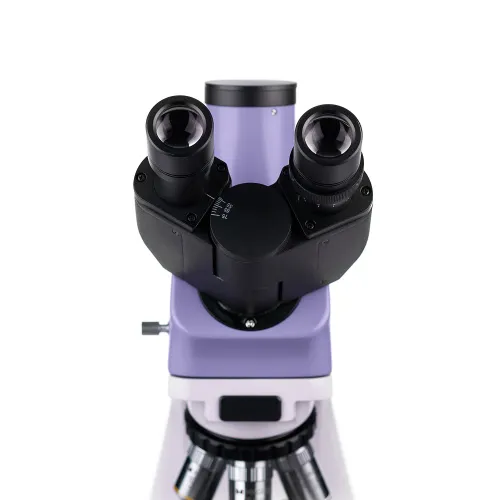

The trinocular head has a vertical tube for mounting a digital camera. The camera (not included) is an excellent solution for making digital archives of your studies and output images to an external monitor screen. To adjust the observation tubes to fit the user’s height, there is an option to rotate them 360°. The left tube is equipped with a diopter adjustment ring.

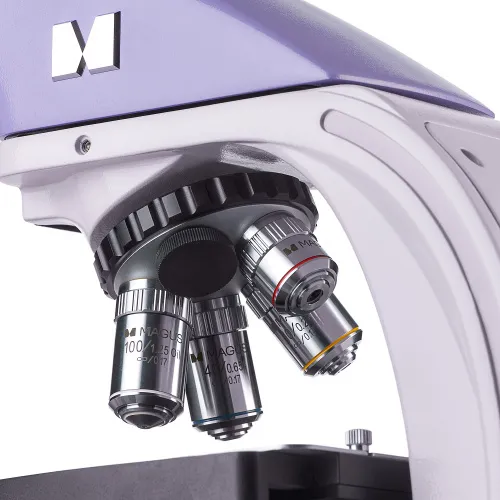

The revolving nosepiece is oriented toward the interior, which leaves the space above the stage free. Five objectives can be simultaneously mounted into the nosepiece (4 objectives are included in the kit and the 5th slot is left for an additional objective). In the basic configuration, the infinity-corrected objectives provide magnification from 40 to 1000x. With optional eyepieces, the upper limit can be increased up to 1500, 1600, or 2000x.

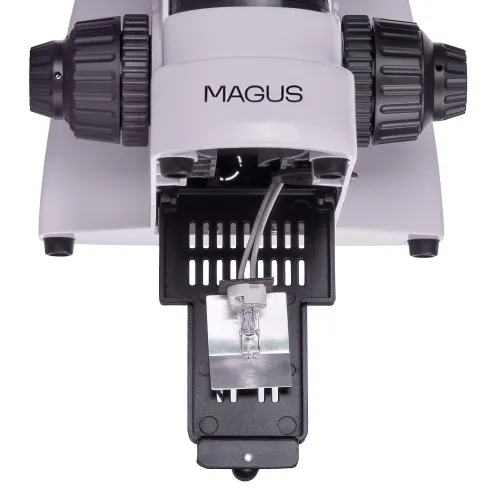

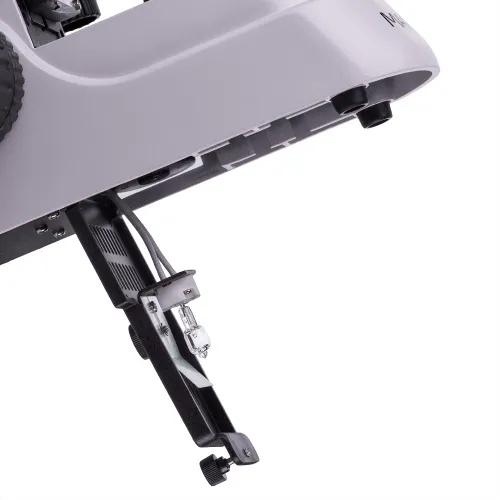

The halogen bulb produces warm-spectrum lighting that reduces eye strain and is ideal for long hours of working with the microscope. The bulb is 30W and, therefore, the brightness and contrast of the transmitted image is high regardless of the type of objective or observation technique being used.

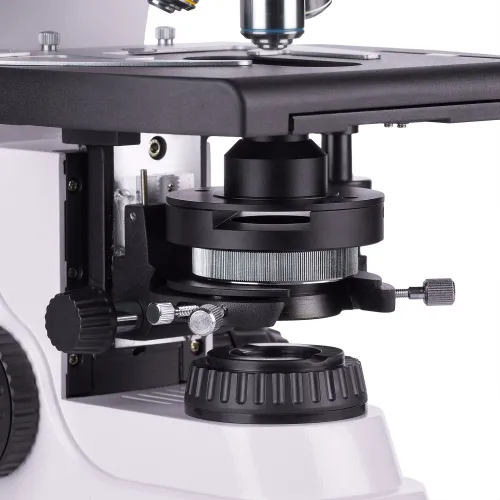

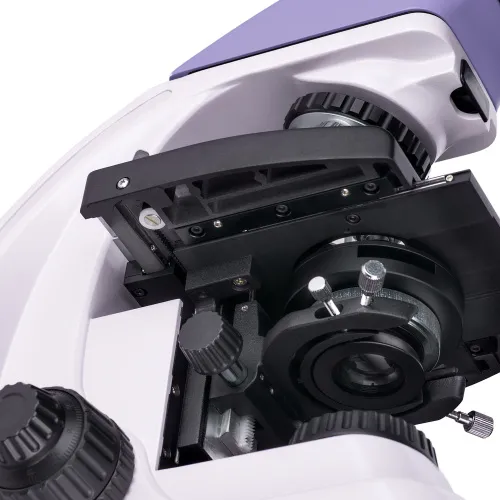

The Abbe condenser is height-adjustable and can be centered. The illumination is controlled by adjusting the iris and field diaphragms, and there is an option to set up the Köhler illumination for better image clarity. The condenser has a slot for installing a phase or darkfield slider, which speeds up the process and makes it easier to switch between different microscopy techniques.

Stage and focusing mechanism

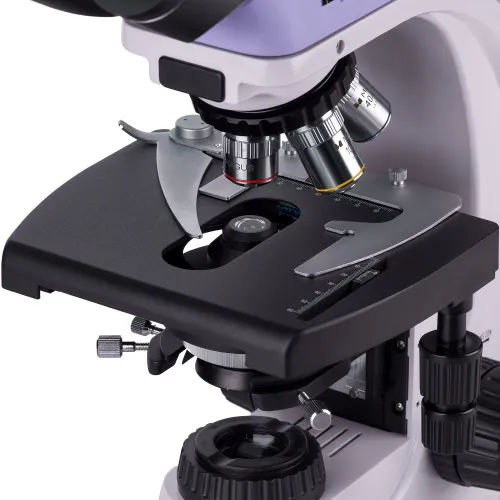

There is no positioning rack on the stage. This is an advantage of the mechanical stage design as it makes it easier to operate the microscope. The specimen can be moved smoothly across the stage. The mechanical attachment is removable (it can be removed for manual scanning).

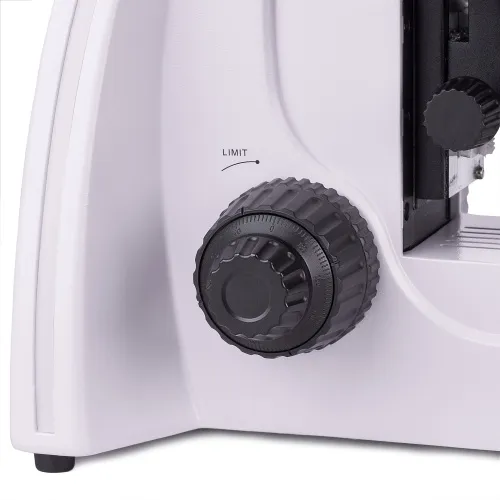

There is coarse and fine focusing adjustment, the focusing knob movement is smooth and easy, and it requires no further effort. The coarse focusing mechanism has a lock knob and tension adjustment. The focusing knobs are coaxial, positioned for maximum comfort during long hours of observation, and are located at the microscope base so that you can comfortably rest your hands on the table.


To maximize the capabilities of the MAGUS Bio 230T microscope, you can further upgrade it with some accessories. It may include eyepieces and objectives, digital cameras and calibration slides, darkfield condensers, polarized light, and phase contrast microscopy observation devices.

Key features of the microscope:

  • Trinocular head with a vertical tube for mounting a digital camera
  • The 360° rotation to fit the height of the observer
  • Infinity achromatic objectives, revolving nosepiece for 5 objectives
  • Diopter adjustment ring on the left tube
  • 30W halogen bulb powered by AC power supply, Abbe condenser with a slot for darkfield and phase contrast sliders, field diaphragm
  • Coaxial coarse and fine focusing knobs, lock knob and coarse tension adjustment knob
  • Optional accessories to improve microscope performance

Key features of the camera:

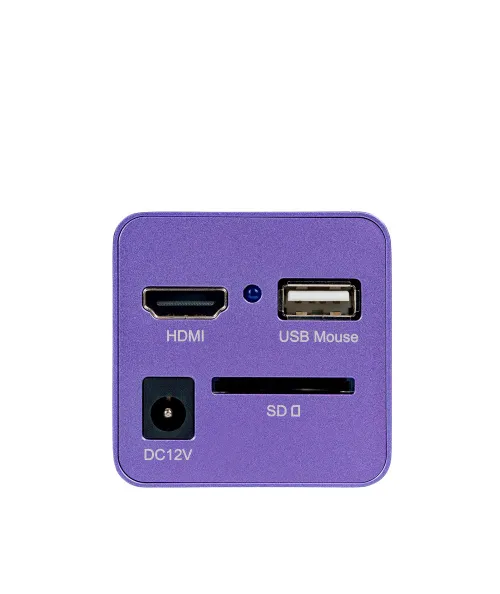

  • The camera operates autonomously without a connection to a PC or the installation of any software
  • HDMI interface for high and stable data transfer rate
  • The camera resolution is 1920x1080px – an ideal choice for displaying images on a Full HD monitor
  • 60 fps for observing moving samples, recording video, and moving the sample without jerkiness or delays
  • SONY Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
  • Software with photo, video recording, editing, external display, linear and angular measurements

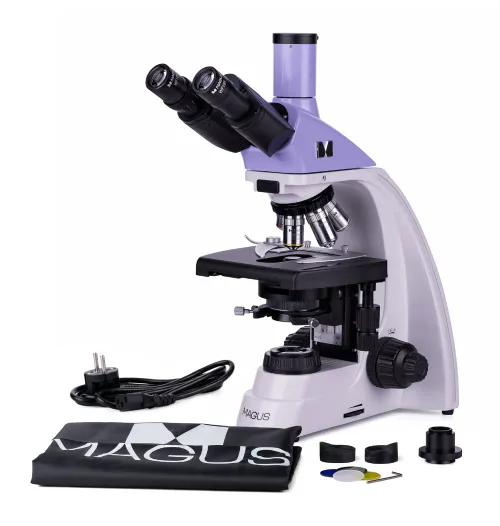

The kit includes:

  • MAGUS CHD10 Digital Camera (digital camera, HDMI cable (1.5m), USB mouse, 32GB SD memory card, AC power adapter 12V/1A (Euro), user manual and warranty card)
  • MAGUS MCD20 LCD Monitor
  • Base with a power input, transmitted light source, focusing mechanism, stage, condenser mount, and revolving nosepiece
  • Abbe condenser
  • Trinocular head
  • Infinity achromatic objective: 4x/0.10
  • Infinity achromatic objective: 10x/0.25
  • Infinity achromatic objective: 40x/0.65 (spring-loaded)
  • Infinity achromatic objective: 100x/1.25 oil (spring-loaded)
  • Eyepiece 10x/18mm with a long eye relief (2 pcs.)
  • Eyecup (2 pcs.)
  • Filter (4 pcs.)
  • C-mount camera adapter
  • Bottle of the immersion oil
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/20mm eyepiece with a scale
  • 15x/11mm eyepiece (2 pcs.)
  • 16x/11mm eyepiece (2 pcs.)
  • 20x/11mm eyepiece (2 pcs.)
  • Infinity achromatic objective: 20x/0.40
  • Infinity plan achromatic objective: 20х/0.40
  • Infinity plan achromatic objective: 60x/0.80 (spring-loaded)
  • Phase-contrast device
  • Phase slider
  • Darkfield condenser NA 0.9
  • Oil darkfield condenser NA 1.36–1.25
  • Darkfield slider
  • Polarization devices
  • Calibration slide
Product ID 83005
Warranty 5 years
EAN 5905555017952
Package size (LxWxH) 16.9x10.6x24.8 in
Shipping Weight 27.9 lb
Microscope specifications
Type biological, light/optical, digital
Head trinocular
Nozzle Gemel head (Siedentopf, 360° rotation)
Head inclination angle 30 °
Magnification, x 40–1000 basic configuration (*optional: 40–1500/1600/2000)
Eyepiece tube diameter, in 0.9
Eyepieces 10х/18mm, eye relief: 10mm (*optional: 10х/20mm with a scale, 15x/11mm, 16x/11mm; 20x/11mm)
Objectives infinity achromatic: 4x/0.10; 10x/0.25; 40xs/0.65; 100xs/1.25 (oil); parfocal distance 45mm (*optional: 20x/0.40; 60xs/0.80)
Revolving nosepiece for 5 objectives
Working distance, mm 18.89 (4x); 5.95 (10x); 0.775 (40xs); 0.36 (100xs); 2.61/8.80 (20x); 0.46 (60хs)
Interpupillary distance, in 1.9 — 3
Stage, mm 180x150
Stage moving range, mm 75/50
Stage features two-axis mechanical stage, without a positioning rack
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Condenser Abbe condenser, N.A. 1.25, center-adjustable, height-adjustable, adjustable aperture diaphragm, a slot for a darkfield slider and phase contrast slider, dovetail mount
Diaphragm adjustable aperture diaphragm, adjustable iris field diaphragm
Focus coaxial, coarse focusing (21mm, 39.8mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.002mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 12V/30W halogen bulb, G4
Light filters yes
Operating temperature range, °F 41...+95
Operating temperature range, °F 41...+95
Ability to connect additional equipment phase contrast device (condenser and objectives), darkfield condenser (dry or oil), polarization devices (polarizer and analyzer)
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application laboratory/medical
Illumination location lower
Research method bright field
Pouch/case/bag in set dust cover
Weight, lbs 17.6
Dimensions, in 7.9x17.2x15.7
Camera specifications
Sensor SONY Starvis CMOS
Color/monochrome color
Megapixels 2
Maximum resolution, pix 1920x1080
Sensor size 1/2.8" (5.57x3.13mm)
Pixel size, μm 2.9x2.9
Interface connectors HDMI 1.4
Memory card SD up to 32GB
Ability to connect additional equipment USB mouse
Light sensitivity 1300mV at 1/30s
Exposure time 0.04ms–1000ms
Video recording
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg
Video format *.h264, *.mp4
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
Software HDMI: built-in
System requirements does not require a computer connection
Mount type C-mount
Body solid aluminum
Camera power supply AC adapter 12V, 1A
Specifications of the AC power adapter input: AC voltage 100–240V, 50/60Hz, output: DC voltage 12V/1A
Camera operating temperature range, °F -10...+50
Operating humidity range, % 30 — 80
Monitor specifications
Type of matrix IPS
Display diagonal, inch 13.3
Display resolution, px 1920x1080 (Full HD)
Aspect ratio 16:9
Brightness, cd/m² 400
Number of displayed colors 16.7 m
Contrast 1000:1
Horizontal/vertical viewing angle, ° 178/178
Size of the visible screen area (WxH), mm 295x165
Pixel pitch (WxH), mm 0.154x0.154
Frequency of optical source, Hz 60
Type of matrix backlight LED
LED backlight lifetime, h 50000
Interface HDMI
Operating temperature range, °F 5...+131
Operating temperature range, °F 5...+131
Operating humidity range, % 10 — 90
Power supply AC 110–220V, DC 5–12V/1A (Type-C)
Power consumption, W 12 (max.)
