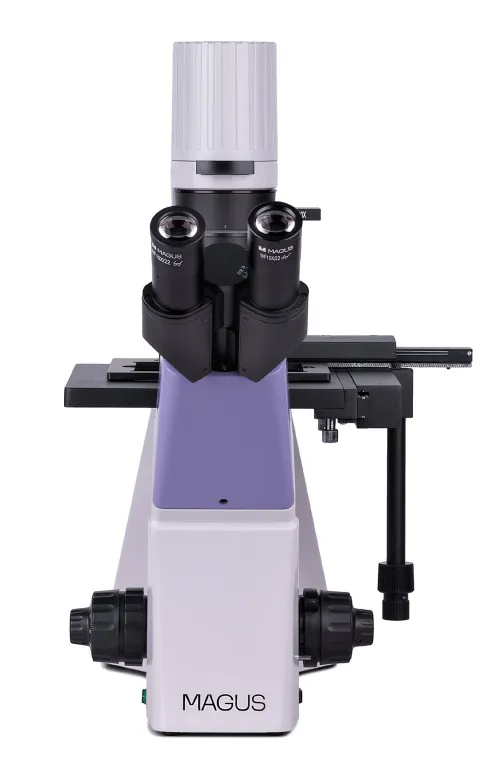

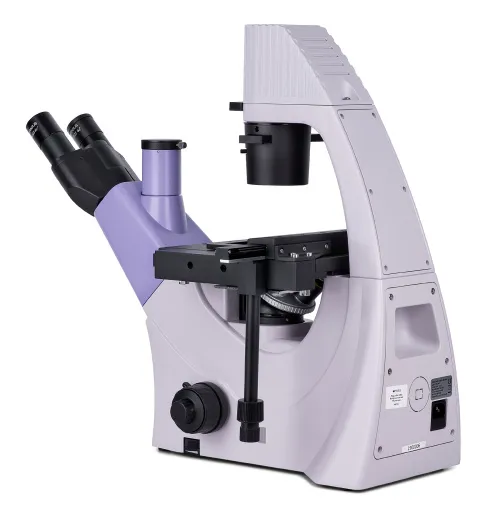

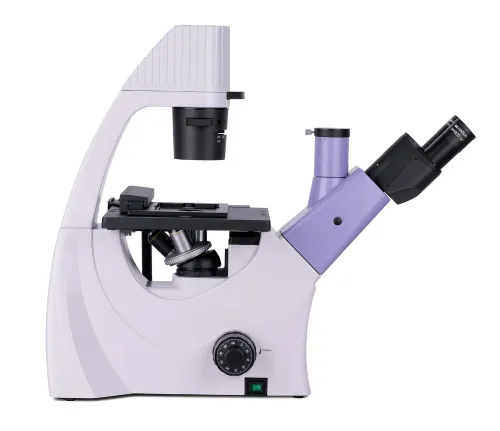

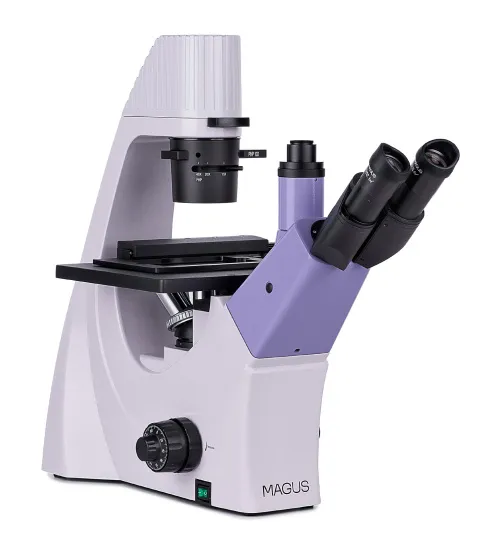

MAGUS Bio V300 Biological Inverted Microscope

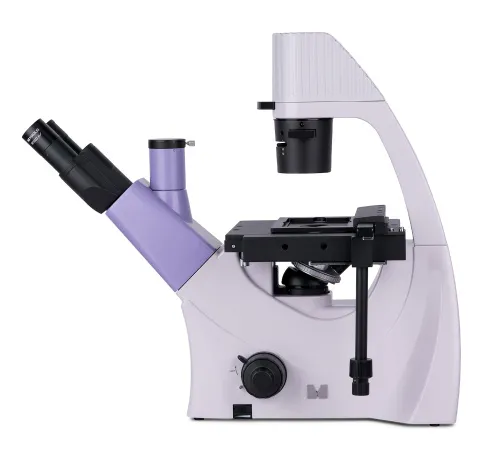

MAGUS Bio V300 is a biological microscope of an inverted design for studying samples in laboratory ware up to 70 mm high and with a bottom thickness up to 1.2 mm. The objects of study can be colonies of cells, tissue cultures, biological fluids, etc. The samples do not require mandatory pre-staining. The observations are made in transmitted light. Microscopy techniques: brightfield and phase contrast. The microscope is suitable for routine and research work, and teaching.

Optics

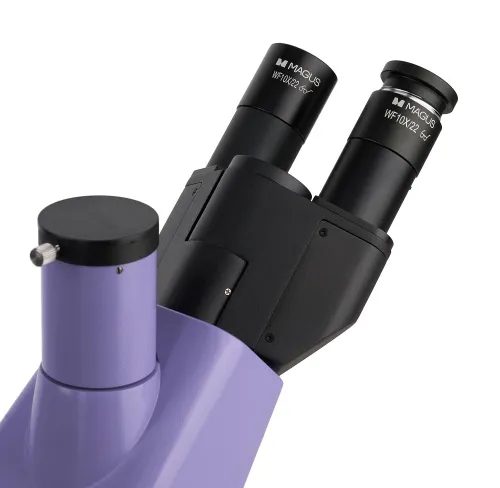

The microscope is equipped with a classic trinocular head, the trinocular tube is used for mounting a digital camera. The camera is not included in the set. The beam splitting is 50/50.

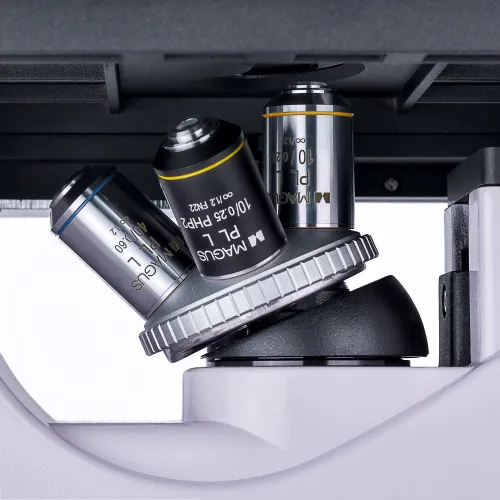

Four included or additional objectives can be mounted in the revolving nosepiece. All objectives are designed to be used with laboratory ware and have a long working distance. There are 3 plan achromatic objectives for brightfield and 1 plan achromatic objective for the phase contrast technique.

Illumination

The transmitted light source is a 9W LED. The high power of the LED makes the illumination of the working area bright enough to work with all objectives and with any microscopy technique. The brightness adjustment does not change the color temperature. The LED lifetime is about 50,000 hours without LED replacement.

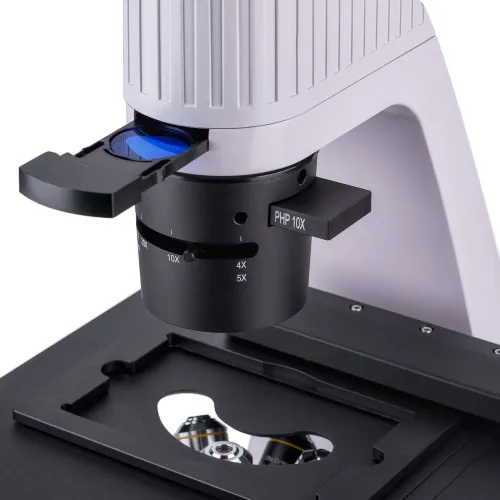

The condenser has a slot for a phase contrast slider (included). The phase contrast rings can be centered. The installation of the slider saves time when switching between the microscopy techniques.

Stage and focusing mechanism

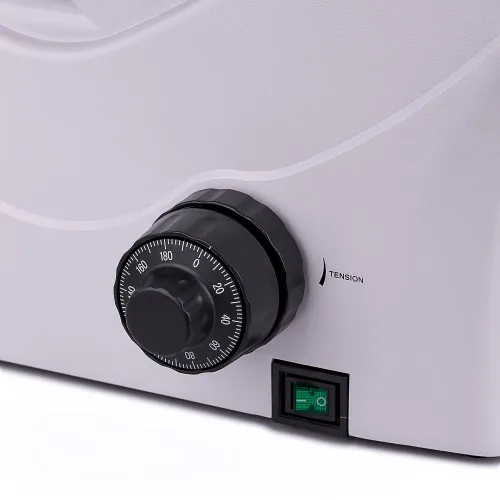

Fixed mechanical stage. It is equipped with a dish holder (three dish holders of different sizes are included). The dishes can be moved along the X and Y axes by a mechanical attachment. The coaxial coarse and fine focusing mechanism provides accurate and fast focusing. The coarse focusing has a lock mechanism and tension adjustment.

Accessories

The optional accessories line includes phase objectives, eyepieces, digital cameras, and calibration slides.

Key features:

• Brightfield and phase contrast microscopy techniques in the transmitted light; studying samples in laboratory ware
• Digital camera is mounted in the trinocular tube
• 9W LED transmitted light illuminator with adjustable brightness and a long lifetime
• Fixed stage with two-axis movement, 3 dish holders for different sizes included
• Optional accessories to improve microscope performance

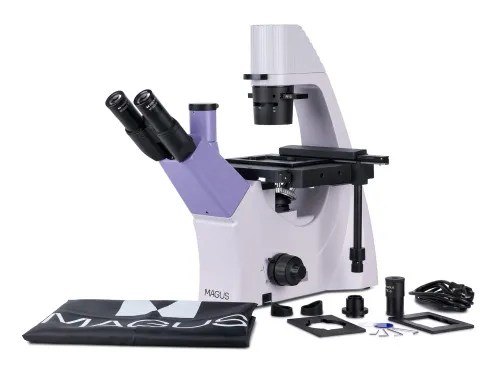

The kit includes:

• Stand with the built-in power supply, transmitted light source, focusing mechanism, stage, condenser with a slot for phase-contrast slider, and revolving nosepiece
• Trinocular head
• Infinity plan achromatic objective: PL 10x/0.25 WD 4.27mm
• Infinity plan achromatic objective: PL L20х/0.40 WD 8.0mm
• Infinity plan achromatic objective: PL L40х/0.60 WD: 3.5mm
• Infinity plan achromatic objective: PHP2 10x/0.25 phase WD 4.27mm
• Eyepiece 10x/22mm with long eye relief (2 pcs.)
• Eyecup (2 pcs.)
• Centering telescope
• Phase contrast slider with centering phase rings
• Mechanical attachment for moving the specimen
• Dish holder (3 pcs.)
• C-mount camera adapter
• Color filter
• AC power cord
• Dust cover
• User manual and warranty card

Available on request:

• 10x/22mm eyepiece with a scale
• 12.5x/14mm eyepiece (2 pcs.)
• 15x/15mm eyepiece (2 pcs.)
• 20x/12mm eyepiece (2 pcs.)
• 25x/9mm eyepiece (2 pcs.)
• Infinity plan achromatic objective: PL 4x/0.10 WD 21mm
• Infinity plan achromatic objective: PHP2 20x/0.40 phase WD 8.0mm
• Infinity plan achromatic objective: PHP2 40x/0.60 phase WD 3.5mm
• Digital camera
• Calibration slide
• LCD Monitor
