MAGUS Bio VD350 LCD Biological Inverted Digital Microscope

The price is valid only for the online store and may differ from the prices in retail stores.

With a camera and monitor. Magnification: 100–400x. Trinocular head, plan achromatic lenses, 30W halogen illuminator, phase contrast condenser, Köhler illumination

The microscope head is a core element of the microscope that you look through to see a magnified sample
100–400 basic configuration (*optional: 40–500/600/800/1000)
How much the size of a sample increases when you observe it through a microscope
Application and use of the microscope

Product ID 83015
Warranty 5 years
EAN 5905555018133
Package size (LxWxH) 19.3x13.4x28.7 in
Shipping Weight 49.1 lb

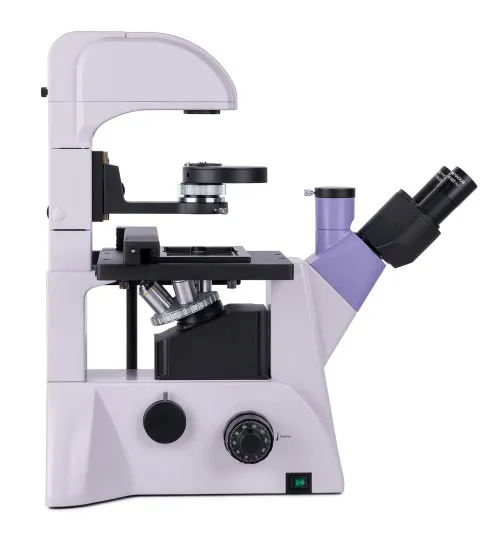

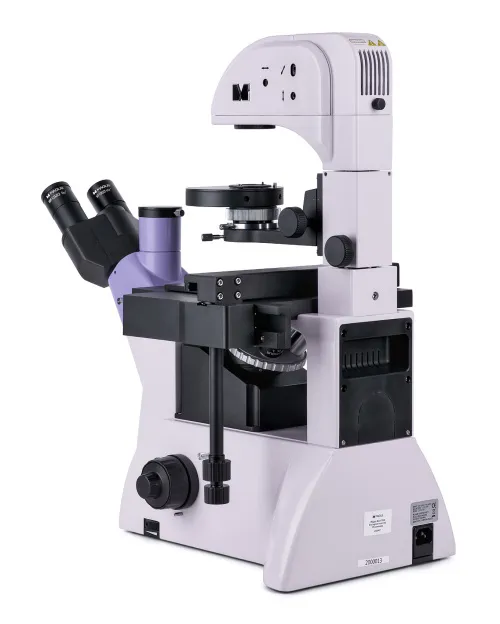

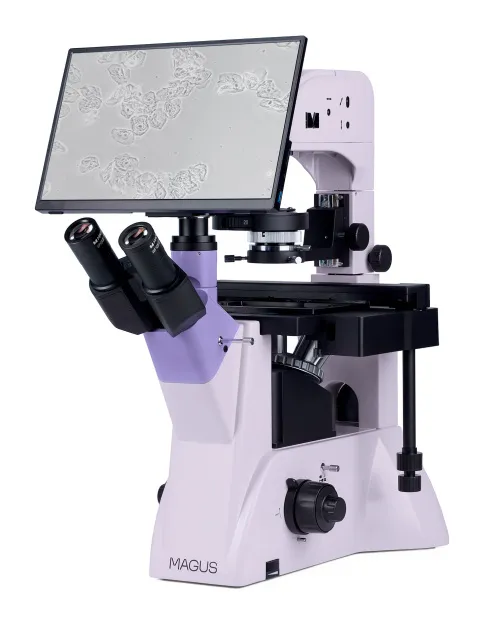

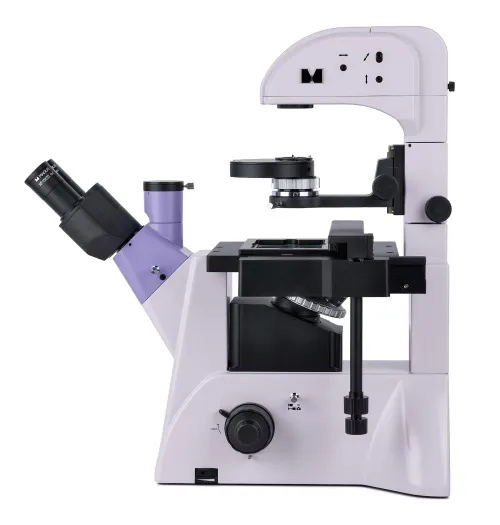

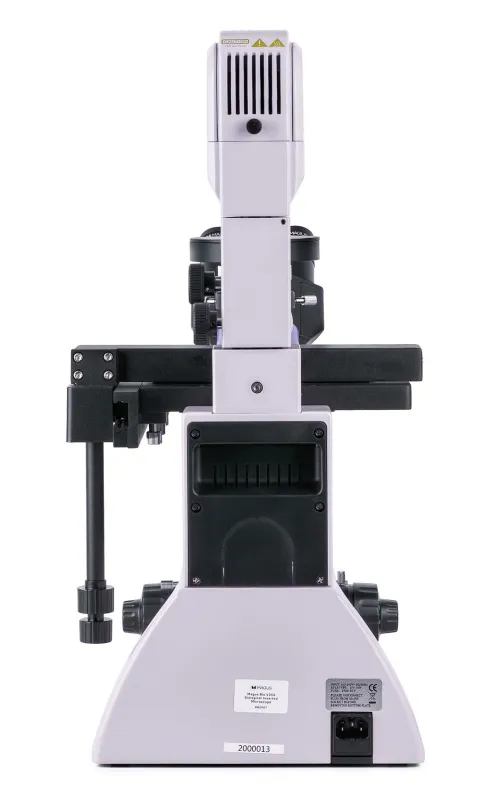

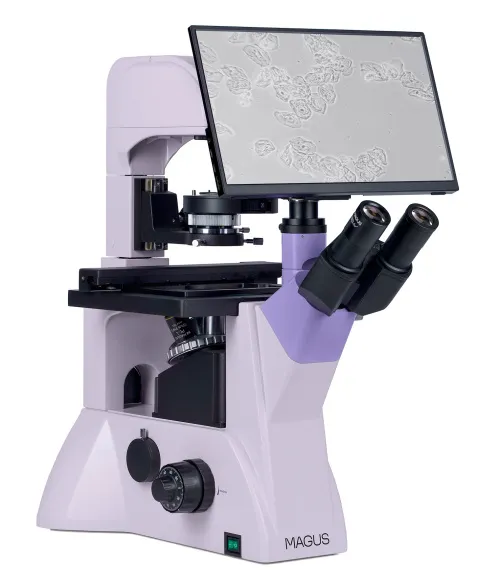

MAGUS Bio VD350 LCD is a biological inverted microscope, which is used for studying stained and unstained samples in laboratory ware – Petri dishes, flasks, plates. The height of the dishes can be 55mm, and if you tilt the illuminator stand – up to 165mm. The bottom thickness of compatible ware is up to 1.2mm. The microscope, which utilizes the brightfield field and phase contrast microscopy techniques in the transmitted light, has a trinocular tube/side port camera for mounting a digital camera and monitor. It is used for routine laboratory and research work as well as teaching.

Digital camera

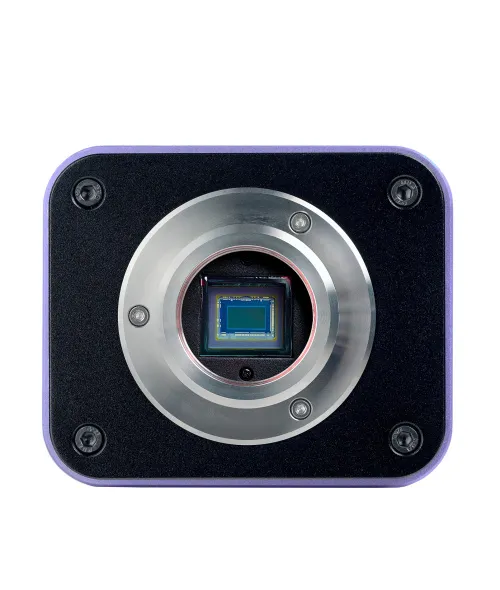

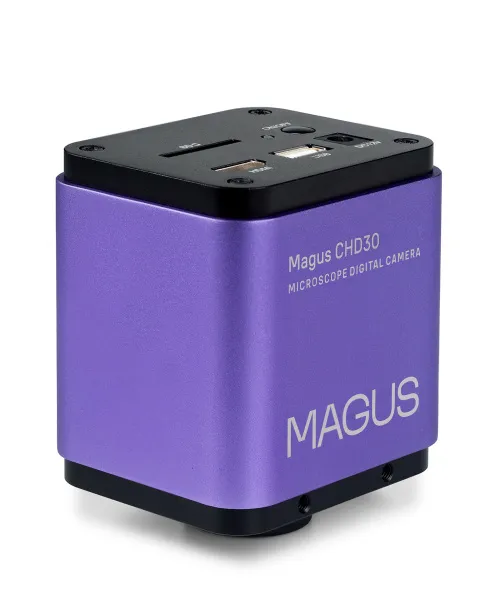

The MAGUS CHD30 digital camera is equipped with a 2MP sensor and produces realistic Full HD images at a resolution of 1920x1080px. The camera features high light sensitivity, auto focus function, and it is suitable for fluorescent observations. The camera uses an HDMI interface to connect directly to a TV, monitor, or projector. In this mode, the camera operates autonomously without a connection to a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. You can connect it to a PC via Wi-Fi. Video is recorded at 60fps or 25fps depending on the video output interface. The camera combines high FPS and high bandwidth HDMI. Therefore, videos are vivid with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.

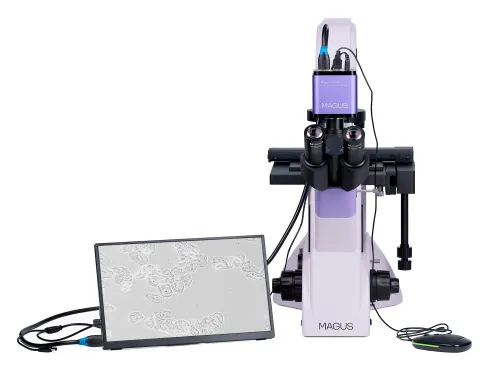

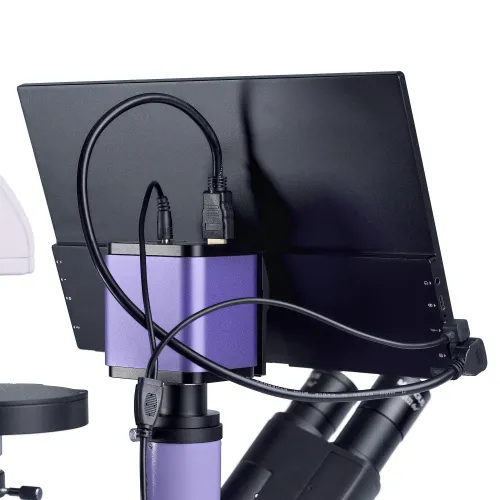

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera occurs via its HDMI interface. The monitor displays real-time images. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. When looking at the screen even from a large angle, the image is not distorted. The screen size is 13.3''.

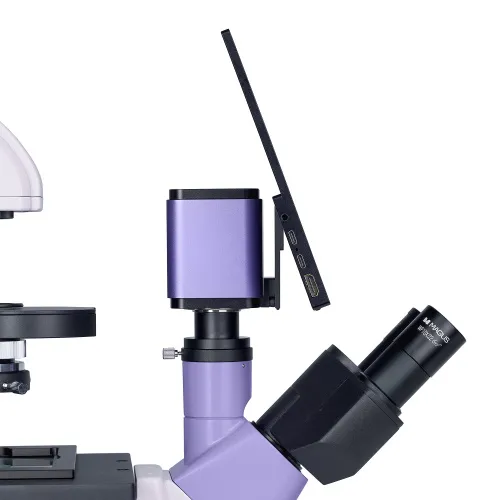

The monitor can be installed on a horizontal surface using a folding stand or mounted directly on a camera or tripod.

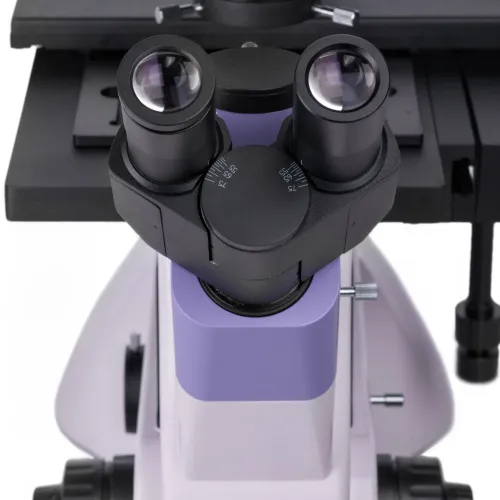

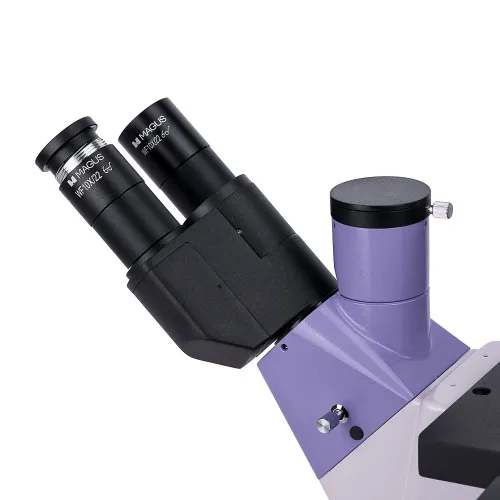

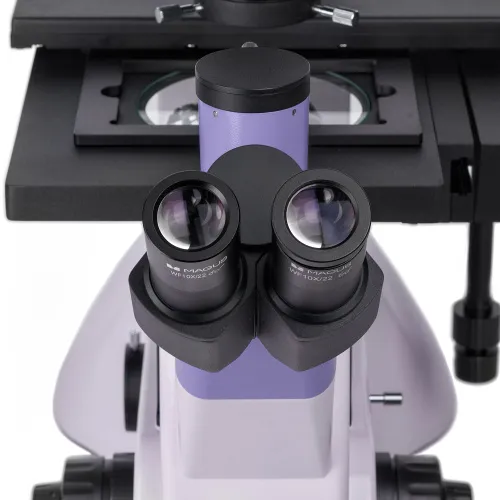

When assembling the microscope, you can select the position of the trinocular head: It can be rotated 180° to adjust the height of the exit pupil. Use the vertical tube to mount the monitor and the side port on the microscope body to mount a digital camera. The beam splitting on the body is 100/0 or 0/100 as well as 50/50 on the trinocular tube (when it is open) or 100/0 (when it is closed).

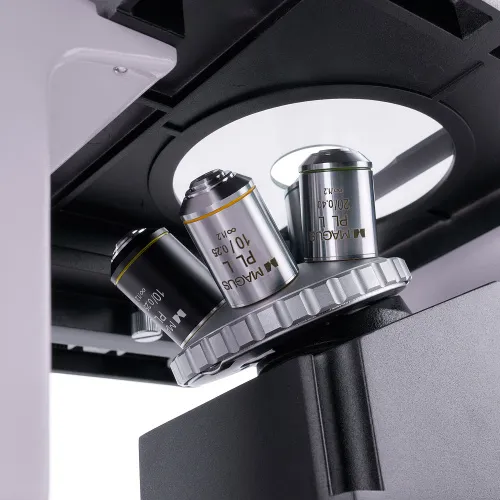

Four infinity plan achromatic objectives are included, one of which is a phase objective. Once four of them are installed in the revolving nosepiece, one slot is left free for an additional objective.

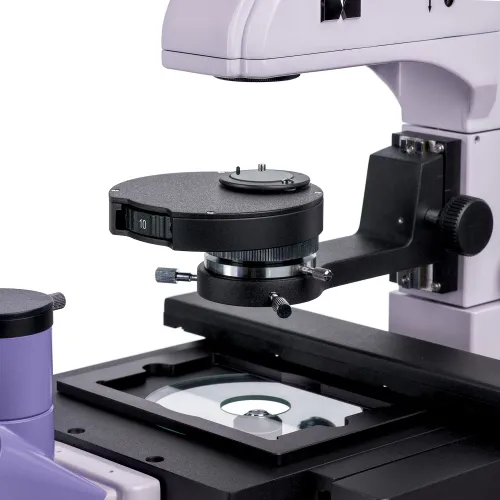

The phase-contrast condenser enables easy and convenient switching between microscopy techniques. It has four working positions: a free aperture for the brightfield technique as well as 10x, 20x, and 40x apertures for phase contrast using a suitable magnification objective.

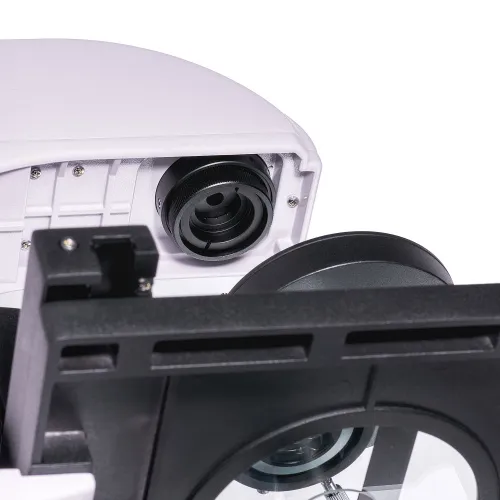

The transmitted light source is a 30W halogen bulb that emits light of the color temperature that allows for comfortable work. It is brightness adjustable and is AC powered. The illumination system offers the use of the Köhler illumination to enhance image quality.

Stage and focusing mechanism

Four dish holders for the stage are included. They can be moved along the X and Y axes using a mechanical attachment, while the stage itself remains stationary. The holders are designed to hold labware of various sizes.

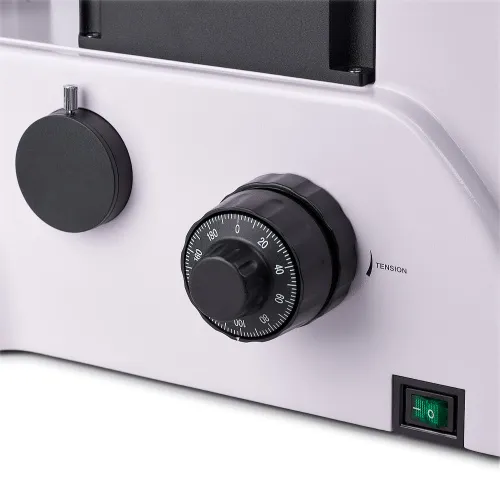

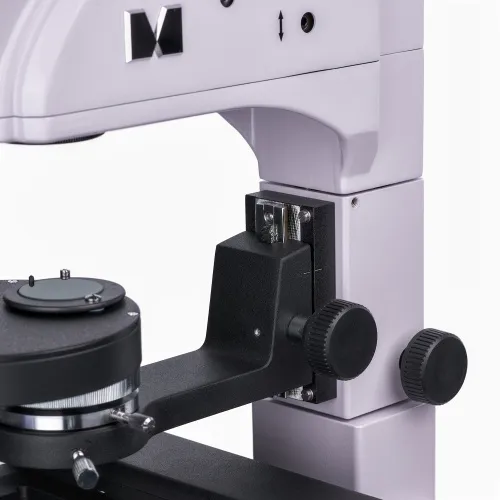

The focusing mechanism runs smoothly. The coarse focusing mechanism has a lock knob and tension adjustment. Fine focusing scale value: 2μm. The knobs are located at the base of the microscope so you can keep your hands in a more relaxed position while working.


There are additional eyepieces, phase objectives, digital cameras, and calibration slides for the microscope to maximize the capabilities of the microscope.

Key features of the microscope:

  • For viewing samples in laboratory ware up to 55mm high and a bottom thickness up to 1.2mm

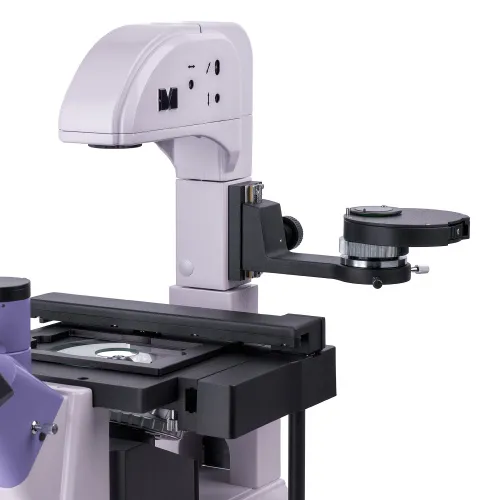

  • If the illuminator stand is tilted, you can use dishes up to 165mm high
  • Brightfield and phase-contrast techniques; phase-contrast condenser with a field diaphragm
  • Stage with 4 dish holders of different sizes; mechanical attachment for moving the sample along two horizontal axes
  • The microscope head rotates at 180°
  • Two options for camera and monitor mounting: in the vertical tube and on the microscope body
  • Transmitted light source – 30W halogen lamp powered by an AC power supply
  • A wide range of optional accessories

Key features of the camera:

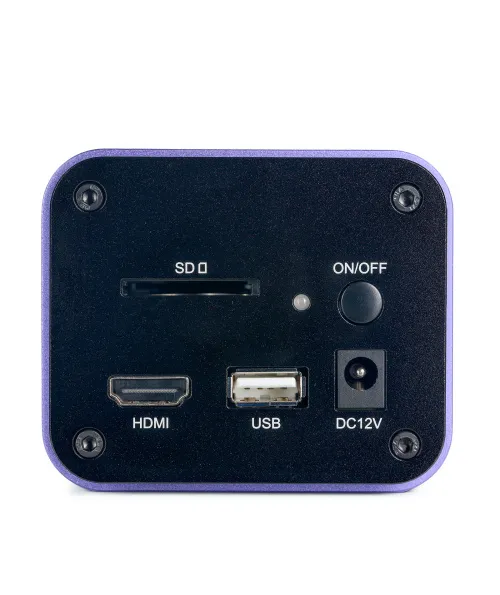

  • The camera operates autonomously without a connection to a PC via the HDMI interface. It can be connected to a PC via USB2.0 interface
  • The auto focus in HDMI mode makes it easier to adjust image sharpness
  • The camera resolution is 1920x1080px – an ideal choice for displaying images on a Full HD monitor
  • 60fps for observing moving objects, recording video and moving the preparation without jerkiness or delays
  • 25fps via Wi-Fi – enough for focus adjustment and image processing using the software
  • SONY color CMOS sensor – low noise level and high light sensitivity
  • Software with photo, video recording, editing, external display functions, linear and angular measurements

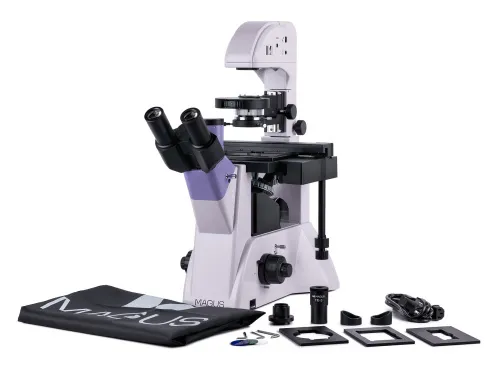

The kit includes:

  • MAGUS CHD30 Digital Camera (digital camera, HDMI cable (1.5m), USB mouse, 32GB SD memory card, USB Wi-Fi adapter, AC power adapter 12V/1A (Euro), installation CD with drivers and software, user manual and warranty card) MAGUS MCD20 LCD Monitor
  • Stand with the built-in power supply, transmitted light source, focusing mechanism, stage, condenser mount, revolving nosepiece, and trinocular tube
  • Phase-contrast condenser
  • Trinocular head
  • Infinity plan achromatic objective: PHP2 10x/0.25 phase WD 4.27mm
  • Infinity plan achromatic objective: PL 10x/0.25 WD 4.27mm
  • Infinity plan achromatic objective: PL 20x/0.40 WD 8.0mm
  • Infinity plan achromatic objective: PL 40x/0.60 WD 3.5mm
  • Eyepiece 10x/22mm with long eye relief (2 pcs.)
  • Eyecup (2 pcs.)
  • Centering telescope
  • Round stage plate
  • Mechanical attachment for moving the specimen
  • Dish holder (4 pcs.)
  • C-mount camera adapter
  • Color filter
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL 4x/0.10 WD 21mm
  • Infinity plan achromatic objective: PHP2 20x/0.40 phase WD 8.0mm
  • Infinity plan achromatic objective: PHP2 40x/0.60 phase WD 3.5mm
  • Calibration slide
  • LCD Monitor
Product ID 83015
Warranty 5 years
EAN 5905555018133
Package size (LxWxH) 19.3x13.4x28.7 in
Shipping Weight 49.1 lb
Type biological, light/optical, digital
Head trinocular
Nozzle Siedentopf, rotatable 180°
Head inclination angle 45 °
Magnification, x 100–400 basic configuration (*optional: 40–500/600/800/1000)
Eyepiece tube diameter, in 1.2
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: PL 10x/0.25, PL 20x/0.40, PL 40x/0.60, PHP2 10x/0.25 phase; parfocal distance 45mm (*optional: PL 4x/0.10, PHP2 20x/0.40 phase, PHP2 40x/0.60 phase)
Revolving nosepiece for 5 objectives
Working distance, mm 4,27 (10x); 8,0 (20х); 3,5 (40x)
Interpupillary distance, in 1.9 — 3
Stage, mm 227x208
Stage moving range, mm 77/114
Stage features fixed, with glass plate Ø118mm and mechanical attachment; dish holders: 86x129.5, Ø90mm; 34x77.5mm, Ø68.5mm; 57x82mm, Ø60mm; 29x77.5mm, Ø35mm
Condenser NA 0.6, working distance: 55mm; phase contrast turret
Diaphragm adjustable aperture diaphragm, adjustable iris field diaphragm
Focus coaxial, coarse (with coarse focusing tension adjustment and a lock knob), and fine (0.002mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 12V/30W
Light filters yes
Operating temperature range, °F 41...+95
Special features phase contrast condenser (turret) with a free slot and phase annuli plates for 10x, 20x and 40x objectives; centering auxiliary microscope
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application laboratory/medical
Illumination location lower
Research method bright field, phase-contrast microscopy
Pouch/case/bag in set dust cover
Camera specifications
Color/monochrome color
Megapixels 2
Maximum resolution, pix 1920x1080
Sensor size 1/1.9" (7.20x4.05mm)
Pixel size, μm 3.75x3.75
Interface connectors Wi-Fi, HDMI 1.4
Memory card SD up to 32GB
Ability to connect additional equipment USB mouse, Wi-Fi adapter (USB)
Wi-Fi settings 802.11n, 150Mbps, 20dBm
Light sensitivity 1120 mV with 1/30 s
Signal/noise ratio 0.15mV at 1/30s
Exposure time 0.06ms–918ms
Video recording
Frame rate, fps at resolution 60@1920x1080 (HDMI), 25@1920x1080 (Wi-Fi)
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg
Video format *.asf
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
Software HDMI: built-in; USB: MAGUS View
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 4GB RAM, USB2.0 port, RJ45, CD-ROM, 19" or larger display
Mount type C-mount
Body CNC aluminum alloy
Camera power supply DC adapter 12V, 1A
Camera operating temperature range, °F -10...+50
Operating humidity range, % 30 — 80
Monitor specifications
Type of matrix IPS
Display diagonal, inch 13.3
Display resolution, px 1920x1080 (Full HD)
Aspect ratio 16:9
Brightness, cd/m² 400
Number of displayed colors 16.7 m
Contrast 1000:1
Horizontal/vertical viewing angle, ° 178/178
Size of the visible screen area (WxH), mm 295x165
Pixel pitch (WxH), mm 0.154x0.154
Frequency of optical source, Hz 60
Type of matrix backlight LED
LED backlight lifetime, h 50000
Interface HDMI
Operating temperature range, °F 5...+131
Operating temperature range, °F 5...+131
Operating humidity range, % 10 — 90
Power supply AC 110–220V, DC 5–12V/1A (Type-C)
Power consumption, W 12 (max.)
